All-O-Matic SW-Series Swing Operators
All-O-Matic SW-Series swing gate operators are heavy-duty 120 VAC and 24 VDC brushless openers for commercial, industrial and high-traffic swing gates.
About All-O-Matic SW-Series Swing Operators
Heavy swing gates at busy sites need an operator built for constant use. The All-O-Matic SW series runs a continuous duty cycle through a 60:1 gearbox, operates from -40 to 160 F, and is listed as UL 325 (2018) compliant.
The SW-300 AC is a 1/2 HP, 120 VAC operator for gates up to 20 ft and 800 lb, opening in 17 seconds, with a torque limiter and solid aluminum hub. The SW-350DC PRO steps up to gates up to 22 ft and 2,000 lb at 1/2 HP or 2,500 lb at 1 HP, using a 24 VDC brushless motor with adjustable 17 to 25 second opening. It adds solar capability, a foot pedal release, a built-in loop rack and battery backup for up to 250 cycles.
Warranty is 7 years residential and 5 years commercial with registration. For a quote, send gate size, weight, power source and accessories.
Colors, sizes and specifications
Models
- SW-350DC PRO (1/2 HP and 1 HP)
- SW-300DC PRO, SW-320DC PRO, SW-325DC PRO, SW-375DC PRO
Features
- 1/2 HP rated to 2,000 lbs; 1 HP to 2,500 lbs
- Max gate length 22 ft
- Built-in loop rack
- Foot pedal release
- Integrated battery backup
- Solar capable
- Programmable relay, leaf delay, slow start/stop
Specifications
| Motor | 24 VDC brushless, 1/2 or 1 HP |
|---|---|
| Gate speed | 17 to 25 sec per 90 degrees |
| Power | 115/230 VAC single phase, 24 VDC solar |
| Duty cycle | Continuous |
| Battery | Two 7Ah 12VDC, up to 250 cycles |
| Temperature range | -40 to 160 F |
| Gearbox | 60:1 with internal clutch |
| Dimensions (W x L x H) | 14 x 24 x 18 in |
| Shipping weight | 190 lbs (1/2 HP) or 205 lbs (1 HP) plus 35 lb arm |
| Breaker | 20 amp dedicated |
Accessories and works with
- AOM-RED EYE 2
- Chains
- Fire boxes
- Gooseneck posts
- Guide rollers
- Hinges
- IK-3 idler kits
- Inverter APS
- Loop detectors
- Mag lock
- Pad and post mount
- Pedestals
- Tandem kit
- Wheels
- WiSe wireless kit
Best for
- Heavy-traffic sites
- Commercial and industrial heavy gates
- Extreme weather
- Solar-powered installations
Installation notes
- 20 amp dedicated breaker required.
Warranty
7 years residential, 5 years commercial; register within 30 days or 1-year parts warranty applies.
Good to know
Other SW models (SW-300DC PRO, SW-320DC PRO, SW-325DC PRO, SW-375DC PRO) are also available; we confirm specs when we quote.
Documents

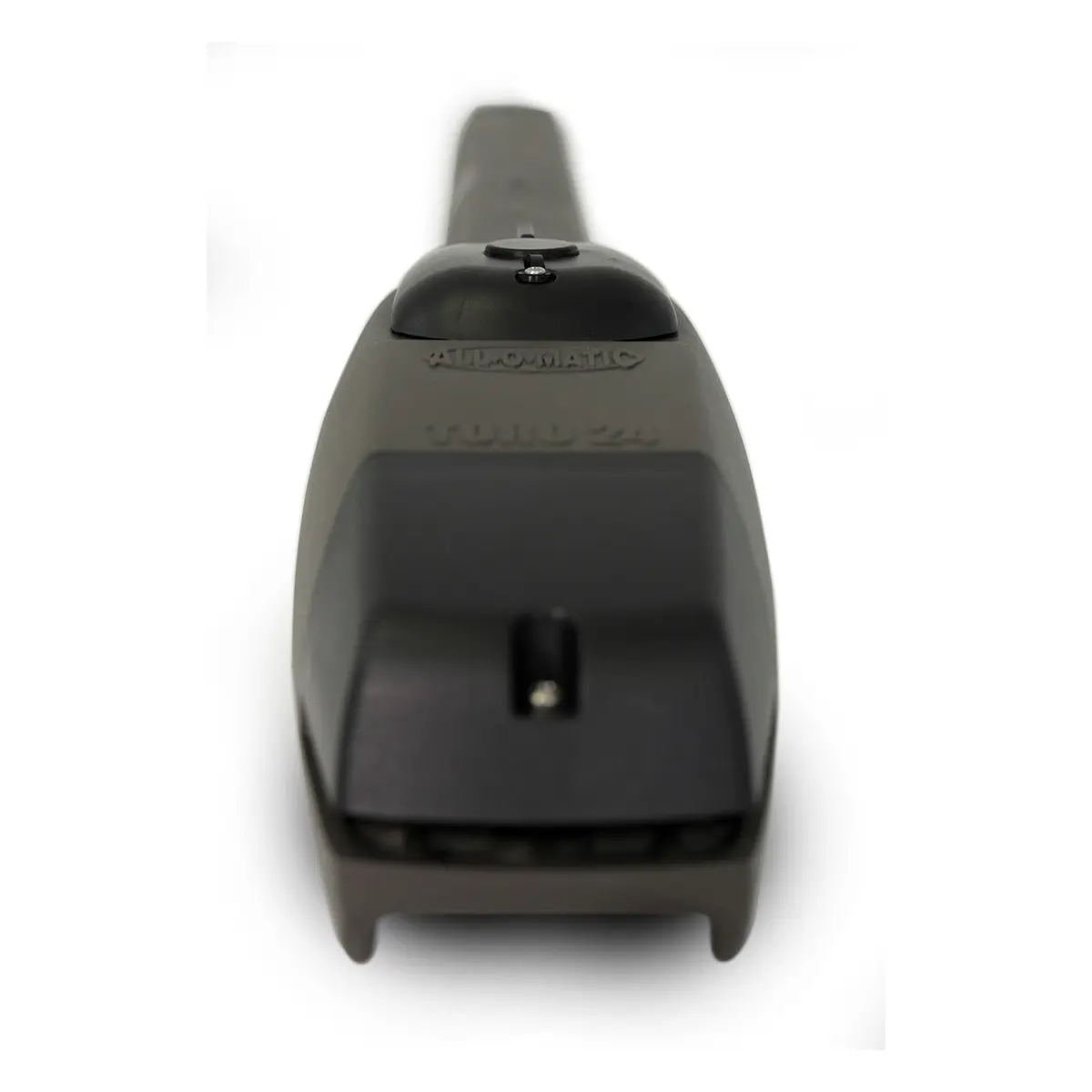

All-O-Matic SW-Series Swing Operators photos
