Ameristar ATLAS M30 / M50 Bollards
Ameristar ATLAS M30 and M50 are shallow-mount anti-ram security bollards for perimeter vehicle protection on sites where deep excavation is not practical.
About Ameristar ATLAS M30 / M50 Bollards
The ATLAS M30 is a patented shallow-mount bollard system with a DOS K4 (ASTM M30/P1) crash rating, 15,000 lb at 30 mph, tested as a five-bollard array. Its 9 in foundation depth and 6 to 10 in total excavation make it a fit where utilities or slabs limit digging. A companion ATLAS M50 bollard is also offered.
Each bollard stands 40 in high with an 8.625 in diameter. Center spacing is field adjustable from 40.5 to 42.5 in, with an engineered 60 in option. Assemblies ship individually with no field assembly, connectors handle sloped and curving roads, and the system is listed as Buy American Act compliant. Decorative sleeves and reflective banding are available.
Coverage follows Ameristar's Anti-Ram Barriers and Bollards Limited Warranty. For a quote, send the run length, rating and site drawings.
Colors, sizes and specifications
Sizes and configurations
- Height 40 in
- Diameter 8.625 in
- Foundation depth 9 in
- Center spacing 40.5 to 42.5 in (field adjustable); engineered spacing 60 in
- Clearance 32 to 34 in; engineered clearance 51.35 in
Models
- ATLAS M30
Features
- Buy American Act compliant
- Ultra shallow mount, 6 to 10 in total excavation
- Decorative sleeves, custom sleeves and reflective banding available
Specifications
| Crash rating | US DOS K4, equivalent to ASTM M30/P1 (15,000 lb vehicle at 30 mph), tested as 5-bollard array |
|---|
Accessories and works with
- Decorative sleeves
- Reflective banding
Warranty
Anti-Ram Barriers and Bollards Limited Warranty: defects in material and workmanship for 1 year from substantial completion or 1.5 years from shipment, and in no event beyond 18 months from shipment (revised 10/15/2024).
Good to know
We confirm M50 specifications when we quote.

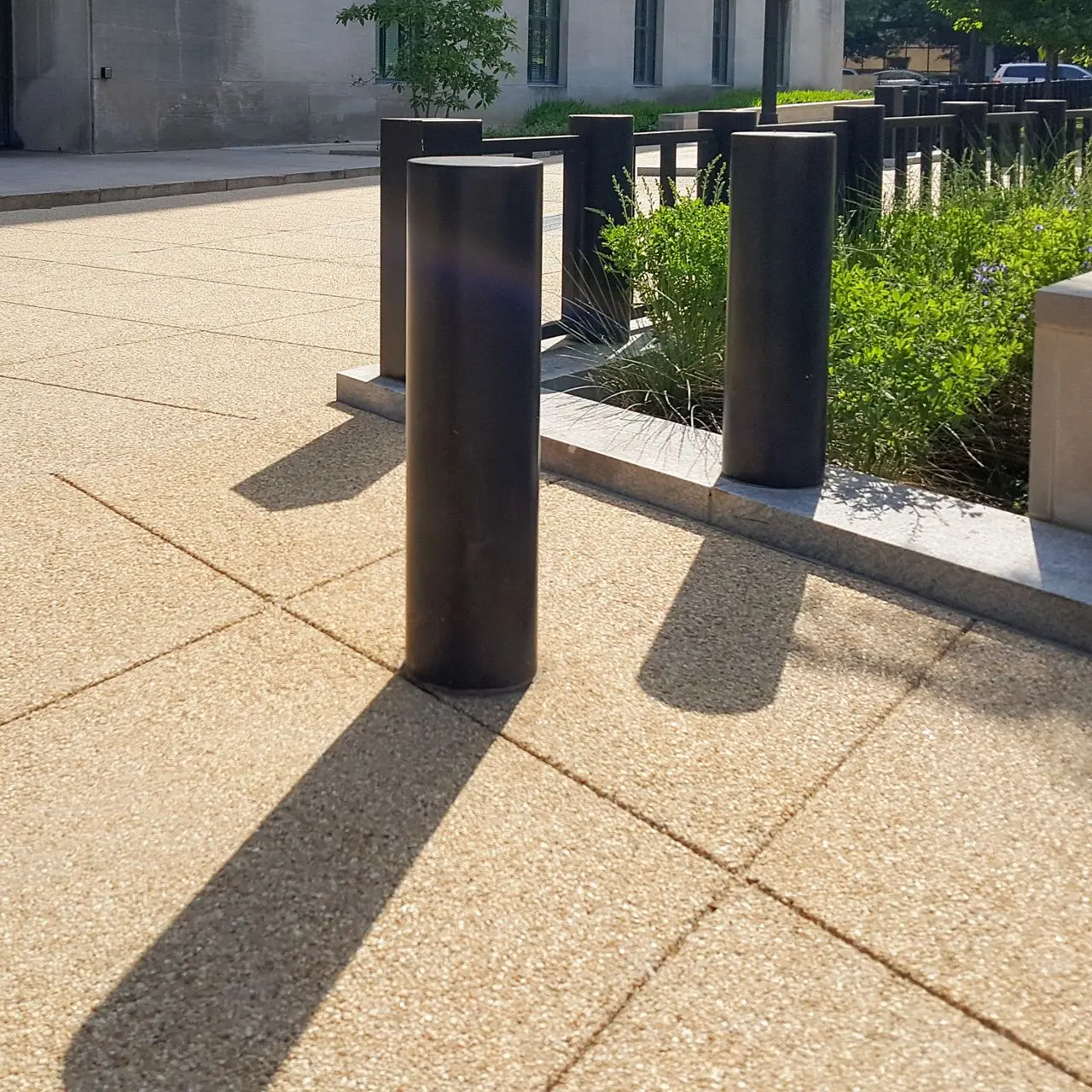

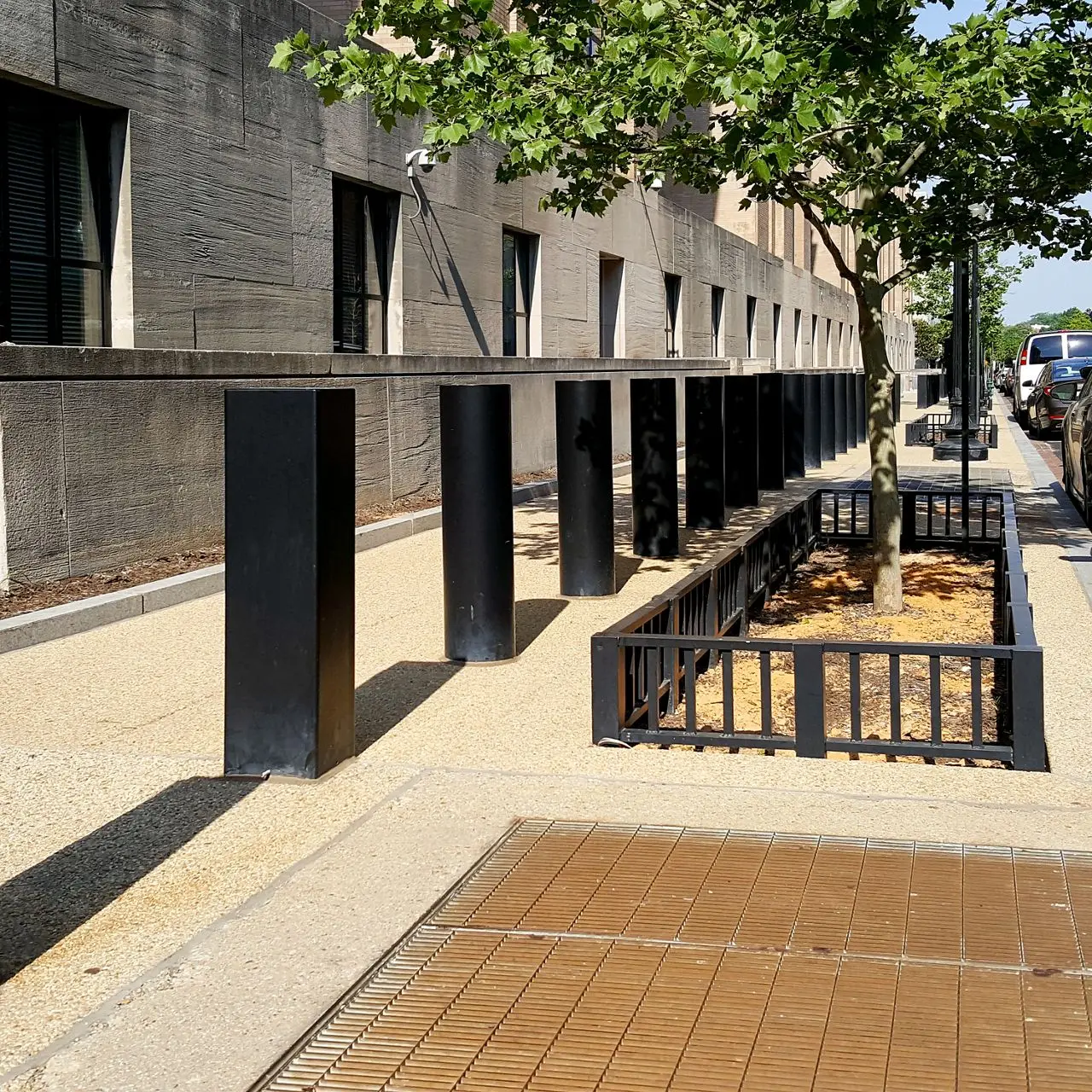

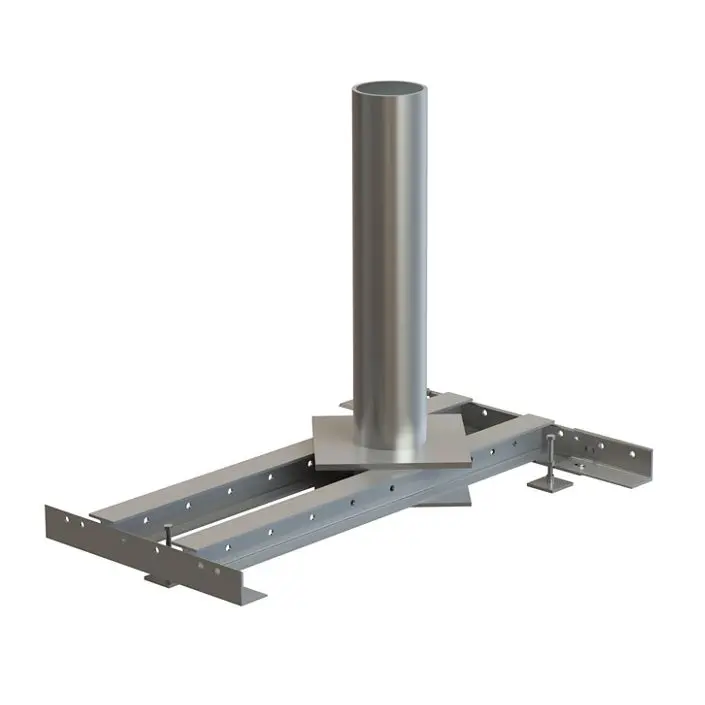

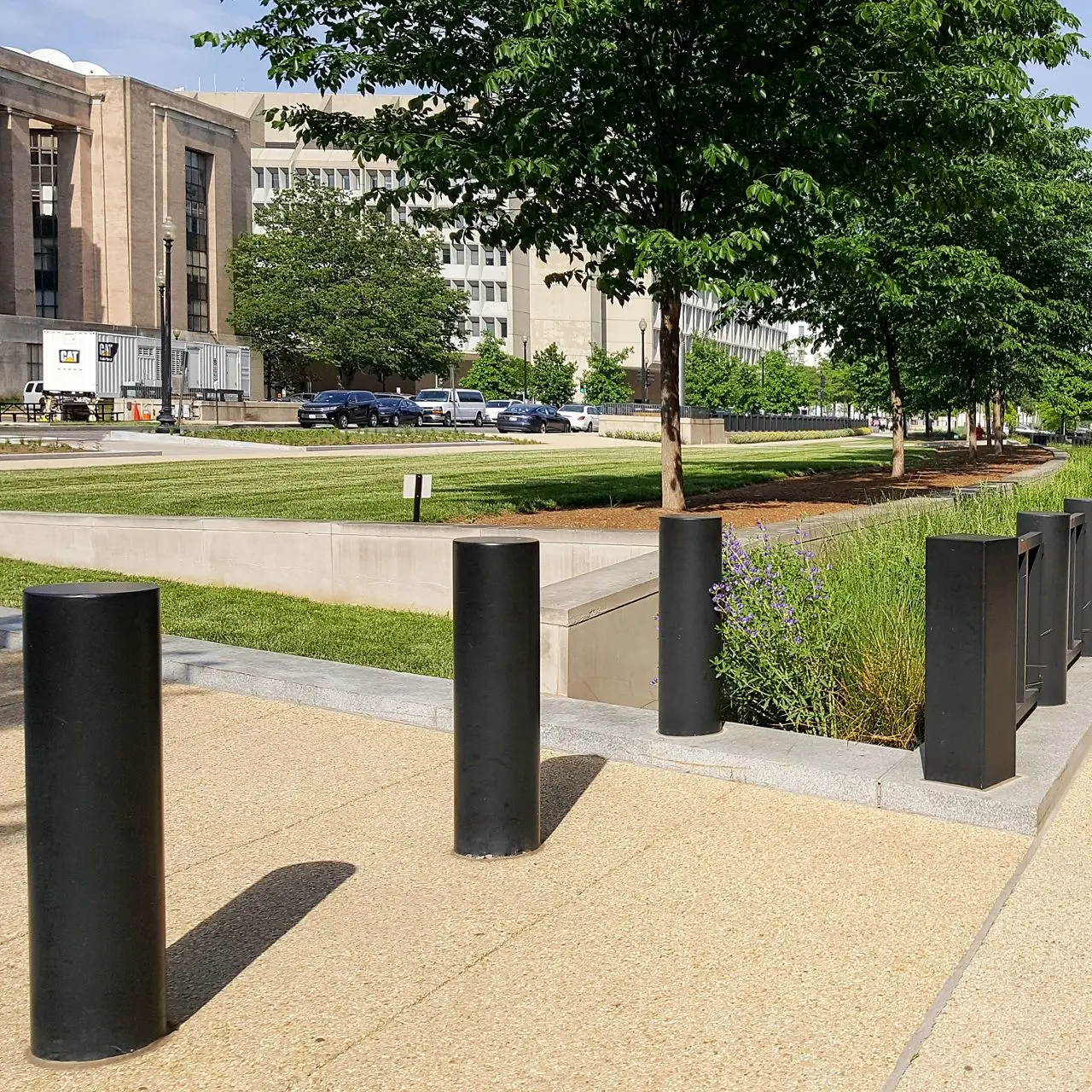

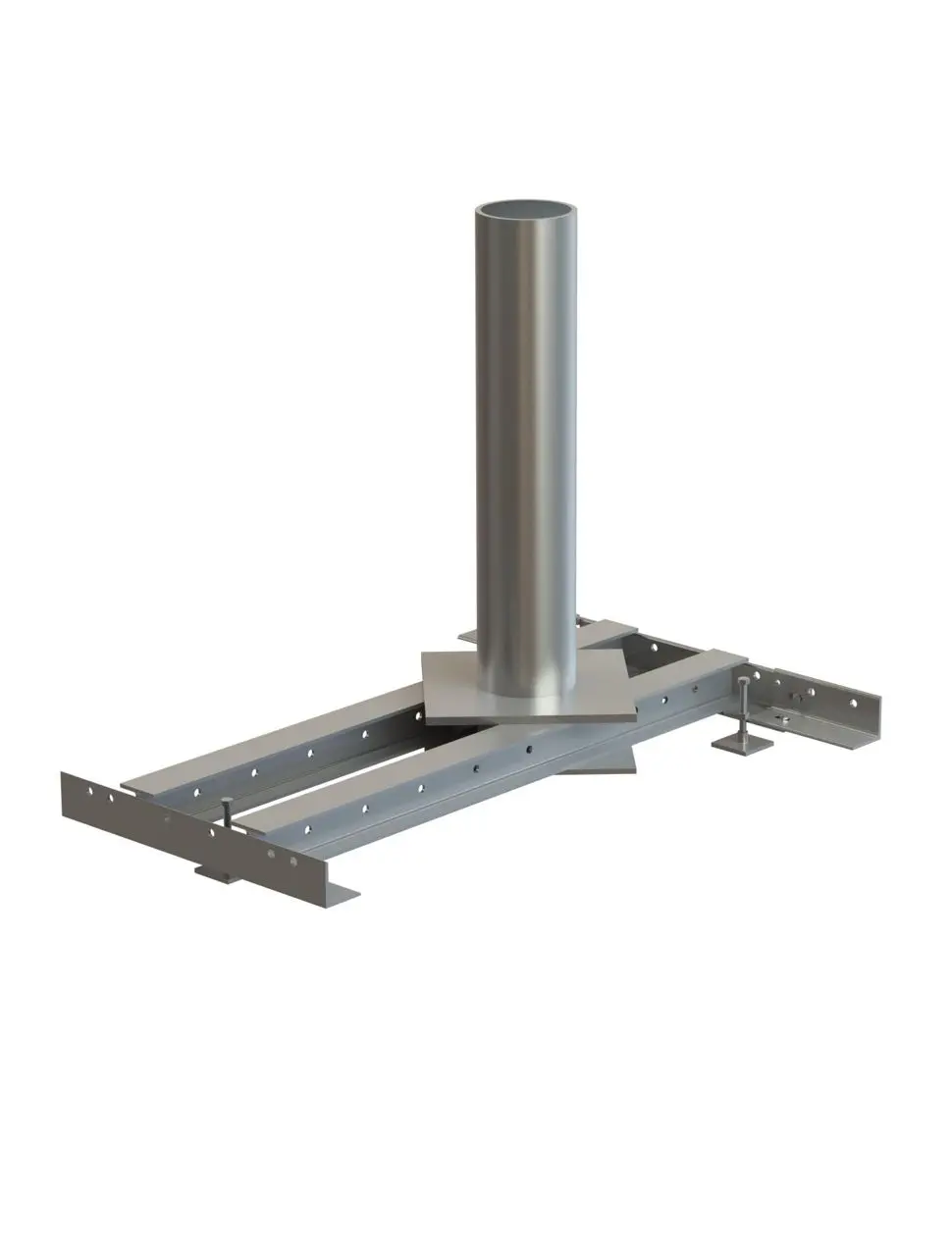

Ameristar ATLAS M30 / M50 Bollards photos
