Exodus Pedestrian Egress Gate
The Ameristar Exodus Pedestrian Egress Gate is a pre-hung 7 ft security gate with panic exit hardware for schools, stadiums, utilities, data centers and assisted living.
About Exodus Pedestrian Egress Gate
Exodus ships pre-assembled and pre-hung with panic exit hardware already installed, and Ameristar states it meets IBC Group I-2 egress requirements. It comes in single swing or double swing with a removable mullion, in Matrix and Alpha gate variants, at 7 ft high, and Ameristar says a single swing can be set in as little as 15 minutes.
The gate uses a 3 in jamb frame and a 1.75 in reinforced gate frame, with non-removable pins and power transfer components. Six infill options include perforated, X-Span, picket and Impasse pale with expanded or perforated metal. Hardware sets are mechanical keyed, electrified or automatic opener, and the optional opener is described by Ameristar as ADA/ANSI designed. The finish carries a 3-year limited warranty.
For a quote, send single or double swing, infill, hardware set, opening count and the fence system it joins.
Colors, sizes and specifications
Sizes and configurations
- Height 7 ft
- 3 in jamb frame
- 1.75 in reinforced gate
Models
- Single swing
- Double swing (removable mullion)
- Matrix and Alpha gate variants
- Automatic opener configuration
Features
- Pre-installed panic exit device hardware set
- Impasse pale 2.75 in wide 14 ga; spacing 3.25 in standard or 1.5 in anti-scale
- Standards listed: ADA, ANSI/UL 325, ANSI/BHMA A156.19-2019, ANSI A117.1, NFPA 101, IBC Group I-2, CBC options
- Automatic opener ships pre-hung; single swing installs in as little as 15 minutes
Specifications
| Infill options | Perforated metal; X-Span; 1 in picket with expanded or perforated metal; Impasse pale; anti-scale Impasse pale |
|---|---|
| Exit devices | Detex V40/A40, Von Duprin 99 Series |
| Closers | Norton 7500, LCN 4040XPSRI |
| Opener | Torxun Autoped |
Accessories and works with
- Mechanical keyed and electrified trim hardware kits
- Automatic opener
- Exit devices, trim handles and closers
Best for
- K-12 schools
- Higher education
- Daycare
- Stadiums and arenas
- Municipal
- Data centers
- Power utilities
- Apartments
- Assisted living
Installation notes
- Gate installation guide and automatic opener wiring instructions available as PDFs
Warranty
3-year limited warranty on the finish.
Good to know

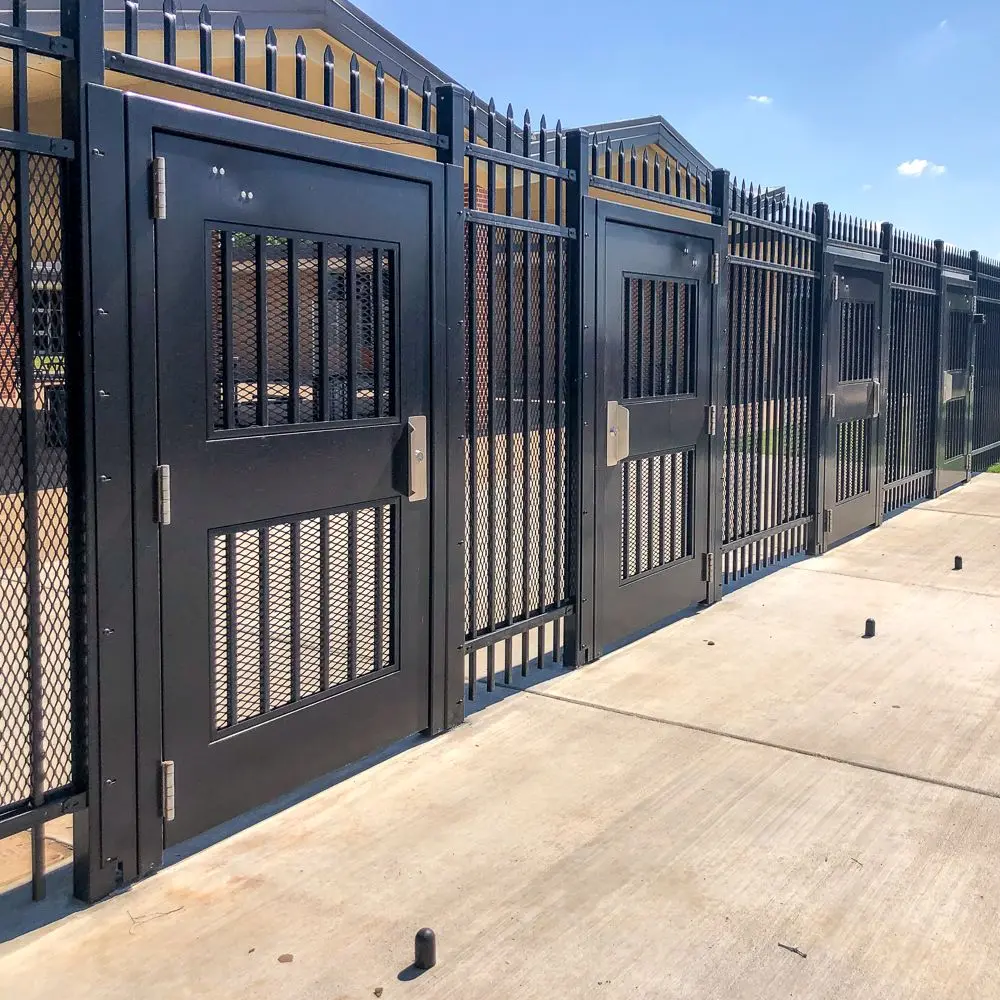

Exodus Pedestrian Egress Gate photos
