Ameristar M530 & M550 Barrier Arms
Ameristar M530 and M550 are crash-rated drop-arm barriers that control entry traffic and provide anti-ram protection, rated M30/P1 and K12/L3 by Ameristar.
About Ameristar M530 & M550 Barrier Arms
At a guarded entrance, a drop-arm barrier can do two jobs: manage everyday traffic and stop a vehicle that tries to force its way in. Ameristar rates the M530 at M30/P1 and the M550 at K12/L3.
The aluminum arm carries white and yellow reflective striping, and the housing and receiver are galvanized and painted yellow, with custom colors available. A 1 HP motor with brake drives the arm, and a dual channel loop detector is included. Standard arm lengths of 10, 14, 16, 18 and 20 ft are not crash tested. Crash-tested M530 designs come in 22 ft with no excavation across the roadway and 12 ft with shallow excavation.
Options include an integrated traffic light, strobe with audible alarm, battery backup and circuit protection. For a quote, send the model, opening width, arm length, accessories and site drawings.
Colors, sizes and specifications
Colors and finishes
- Aluminum arm with white and yellow reflective striping; galvanized and yellow-painted housing
- Custom colors available
Sizes and configurations
- Standard arm lengths 10, 14, 16, 18, 20 ft (not crash tested)
- M530 arm height 2 ft 8 in; M550 2 ft 6 in
- M530 tested at 12 ft and 22 ft; M550 tested at 12 ft and 18 ft
Models
- M530 (M30/P1, F2656-15)
- M550 (K12/L3)
Features
- 1 HP motor with brake
- Dual channel loop detector
- Shallow mount available
- Master or remote control panel (pushbutton or touchscreen), radio controls
Specifications
| M530 12 ft install | 36 in bury, 60 x 60 in foundation per end |
|---|---|
| M530 22 ft install | 12 in bury, 72 in wide foundation |
| M550 install | 36 in bury, 48 in wide foundation |
| M550 length by operator | Electric 12-22 ft; hydraulic 12-28 ft; manual 12-28 ft |
Accessories and works with
- Integrated traffic light with post
- Strobe with audible alarm
- Single channel loop detector module
- Battery backup
- Circuit protection
- Flasher relay
Best for
- Entry point traffic control and anti-ram protection
Warranty
Anti-Ram Barriers and Bollards Limited Warranty: defects in material and workmanship for 1 year from substantial completion or 1.5 years from shipment, and in no event beyond 18 months from shipment (revised 10/15/2024).

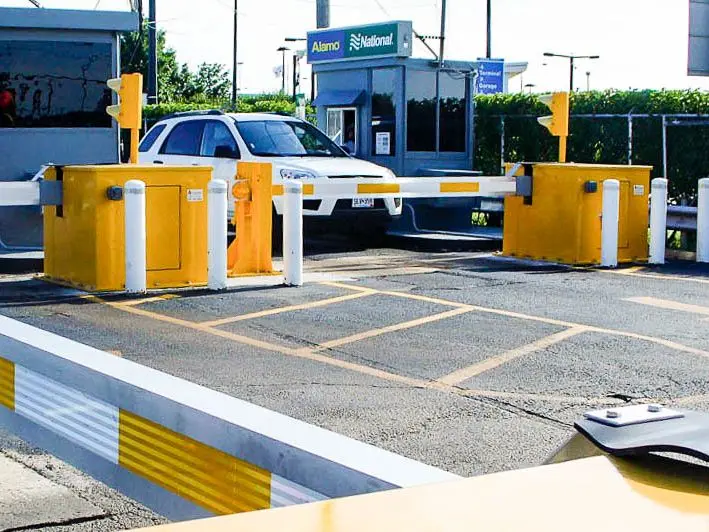

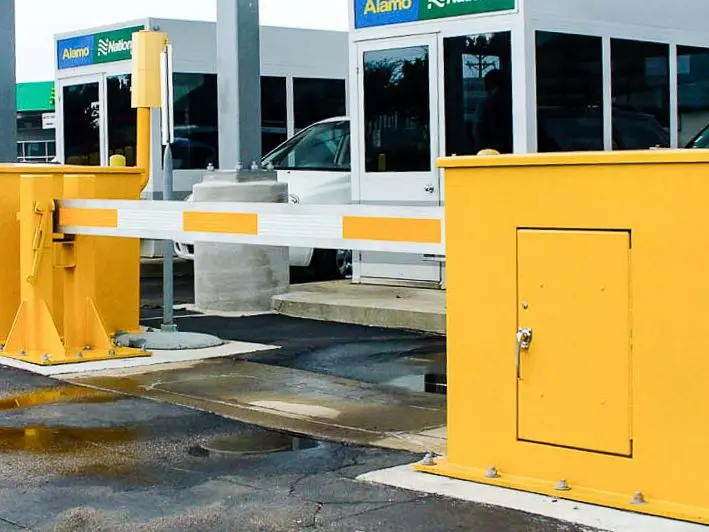

Ameristar M530 & M550 Barrier Arms photos
