Ameristar Sentinel
The Ameristar Sentinel is a shallow-mount M50/K12 wedge barrier with no side pillars that sits flush with the roadway and stops a 15,000 lb truck at 50 mph.
About Ameristar Sentinel

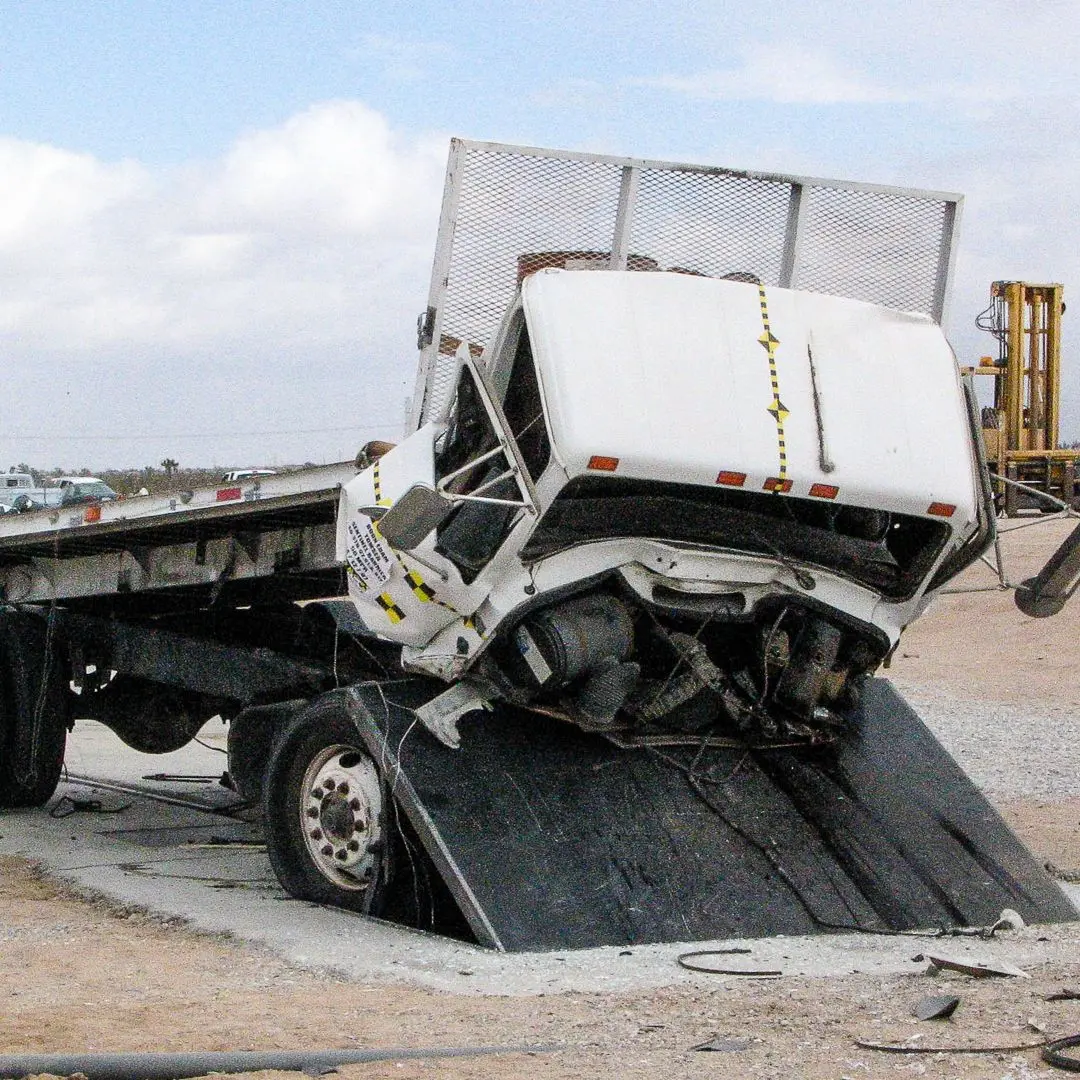

Ameristar rates the Sentinel wedge barrier M50/K12, able to stop a 15,000 lb truck at 50 mph. It sits flush with the roadway and has no side pillars, so the lane looks open when the barrier is down.
The shallow-mount design needs 19 in of excavation in total, 12 in for the barrier and 7 in for the foundation pad. The guard height is 38 in, and the barrier comes in various widths to fit the lane. The hydraulic cylinder is concealed behind a tamper-resistant panel. Finish options are black and yellow stripes or red and white stripes.
Security consultants and facility managers use the Sentinel at entrances where crash protection is needed but deep excavation is not practical. We quote it from the project specification. When you request pricing, send the lane width, number of lanes, stripe color, power and control requirements and the site drawings.
Colors, sizes and specifications
Colors and finishes

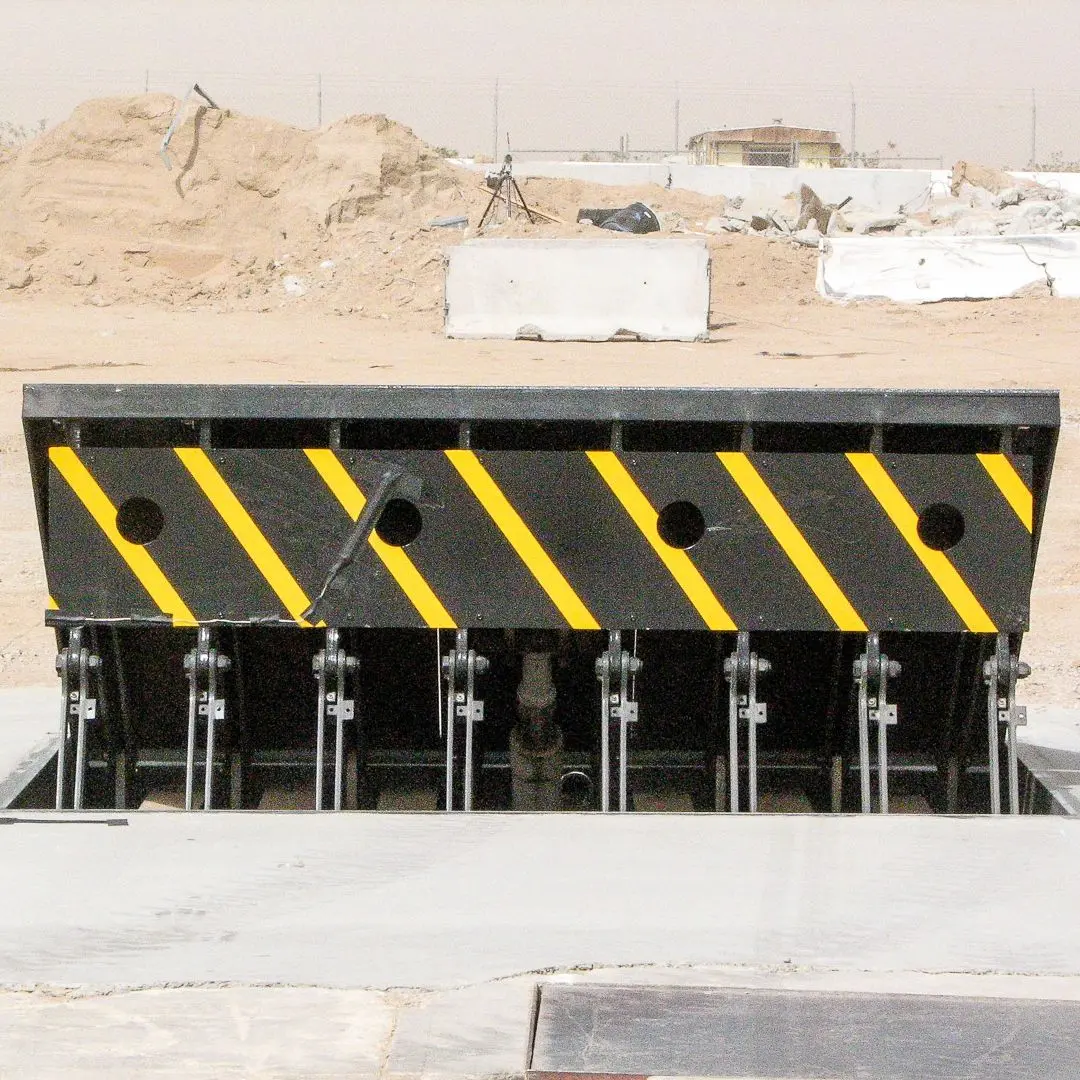

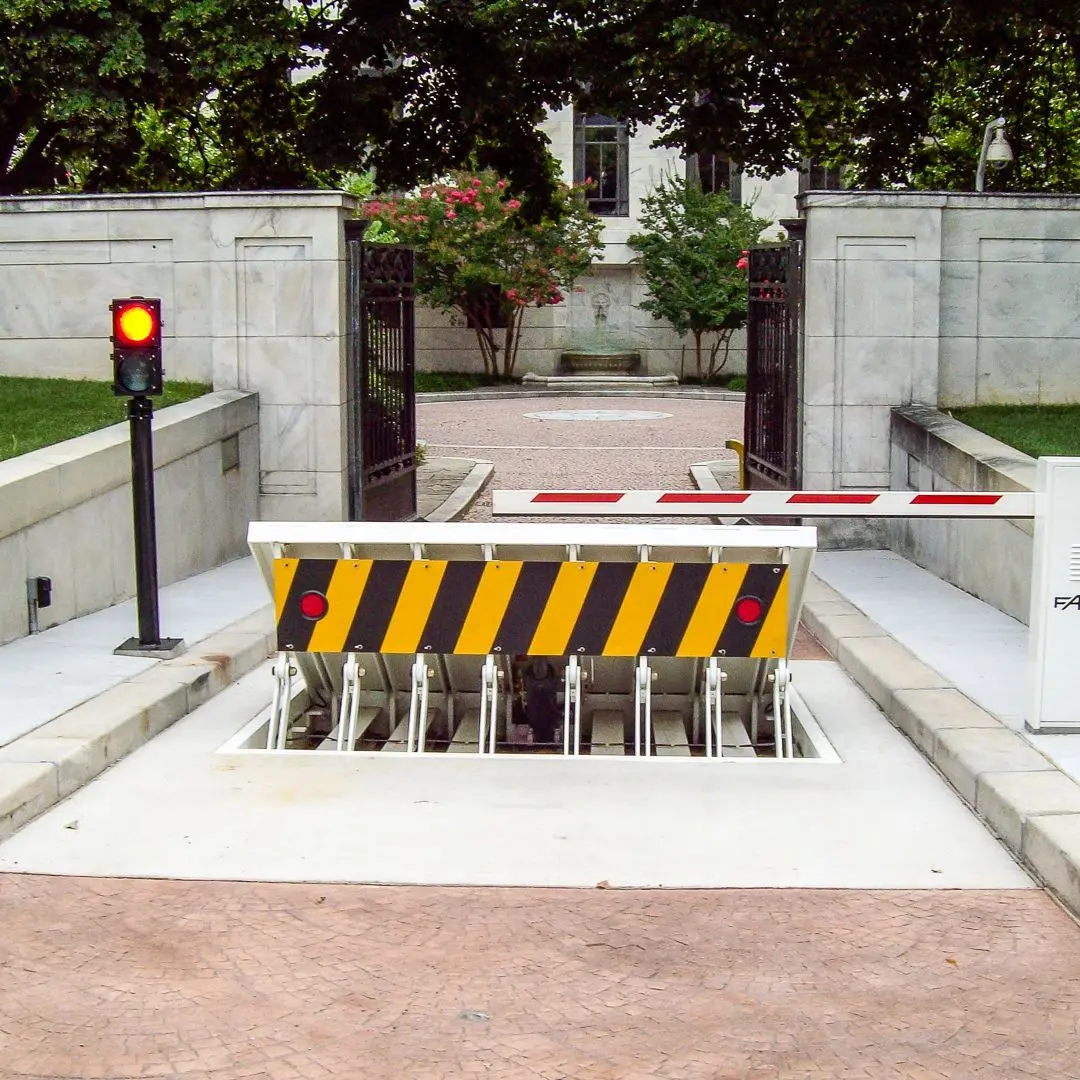

- Black and yellow stripes
- Red and white stripes
Sizes and configurations
- 38 in guard height
- Various widths
Features
- Shallow in-ground, 19 in excavation (12 in barrier plus 7 in foundation pad)
- Hydraulic cylinder hidden behind tamper-resistant panel
Specifications
| Guard height | 38 in |
|---|---|
| Excavation | 19 in (12 in barrier, 7 in foundation pad) |
| Rating | M50/K12 |
Good to know
Available in various widths. Request a quote for sizes, finishes and site-specific configuration.
