CDH Palisade Security Fencing
CDH steel palisade security fencing uses roll-formed pales and I-beam posts in 7 to 10 ft heights for commercial, industrial and high-security perimeters.
About CDH Palisade Security Fencing
CDH palisade security fencing is built from roll-formed steel pales and I-beam posts, in Single Point, Triple Point and Splayed Point pale styles. The steel is high-tensile G90 galvanized with a powder coat, black as standard with special colors available. An anti-climb stab feature sits between pickets, and pales can be set at security air spacing or anti-scale spacing. Security and privacy mesh options add another layer.
Pales are 2-9/16 in wide 14 ga, rails 2.5 x 1-15/16 in 12 ga and 96 in long, and posts are 4-5/8 x 1.75 in 12 ga I-beams. Heights run 7 to 10 ft. Rails, pales and I-beams are pre-punched for height and configuration, and panels are assembled on site. CDH is ISO 9001:2015 certified, meets Buy American Act requirements and meets relevant ornamental security fence ASTM requirements.
For a quote, send the perimeter length, height, pale style, spacing, color, mesh needs and gate sizes. Axiom South supplies the materials, itemizes the order and ships nationwide.
Colors, sizes and specifications
Colors and finishes
- Black (standard)
- Special colors available
Sizes and configurations
- Heights 7, 8, 9 and 10 ft
- Panels 8 ft wide
Models
- Single Point
- Triple Point
- Splayed Point
Features
- Panels assembled on site; rails, pales and I-beams pre-punched for height and configuration
- Anti-climb stab feature between pickets
- Security air spacing or anti-scale spacing
- Security and privacy mesh options
- High-tensile galvanized steel (G90) with powder coat
- ISO 9001:2015 certified; meets Buy American Act requirements; meets relevant ornamental security fence ASTM requirements
Specifications
| Pales | 2-9/16 in wide, 14 gauge |
|---|---|
| Rails | 2-1/2 in x 1-15/16 in x 96 in, 12 gauge |
| I-beam posts | 4-5/8 in x 1-3/4 in, 12 gauge |
| Galvanization | G90 |
Accessories and works with
- Security/privacy mesh
Best for
- Commercial, industrial and high-security perimeters

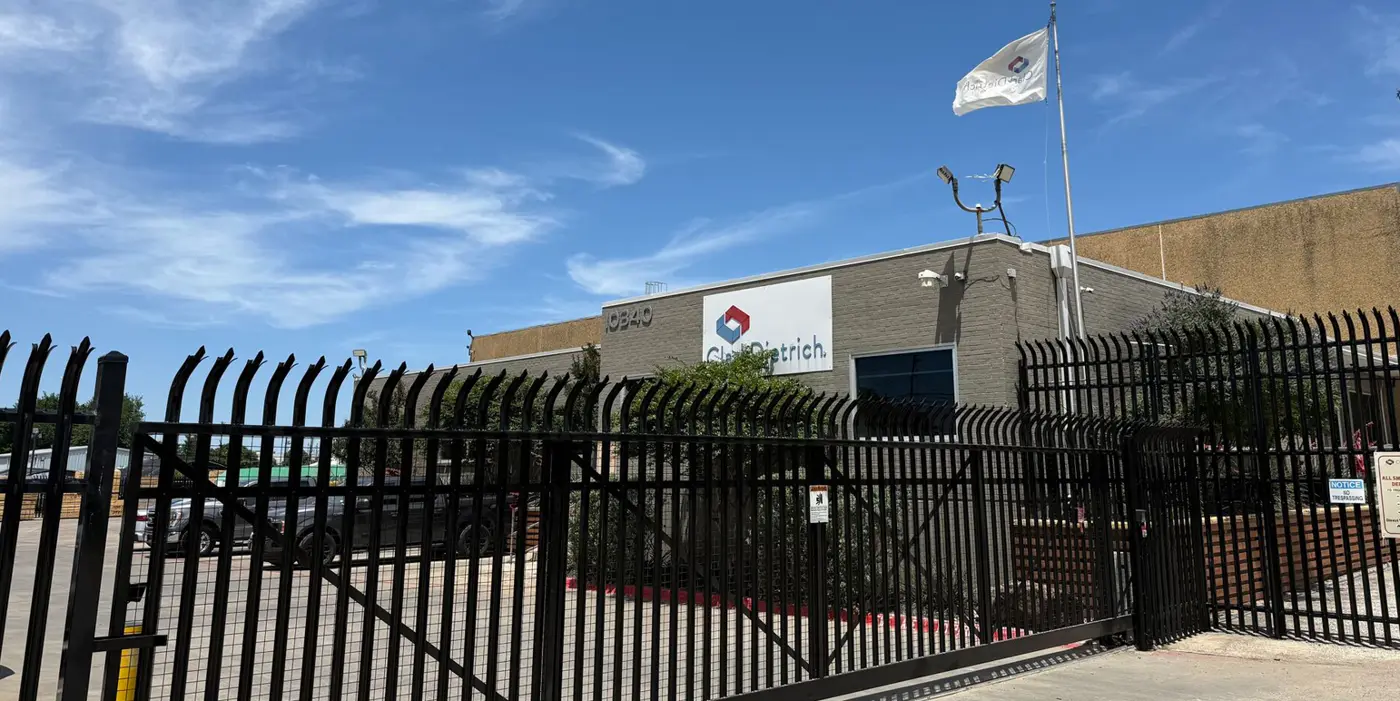

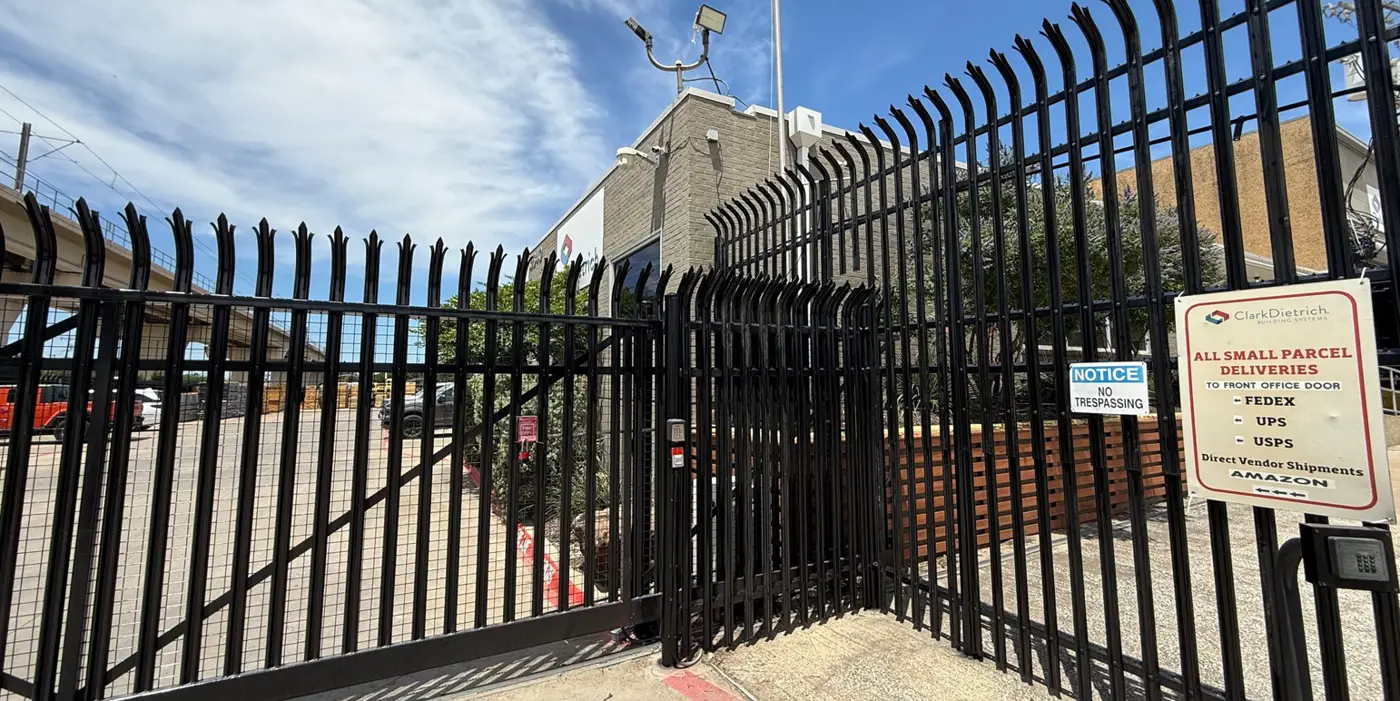

CDH Palisade Security Fencing photos
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Request a quote for CDH Palisade Security Fencing
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
