Designer Aluminum
Envision Designer Aluminum is a slim, powder-coated aluminum railing with a curved top rail, optional drink rail and in-rail lighting, for residential decks and porches.
About Designer Aluminum
Designer Aluminum is Envision's slim-profile aluminum railing with a curved top rail. A two-piece top rail leaves room for LED lighting, and a drink rail option adds a flat surface on top. It is finished in AAMA 2604 powder coat in Matte White, Textured Black or Textured Bronze.
FastFit panels run 3 to 8 feet, and Envision says the FastFit panels and posts install up to 300% faster. Kits include 72 inch level panels with 16 balusters, 96 inch level panels with 22 balusters and 96 inch stair panels with 21 balusters, each at 36 or 42 inch rail heights. Posts are 3 x 3 inches with 4 x 4 inch sleeves and threaded levelers in the base. Infill choices include square aluminum, woven mesh, horizontal cable, 4 inch glass slats and horizontal balusters.
Envision covers it with a 15-year limited warranty. To quote, send color, infill, height, linear feet, stair runs, posts, and any gates, lighting or ADA handrail.
Colors, sizes and specifications
Colors and finishes
- Matte White
- Textured Bronze
- Textured Black
Sizes and configurations
- Posts: 3"x3" structural posts, heights 39", 44", 54"
- Post sleeves: 4"x4", heights 39", 44", 108"
- Panel lengths 3', 4', 5', 6', 7', 8' (FastFit panels); level lengths 4', 6', 8'; stair lengths 4', 6', 8'
- Railing heights 36" (residential) and 42" (commercial)
Models
- Designer Aluminum series (Fairway Railing Collection)

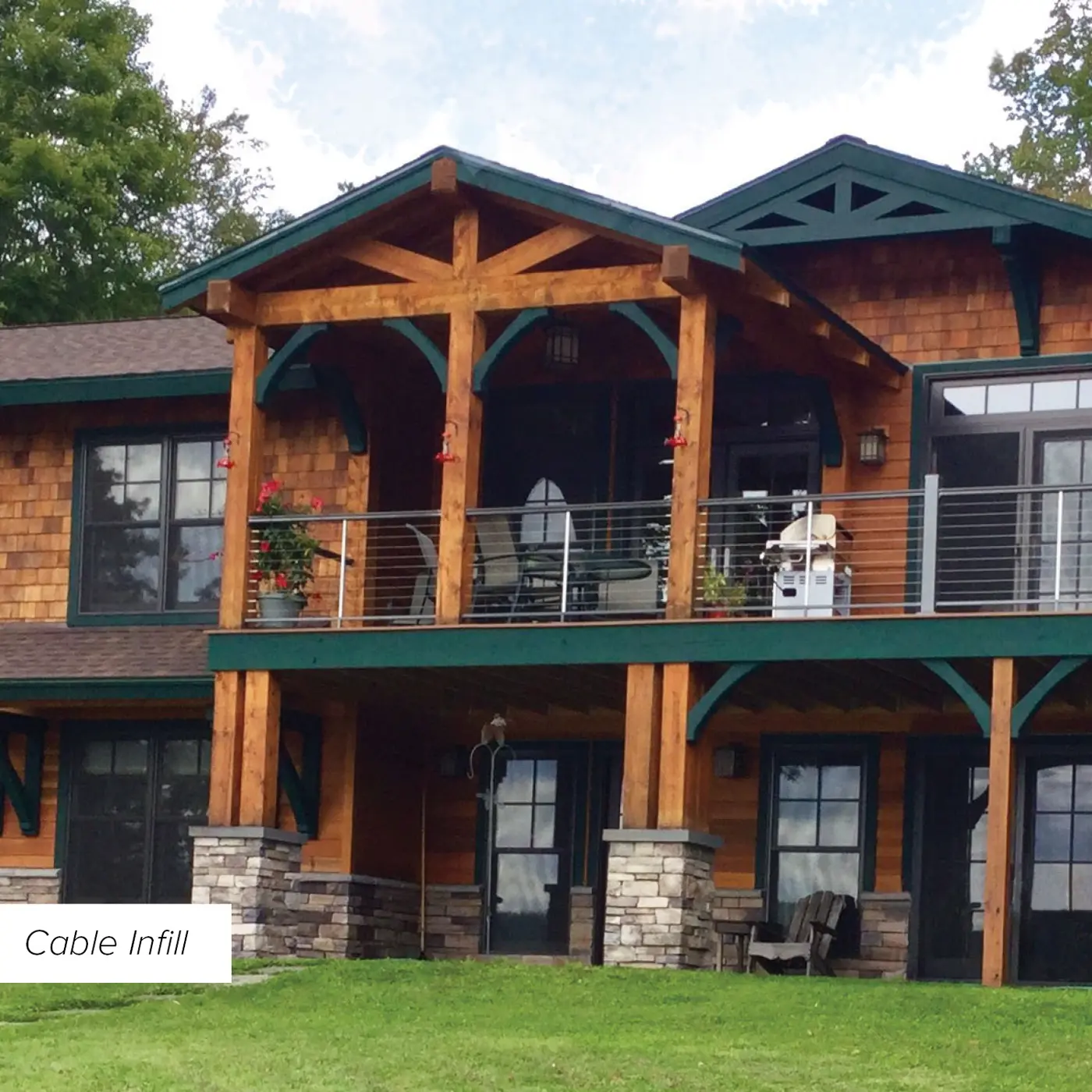

- Infill: Square Baluster (Bronze, Black, White); 4" Glass Slats; Horizontal Cable (Stainless Steel); Horizontal Baluster (Anodized, Black); Woven Mesh Panel (Mill, Black)
Features
- AAMA 2604 powder coat finish
- Two-piece top rail for in-rail LED lighting
- Optional deck board drink rail
- Matte finish reduces glare
- FastFit posts and panels that Envision says install up to 300% faster
- Threaded leveler posts
- Pre-assembled panels available
- ADA secondary handrail in matching colors
Accessories and works with
- ADA secondary handrail
- LED Deck Lights
- Porch Posts and Columns
- Vinyl Fencing
- Vinyl Pergola
- Ridge Premium and Distinction decking (complementary)
- Matching gates
- Post caps (white post caps available)
Best for
- Residential decks and porches
Warranty
Aluminum railing is covered by Envision’s 15-year limited warranty.
