Modern Vinyl
Envision Modern Vinyl is an aluminum-reinforced vinyl railing with smooth lines and LockFit balusters in white, almond or khaki, with FastFit and commercial options available.
About Modern Vinyl
Smooth lines and an aluminum core define Envision Modern Vinyl. It uses LockFit balusters and metal-to-metal bracket attachment, comes in White, Almond and Khaki, and Envision lists it as IRC code approved. A separate commercial option is available for projects beyond single-family homes.
Sleeves are 4 x 4 inches in 38, 39, 44, 48, 96 and 108 inch heights, and FastFit 4 x 4 sleeves come in 39 and 44 inches. Infill choices include square LockFit vinyl and colonial vinyl in all three colors, round aluminum in black or white, stainless steel horizontal cable and horizontal balusters in anodized or black. A drink rail option, solar post caps, ADA handrail, gates and lighting round out the system for decks, porches and stairs.
Envision offers lifetime warranty coverage on Modern Vinyl; ask us for the full terms. For an itemized quote, send color, infill, residential or commercial use, linear feet, stair runs and sleeve heights.
Colors, sizes and specifications
Colors and finishes
- White
- Almond
- Khaki
Sizes and configurations
- Sleeves 4"x4"; 4"x4" FastFit sleeves (heights 39", 44"); sleeve heights 38", 39", 44", 48", 96", 108"
- Structural post mounts
- Level: 6', 8', 10'; stair: 6', 8'
- Railing height 36" (residential)
Models
- Infill: Square Vinyl (White, Almond, Khaki); Colonial Vinyl (White, Almond, Khaki); Round Aluminum (Black, White); Horizontal Cable (Stainless Steel); Horizontal Baluster (Anodized, Black)
Features
- Aluminum core
- Hidden hardware
- Optional deck board drink rail
- Metal-to-metal bracket attachment
- UV protection
- Patent-pending LockFit balusters
- ADA secondary handrail in matching colors
- Envision lists it as IRC code approved; a separate commercial option is available
- E-FIT railing innovations that Envision says install up to 300% faster
Accessories and works with
- ADA secondary handrail
- Post caps and trim
- Solar post caps
- Matching gates
- LED lighting
- Porch Posts and Columns
- Vinyl Fencing
- Vinyl Pergola
Warranty
Lifetime warranty (see Envision’s warranty for full terms)

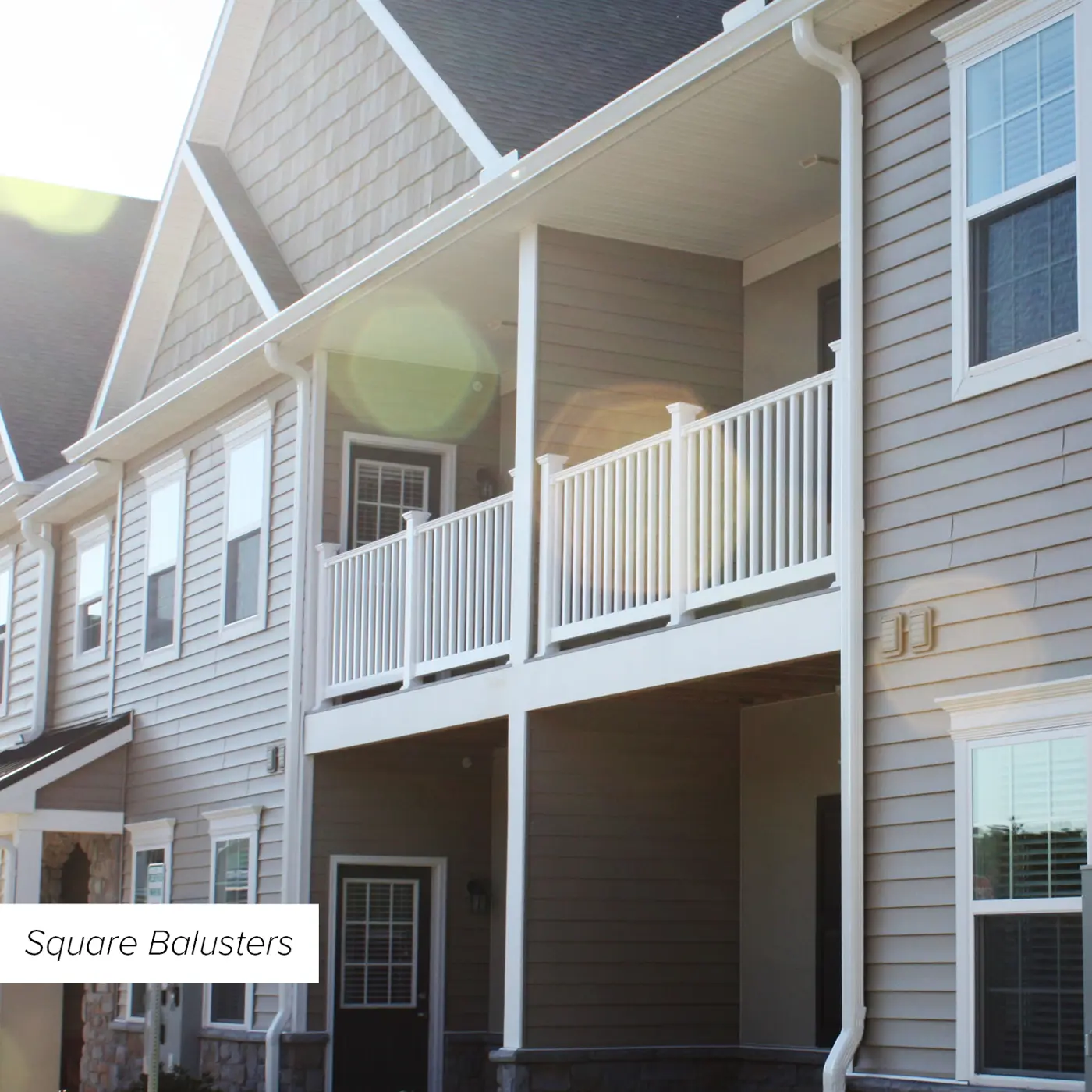

Modern Vinyl photos
