Galvanized Chain Link
Galvanized chain link fence fabric in GBW, GAW and aluminum-coated steel, 3 ft to 12 ft tall, for residential, commercial, industrial, institutional and recreation projects.
About Galvanized Chain Link
Galvanized chain link is steel wire with a zinc coating applied either before weaving (GBW) or after weaving (GAW), so cut ends are coated too. Aluminum-coated steel is also available for commercial and industrial work. Fabric is manufactured to ASTM standards, including A392 for zinc and A491 for aluminum.
You choose fabric by wire gauge, mesh size, height, roll length and coating class. Common gauges are 9, 11 and 11.5, and the 2 in mesh is most common, with 1 in, 1-3/4 in and 2-1/4 in also available. Heights run 3 ft to 12 ft on 20 ft or 50 ft rolls. Warranty terms depend on the mill that supplies your order, and we confirm them on your quote.
Galvanized fabric works for homes, schools, plants, ball fields and storage yards. For a quote, send gauge, mesh, height, coating type and total footage, plus framework needs. Axiom South ships to all 50 states.
Colors, sizes and specifications
Features
- Hot-dipped zinc galvanized; GBW (galvanized before weaving) or GAW (after weaving, so cut ends are coated)
- Aluminum-coated steel available for commercial/industrial use
- Manufactured to ASTM standards
Specifications
| Mesh | 2 in common (also 1 in, 1-3/4 in, 2-1/4 in) |
|---|---|
| Gauge | 9, 11 and 11.5 common |
| Height | 3 ft to 12 ft |
| Roll length | 50 ft |
| Standards | ASTM A392 (zinc), A491 (aluminum) |
| Common fabric wire gauges | 9, 11 and 11.5 |
| Standard mesh | 2 in diamond; 1.75 in used for tennis courts |
| Common heights | 3 to 8 ft in 1 ft steps, plus 3 ft 6 in, 10 ft and 12 ft |
| Roll lengths (U.S.) | 20 ft or 50 ft |
| Line post spacing | No more than 10 ft |
Best for
- Residential, commercial, industrial, institutional and recreation
Installation notes
- Terminal posts (end, corner, gate) must be set in concrete or otherwise anchored to resist tension.
- Stretch fabric from one terminal post to the other, then tie to line posts and rails with fence ties.
- A bottom tension wire can limit movement at the bottom of the mesh; hog-ring the fabric to it about every 2 ft.
- A top rail is common but optional if terminal posts are braced and a top tension wire is used; fences 10 ft or taller often add intermediate rails.
Warranty
Confirmed on your quote, based on the supplying mill
Frequently asked questions
Do I need a top rail?
Not always. A top tension wire can replace a top rail when terminal posts are braced correctly, but taller fences often add intermediate rails.

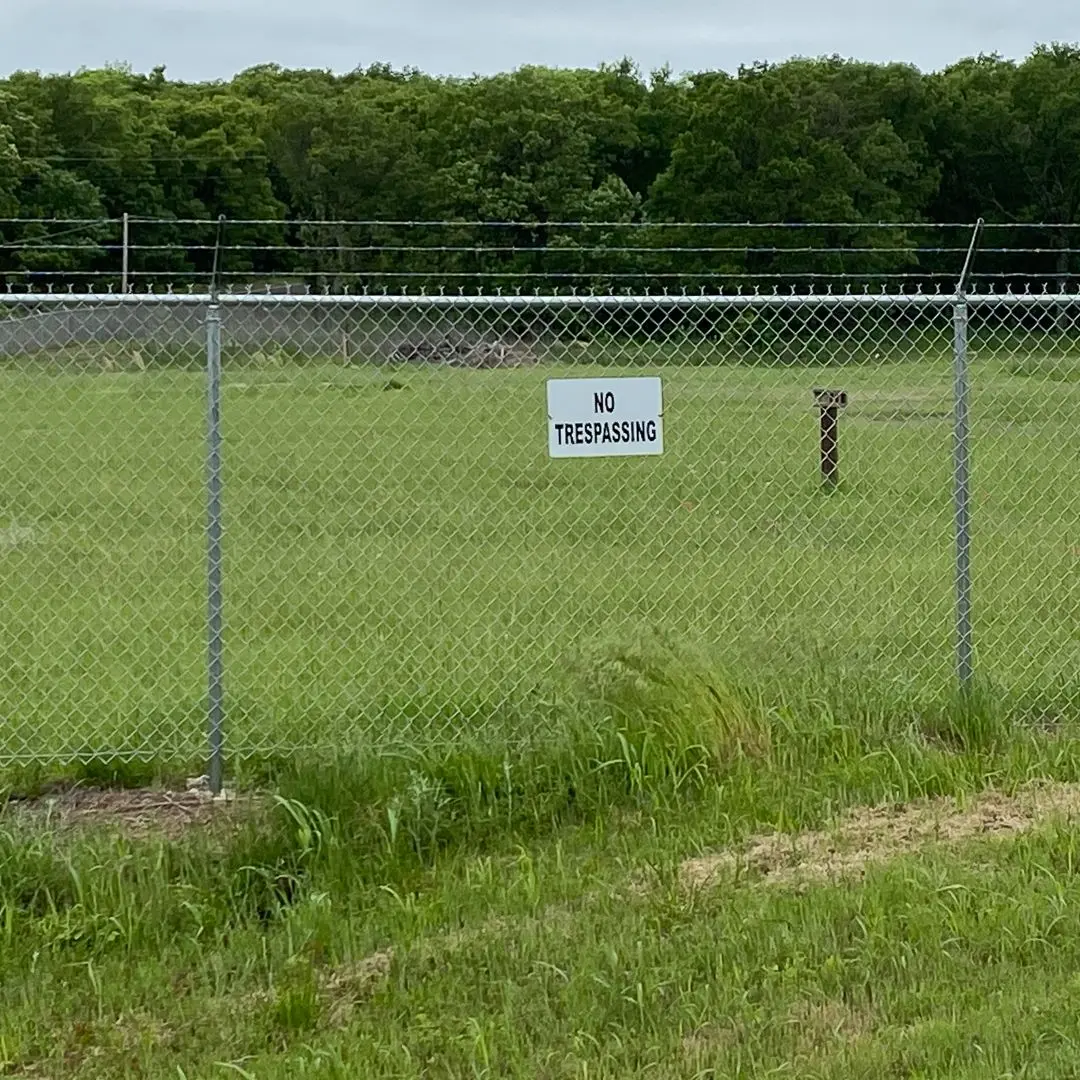

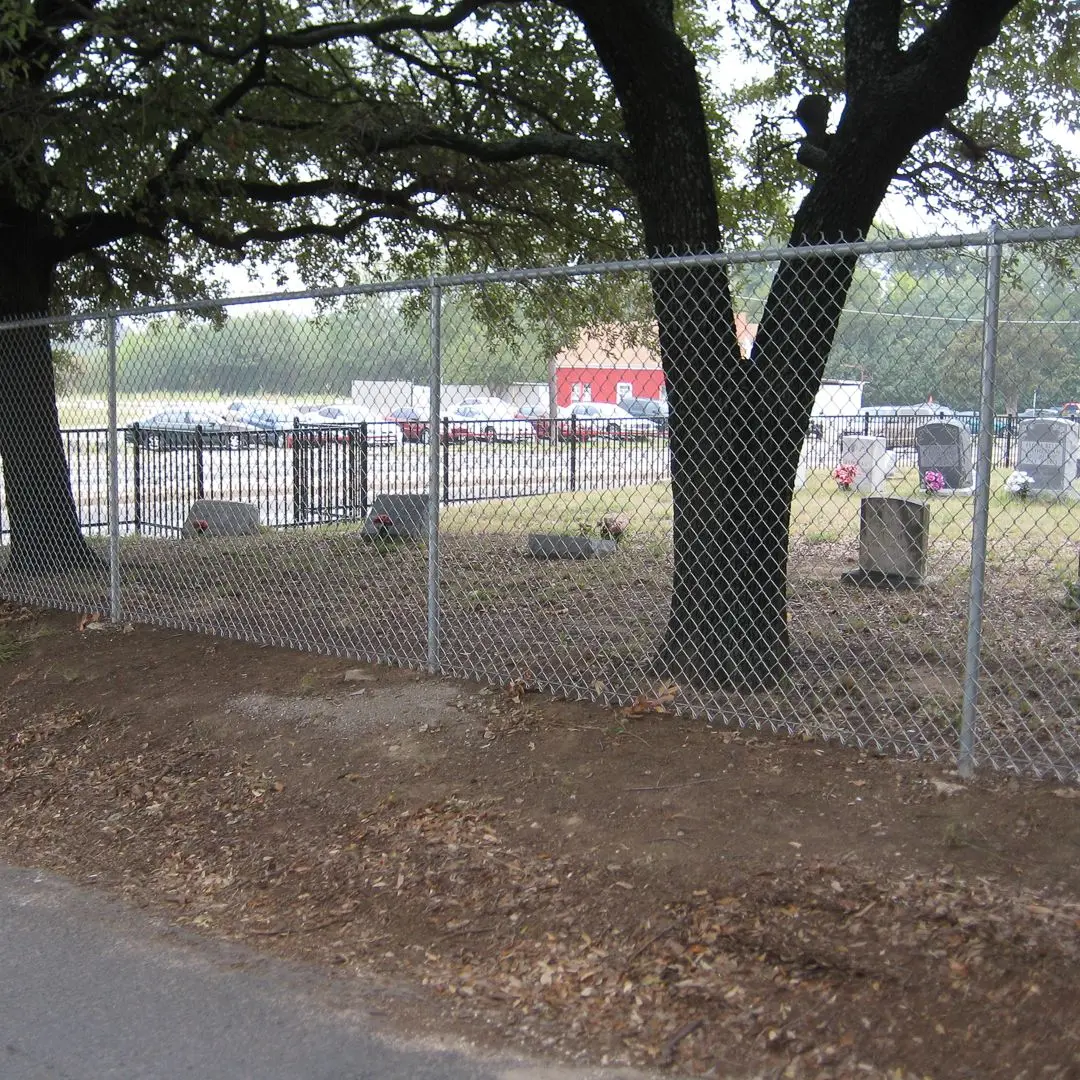

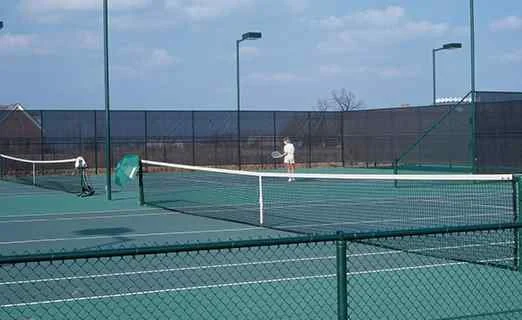

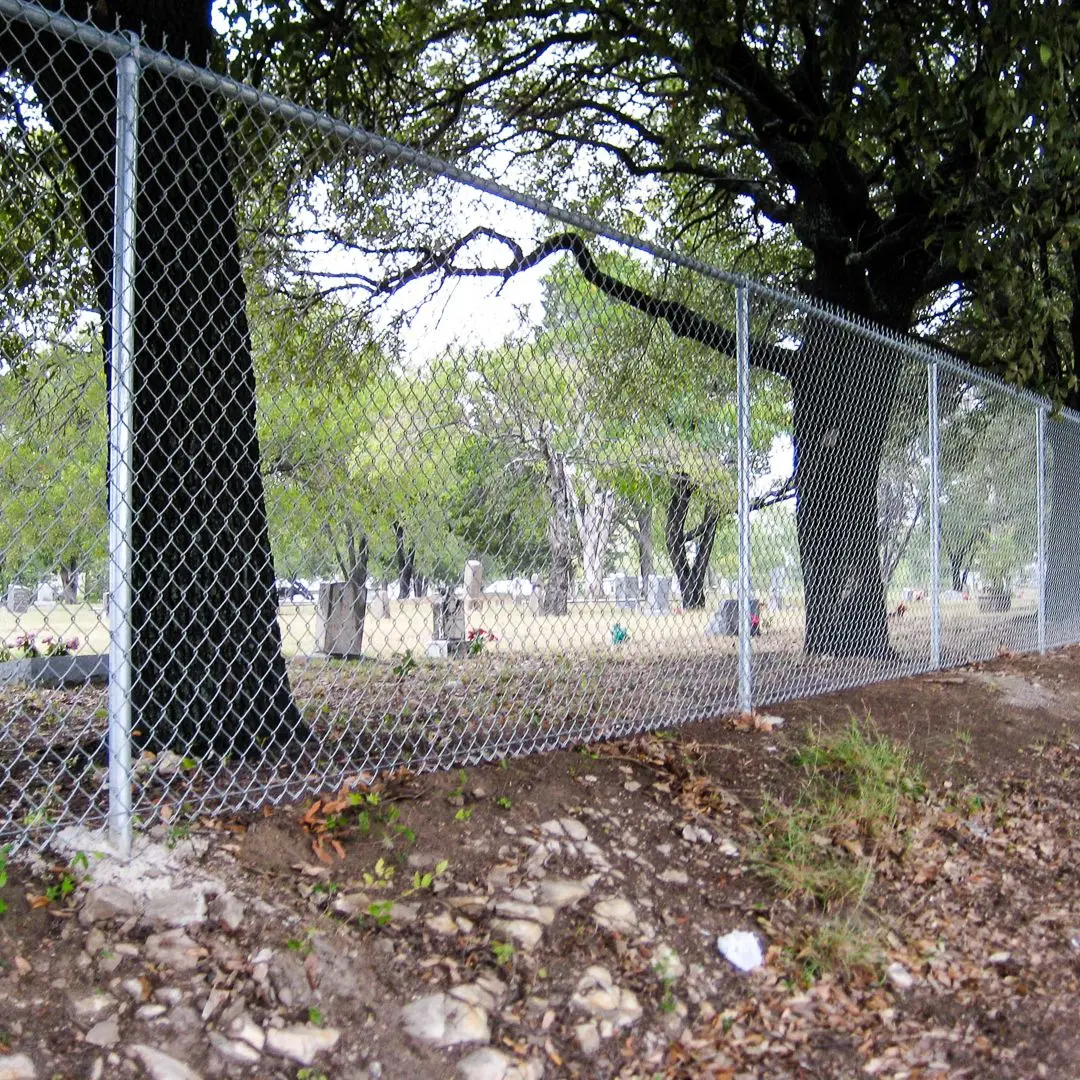

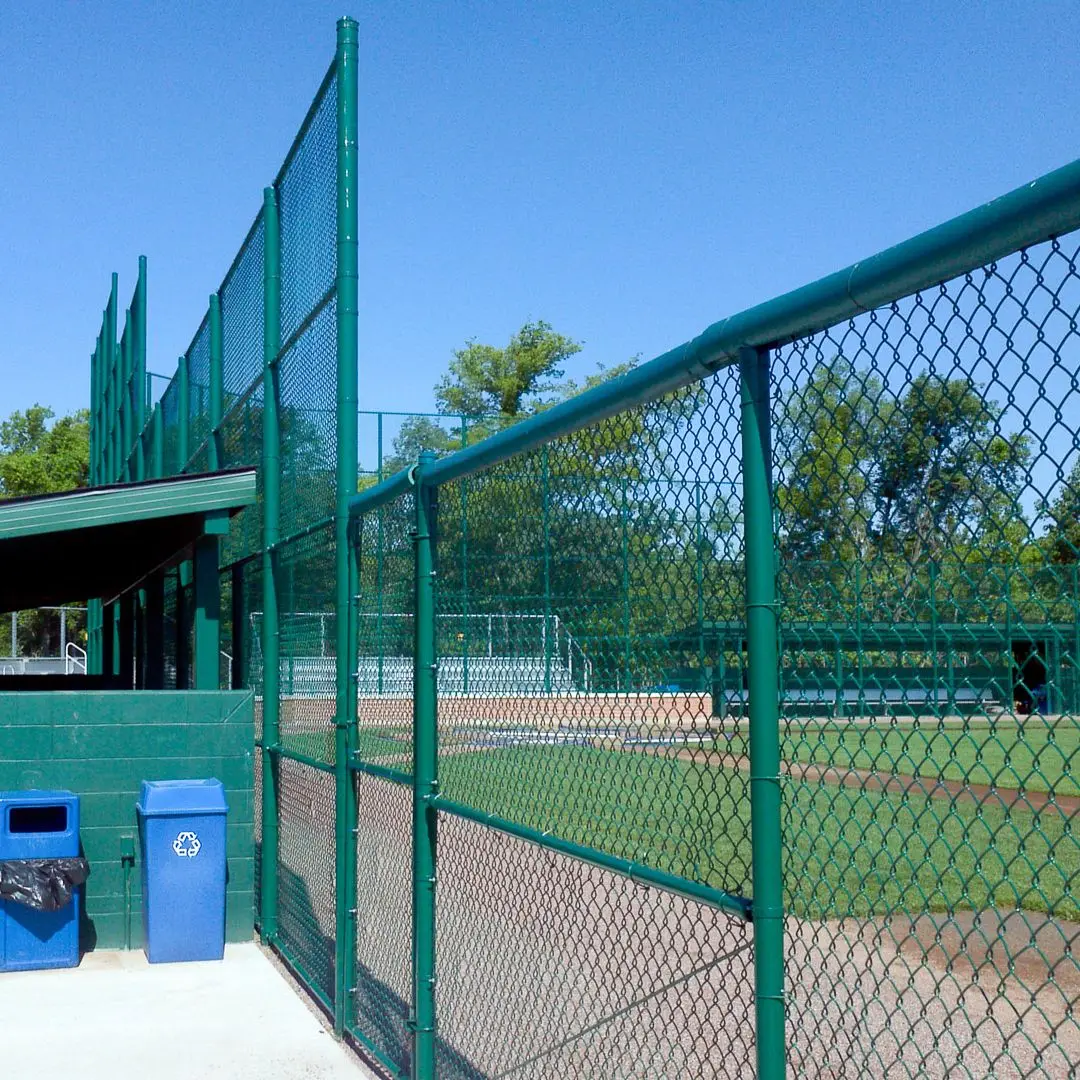

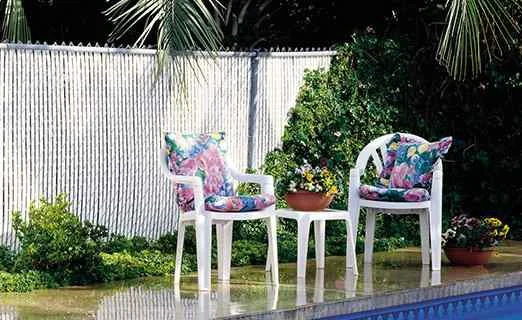

Galvanized Chain Link photos
