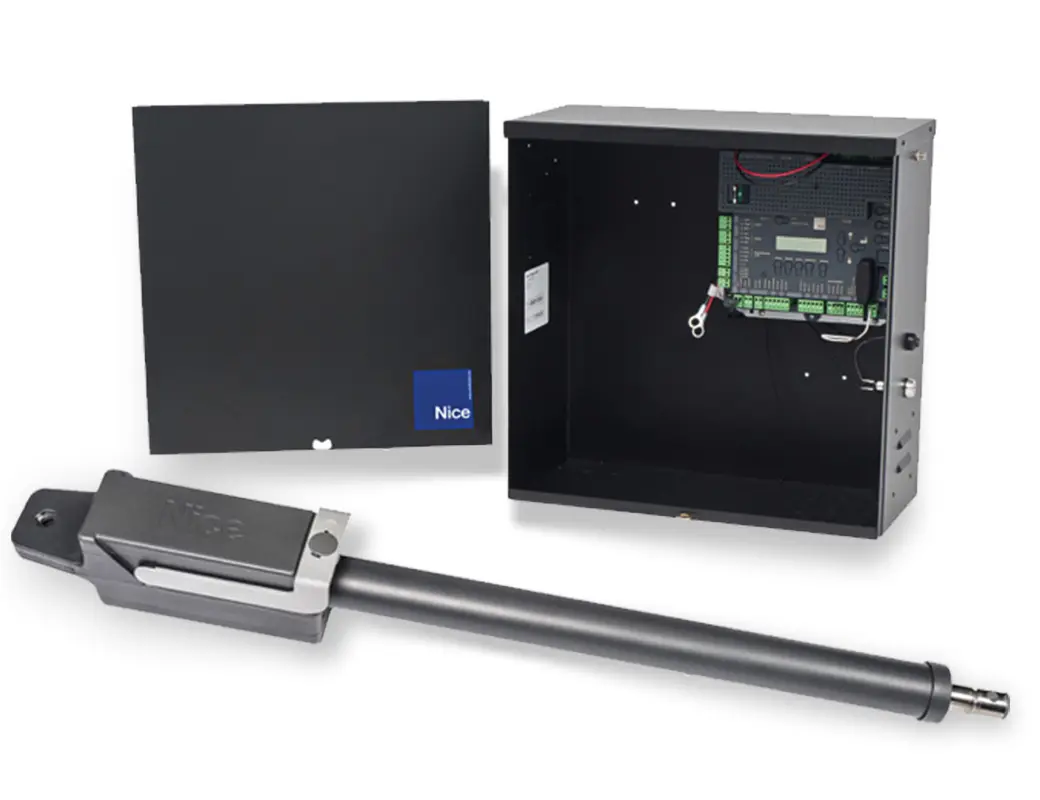

HySecurity TITAN Linear Actuator
HySecurity TITAN is a modular electromechanical linear-actuator swing gate operator for single or dual residential gates, available as an AC or solar system.
About HySecurity TITAN Linear Actuator
TITAN is HySecurity's modular linear actuator for swing gates, built with field-replaceable components so parts can be swapped on site. It runs continuous duty on AC, opens to 90 degrees in 14 to 16 seconds with open and close speeds set independently, and includes a locking manual release. With the 1050 controller, it adds soft start and soft stop.
Capacity is up to 600 lb on a 20 ft leaf or 1,000 lb on an 8 ft leaf. A Pivot Bolt reduces binding and false entrapment detections. Kits include the TITAN12L1 with a CBOX1050, the all-in-one TITANKIT12L1 with a CBOX1050 or MB1050, and the TITAN Bundle310 with an ACBOX310 or SolarBOX310 using the Mercury 310 controller, each in single or dual gate configurations.
For a quote, send leaf length and weight, single or dual gates, and whether you need AC or solar power.
Colors, sizes and specifications
Sizes and configurations
- Up to 600 lb for 20 ft leaf; up to 1,000 lb for 8 ft leaf
Models
- TITAN12L1
- TITANKIT12L1 (all-in-one kit)
- TITAN Bundle310
Features
- Modular field-replaceable components
- Locking manual release
- Quiet operation
- Optional 1050 controller with soft start/stop
- Pivot Bolt reduces gate binding
Specifications
| Drive | Electromechanical |
|---|---|
| Duty cycle | Continuous on AC; varies with solar |
| Open/close to 90 deg | 14-16 s |
| TITAN12L1 kit | CBOX1050 + 912L-1 (dual adds 912L-2) |
| Bundle310 kit | ACBOX310 or SolarBOX310 + 912-1 (dual adds 912-2) |
Accessories and works with
- 1050 controller
- Mercury 310 controller
Best for
- Single or dual residential gates
- Solar gate operation
Installation notes
- TITANKIT is all-in-one

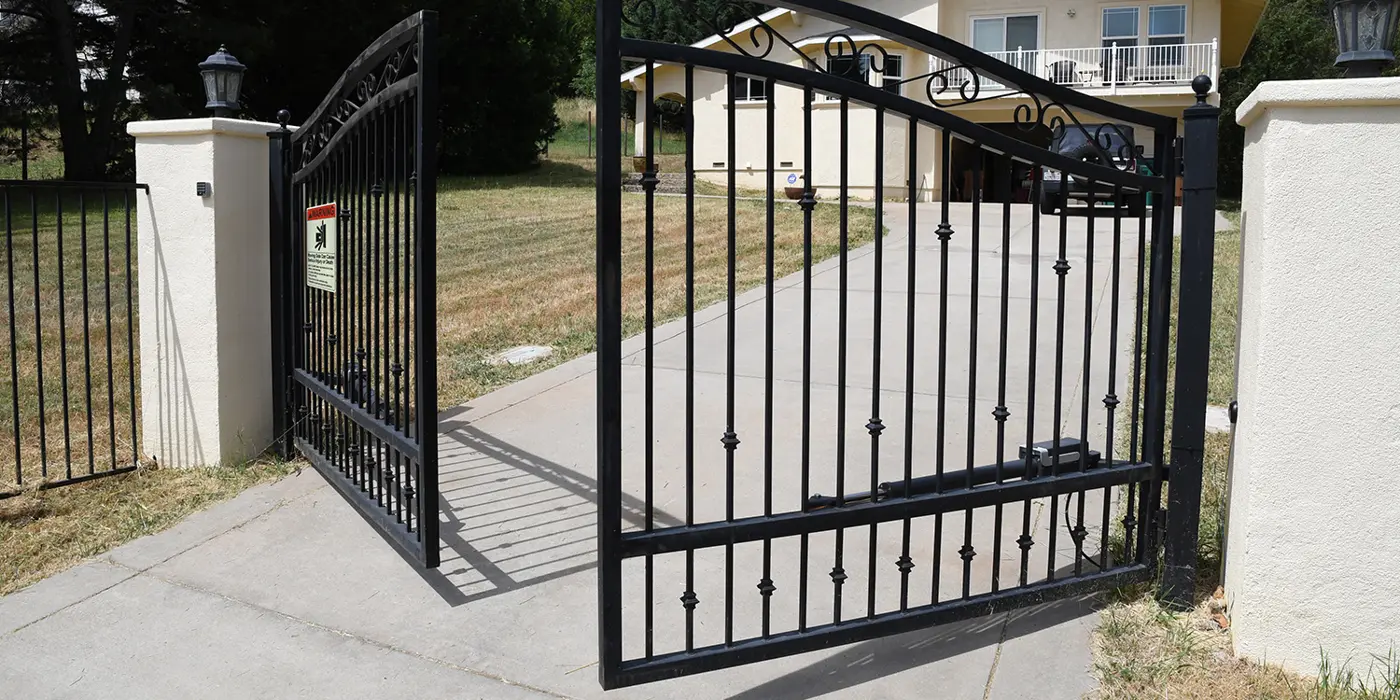

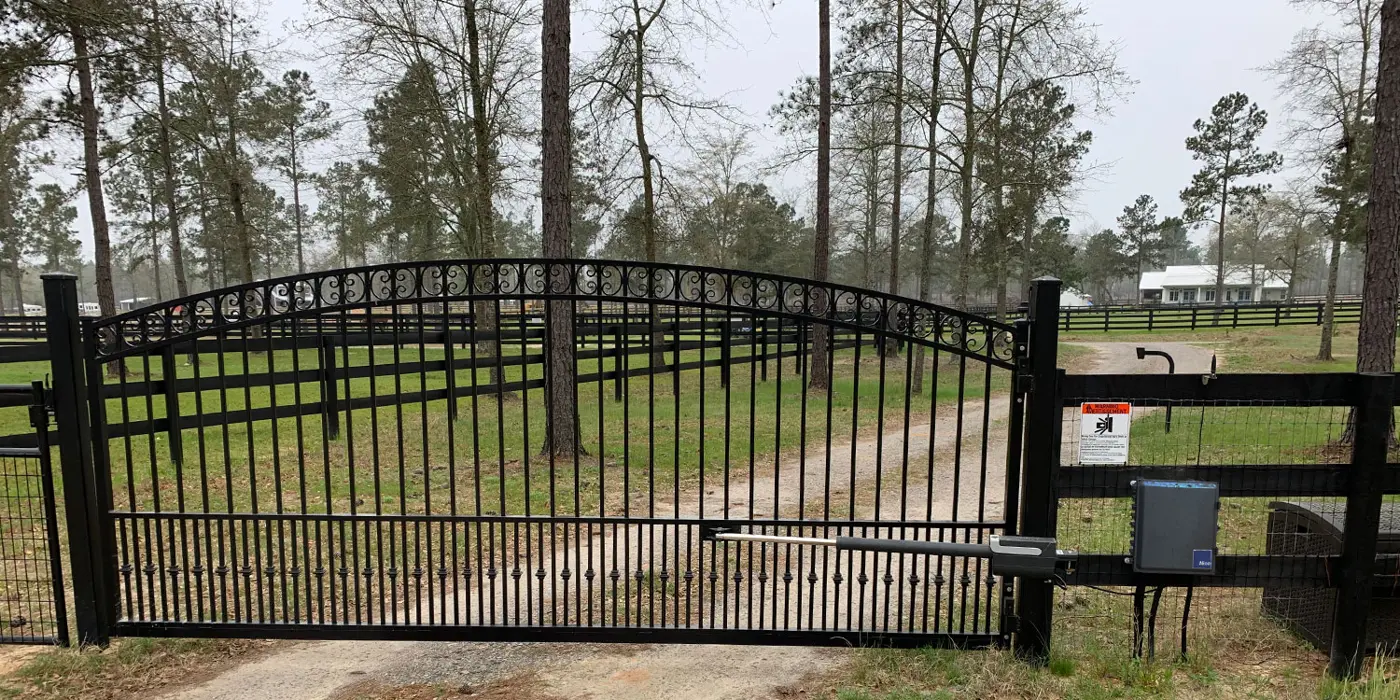

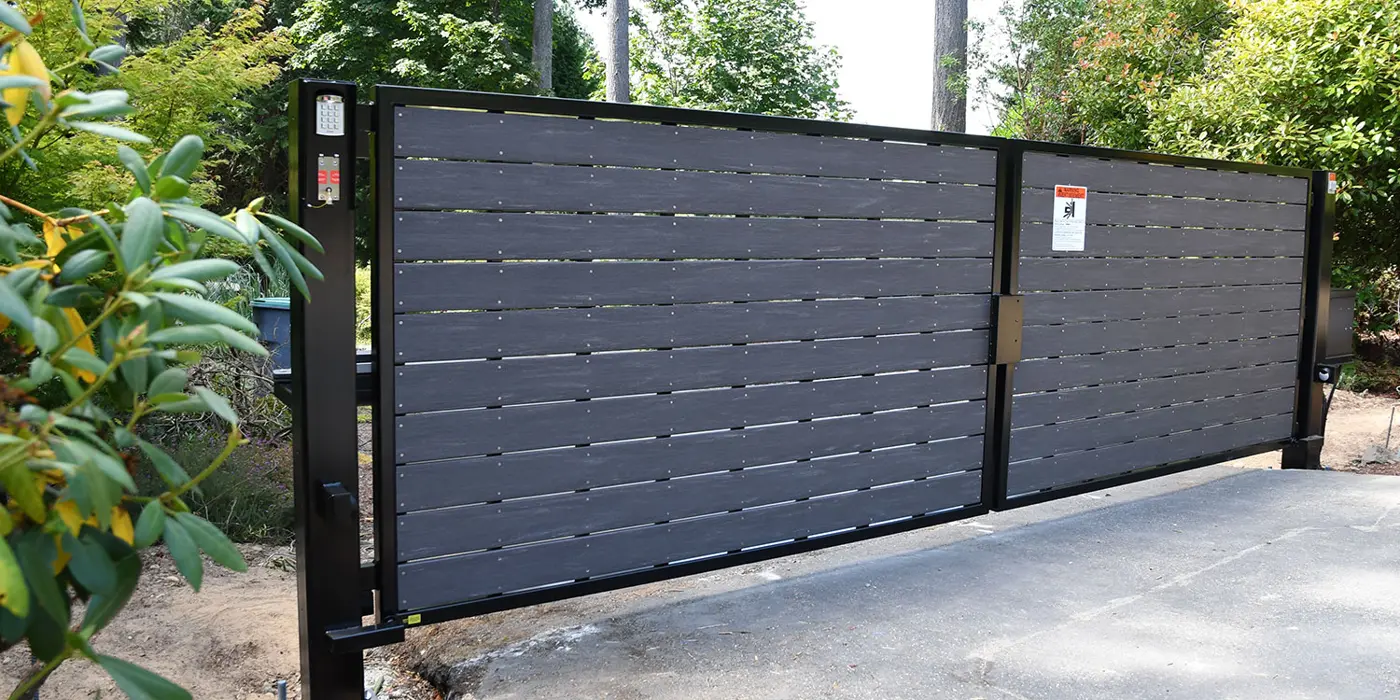

HySecurity TITAN Linear Actuator photos
