LiftMaster Smart Access Controllers (CAP series)

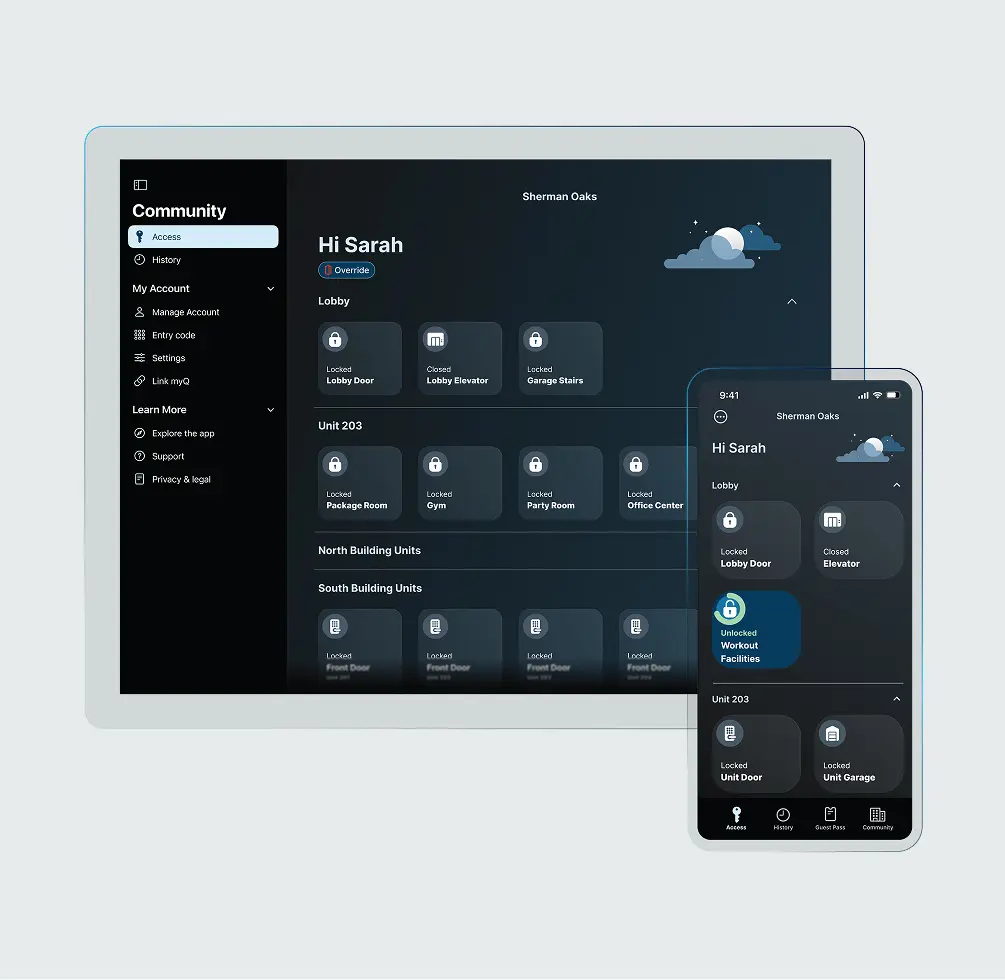

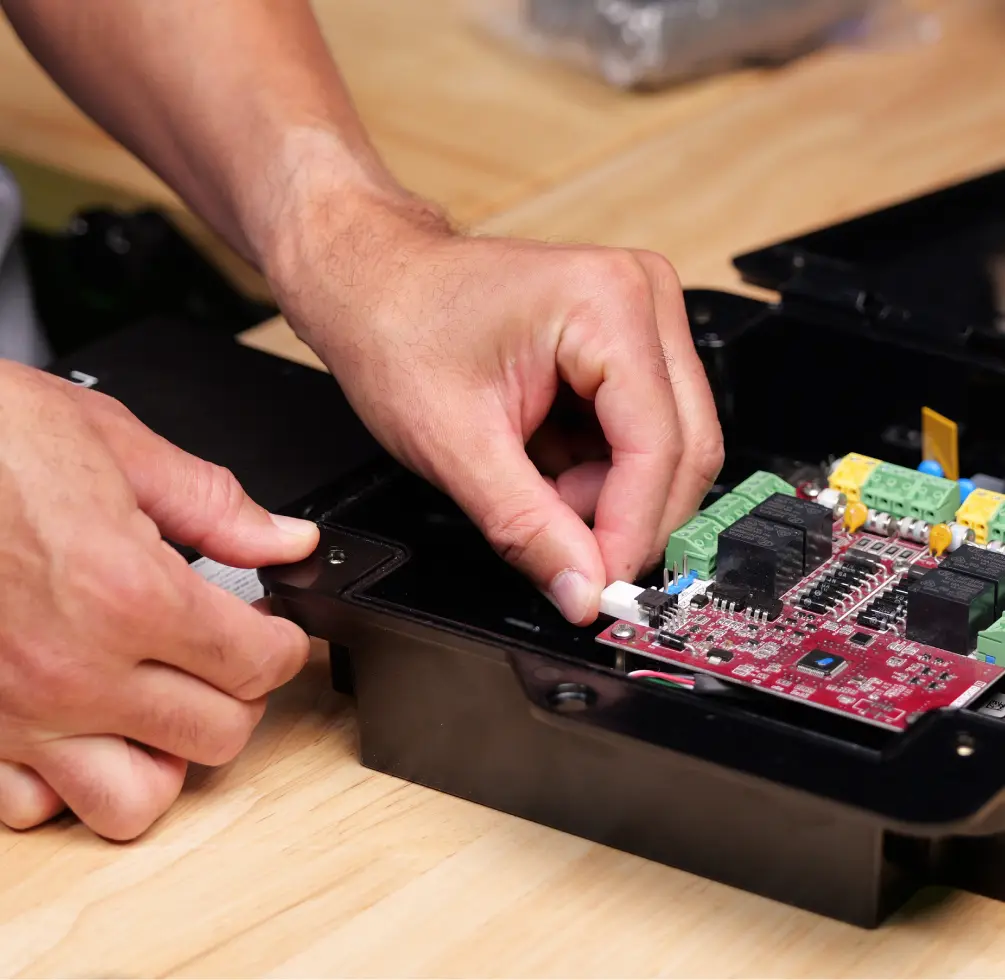

LiftMaster CAP controllers move access control to the cloud, managed through the myQ Community web portal and app. The CAP4AP and CAPXAP controllers, CAP4EXPND expansion board and LMSC1000 RFID reader Smart Access Controller sits in an IP54/IK07 outdoor enclosure, so no separate NEMA box is needed, runs on 24VDC or PoE, and handles 2 doors or 4 access points with 50,000 users.

Larger sites can use the CAPXAP Smart Access Controller Panel, an indoor cabinet supporting 8 Wiegand doors, 4 OSDP doors or 16 access points with 50,000 users. The CAP4EXPND expansion board adds 4 relays, 4 supervised inputs and 2 Wiegand inputs, and the LMSC1000 long-range RFID reader reads tags at 20-30 ft. Features include OSDP encrypted communication, LED health indicators, a Wi-Fi option and plug-and-play setup. LiftMaster lists 2-year parts and hardware warranties on both controllers.

For a quote, list door and gate count, reader types, number of users and the power available at each location.
