LiftMaster TECHNA Barrier Gate Operators
LiftMaster TECHNA barrier gate operators are 24VDC brushless barrier arm operators in commercial, industrial and parking versions for gated communities and managed properties.
About LiftMaster TECHNA Barrier Gate Operators
TECHNA is LiftMaster's barrier arm line, built on a 24VDC brushless drive rated for continuous duty on 120 or 230 VAC single-phase power. Three versions match the lane: the CBG24DC (commercial), PBG24DC (parking), IBG24DC (industrial) commercial model opens or closes in 2.5 seconds, the PBG24DC parking model in 1.9 seconds, and the IBG24DC industrial model in 6 seconds. The commercial and industrial units are IP65 rated.
Each operator includes Wi-Fi/Ethernet and myQ connectivity, programmable LEDs, five programmable relays, a 50-event local log and a receiver for up to 64 remotes. Standard backup is two 12V 7Ah batteries, with optional 33Ah batteries. Arm attachments come in breakaway or swing-away styles, with an optional 14 ft foam roll. Setup features include video guides, tool-less wiring and spring-assisted arm setup, and LiftMaster lists a 2-year warranty.
Safety accessories include LMTBUL through-beam and LMRRUL retro-reflective photo eyes, the LMWEKITU wireless edge kit and S50 edges. For a quote, give lane width, traffic level and arm style.
Colors, sizes and specifications
Models
- CBG24DC
Features
- Programmable LEDs on tower and arm
- Menu-based display, tool-less color-coded wiring
- Breakaway or pivot arm bracket
- Brushless DC motor with fast arm travel
- Reversible arm direction
- Built-in Wi-Fi and radio receiver for myQ
- IP65, direct drive

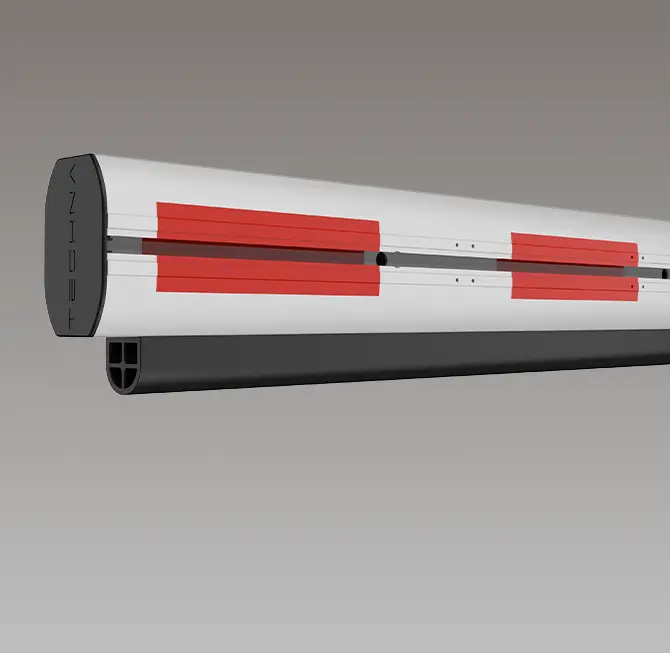

- Optional 14 ft foam roll
Specifications
| Open/close time (CBG24DC; PBG24DC 1.9 s, IBG24DC 6 s) | 2.5 s |
|---|---|
| Power | 120Vac/230Vac 1 PH |
| Battery backup | Standard 2x12V 7Ah; optional 2x12V 33Ah |
| Radio receiver | Security+ 2.0, 3-channel, up to 64 remotes |
| Programmable relays | 5 |
| Duty cycle | Continuous |
| Warranty | 2 years |
Accessories and works with
- LMTBUL through-beam photo eyes
- LMRRUL retro-reflective photo eye
- LMWEKITU wireless edge kit
- S50 small profile edge
- 14 ft foam roll
Best for
- Commercial parking
- Gated communities
- Property management
Installation notes
- Video guides, tool-less wiring, spring-assisted arm setup
Warranty
2 years.

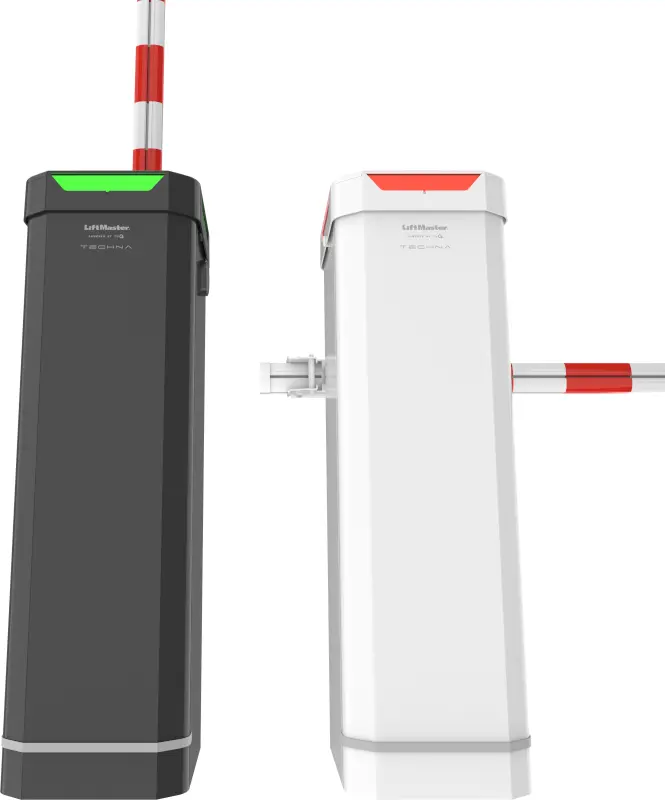

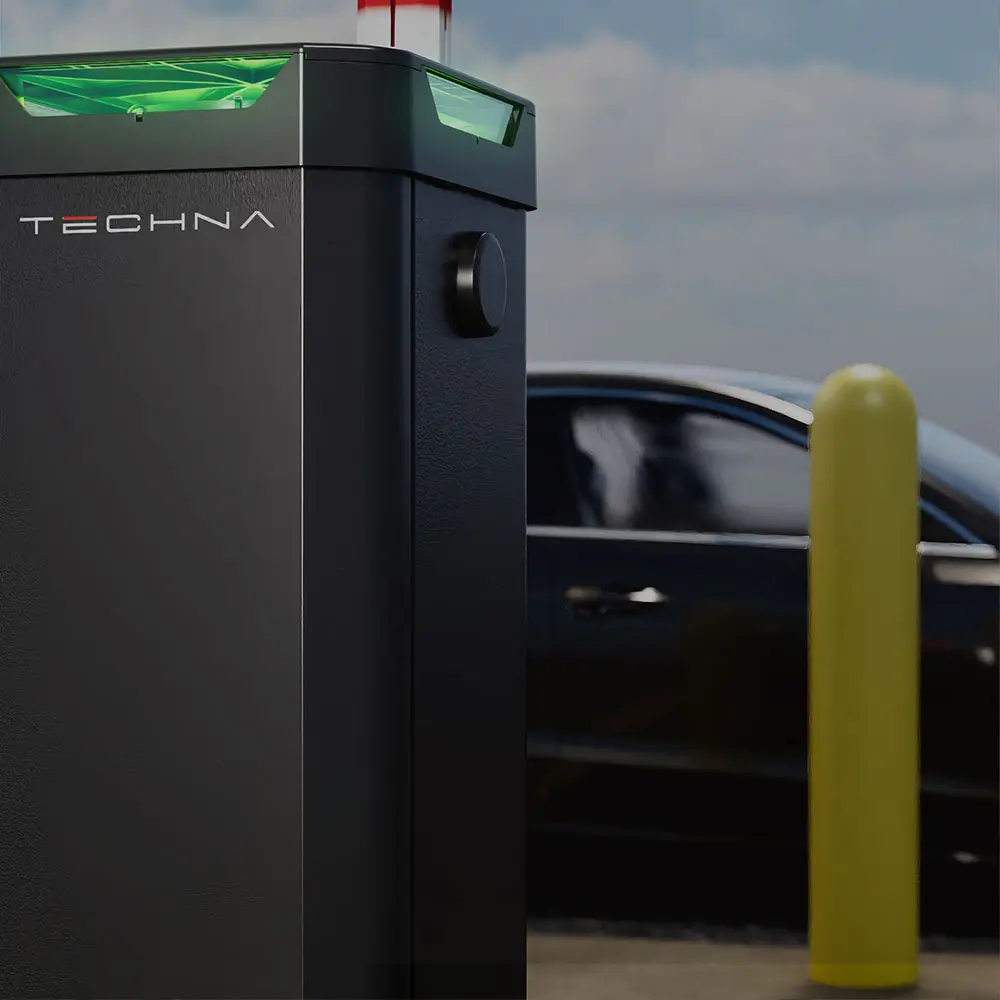

LiftMaster TECHNA Barrier Gate Operators photos
