Oxford Avalon Barrier
Oxford Avalon is a plastic pedestrian barrier with patented fishtail linking and low-profile feet, for construction sites, street works and events that need a defined walkway edge.
About Oxford Avalon Barrier

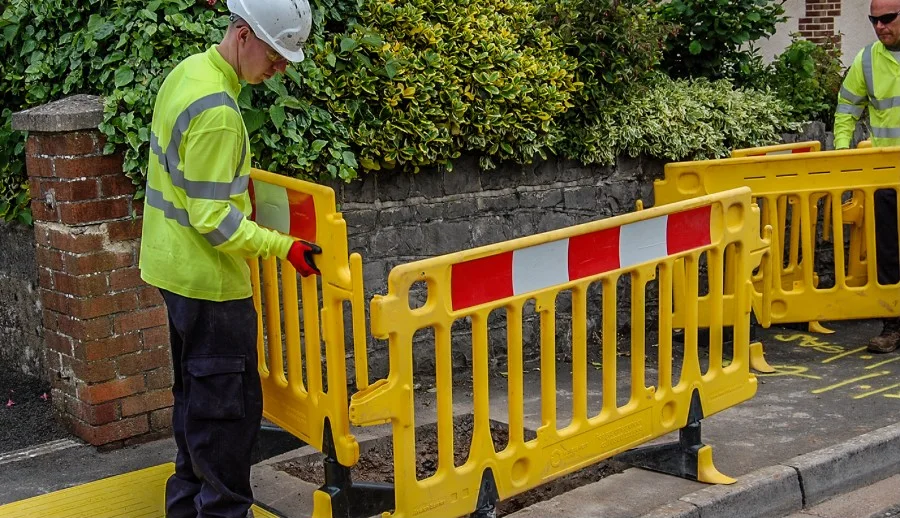

Avalon is Oxford Plastics' pedestrian barrier for street works and construction. A patented hook-and-pin fishtail link joins barriers quickly, and low-profile anti-trip feet keep walkways clear while the line follows uneven ground.
The 79 in barrier is 39 in high and weighs 24 lb, and a 39 in barrier (42 in long, 19 lb) and a 20 in reflective section (26 in long, 4 lb) fill shorter gaps. Both larger sizes come with ClearPath or standard feet. Barriers are orange, with a black 40 lb double-sided ballast base. Per Oxford, a 79 in barrier on its own resists wind up to 20 mph, and up to 40 mph with 88 lb of ballast. ClearPath extra feet, spigots, reflective strips and ballast trays are available.
Avalon is used on construction sites, street works and events. For a quote, send the run length, how many short sections you need, foot type, and whether ballast is required. Axiom South ships nationwide.
Colors, sizes and specifications
Colors and finishes
- Orange (barriers)
- Black (Double Sided Ballast Base)
Sizes and configurations
- 79" barrier: 39" high x 79" long, 24 lb
- 39" barrier: 39" high x 42" long, 19 lb
- 20" barrier: 39" high x 26" long, 4 lb
Models
| Item | Height | Length | Weight |
|---|---|---|---|
| 79" barrier | 39" | 79" | 24 lb |
| 39" barrier | 39" | 42" | 19 lb |
| 20" barrier | 39" | 26" | 4 lb |
| Double Sided Ballast Base | 12" | 39" | 40 lb |
Features
- Patented fishtail (hook and pin) linking system prevents accidental disassembly
- Adapts to uneven ground to form a continuous perimeter
- Right-to-repair: feet can be maintained in-house
- ClearPath Extra anti-trip high-visibility feet or standard black feet
Specifications
| Wind resistance, 79" barrier alone | Up to 20 mph |
|---|---|
| Wind resistance, 79" barrier with ballast (88 lb added) | Up to 40 mph |
| Per pallet | 50 (79" and 39"), 100 (20"), 18 ballast bases |
Accessories and works with
- ClearPath Extra feet
- Spigot (foot-to-barrier connector)
- Reflective strips (1.25 m or 720 mm)
- Ballast trays (large, small)
- Double Sided Ballast Base
Best for
- Construction sites
- Street works
- Events
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Request a quote for Oxford Avalon Barrier
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
