Oxford Bypass Ramp
Oxford Bypass Ramp is a reusable yellow ramp that lets vehicles and pedestrians cross diverted above-ground pipes or cables on job sites and utility work.
About Oxford Bypass Ramp
During pipe and utility work, temporary lines often have to run across a driveway or road. The Oxford Bypass Ramp covers them so traffic can keep moving. It is a reusable, recyclable yellow ramp that one person can place.
Each ramp measures 5 in high by 18 in wide by 50 in long and weighs 21 lb. Per Oxford Plastics, it handles vehicle loads up to 97,000 lb, is load-bearing over pipes up to 4.5 in diameter, and works non-load-bearing over pipes up to 3.5 in. The surface is anti-trip and anti-slip. Product ref. 5949 ships 25 to a pallet.
Contractors use bypass ramps over diverted above-ground pipelines and to keep ramped access to homes open during work. For a quote, send the pipe or cable diameter, the width of each crossing and how many crossings you need. Axiom South itemizes the quote and ships nationwide.
Colors, sizes and specifications
Colors and finishes
- Yellow
Sizes and configurations
- 5" high x 18" wide x 50" long, 21 lb
Models
| Product ref. | Tool code | Size | Weight | Per pallet |
|---|---|---|---|---|
| 5949 | O920 | 5" x 18" x 50" | 21 lb | 25 |
Features
- Anti-trip and anti-slip covers for utility pipes
- Accepts load-bearing pipes up to 4.5" and non-load-bearing pipes up to 3.5"
- One-person installation in minutes
- Reusable, repairable, recyclable
Specifications
| Vehicle rating | Up to 97,000 lbs over pipes up to 4.5" |
|---|
Best for
- Diverted above-ground pipelines
- Ramped access to homes

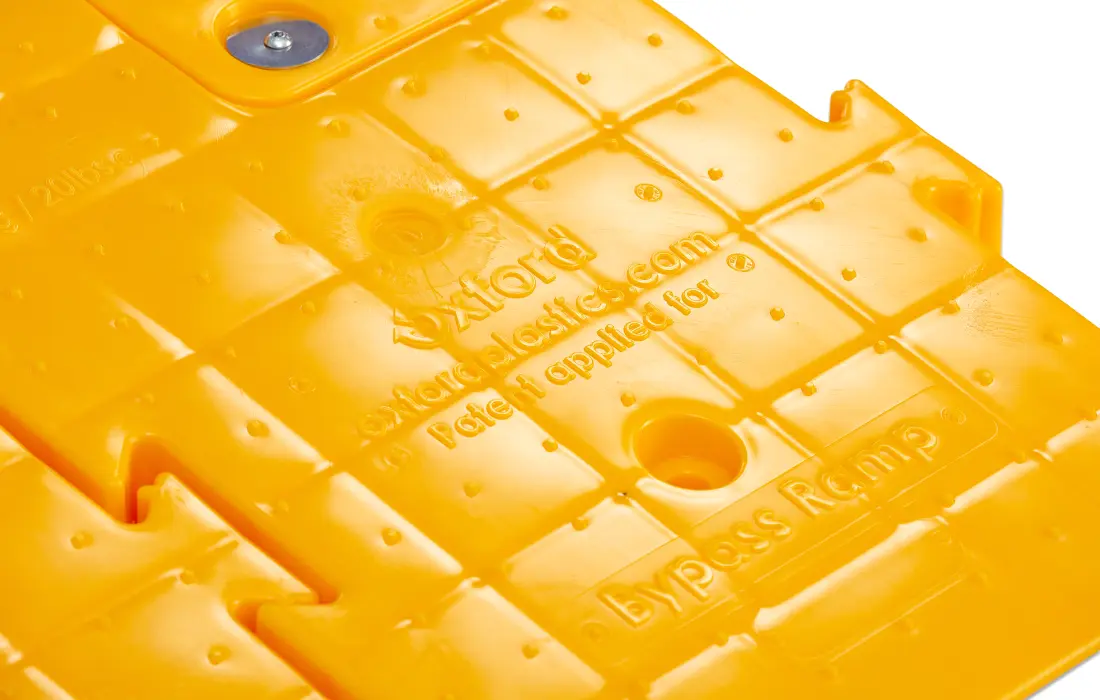

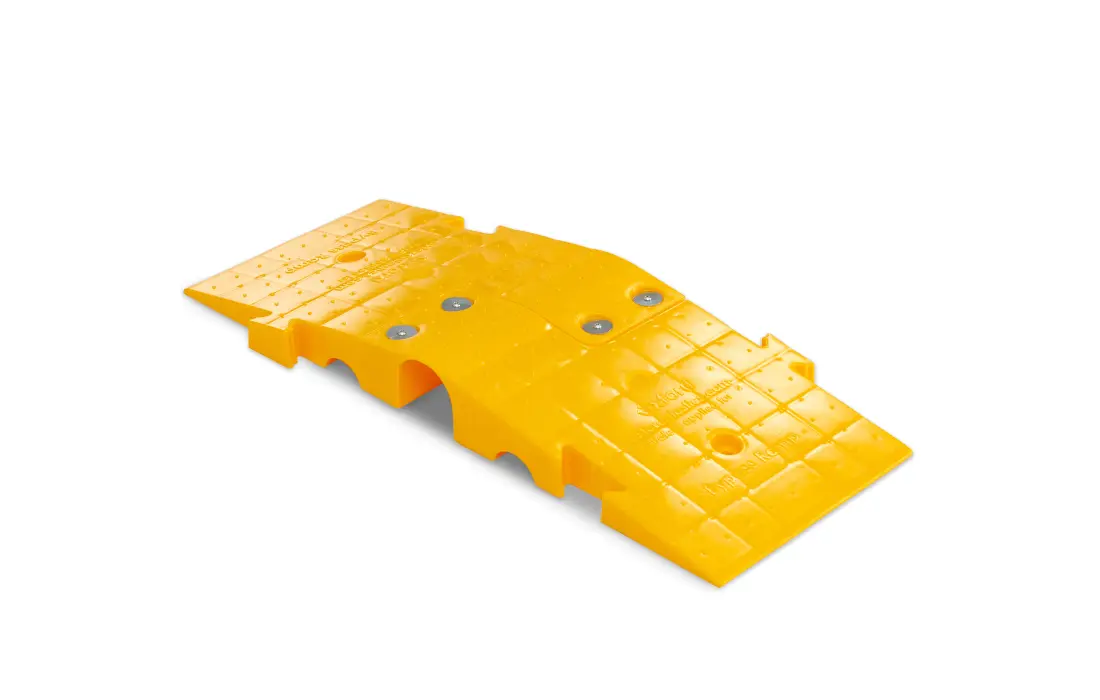

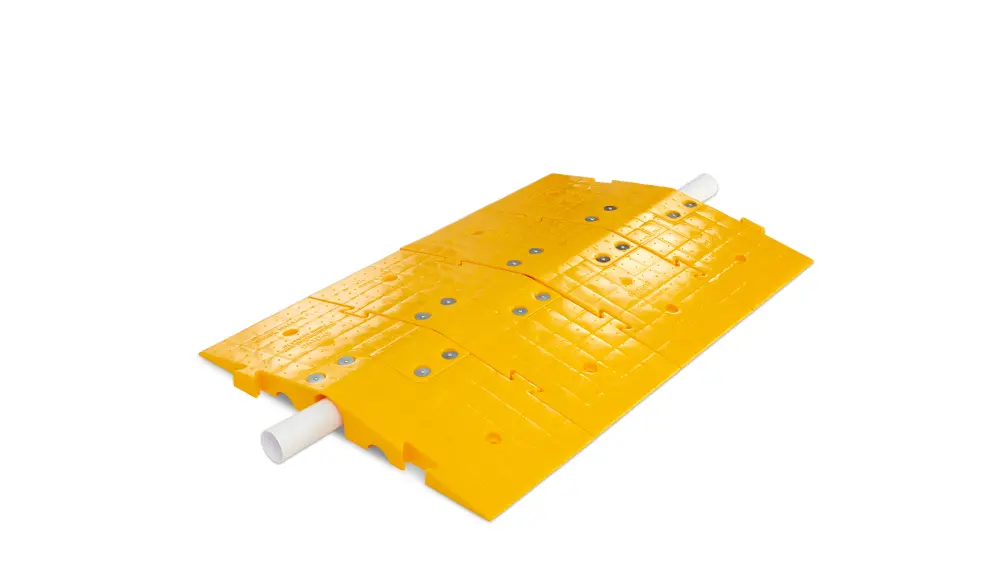

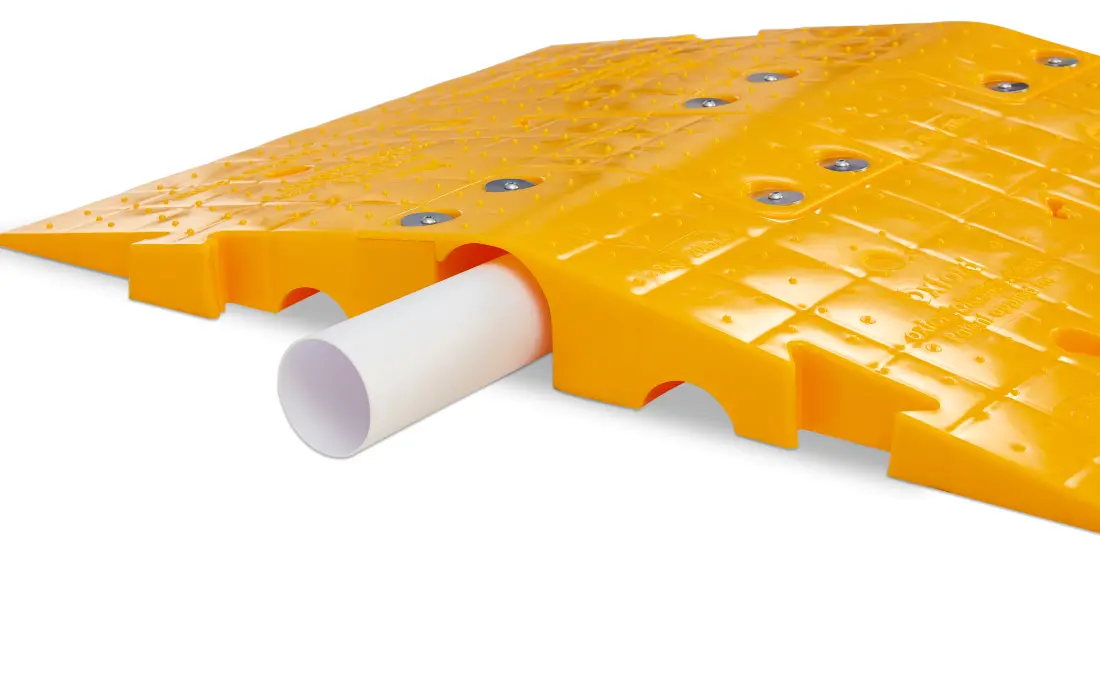

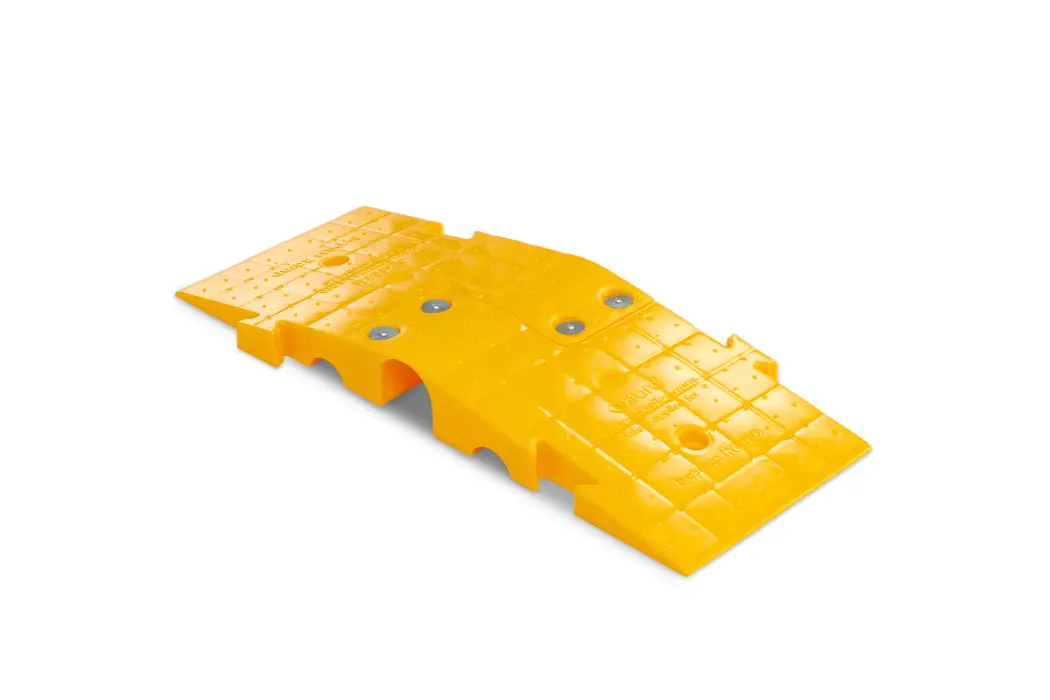

Oxford Bypass Ramp photos
