Oxford LowPro Road Plates
Oxford LowPro composite road plates cover trenches under vehicle traffic as a hand-placed alternative to steel plates, in 15/05 and 23/05 systems for utility and roadwork.
About Oxford LowPro Road Plates
LowPro road plates let crews cover a roadway trench without a machine to lift steel plates. The composite plates are placed by hand using EasiLift handles, and soft edges reduce noise as traffic passes. Per Oxford Plastics, a road-width trench can be covered in about 10 minutes.
Two systems are offered. LowPro 15/05 spans trenches up to 28 in using 3 x 20 x 59 in inner pieces (88 lb) and end pieces. LowPro 23/05 spans up to 48 in with 3 x 20 x 91 in inner pieces (143 lb), end pieces and a stillage. Per the manufacturer, both are rated for loads up to 97,000 lb, with 23/05 referenced to HS20-44 and AASHTO H25. A molded anti-slip surface serves vehicles, pedestrians and wheelchair users, and the modular design fits any trench length.
For a quote, send trench width, length and traffic type. Axiom South ships nationwide.
Colors, sizes and specifications
Colors and finishes
- Inner piece: yellow and blue
- End piece: blue
- Easilift handles: yellow
Models
| Item | Ref. | Tool code | H x W x L | Weight | Per pallet |
|---|---|---|---|---|---|
| Inner piece | 5793 | O900 | 3" x 20" x 59" | 88 lb | 20 |
| End piece | 5790 | O903 | 3" x 20" x 59" | 22 lb | 20 |
| Easilift handles | 4725 | O730 | 8" x 18" x 36" | 7 lb | 20 |
Features
- Information moulded into surface
- Anti-slip surface
- Flat top stacks securely
- Improved connectors cut dismantling time
- Compatible with Easilift handles and existing 15/05 MKI units
- Rubber-like edges dampen noise
- Right-to-repair with spare parts
Specifications
| Load class | Carriageway, up to 44 t (97,000 lbs) |
|---|---|
| Trench width | Up to 28 in |
Accessories and works with
- Blue LowPro Edge

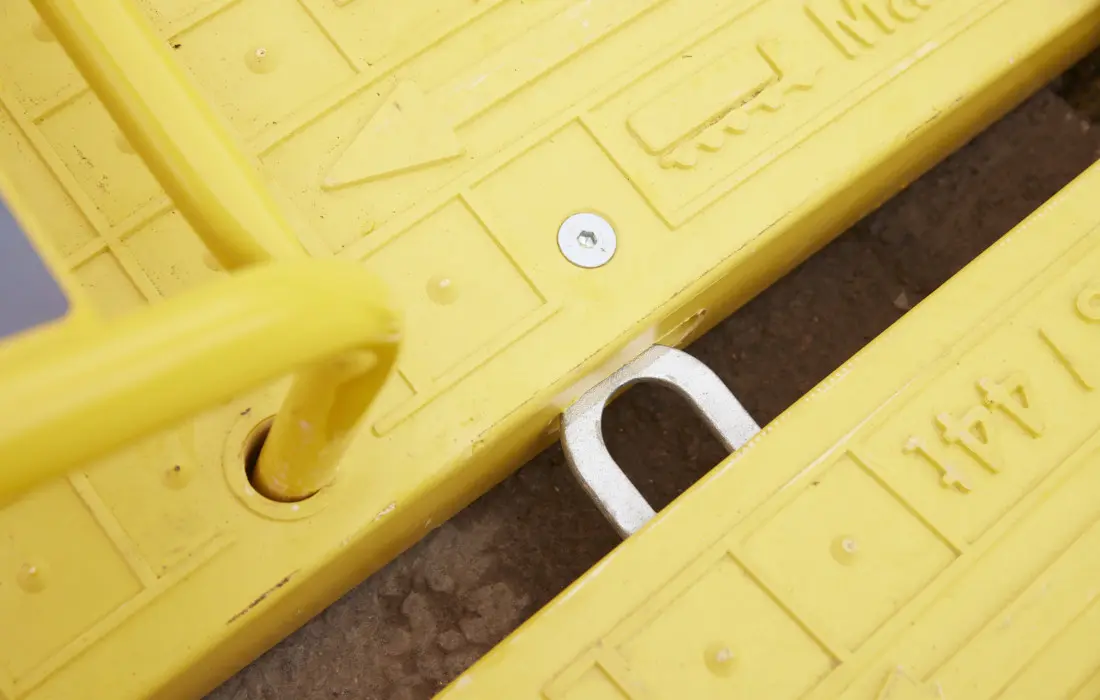

- Male U Bolt Connector
- Female Connector
- Easilift Handles
Best for
- Roadway trench cover for vehicles, pedestrians and wheelchair users
Installation notes

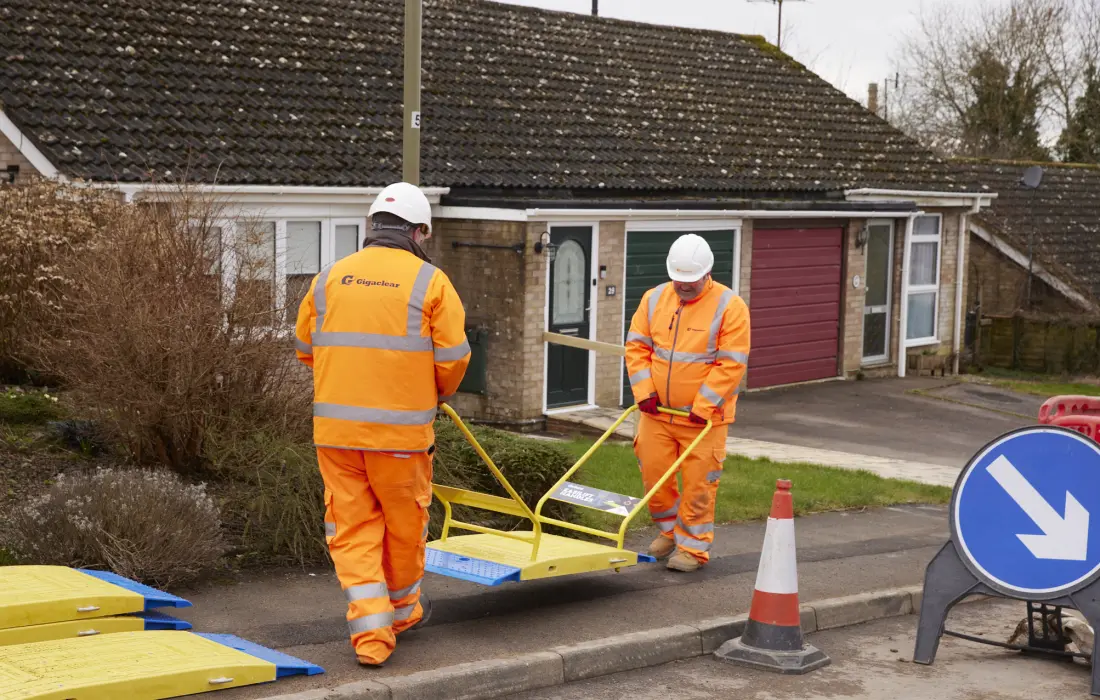

- Installed by hand, no lifting equipment
- Covers a road-width trench in about 10 minutes

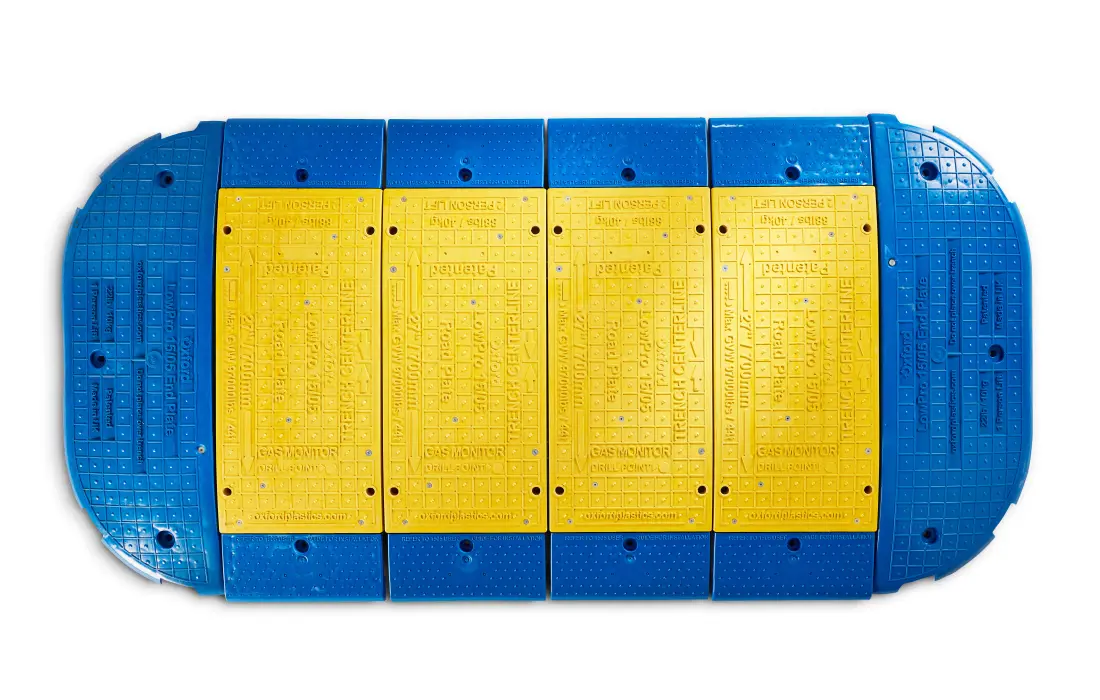

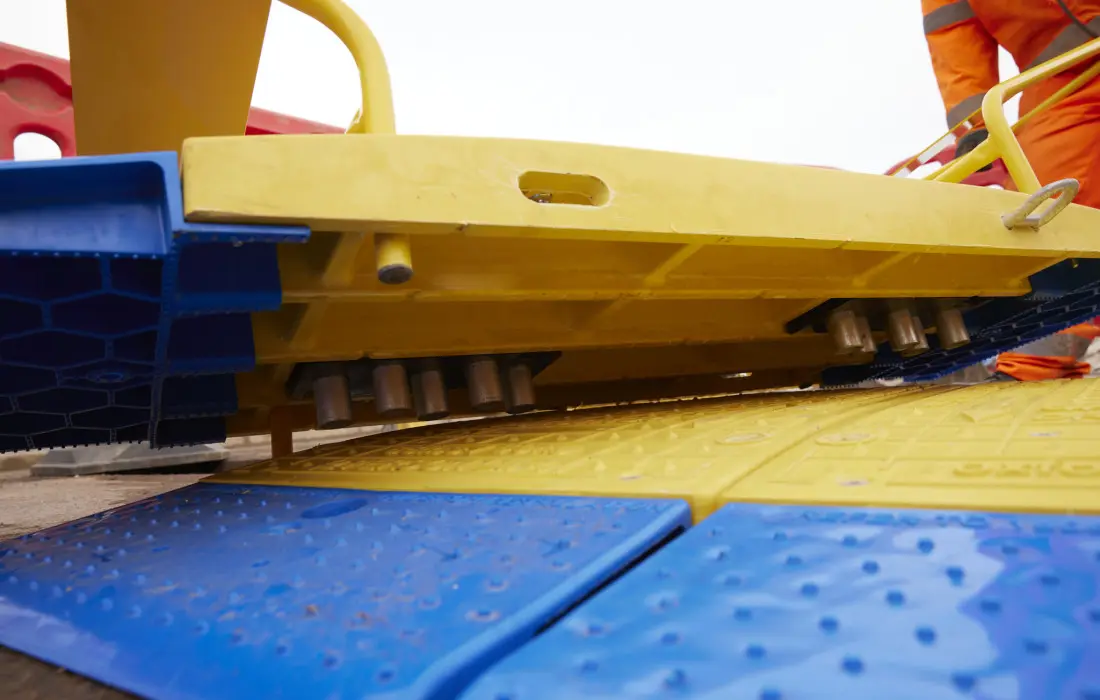

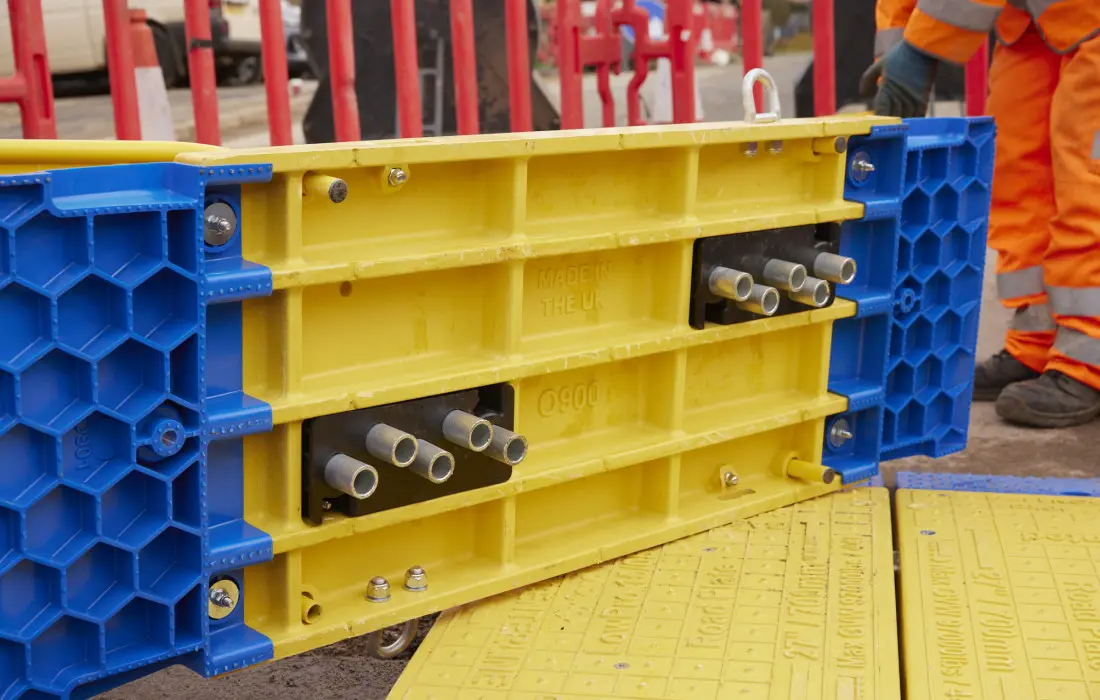

Oxford LowPro Road Plates photos
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Request a quote for Oxford LowPro Road Plates
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
