Oxford LowPro Trench Covers
Oxford LowPro trench covers are lightweight composite boards that keep sidewalks, footways and driveways open over utility trenches, placed by hand in 11/11, 12/8 and 15/10 systems.
About Oxford LowPro Trench Covers
Utility work should not shut down a sidewalk. LowPro trench covers are lightweight composite boards placed by hand over an excavation, with rubber edges that grip the asphalt. There is no lifting equipment, cold patch or asphalt ramp to deal with.
Three systems cover different spans and traffic. LowPro 11/11 is a 44 x 44 in, 53 lb board spanning up to 28 in for pedestrians and wheelchairs. LowPro 12/8 is 47 x 31 x 1 in at 37 lb for footway trenches of about 28 in. LowPro 15/10 is 39 x 59 x 1 in at 84 lb, spans 36 in and, per Oxford Plastics, carries pedestrians and vehicles up to 7,700 lb, with ADA ramp attachments available. Covers are yellow and black with molded anti-slip grips, and custom colors are possible with minimums. Infill strips and ramps make the system modular.
For a quote, send trench width, length and traffic type. Axiom South ships nationwide.
Colors, sizes and specifications
Colors and finishes
- Yellow and black (custom colors available, minimums apply)
Sizes and configurations
- 44" x 44", 53 lb
Models
| Product ref. | Tool code | Size | Weight | Per pallet |
|---|---|---|---|---|
| 3147 | O825 | 44" x 44" | 53 lb | 30 |
Features
- Protective edges resist rough handling
- No bolts needed in most applications; black rubber edges grip the asphalt
- One-person lift (53 lb) and under 1 in. high, so it fits in a small work vehicle
- Anti-slip surface with instructions molded in; corporate logo and bespoke colors available (minimum order quantities apply)
Specifications
| Pedestrian rating | 400 kg (880 lb) footway |
|---|
Best for
- Keeping sidewalks and pedestrian routes open
- Driveways and utility works
Installation notes
- Place over excavation by hand; no lifting equipment, cold patch or asphalt ramps
Good to know
11/11 is not for use in the roadway.

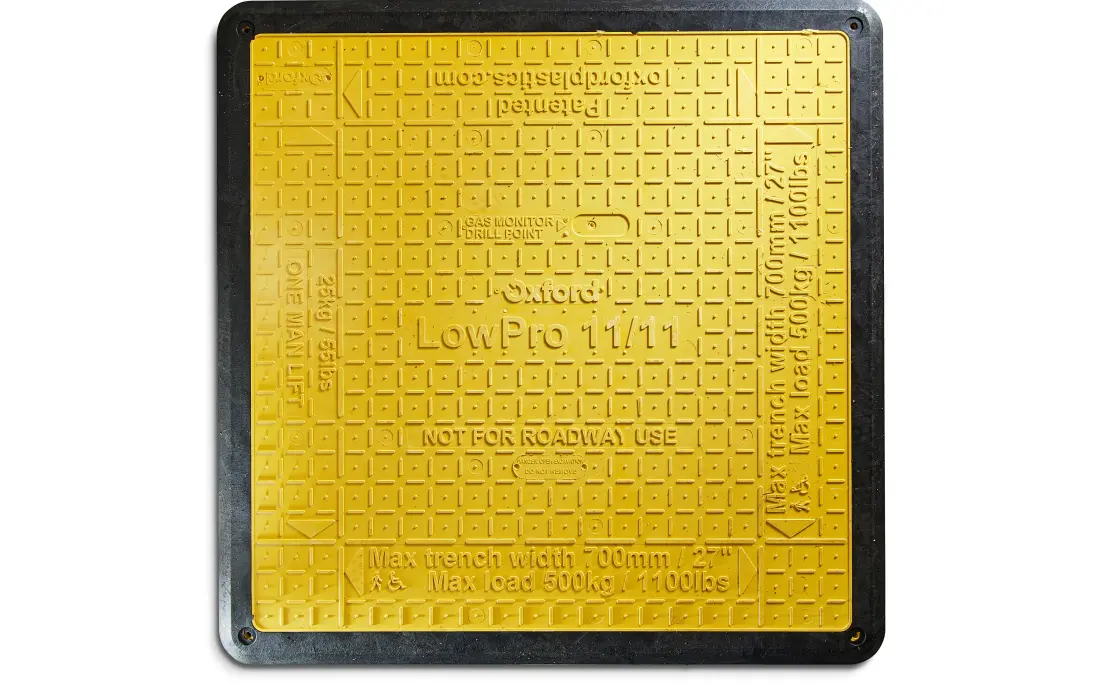

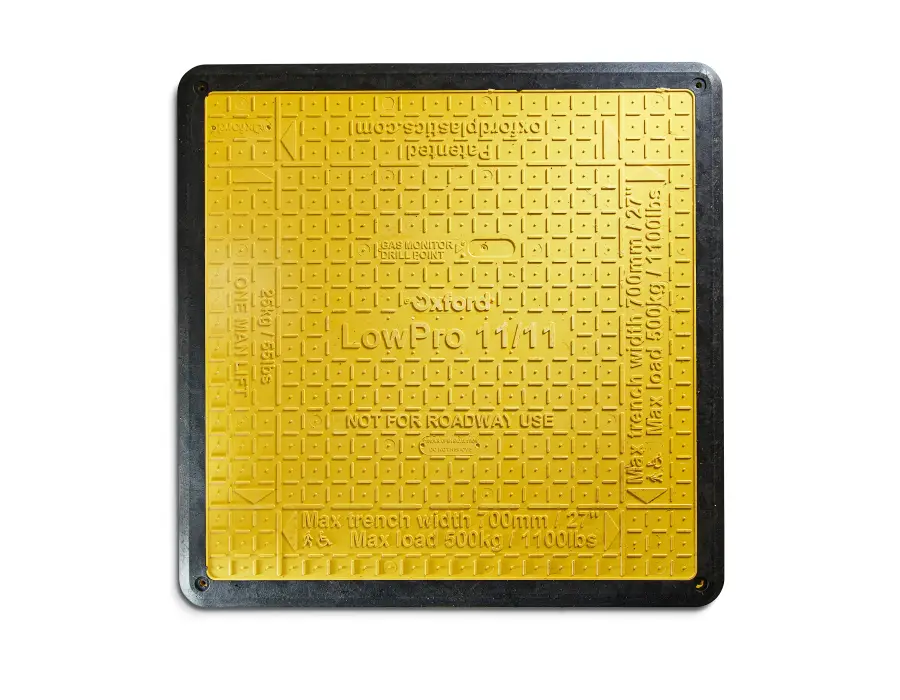

Oxford LowPro Trench Covers photos
