Oxford SupaSite Ramps
Oxford SupaSite Ramps are modular plastic site ramps that let pallet trucks and MEWPs cross steps and curbs on construction sites, with sections that link together.
About Oxford SupaSite Ramps

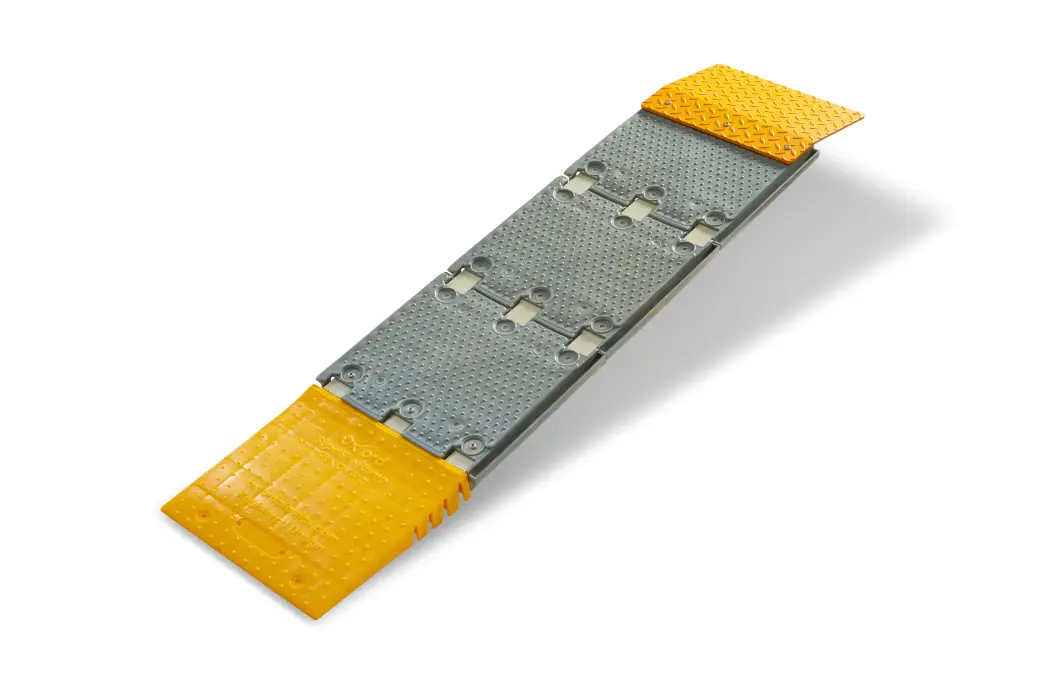

Steps and curbs slow down material handling on a jobsite. The Oxford Plastics SupaSite 1850 ramp covers rises from 4 to 12 in, measures 16 in wide by 73 in long and weighs 53 lb, so one person can place it.
Per the manufacturer, each ramp carries a 4,400 lb working load with a minimum 2:1 safety factor. The non-slip top is finished in gray and yellow, and the modular 16 in sections link side by side to make a wider path. The ramps are reusable, repairable and recyclable. A SupaSite 1450 is also available in the same range.

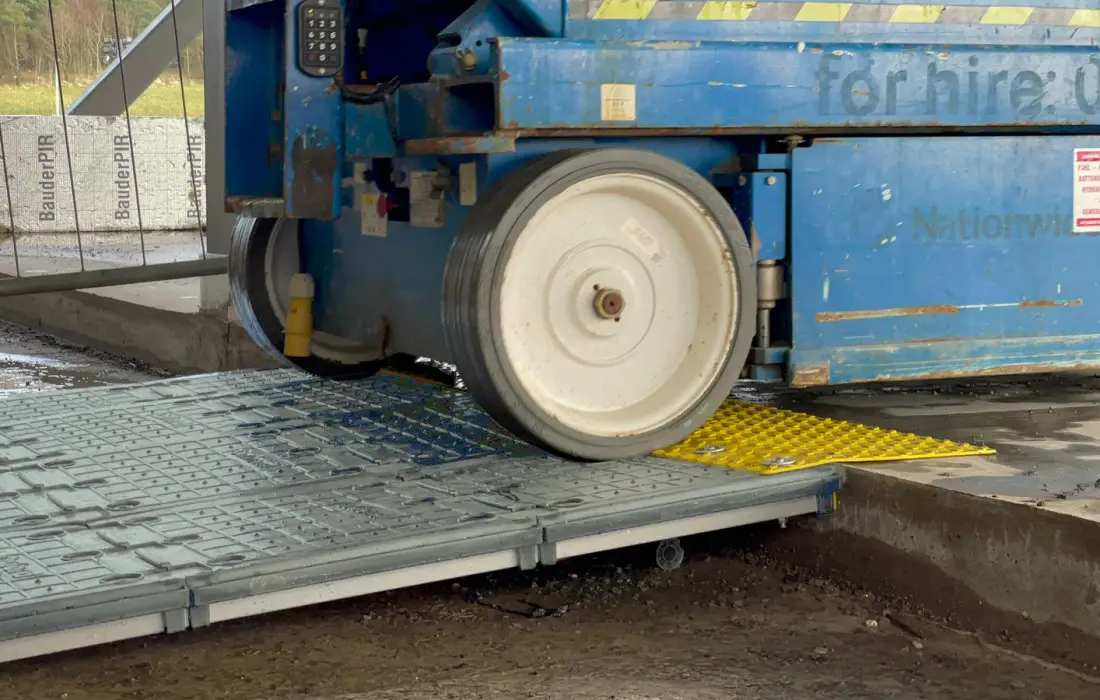

General contractors, rental yards and facility teams use SupaSite ramps for pallet truck and work platform access. For a quote, send the rise you need to cover, the path width and the number of sections.
Colors, sizes and specifications
Colors and finishes
- Gray and yellow
Sizes and configurations
- 4" to 12" rise; 16" wide x 73" long; 53 lb
Models
| Model | Ref. | Tool code | Per pallet |
|---|---|---|---|
| SupaSite Ramp 1850 | 5917 | O916 | 30 |
Features
- 4,400 lb working load, minimum 2:1 safety factor

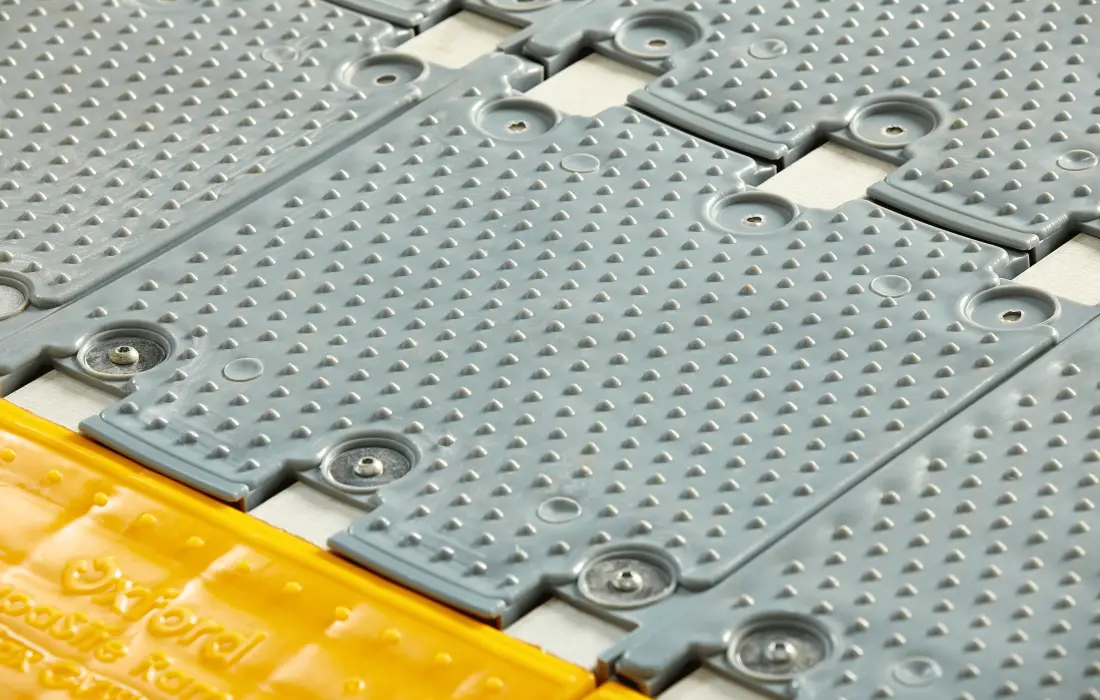

- Non-slip top

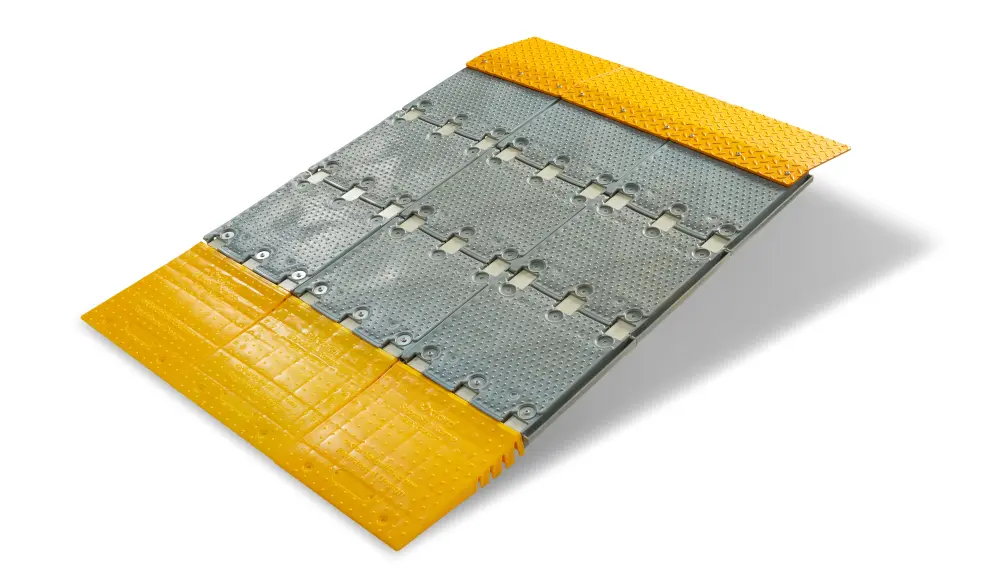

- Modular 16 in sections link together
- One-person installation
- Reusable, repairable, recyclable
Accessories and works with
- SupaSite Ramp 1450 (also available)
Best for
- Construction sites
- Pallet truck and MEWP access
Installation notes
- One person; link sections together
Documents
Oxford SupaSite Ramps photos
