AL10 Aluminum Railing
RailMaster AL10 is a textured-black aluminum railing with 5/8 inch square balusters, sold as factory panels or knock-down kits for decks, patios and balconies.
About AL10 Aluminum Railing
RailMaster AL10 keeps aluminum railing simple: textured black finish, 5/8 inch square balusters, and level panels in 6 and 8 foot lengths at 36 or 42 inch heights. It can be ordered as factory-assembled panels or as knock-down kits, depending on how the crew prefers to work and how the material needs to ship.
The rail profile is 1.5 x 1.25 inches with a 1.85 x 1.32 inch top armor. Posts are 2.5 inches for 6 foot panels or 3 inches for 6 and 8 foot panels. Level runs use a fixed block, and stairs use an adjustable block. Accessories include adjustable and fixed brackets, top rail accents, drink rail brackets, touch-up paint, foot blocks, post caps, post skirts and Torx screws. Typical settings are decks, patios and balconies.
RailMaster warranties AL10 for 20 years residential and 10 years commercial, with coverage reduced within one mile of saltwater. For an itemized quote, send height, panel counts by length, stair runs, post size and count, and accessories.
Colors, sizes and specifications
Colors and finishes
- Textured black powder coat, AAMA 2605 grade
Sizes and configurations
- Panels 36 in and 42 in high in 6 ft and 8 ft lengths
- Gate 4 ft wide in 36 in and 42 in heights
- Line/blank posts 37 in (36 in panels) or 43 in (42 in panels); stair posts 47 in or 53 in
Features
- Level rail panels factory assembled; also sold as knock-down kits
- 8 ft panels include a fixed foot block; stair kits include adjustable foot block
- Pre-drilled anchor holes in line, blank and stair posts
- Line posts have pre-mounted brackets; blank posts are multi-use
- Factory-assembled gates
- Evaluation report ESR-5480
Specifications
| Baluster | 5/8 in square |
|---|---|
| Top and bottom rails | 1-1/2 in W x 1-1/4 in H |
| Top rail armor | 1.85 in W x 1.32 in H |
| Posts | 2.5 in with 4.5 in square base plate (6 ft panels); 3 in with 5 in base plate (6 and 8 ft panels) |
| Gate uprights | 2.5 in x 2.5 in |
Accessories and works with
- Adjustable and fixed brackets
- Top rail accents
- Drink rail brackets
- Touch-up paint
- Foot blocks, post caps, post skirts, Torx screws
Best for
- Decks, patios and balconies
Warranty
Aluminum: 20-year limited (residential), 10-year limited (commercial)

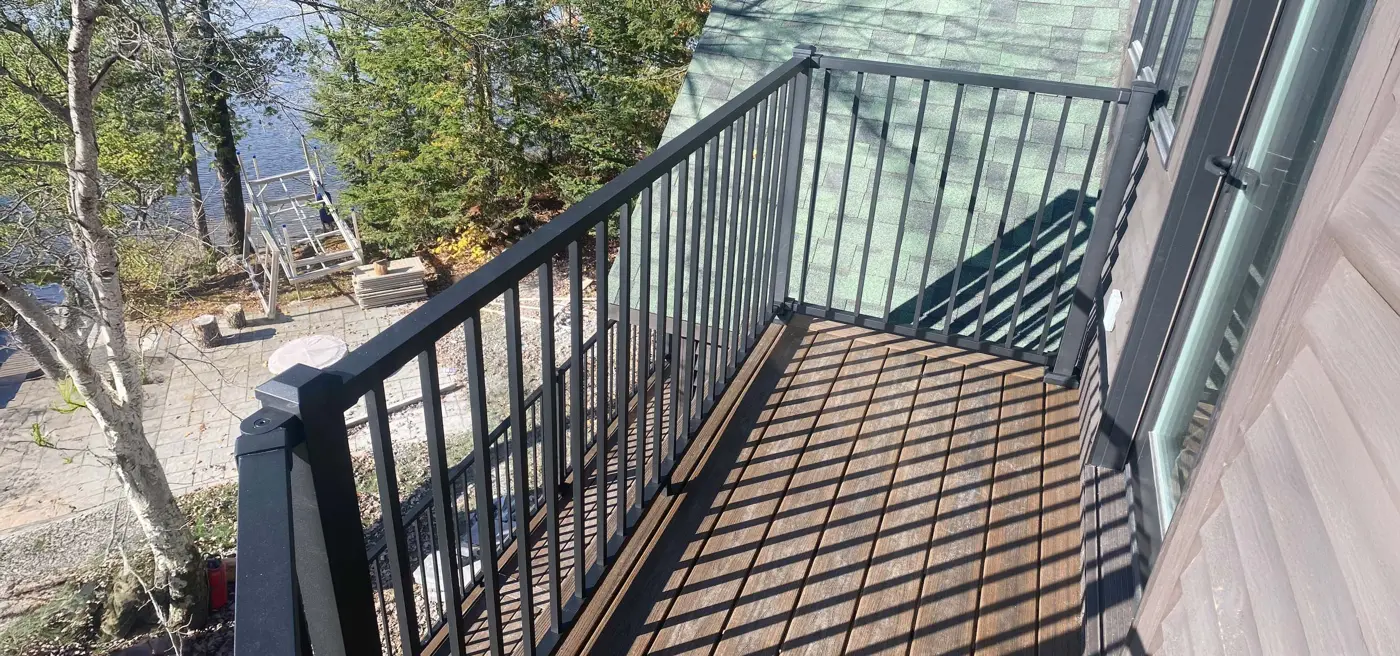

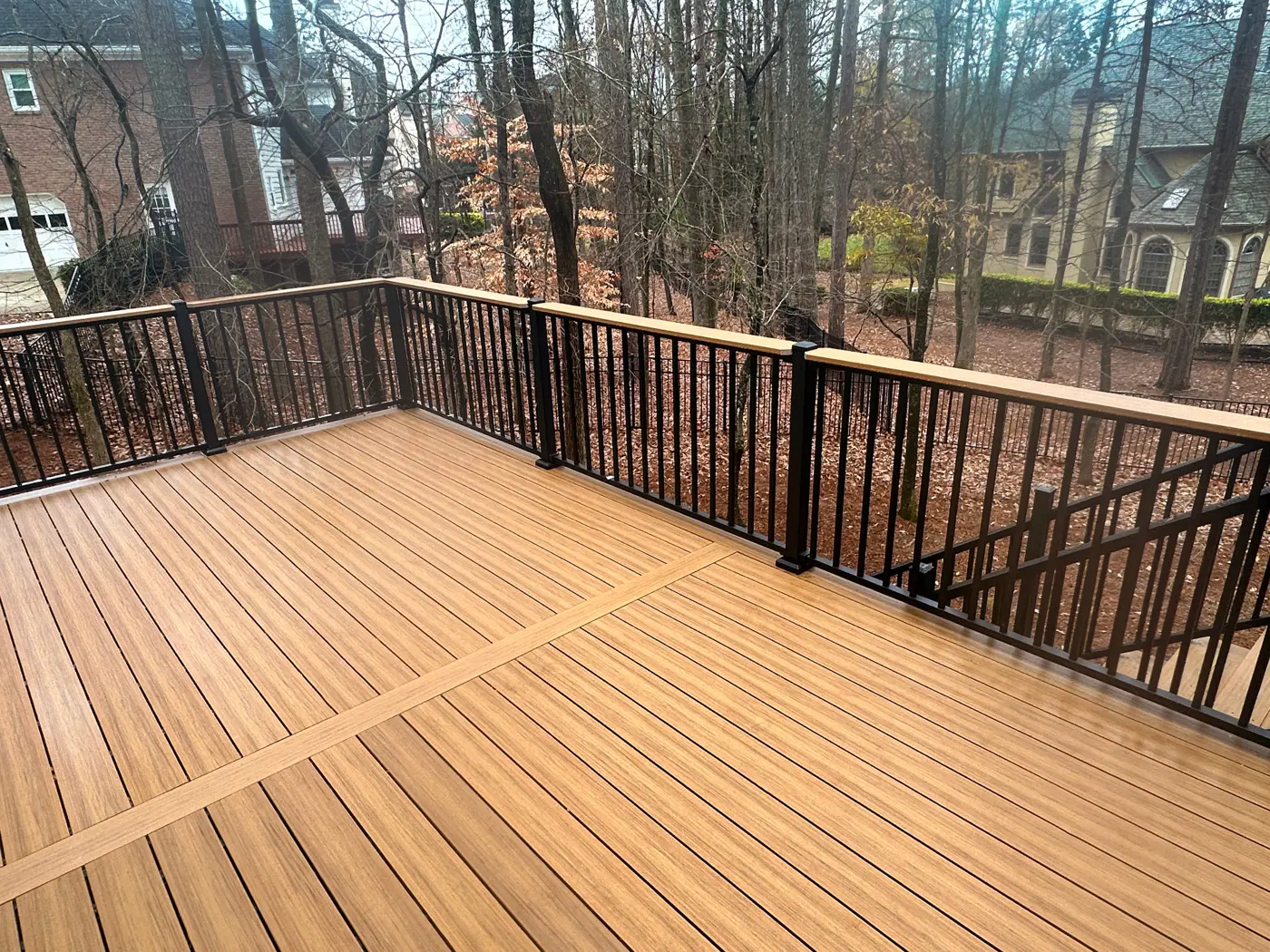

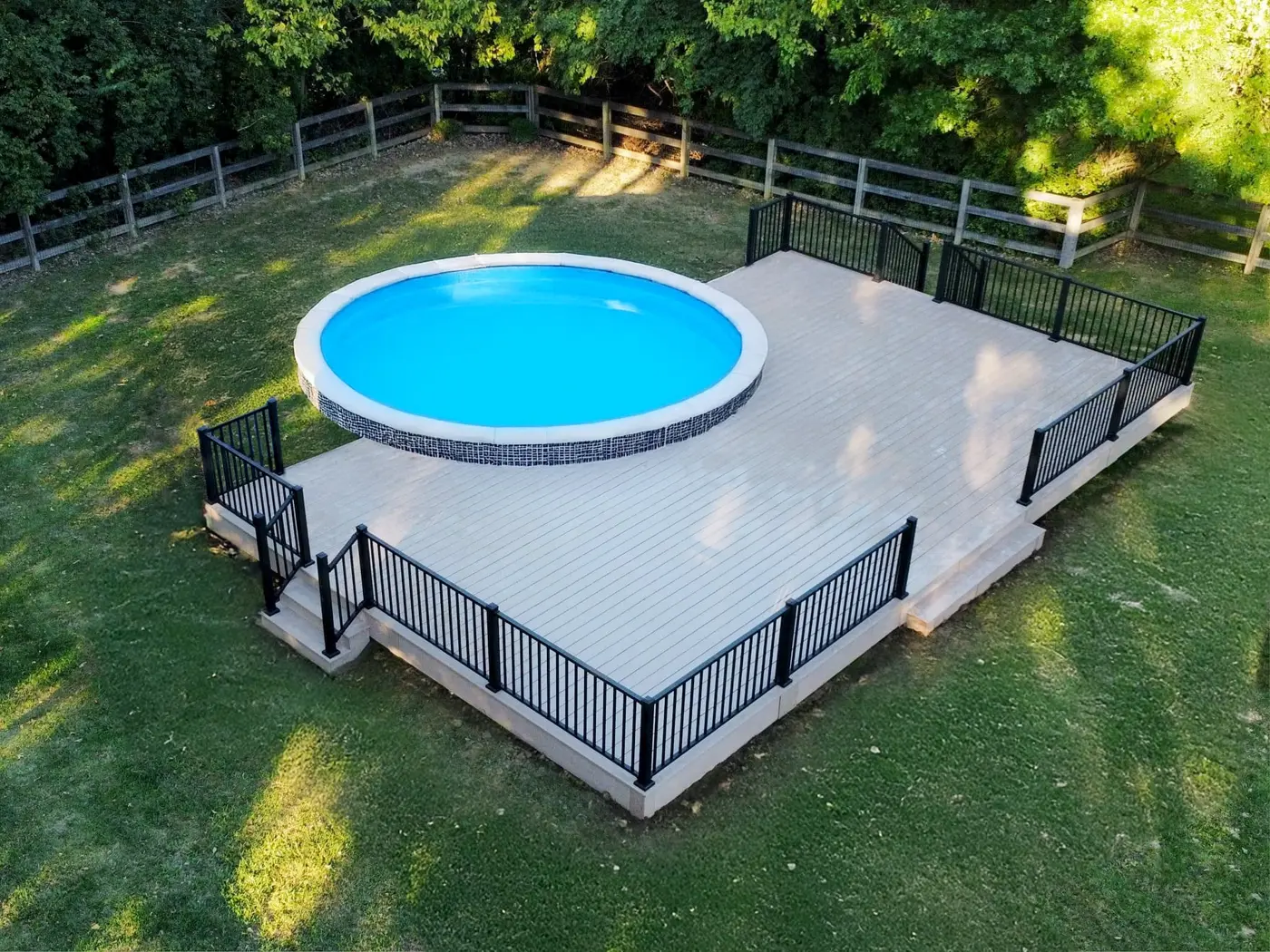

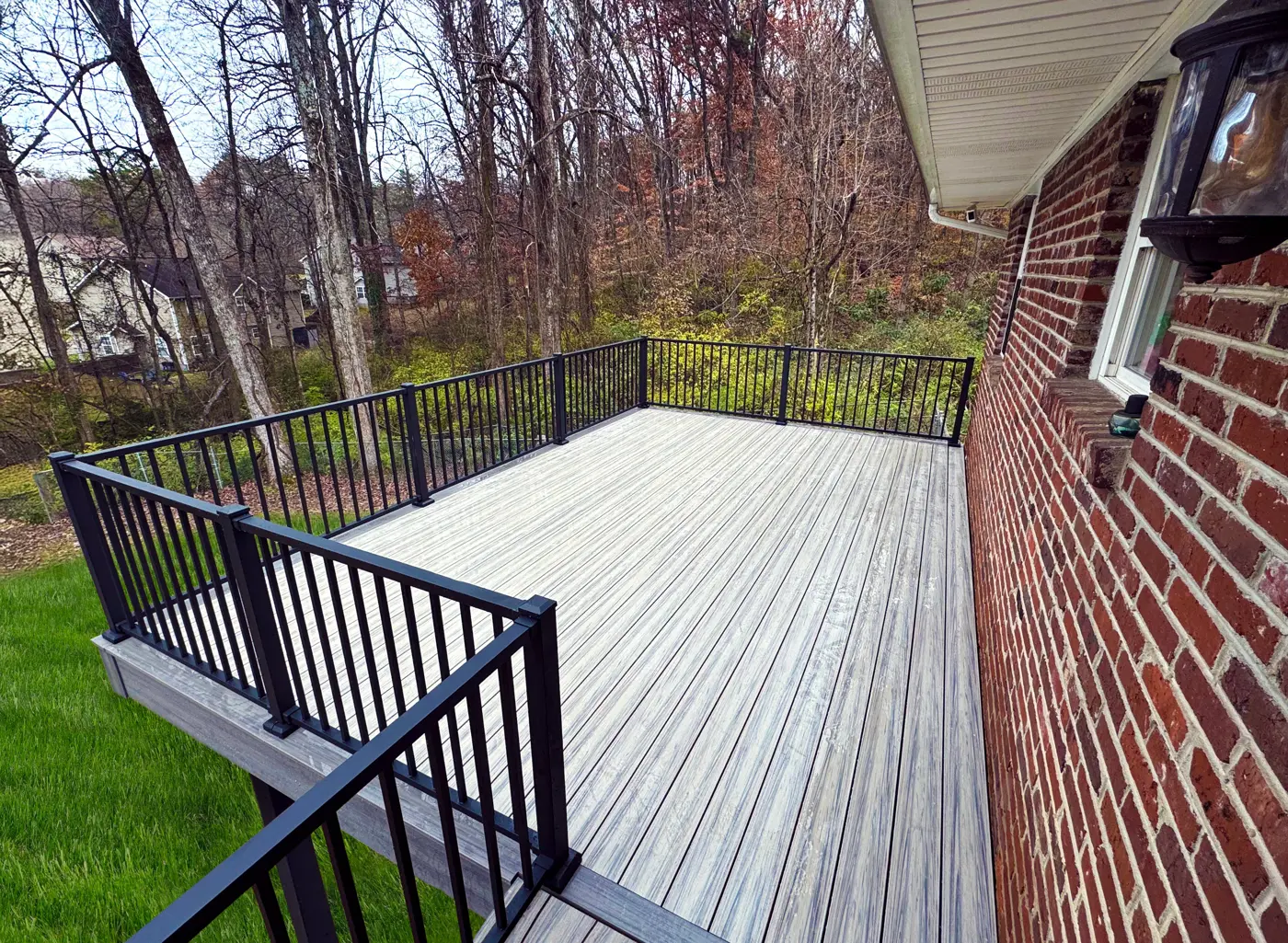

AL10 Aluminum Railing photos
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Request a quote for AL10 Aluminum Railing
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
