About USAutomatic Swing Operators (Patriot, Ranger HD, Ranger 500)
USAutomatic Swing Operators come in three models. The Patriot is heavy duty with mechanical controls, the Ranger HD is heavy duty with electronic controls, and the Ranger 500 is light duty with electronic controls. Each works with single or dual gate leaves and runs on a 12 V DC battery charged by AC or solar.
The Patriot and Ranger HD handle up to 16 ft and 800 lbs per leaf, with about a 12-second cycle for a 90 degree opening and up to 120 degrees of swing. The Patriot uses a 24 in linear actuator. The Ranger 500 covers up to 13 ft and 400 lbs per leaf with an 18 to 20-second cycle. All three are ETL certified to UL 325 Class I-IV.
Manufacturer warranty: Patriot, 3 years components and 5 years control board; Ranger HD and Ranger 500, 3 years on components and control board. For a quote, send leaf width and weight, single or dual, power source and accessories.
Colors, sizes and specifications
Models

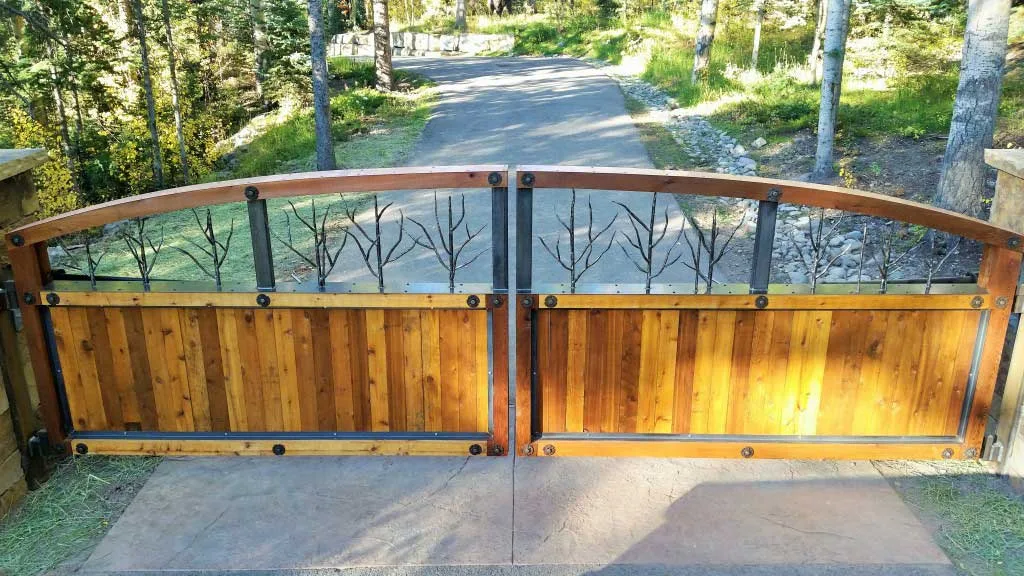

- Patriot (heavy duty, mechanical controls)

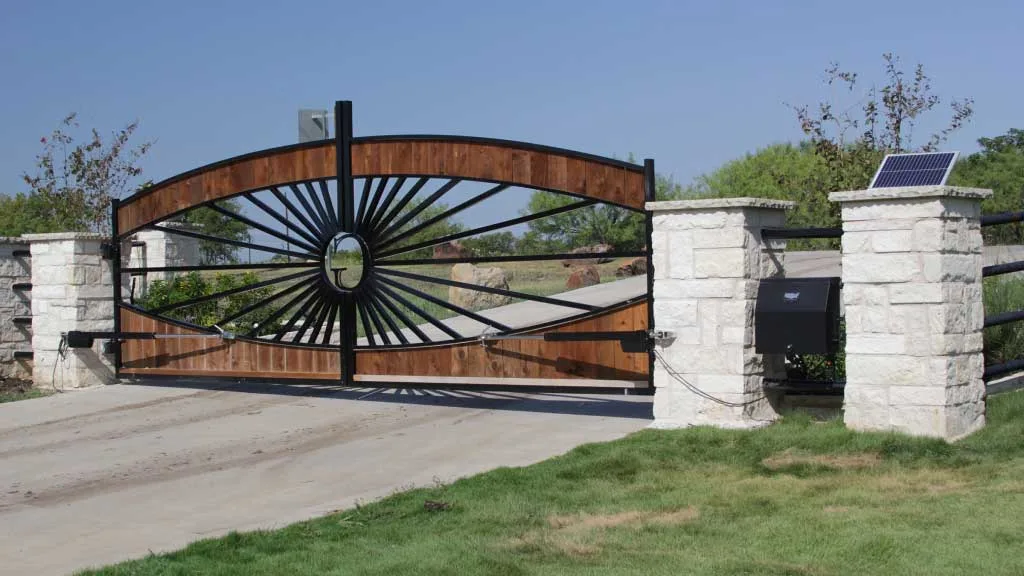

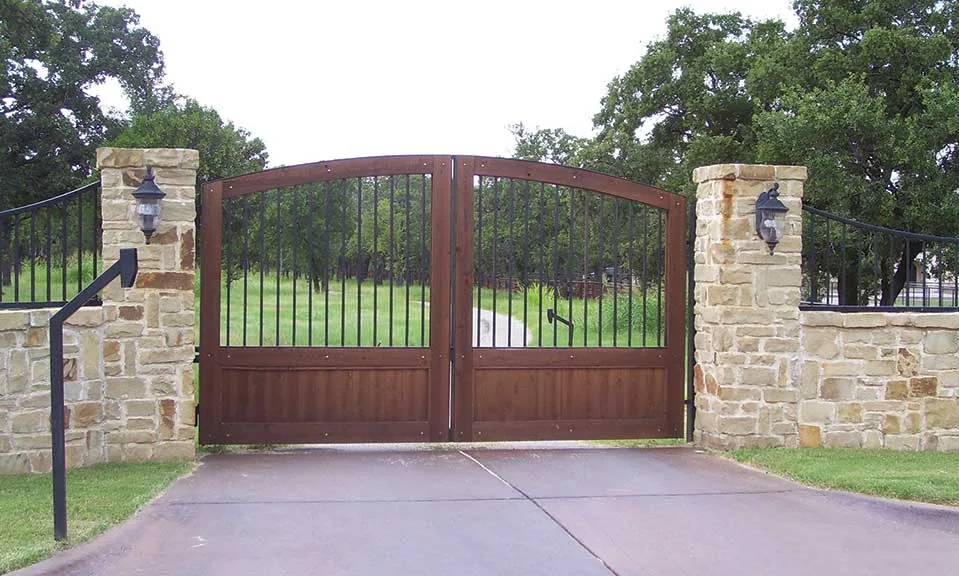

- Ranger HD (heavy duty, electronic controls, designed for corrosive environments)
- Ranger 500 (light duty, electronic controls)
Features
- Multi-cycle battery backup
- Made in Lewisville, TX
- Patriot trusted for over 30 years
Specifications
| Patriot and Ranger HD | Up to 16 ft and 800 lbs per leaf, single or dual |
|---|---|
| Ranger 500 | Up to 13 ft and 400 lbs per leaf, single or dual |
| Safety | ETL certified to UL 325 Class I-IV |
| Power (Patriot, Ranger HD, Ranger 500) | 12 V DC battery, charged by AC or solar |

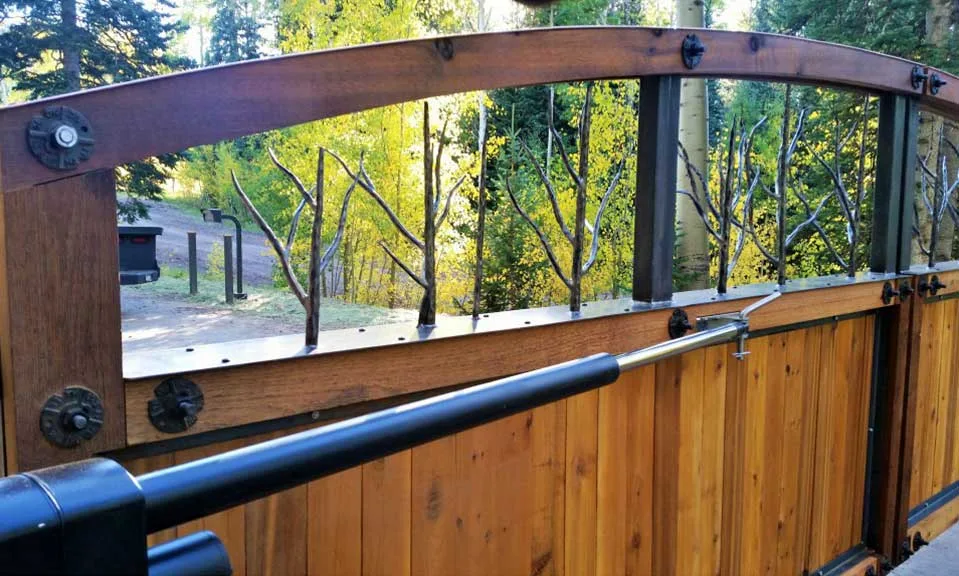

| Patriot | 12-second cycle for a 90 degree opening; up to 120 degree swing; 24 in linear actuator |
| Ranger HD | About 12-second cycle for 90 degrees; up to 120 degree swing |
| Ranger 500 | 18 to 20-second cycle for 90 degrees |
Accessories and works with
- NexxGate Smart App WiFi Receiver
- Wireless and hardwired keypads
- Electric Gate Lock
Warranty
Patriot: 3 years components, 5 years control board. Ranger HD and Ranger 500: 3 years on components and control board.
USAutomatic Swing Operators (Patriot, Ranger HD, Ranger 500) photos
