EC142 Single-Track Aluminum Cantilever
The ARMA Gate EC142 is a single-track, fully modular aluminum cantilever gate for commercial and industrial openings up to 28 ft clear, in 6, 7 and 8 ft heights.
About EC142 Single-Track Aluminum Cantilever
ARMA Gate builds the EC142 in North America from 6061-T6 aluminum and stainless steel. It is a single-track cantilever slide gate that is fully modular and field repairable.
Panels come in 6, 7 and 8 ft heights and 10 or 15 ft lengths, with up to four panels for a maximum 28 ft clear opening and 42 ft overall length. The gate rides on three galvanized steel support posts (3, 3.5, 4 or 4.5 in) with 2 x 2 in uprights and 3/16 in stainless cables. Infill can be chain link, ornamental aluminum or wood picket, in mill finish, black powder coat or custom colors. The manufacturer lists it as automation ready per ASTM F2200 guidelines and backs it with a 5-year warranty.
The operator is a separate purchase. For a quote, send clear opening, height, infill, finish and post size.
Colors, sizes and specifications
Colors and finishes
- Mill finish aluminum
- Black powder coat
- Custom
Sizes and configurations
- Panel lengths 10 ft and 15 ft
- Panel heights 6, 7, 8 ft
- Max opening 28 ft; max gate length 42 ft
- Opening up to 28 ft; up to 42 ft overall with counterbalance
- Heights 6, 7, 8 ft
Features
- Fully modular
- Field repairable
- Simple installation
- Single-track design
- ASTM F2200 automation ready
- Customer support from the manufacturer

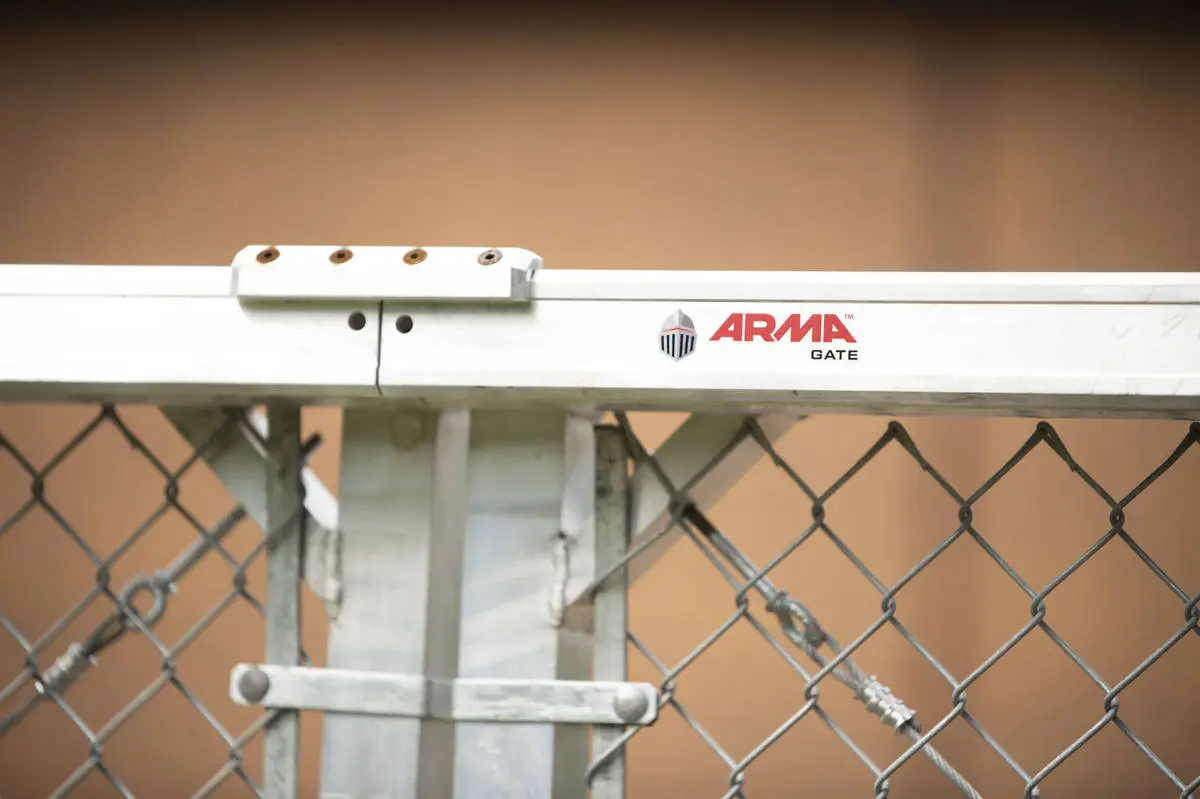

- Spliced modular panels reach the desired length including counterbalance

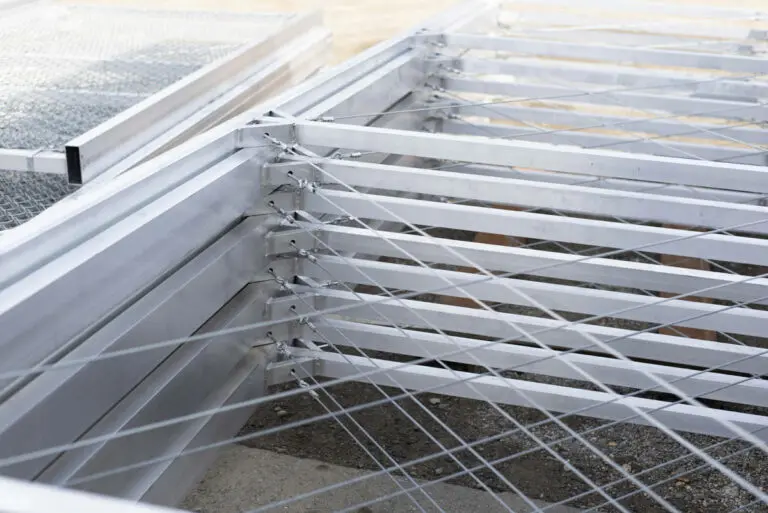

- Tension cables arrive pre-installed and pre-tensioned
- Complies with ASTM F2200 guidelines
- Two-person crew with a trailer can install, no heavy equipment
- Panelized: only a damaged section needs replacing
Specifications
| Maximum opening | 28 ft |
|---|---|
| Maximum gate length | 42 ft |
| Posts required | 3 galvanized steel (3, 3.5, 4 or 4.5 in) |
| Max panels | 4 |

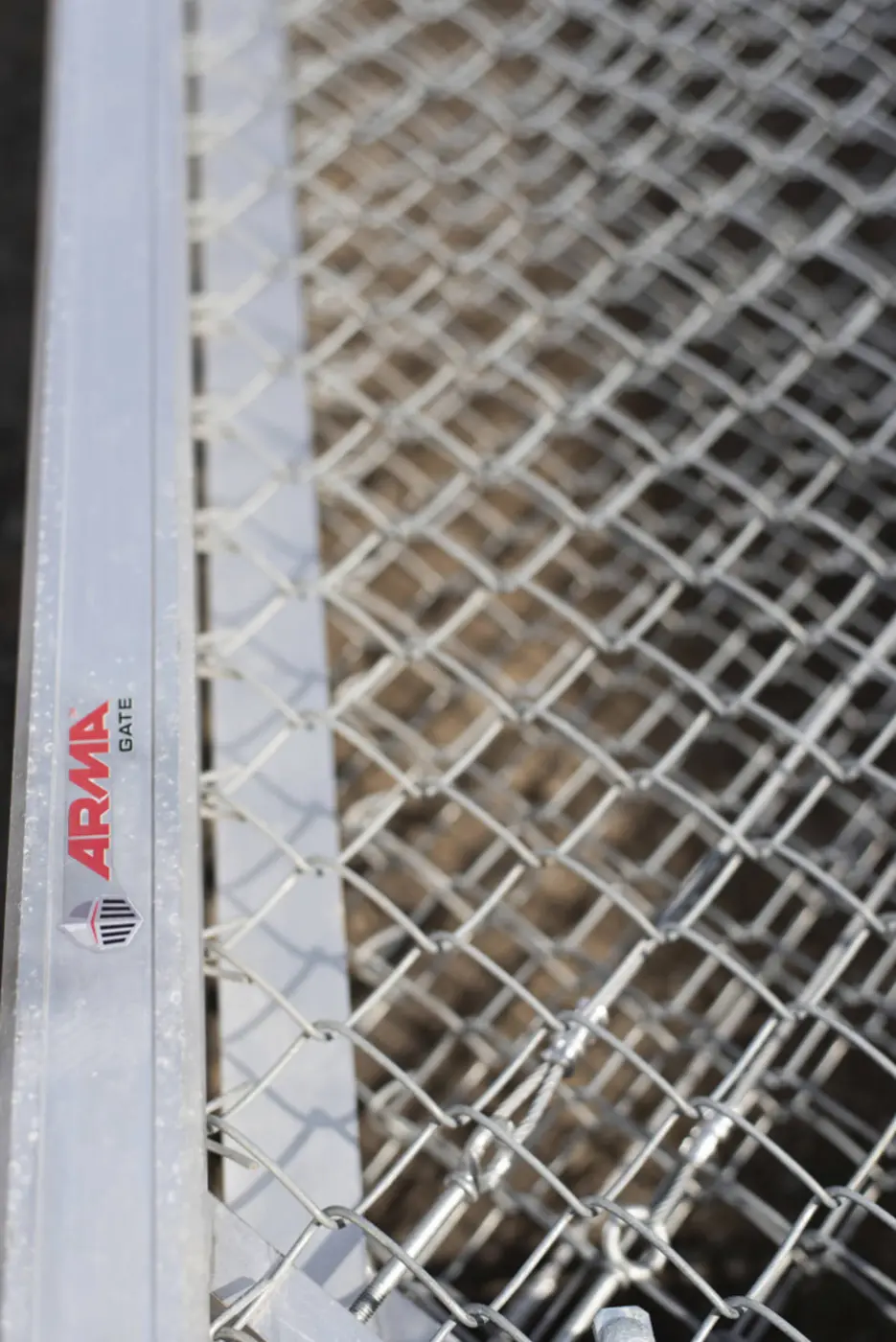

| Infill types | Chain link, ornamental aluminum, wood pickets |
| Upright size | 2 in x 2 in |
| Cables | 3/16 in stainless steel |
Accessories and works with
- Gate infills
- Gate toppers
- Tension and alignment hardware
Best for
- High-traffic industrial facilities
- Energy-sector industrial access
- Narrow urban delivery sites
Installation notes
- Installation instructions are available as a manufacturer PDF.
Warranty
5-year warranty
Good to know
Panel length and final dimensions are confirmed against the project drawing when you order; request a quote with your opening width.
