EC290 Dual-Track Aluminum Cantilever
The ARMA Gate EC290 is a dual-track, fully modular aluminum cantilever gate for large commercial, industrial and security openings, built with up to eight 10 ft panels.
About EC290 Dual-Track Aluminum Cantilever
When an opening is too wide for a single-track gate, the ARMA Gate EC290 adds a second track. It is built in North America from 6061-T6 aluminum and stainless steel, fully modular and field repairable.
The EC290 uses five galvanized steel support posts (3, 3.5, 4 or 4.5 in), 2 x 2 in uprights and 1/4 in stainless cables, with up to eight 10 ft panels in 6, 7 or 8 ft heights. It handles clear openings up to 50 ft and overall gate lengths up to 80 ft, and we confirm the final size for each project. Chain link infill is standard, with mill finish, black powder coat or custom colors, and the gate is automation ready per ASTM F2200 guidelines.
ARMA case studies include a 40 ft commercial opening and a custom 10 ft high military gate. For a quote, send clear opening, height, finish and accessories.
Colors, sizes and specifications
Colors and finishes
- Mill finish aluminum
- Black powder coat
- Custom
Sizes and configurations
- Panel length 10 ft
- Panel heights 6, 7, 8 ft
- Max opening 50 ft; max gate length 80 ft
- Heights 6, 7, 8 ft
Features
- Double track design
- Fully modular
- Field repairable
- ASTM F2200 automation ready
- Dual-track cantilever for commercial and industrial use
- Spliced modular panels
- Tension cables pre-installed and pre-tensioned
- Complies with ASTM F2200 guidelines
Specifications
| Maximum opening | 50 ft |
|---|---|
| Maximum gate length | 80 ft |
| Posts required | 5 galvanized steel (3, 3.5, 4 or 4.5 in) |
| Max panels | 8 |
| Infill | Chain link |
| Upright size | 2 in x 2 in |
| Cables | 1/4 in stainless steel |
Accessories and works with
- Infill kits
- Barb arm kit
- Tension tool
- Gap filler
- Click-Lock system
Best for
- Large commercial access points (40-ft opening case study)
- Military security gates (custom 10-ft-high)
Installation notes
- Installation instructions available as a manufacturer PDF.
Good to know
Maximum opening is confirmed against the project drawing; give us your opening width when requesting a quote.

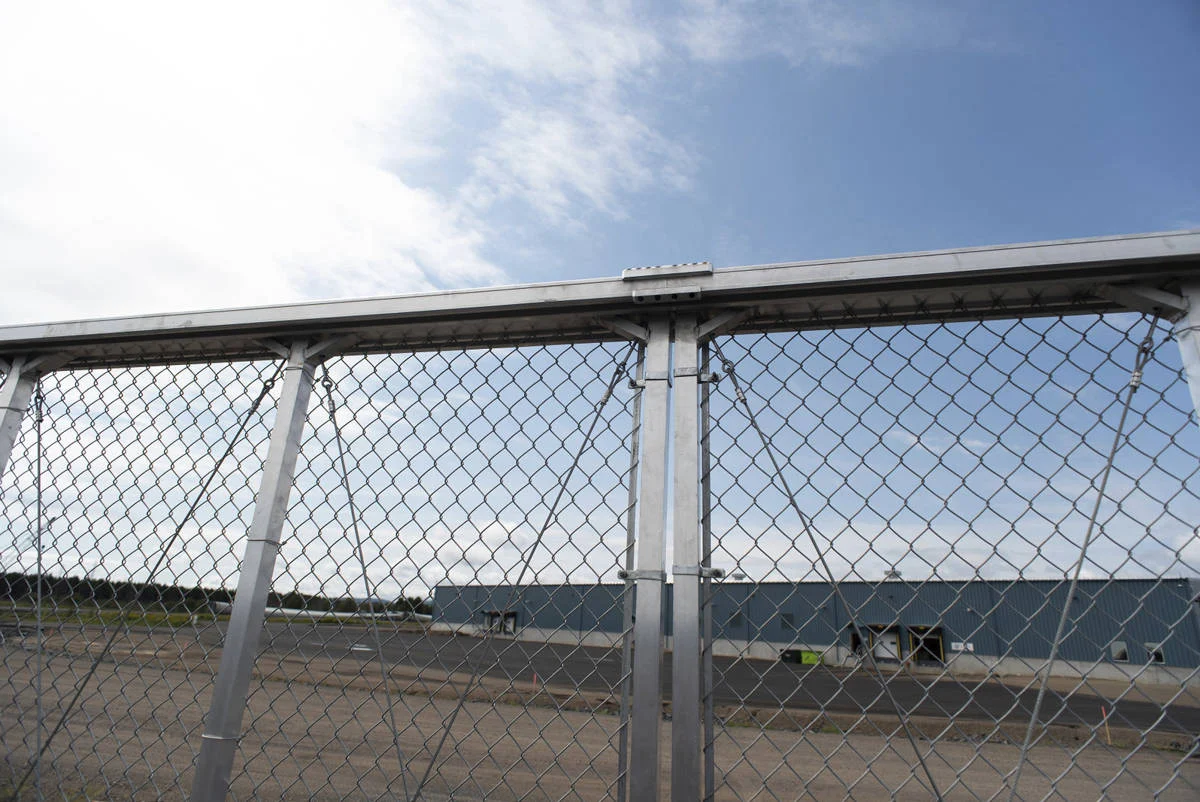

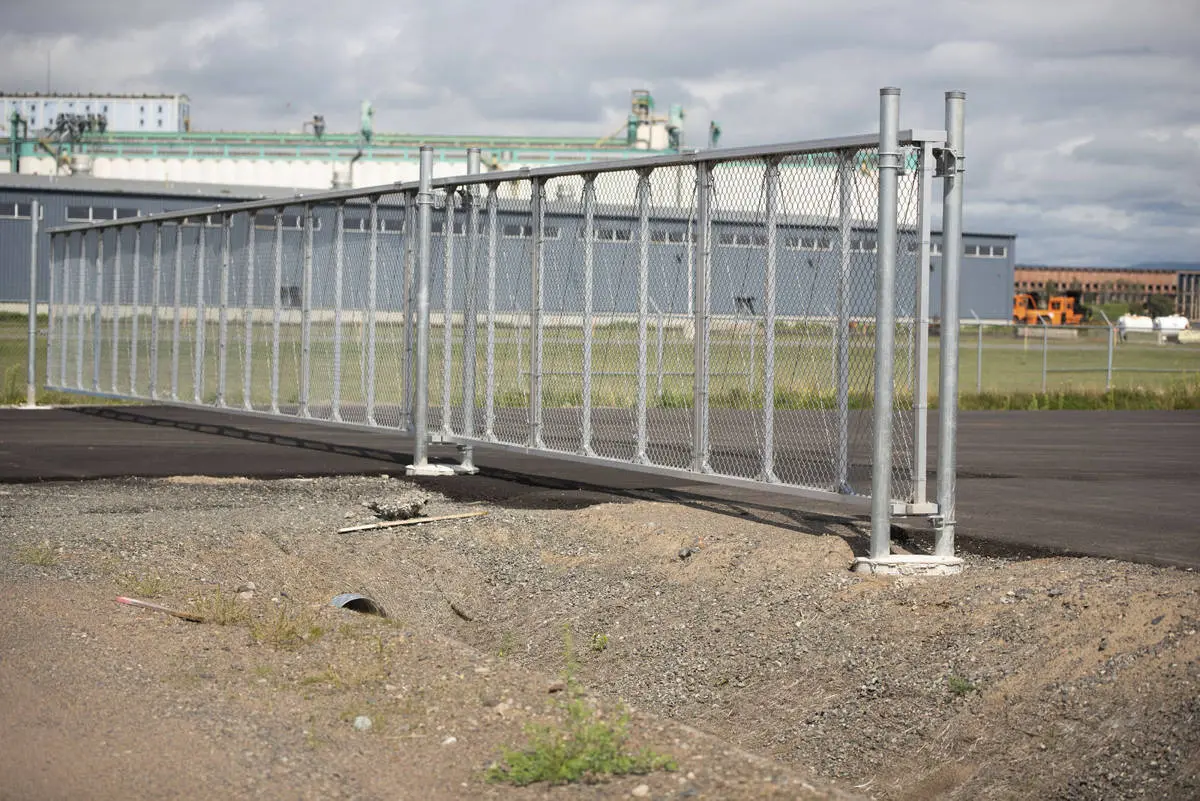

EC290 Dual-Track Aluminum Cantilever photos
