CellGate Entria Controllers
CellGate Entria controllers are cloud-managed door, gate and elevator access controllers using cellular LTE or Ethernet for multifamily, gated communities, offices and commercial sites.
About CellGate Entria Controllers (Single-Door, Four-Door, Elevator)
Entria is CellGate's cloud-managed access controller family. It connects over cellular LTE or Ethernet and caches credentials locally, so access continues during outages. Everything is managed through TrueCloud Connect, with mobile app keyless entry, QR and PIN visitor passes, access logging and prop-open notifications.
Four models cover different openings. The E4DC Four Door Controller runs up to four doors, supports CellGate or third-party 26-bit Wiegand readers and adds photo verification with optional external cameras. The E1DC Single Door Controller sits in a rugged enclosure and reads QR, PIN, Bluetooth, DESFire EV3 and HID. The E1DC MU combines controller and reader in a mullion unit, and the E32EC Elevator Controller handles floor restriction and app elevator summoning.
CellGate systems are installed and activated by a qualified access control professional, and we can help connect you with one. Contact us with your door, gate and floor counts to discuss options.
Colors, sizes and specifications
Models
- E4DC Four Door Controller (up to four doors/gates, optional cameras)
- E1DC Single Door Controller
- E1DC MU single door mullion with reader
- E32EC Elevator Controller
Features
- Remote credentials, schedules and logs
- QR and PIN visitor passes on single-door models
- Bluetooth and app keyless entry
- Prop-open notifications
- Photo verification (four-door)
- Works with CellGate readers or 26-bit Wiegand readers
Specifications
| Single-door encryption | DESFire EV3 or HID |
|---|---|
| Wiegand | One input for an added reader on single-door models |
Accessories and works with
- Infinity, Halo and Digit readers
- Integrated cameras
Best for
- Multifamily
- Gated developments
- Commercial and industrial
- Offices
Installation notes
- Installed and activated by a qualified access control professional.
Documents
- Brochure (PDF)
- Entria Door Controller Technical Specifications (PDF)
- Brochure 2 (PDF)
- Entria Single Door Controller Enclosure Technical Specifications (PDF)
- Brochure 3 (PDF)
- Entria Single Door Controller Technical Specifications (PDF)
- Brochure 4 (PDF)
- Specification sheet: Entria Elevator Controller Tech Specs (PDF)

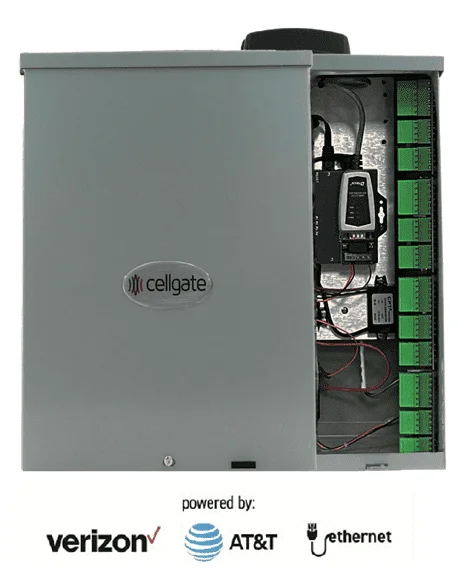

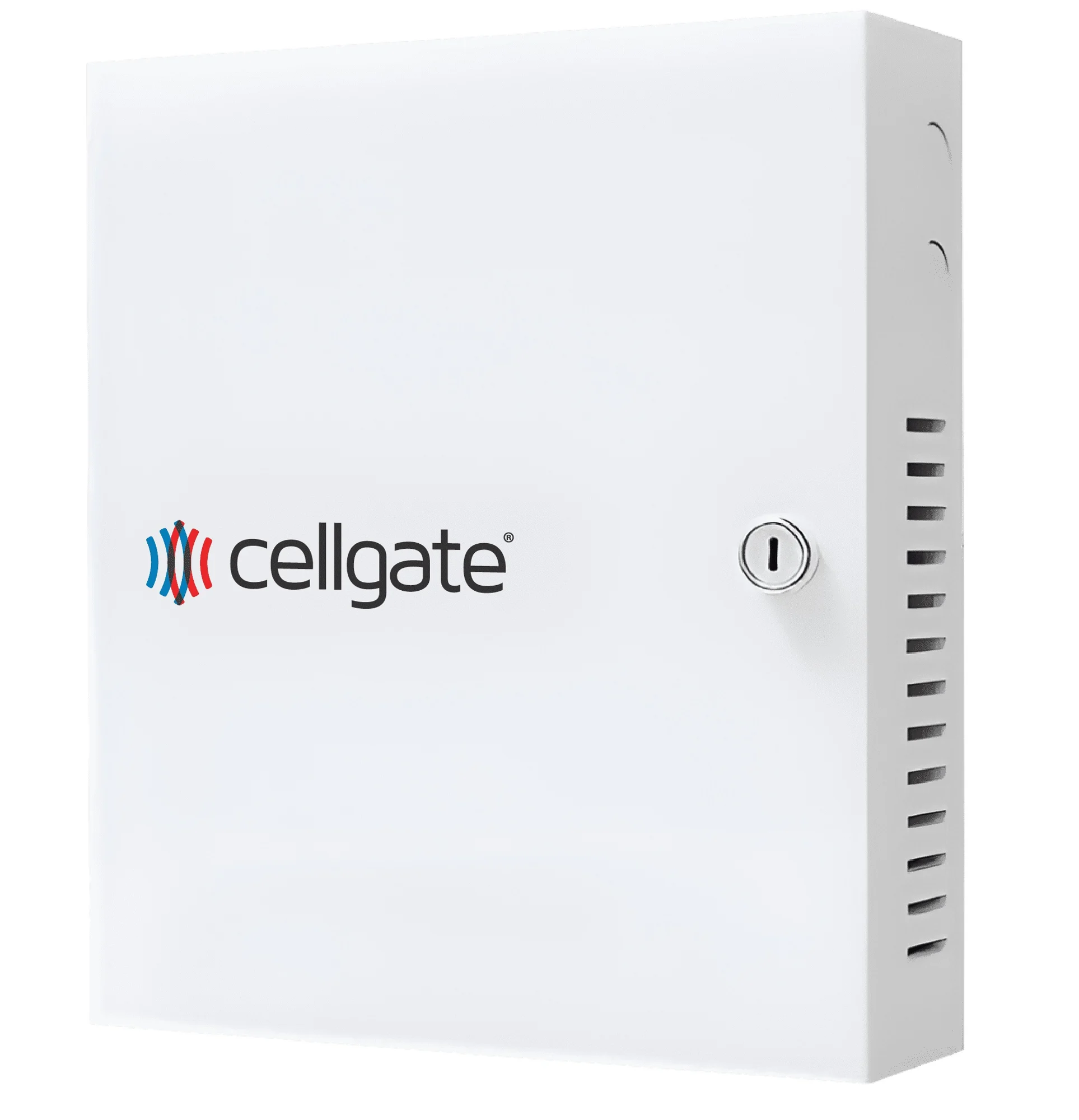

CellGate Entria Controllers (Single-Door, Four-Door, Elevator) photos
