CellGate OmniPoint Wireless Access Control
CellGate OmniPoint is a wireless multi-point access control system that links remote gates and buildings over LoRa, without long data wiring runs between entry points.
About CellGate OmniPoint Wireless Access Control
Remote gates, pools and outbuildings can be hard to reach with data cable. CellGate OmniPoint uses a gateway connected to TrueCloud Connect that talks to entry point modules over LoRa, with a range of about 1 mile and no line of sight needed.
One gateway supports up to 50 entry points and connects by cellular LTE or wired internet. Each module stores credentials locally and runs on existing 12V DC or 24V AC power at the entry point. Modules accept CellGate Infinity, Halo and Digit readers or 26-bit Wiegand readers, and the system works alongside Watchman intercoms and Entria controllers. Role-based administration and a retrofit-friendly design suit fenced outdoor areas.
Typical sites include apartments, schools, warehouses, marinas, airports, parking facilities and pools. Contact us with your entry point count and site layout.
Colors, sizes and specifications
Features
- Range up to one mile via LoRa with high-gain antenna; no line of sight needed
- One Gateway supports up to 50 entry points
- Runs on existing 12V DC or 24V AC
- Credentials stored locally on each entry point module, so access continues during outages
- No control panels, data wires or trenching; suits retrofits
- Readers: CG Readers or 26-bit Wiegand
Specifications
| Range | About 1 mile via LoRa, no line of sight needed |
|---|---|
| Capacity | Up to 50 entry points per gateway |
| Gateway connectivity | Cellular LTE or wired internet |
| Power | Existing 12V DC or 24V AC at each entry point |
| Wiegand | 26-bit |
Accessories and works with

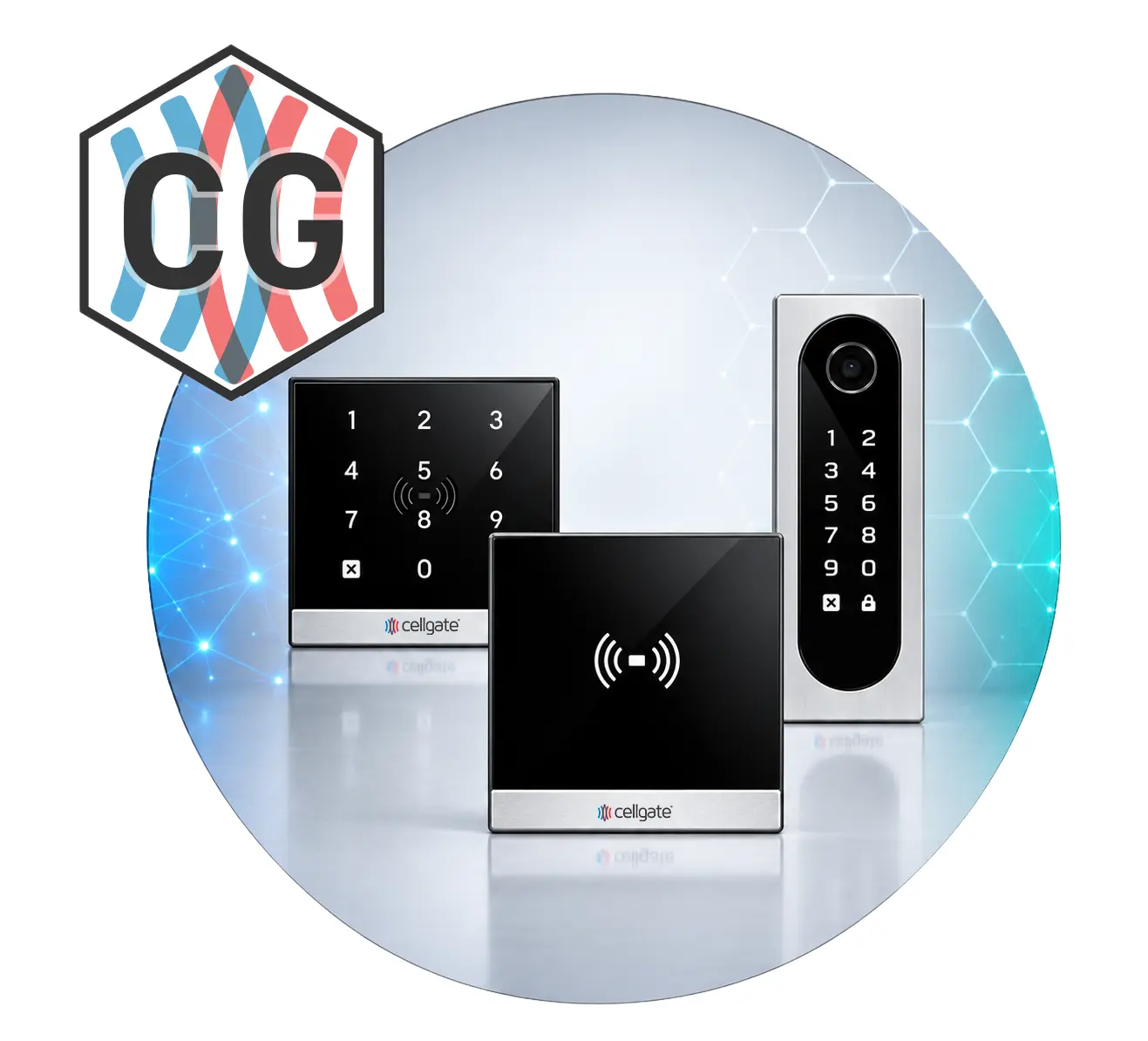

- CG Readers (Infinity, Halo, Digit) or 26-bit Wiegand readers
- Watchman intercoms
- Entria controllers
Best for
- Apartments
- Schools
- Warehouses
- Marinas
- Airports
- Parking facilities

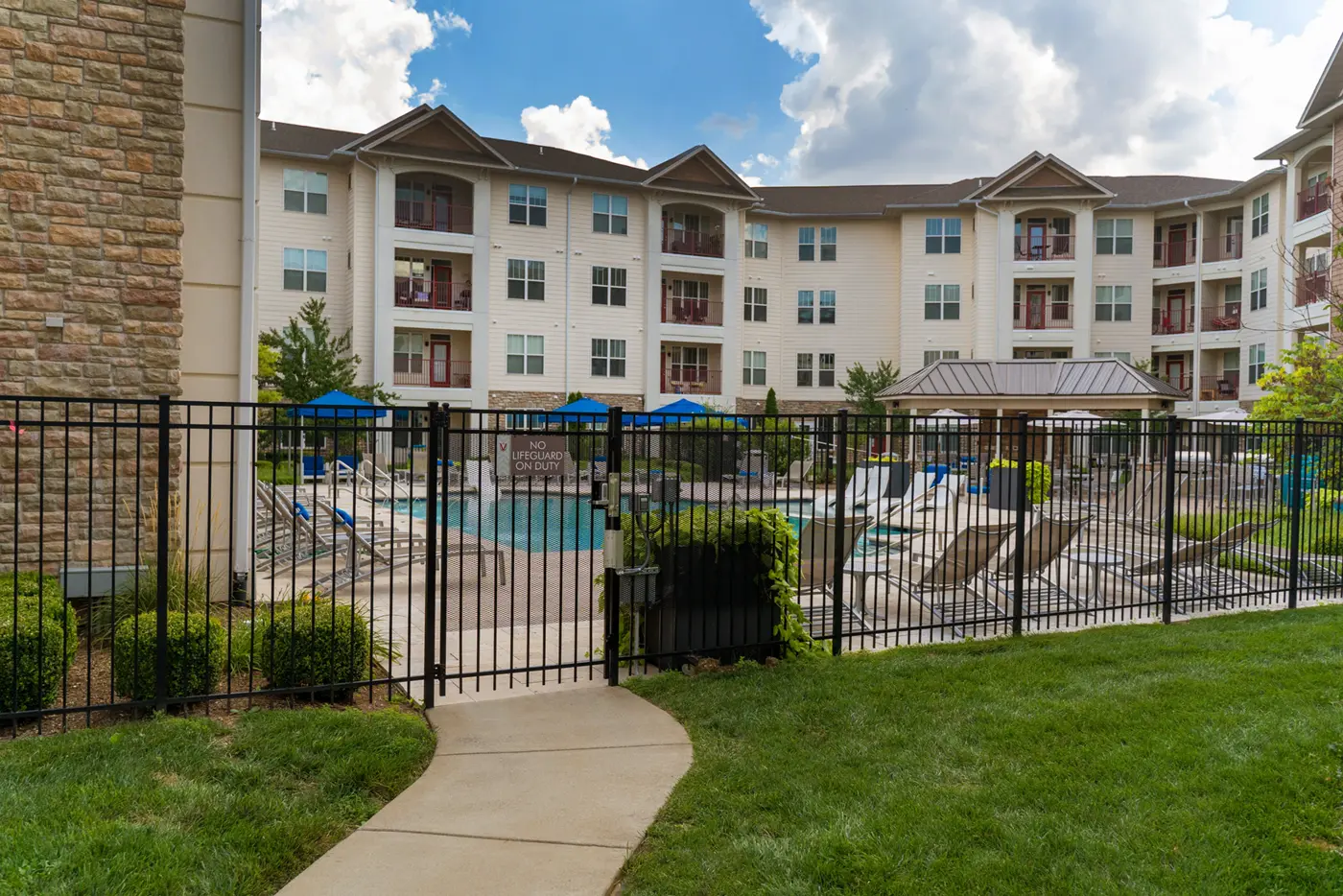

- Pools and outdoor amenities
Installation notes
- Installed and activated by a qualified access control professional.
