DesignRail Classic
Feeney DesignRail Classic is a modular aluminum railing system with snap-and-screw kits, for indoor and outdoor railings on Feeney posts or between your own wood posts.
About DesignRail Classic
DesignRail Classic is Feeney's modular aluminum railing, built from 6000-series aluminum with an AAMA-2604 powder coat. Components snap and screw together, and rails can be trimmed in the field to length and to stair slope. It works indoors or outdoors.
The system is sold as kits. A Post Kit includes the post with a pre-attached base plate, post cap and mounting screws with caps. A Rail Kit includes a 6 foot top rail, 6 foot bottom rail, a pre-drilled intermediate picket and hardware. A Rail Cut Kit splits a rail kit into smaller sections. Heights are 36 and 42 inches. Posts are pre-drilled for cable, and 6200 series 1/8 inch CableRail infill kits are sold separately. Rail kits can run between DesignRail posts or between wood posts, which makes it useful on both new builds and wood deck upgrades. See Feeney's Warranty and Care page for coverage.
For a quote, send height, total run lengths, post count, stair runs and whether you need cable infill.
Colors, sizes and specifications
Sizes and configurations
- 36 in and 42 in high railings
- Rail kits include 6 ft top and bottom rails, trimmable in field
Models
- Post Kits
- Rail Kits
- CableRail Kits (6200 series 1/8 in, sold separately)
Features
- Pre-drilled posts and pickets
- 6000-series aluminum, AAMA-2604 powder coat
- Post kits include pre-attached base plate, cap and screws with caps
- Rail kits include pre-drilled intermediate picket and hardware
Specifications
| Material | 6000-series aluminum |
|---|---|
| Finish | AAMA-2604 powder coat |
| Heights | 36 in and 42 in |
| Cable compatibility | 6200 series 1/8 in CableRail kits |
Accessories and works with
- Rail Cut Kits
- CableRail Kits
Best for
- Indoor and outdoor railing
- Use with Feeney post kits or between your own wood posts
Installation notes
- Snap and screw assembly
- Rails trim to length and stair slope in field
- Order checklist available
Warranty
See Feeney’s warranty and care information for coverage.
Good to know
Ask us about lead time.

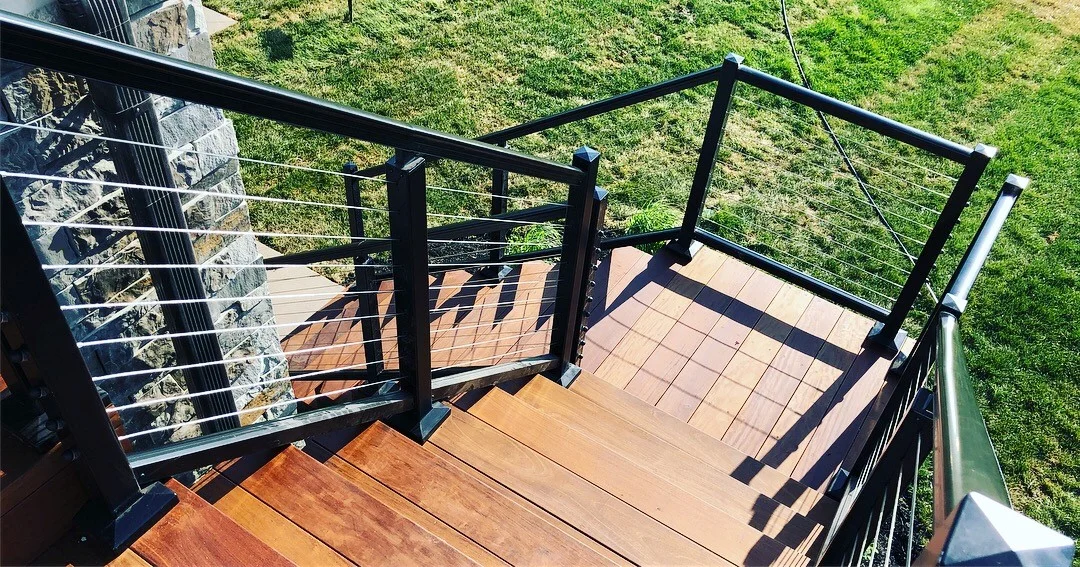

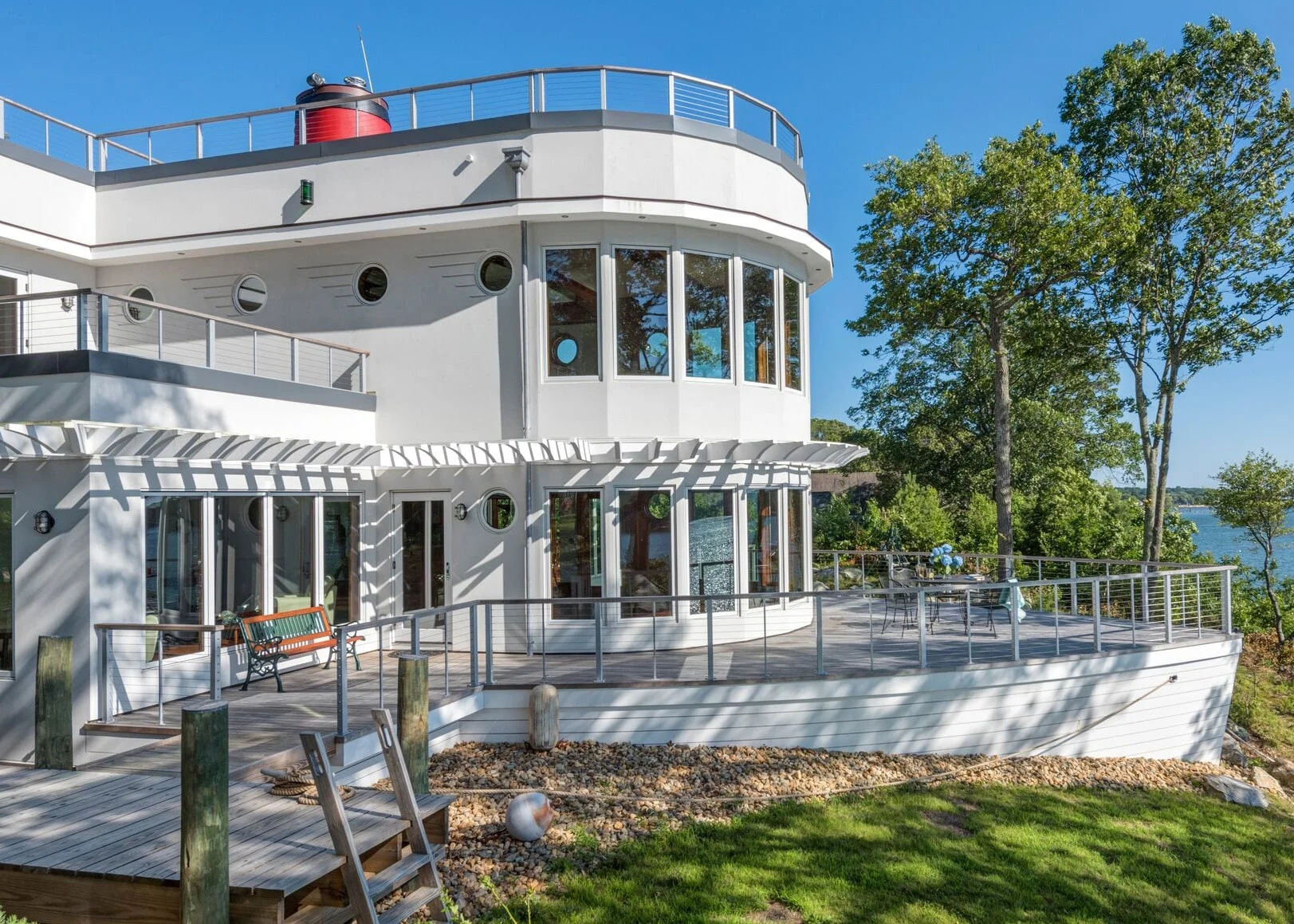

DesignRail Classic photos
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Request a quote for DesignRail Classic
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
