Fortress V3
Fortress V3 is an industrial ornamental steel fence with 12 gauge rails, pin-hinge racking and security fasteners, for government buildings, military facilities and high-security enterprises.
About Fortress V3
Built for government, military and high-security sites, V3 steps up from commercial ornamental fence with heavier 1-3/4 x 1-3/4 in, 12 gauge rails, 1 in, 14 gauge pickets and an 11 gauge, 2 in gate upright. Security fasteners are part of the system.
Like other Fortress steel fences, V3 uses a patented hidden pin-hinge with no visible fasteners and racks to grade up to 24 in. Smooth rails and a low-maintenance FortressShield coating finish the fence in standard Black Sand or optional Gloss Black. Panels are 90.5 in wide and 40 to 94 in tall, with curved top options at 82 and 94 in, and posts run from 2.5 in to 4 in for heights up to 156 in. Fortress states V3 meets ICC Pool Code at select heights and lists a 20-year limited FortressShield warranty.
For an industrial steel fence quote, send style, height, post size and gauge, footage, gates and hardware. We ship nationwide.
Colors, sizes and specifications
Colors and finishes
- Black Sand (standard)
- Gloss Black (optional)
Sizes and configurations
- Panel width 90.5 in
- Three-rail flat top heights 40, 46, 58, 70, 82, 94 in; two-rail 40-70 in; curved top 82, 94 in
- Rackability 24 in
- Posts 2.5, 3, 4 in
- Walk gate 4 ft
Models
- Flat Top
- Flat Top/Flat Bottom
- Pressed Spear
- Pressed Spear/Flat Bottom
- Extended Picket
- Extended Picket/Flat Bottom
- Curved Top (each 2 or 3 rail)
Features
- Easy racking to grade
- Patented hidden pin-hinge, no visible fasteners
- Smooth rails
- Low maintenance FortressShield coating
- Security fasteners
- Meets ICC Pool Code at select heights
Specifications
| Rail | 1-3/4 x 1-3/4 in, 12 ga |
|---|---|
| Picket | 1 in, 14 ga |
| Gate upright | 2 in, 11 ga |
| Air space | 3-15/16 in |
| Rackability | 24 in |
Accessories and works with
- Nylon, dome, ball caps
- EX-107/207/307 extensions, EXS-107 swivel
- Pro Series hinge, fork latch, slide latch, drop rod
- Readyset cement and grout
- Custom swing, V-track and cantilever gates
Best for
- Government buildings
- Military facilities
- High-security enterprises
Installation notes
- Simple bracket design; installation guides on manufacturer site
Warranty
FortressShield 20-year limited warranty.

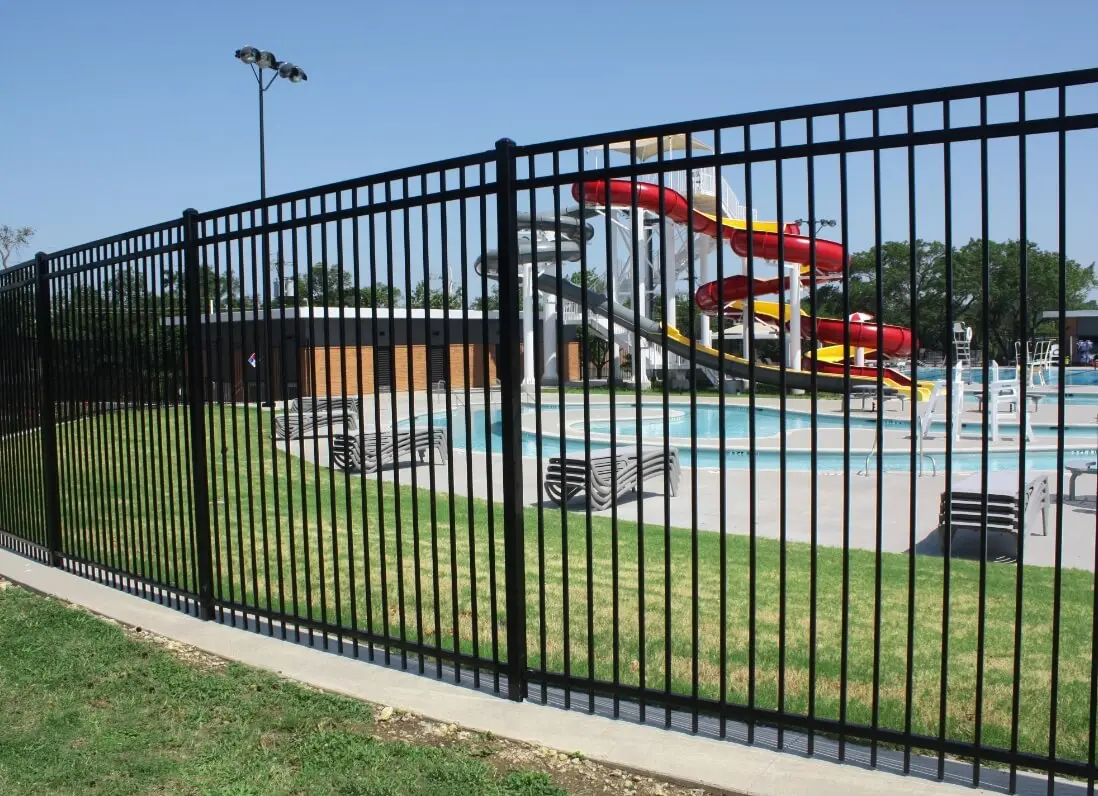

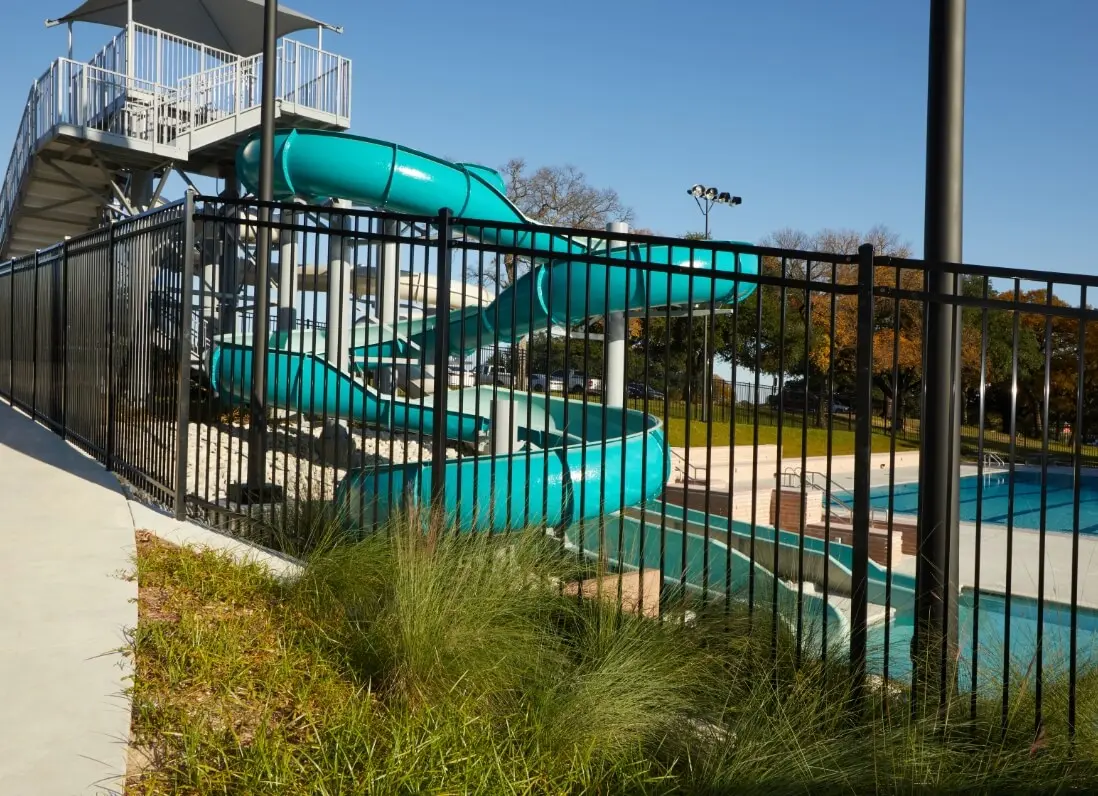

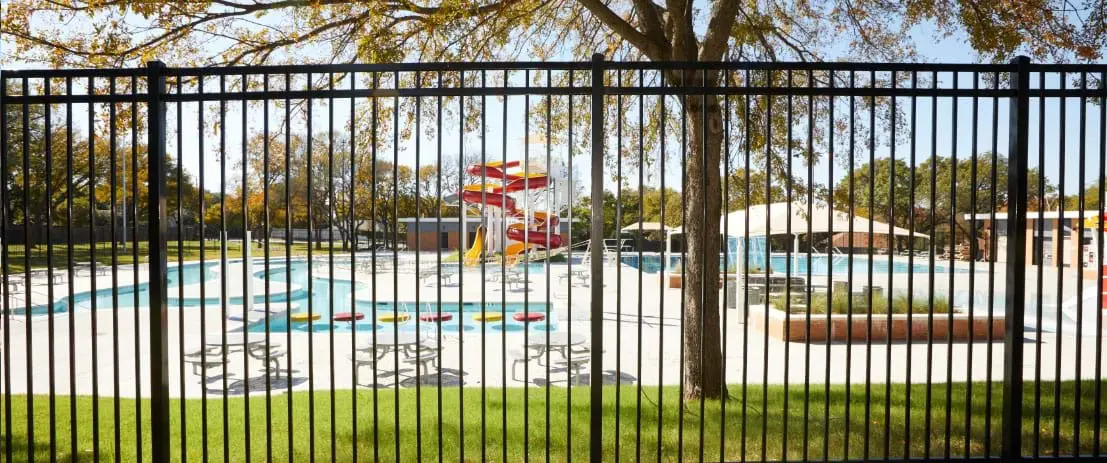

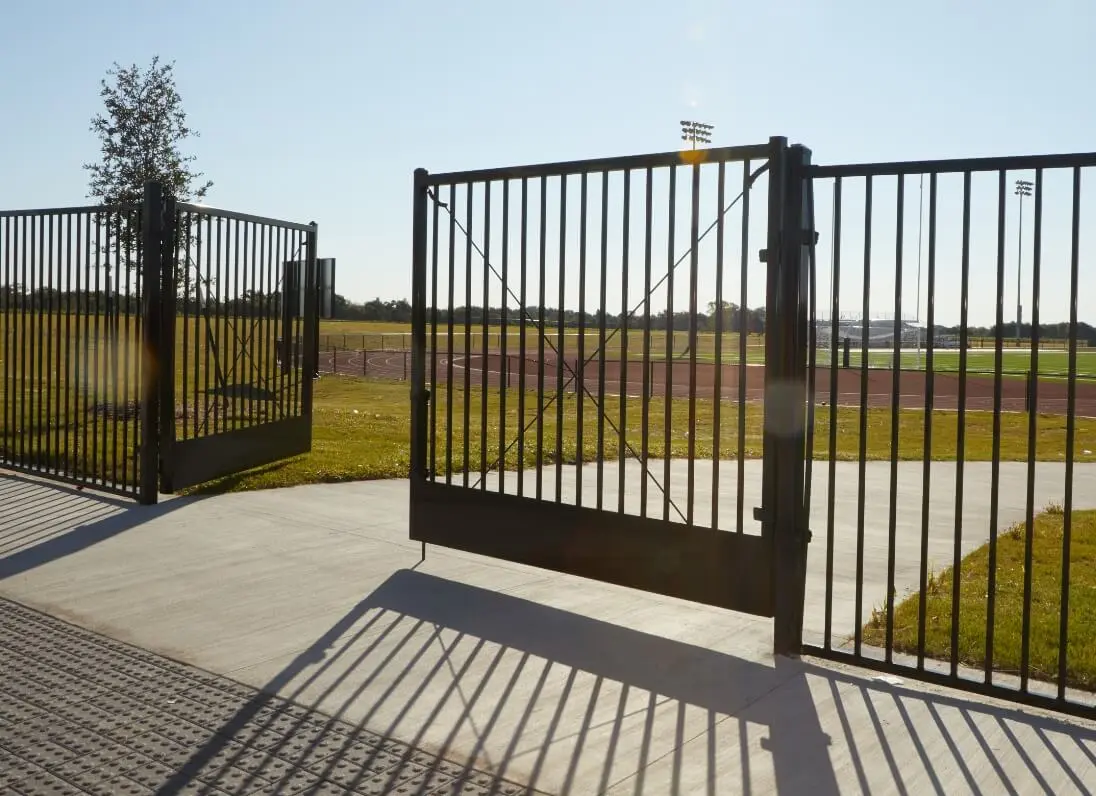

Fortress V3 photos
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Request a quote for Fortress V3
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
