Commercial Swing Gate Operator Guide
A buyer's guide to commercial swing gate operators comparing linear actuators, articulated arms and underground drives by gate size, weight, daily cycles, power and backup.
About Commercial Swing Gate Operator Guide
Swing gate operators come in more shapes than slide operators, so this guide starts with the drive style. Options include a swing-arm or articulated arm, a ram arm or linear actuator, and an underground operator at the hinge. Each can be hydraulic or electromechanical, using screw or worm drives.
The right choice depends on gate size and weight, how many cycles per day the gate will run, the distance to power, and whether solar or battery backup is needed. Power options run from 12 V and 24 V to 120 V and 230 V, and some low-voltage units can run on solar.
Plan for safety from the start. Photo eyes, loop detectors and sensing edges guard crush and entrapment zones, and gates should default to unlocked on power loss where fire code requires, so confirm local rules. Intercoms and keypads can be added later. For a quote, send leaf width, weight, cycles and power source.
Colors, sizes and specifications
Specifications
| Operator technologies | Hydraulic or electromechanical (screw/worm, arm, underground) |
|---|---|
| Swing drive styles | Swing-arm, ram arm, or underground at the hinge |
| Power options | 12 V, 24 V, 120 V or 230 V; some low-voltage units run on solar; battery backup available |
Installation notes
- Add photo eyes, loop detectors or sensing edges to guard crush and entrapment zones.
- Gates should default to unlocked on power loss where fire code requires; confirm local requirements.
- Intercoms, keypads and controls can be added after the gate is installed.
Frequently asked questions
What safety devices protect people and vehicles?
Infrared photo beams, in-ground loops that detect metal, and pneumatic, tensioned-wire or resistive safety edges.
Can an operator run on solar?
Some low-voltage operators can, with a solar panel and battery; confirm cycles per day and gate weight.

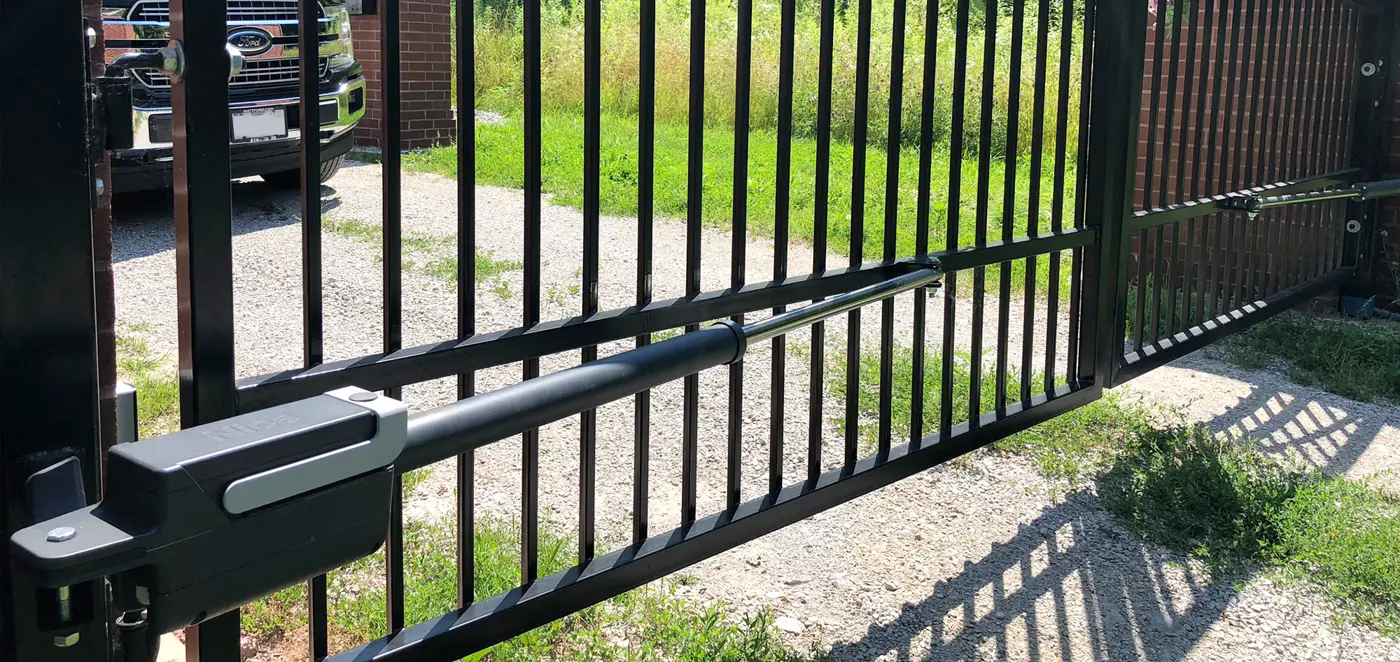

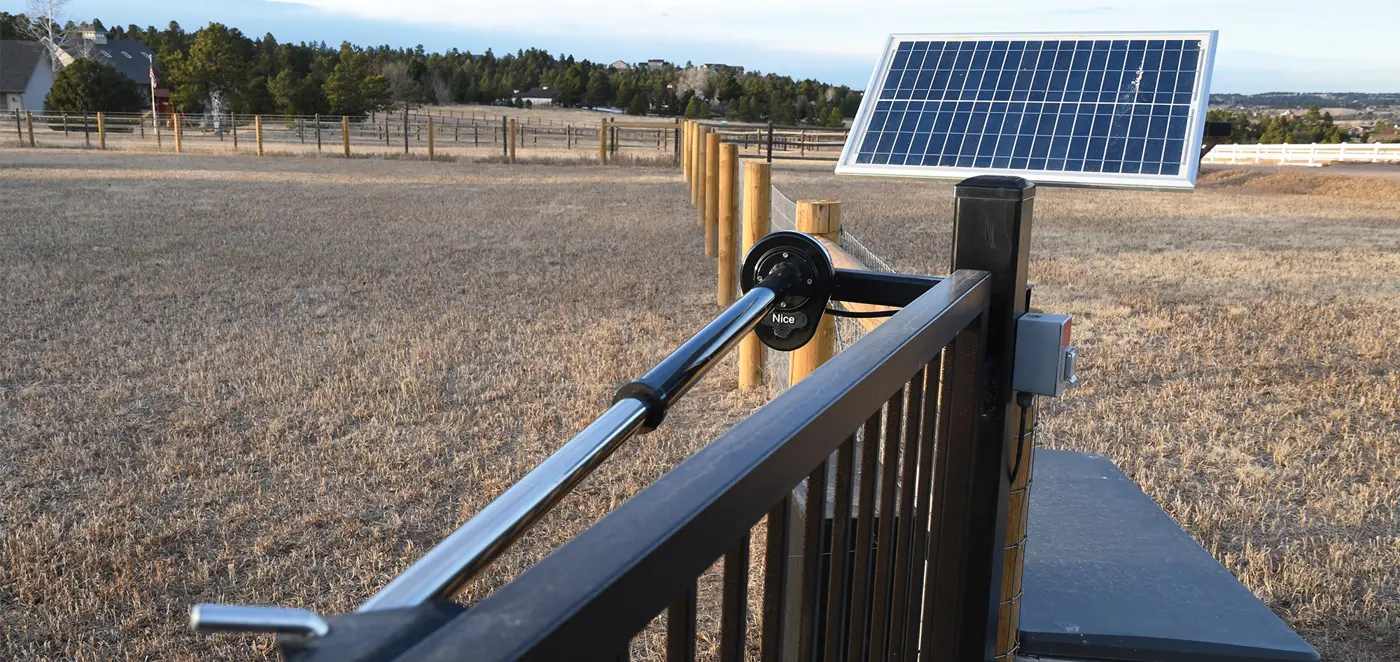

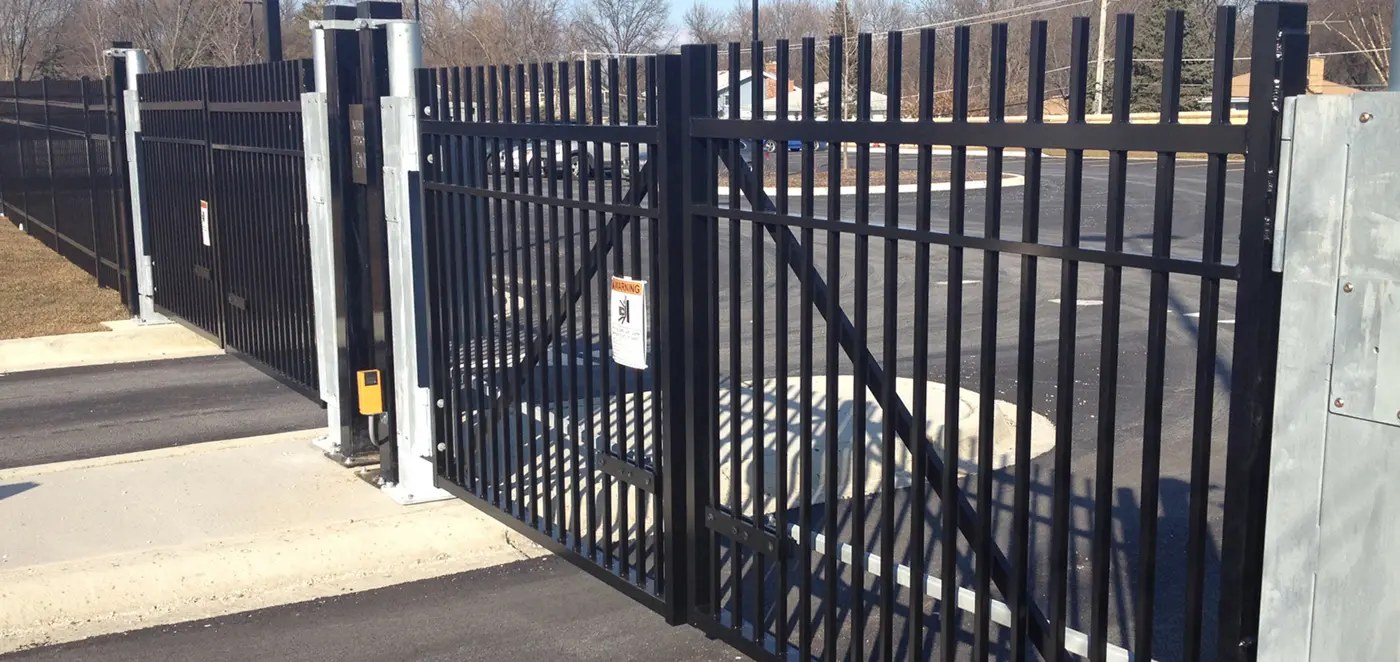

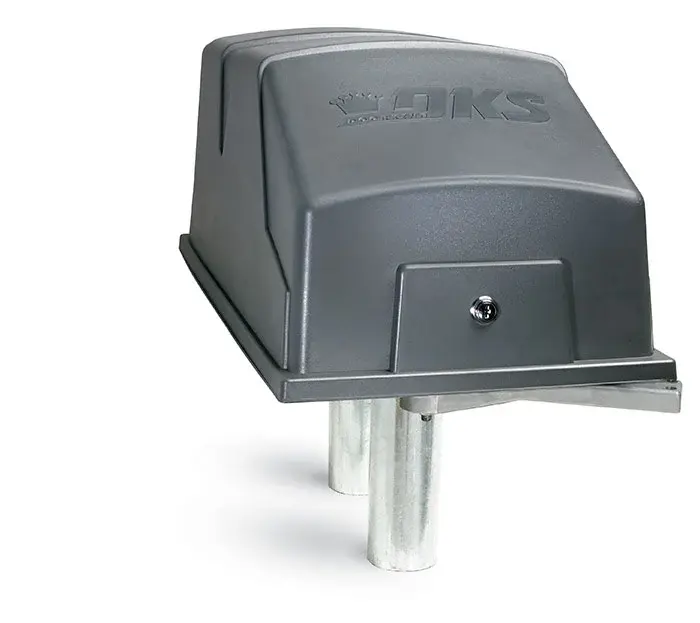

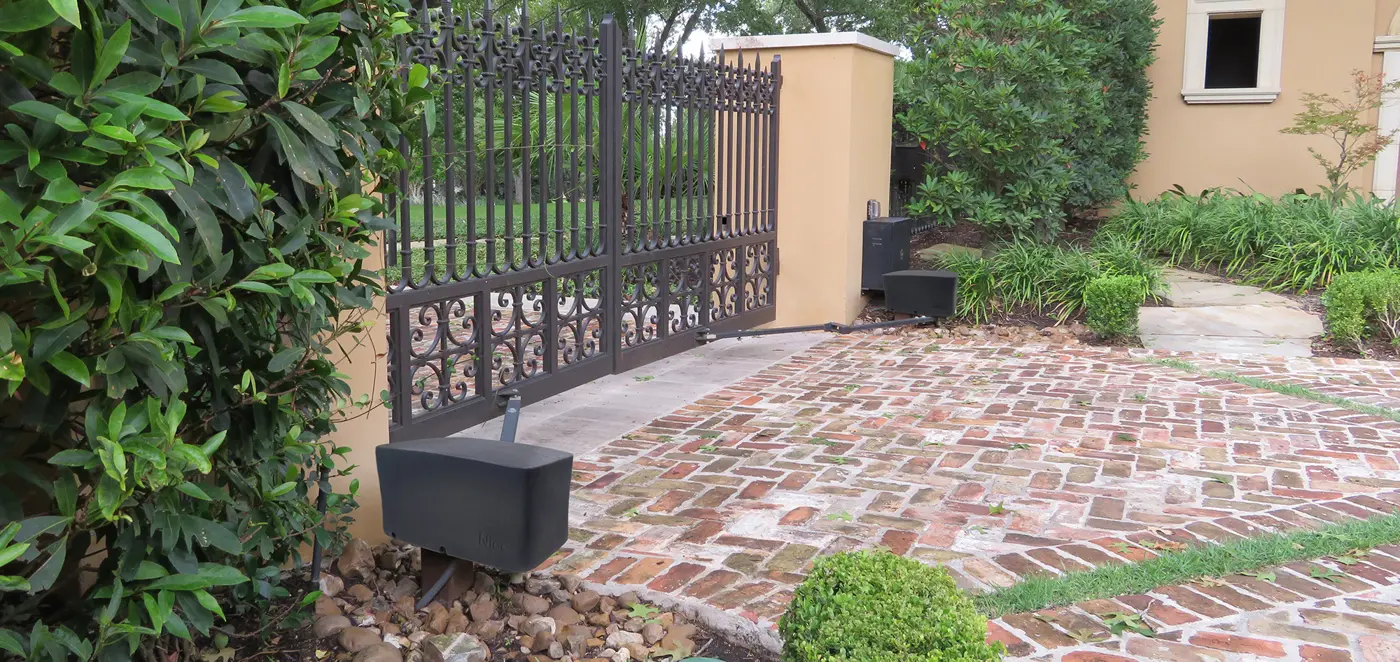

Commercial Swing Gate Operator Guide photos
