Residential Swing Gate Operator Guide
A practical guide to residential swing gate operators, covering linear actuators and articulated arms for single or dual driveway gates, sized by leaf length, weight and site conditions.
About Residential Swing Gate Operator Guide

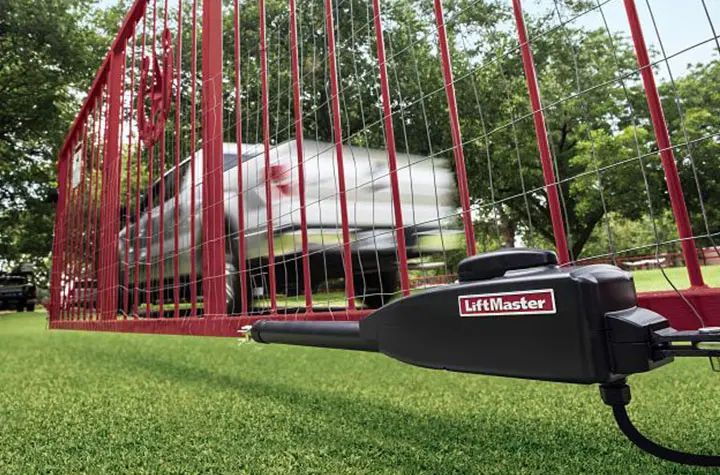

Residential swing gate operators come in two main styles. Linear actuators work well when the post has room for the arm, while ground-mounted articulated arms and underground units suit tight spaces or decorative gates where a visible actuator would get in the way.
Leaf length and weight, cycles per day, wind exposure and the power source drive the selection. USAutomatic models show how this plays out: the Ranger 500 is a light-duty opener rated up to 13 ft and 400 lb per leaf, while the Patriot and Ranger HD are heavy-duty units rated up to 16 ft and 800 lb per leaf. The manufacturer's selection chart is what controls the final choice.
Single or dual leaf setups with synchronization, solar and battery backup, and remotes, keypads, loops or telephone and video entry are all common add-ons. Plan photo eyes or sensing edges for entrapment zones. When requesting a quote, include each leaf's width and weight, gate material, the pull or push swing direction and available power.
Colors, sizes and specifications
Features
- Single or dual leaf with synchronization
- Solar and battery backup options
- Remotes, keypads, loops, telephone or video entry
Specifications
| Ranger 500 | Up to 13 ft and 400 lb per leaf |
|---|---|
| Patriot / Ranger HD | Up to 16 ft and 800 lb per leaf |
| Operator technologies | Hydraulic or electromechanical (screw/worm, arm, underground) |
| Swing drive styles | Swing-arm, ram arm, or underground at the hinge |
| Power options | 12 V, 24 V, 120 V or 230 V; some low-voltage units run on solar; battery backup available |
Installation notes
- Add photo eyes, loop detectors or sensing edges to guard crush and entrapment zones.
- Gates should default to unlocked on power loss where fire code requires; confirm local requirements.
- Intercoms, keypads and controls can be added after the gate is installed.
Frequently asked questions
What safety devices protect people and vehicles?
Infrared photo beams, in-ground loops that detect metal, and pneumatic, tensioned-wire or resistive safety edges.
Can an operator run on solar?
Some low-voltage operators can, with a solar panel and battery; confirm cycles per day and gate weight.
