Gripple Connectors & Tensioners
Gripple wire joiners and tensioners, including Gripple Plus, Vit-S and Dynamic, for joining and re-tensioning agricultural fence wire, vineyard trellis and fruit-growing systems without knots.
About Gripple Connectors & Tensioners
Gripple connectors join and tension fence wire without knots. Inside each unit, ceramic gripping rollers hold the wire, and the joint can be re-tensioned later as wire relaxes. The design also aims to limit over-tensioning, which makes it a common choice for agricultural fence repair and vineyard trellising.
Selection depends on wire diameter and type. Gripple Plus comes in Small (17 to 14 gauge), Medium (13.5 to 10), Large (10 to 7.5) and Jumbo (12.5 gauge) sizes, with working loads from 660 to 1,320 lb per Gripple. Vit-S is a direct-fix tensioner for 1.40 to 2.60 mm wire, Dynamic handles 3.00 to 8.00 mm high-load wire, and barbed wire joiners are offered for mild steel or high tensile. The Gripple Torq tensioning tool, Contractor Tool and small cutters round out the kit.
For a quote, send wire gauge or diameter, wire type, quantity of joints and any tools needed. Axiom South ships nationwide.
Colors, sizes and specifications
Sizes and configurations
- Gripple Plus Small (17 to 14 gauge), Medium (13.5 to 10), Large (10 to 7.5) and Jumbo (12.5 gauge)
- Vit-S 1.40 to 2.60 mm wire; Dynamic 3.00 to 8.00 mm wire
Models

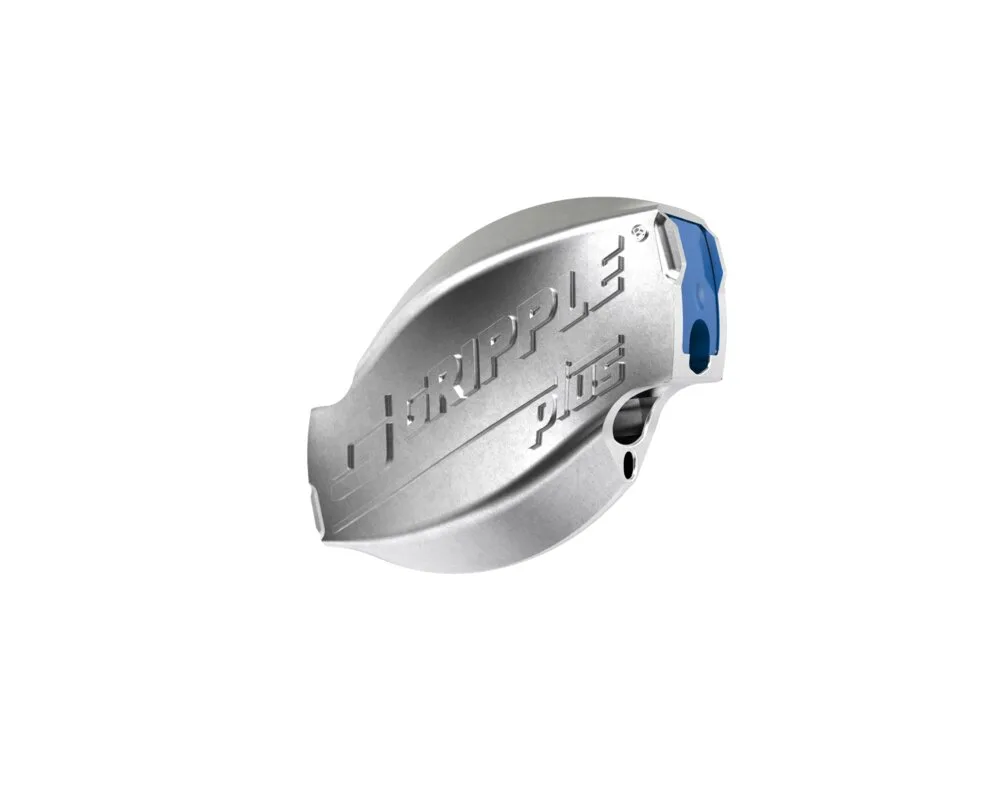

- Gripple Plus
- Vit-S
- Dynamic
- GP No.1 & No.2
- T-Clip
- Barbed Wire Joiners
- GP90
- PostGrip wooden end-post termination (2 to 3.15 mm wire; 400 kg / 880 lb working load)
- GPAK post bracing kit (600 kg working load; wood post and metal post kits)
- DPAK dynamic post bracing kit (up to 2,800 kg; 4 to 8 mm wire; dynamic joiner, fused wire rope and release key)
- APEX anchors (up to 3,000 kg; fiber, wire or rod tendons)
- Fencing Pin (250 mm drill-install pin for hard soil)
Features
- Joins and tensions wire in one step
- Can reduce the number of posts needed
- Works with barbed wire, or barbed plus woven wire

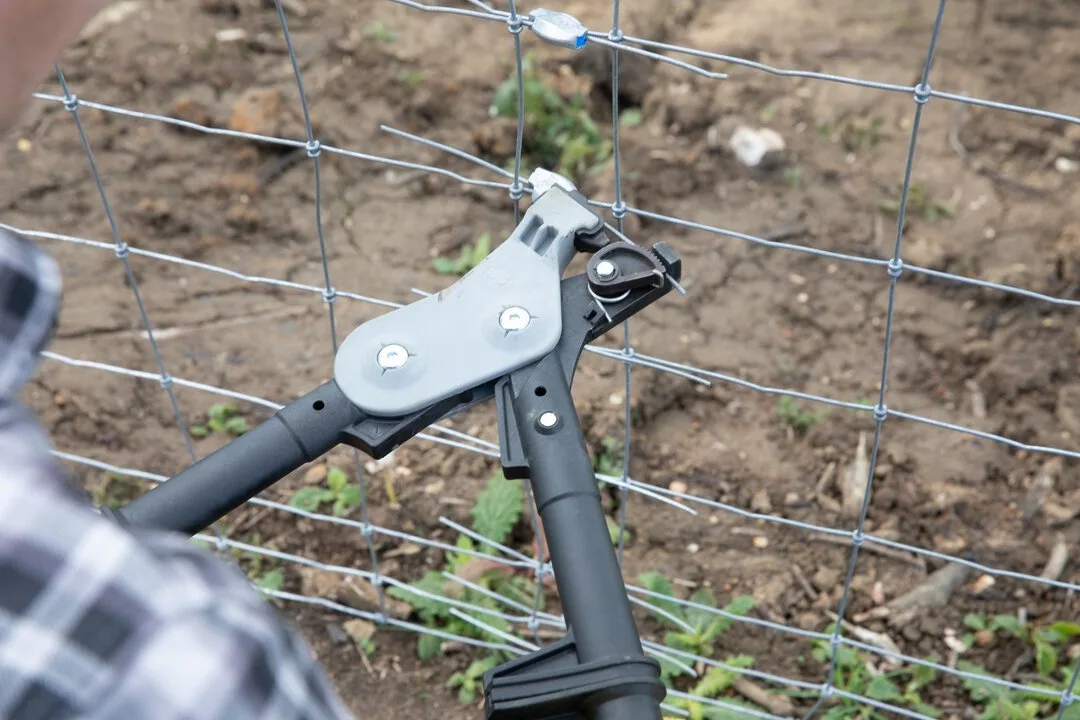

- Gripple Torq tensioning tool has an integrated gauge so tension is set correctly and over-tensioning is avoided
- Components use corrosion-resistant materials such as ceramic wedges and zinc housings
- Made in the UK, US and Europe; joiners and tensioners have been made since 1989
- Compatible with solid wire, stock fence, high-tensile and mild steel barbed wire, and wire rope
Specifications
| Gripple Plus | Joiner and tensioner; 17 to 7.5 gauge plain wire; 1,320 lb working load |
|---|---|
| Vit-S | Direct-fix tensioner; 1.40 to 2.60 mm wire; 880 lb working load |
| Dynamic | High-load joiner and tensioner; 3.00 to 8.00 mm wire; 6,170 lb working load |
| GP No.1 & No.2 | 1.80 to 4.20 mm wire; 1,320 lb working load |
| Barbed Wire Joiners | 330 lb (mild steel) or 880 lb (high tensile) |
Accessories and works with
- Torq Tensioning Tool
- Contractor Tool
- Wire cutters
- Twister for tail wires
- Large wire cutters (4 to 6 mm wire rope)
- Small wire cutters (1.5 to 6 mm wire rope)
Best for

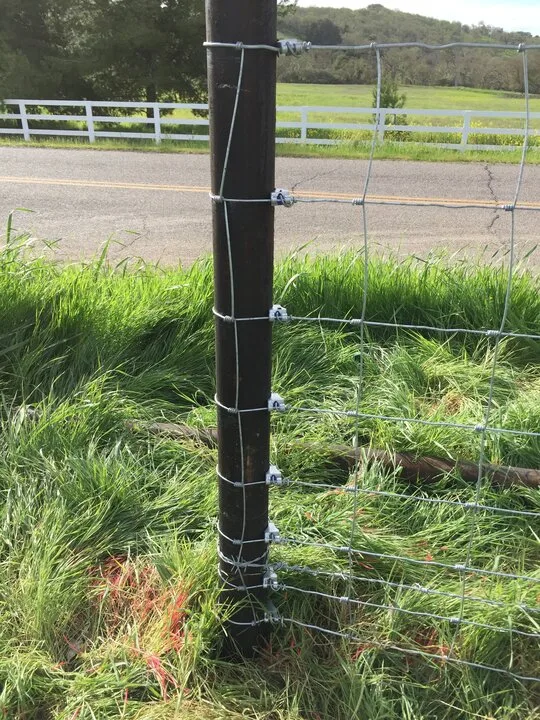

- Agricultural fence repair and wire tensioning
