HySecurity SlideDriver II
HySecurity SlideDriver II is a hydraulic slide gate operator line for gates from 1,500 to 20,000 lb, with SmartTouch 725 control, Bluetooth and integrated HyNet.
About HySecurity SlideDriver II

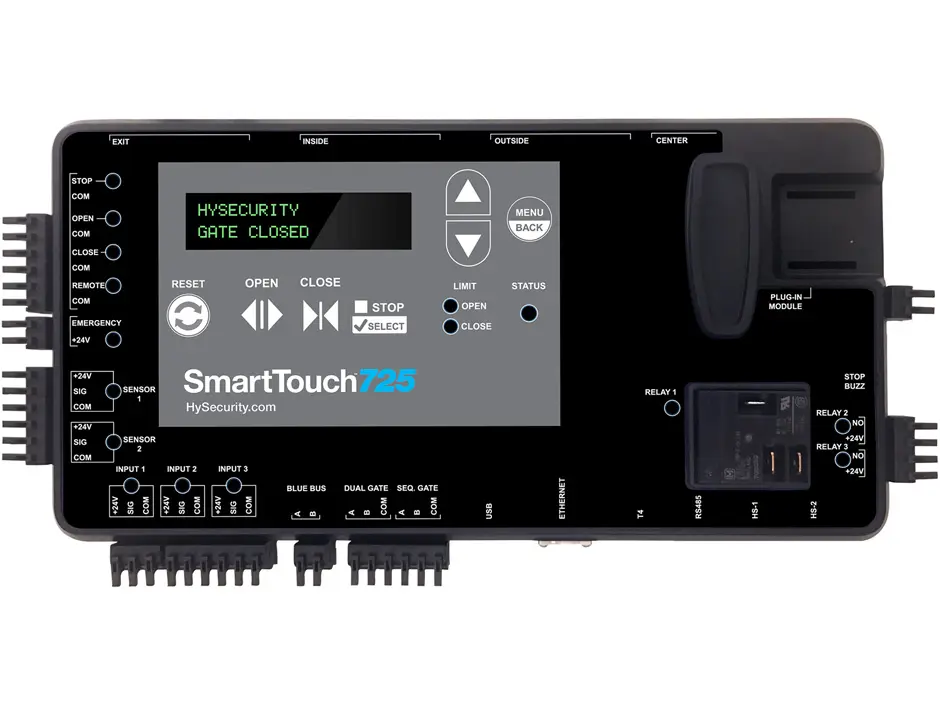

SlideDriver II is HySecurity's hydraulic slide gate operator line, rated for continuous duty at 3,000 ft per hour with an operating range of -40 to 158 F. Maximum gate length is limited only by weight. The SmartTouch 725 controller adds Bluetooth, integrated HyNet, an OLED display, a 7-day timer, a 100K event log and USB and Ethernet ports, with smartphone app setup of 70+ settings.

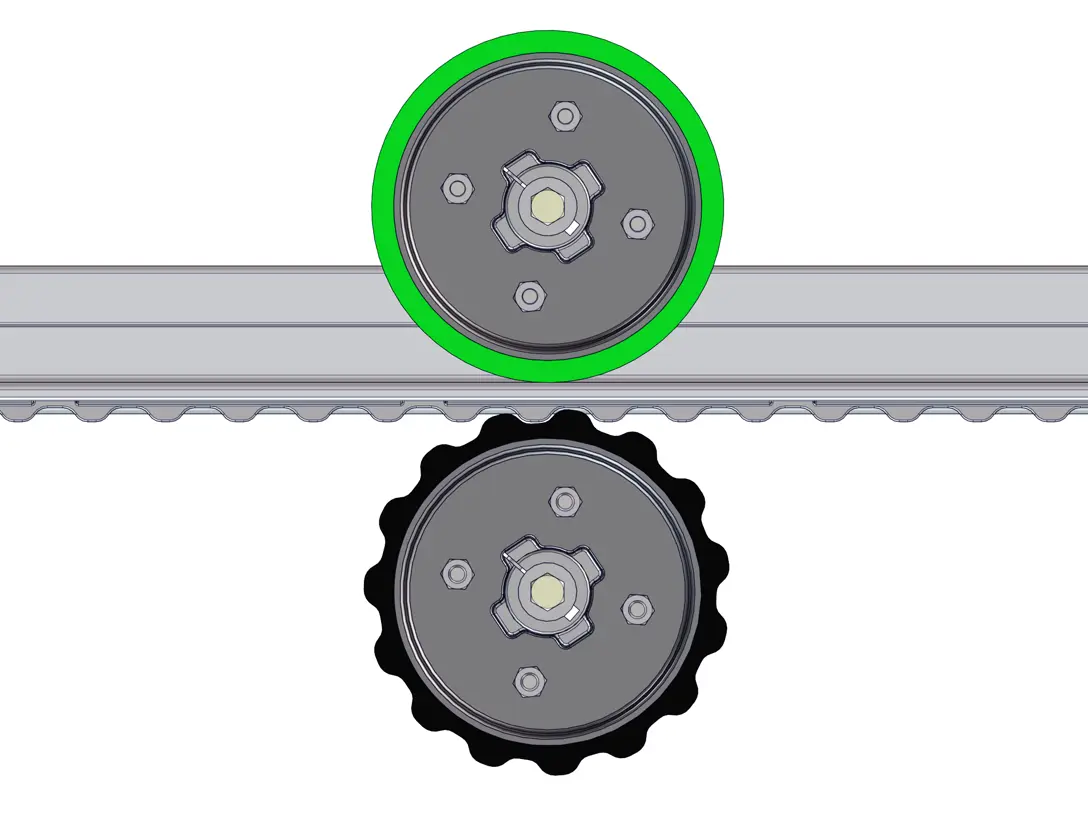

Models step up by gate weight: SD15 (1,500 lb, 1 hp), SD40 (4,000 lb, 1 hp with a 2 hp DC option), SD50F (5,000 lb, 2 hp), SD80V (8,000 lb) and SD200V (20,000 lb, 5 hp with a 4 hp DC option). XtremeDrive rack is standard on the SD80V and SD200V. Options include UPS, heater, galvanized finish or a 304L stainless chassis, solenoid lock, T-Lock, deadbolt lock plate, padlock hasp and a corrections upgrade.
For a quote, send gate weight, length, daily cycles, power and any finish or locking options.
Colors, sizes and specifications
Sizes and configurations
- SD15 up to 1,500 lb
- SD40 up to 4,000 lb
- SD50F up to 5,000 lb
- SD80V up to 8,000 lb
- SD200V up to 20,000 lb
- Gate length limited only by weight
Models
- SD15
- SD40
- SD50F
- SD80V
- SD200V
Features
- Bluetooth and HySecurity Installer App
- BlueBus inputs and Nice OXI receiver port
- 2-line OLED display
- 7-day timer, 100K entry event log
- USB and Ethernet, integrated HyNet
- 4 Hy5B detector slots
- Contactless solid-state limits
- Digital pressure gauge
- SmartTouch 725 controller
- New VFD models
Specifications
| Duty cycle | Continuous (3,000 ft/hr expected) |
|---|---|
| Horsepower | SD15 1 hp; SD40 1 hp; SD50F 2 hp; SD200V 5 hp |
| Drive | Hydraulic; VFD on SD50F |
| Rate of travel | SD15 1 ft/s; SD50F 2.2 or 3 ft/s; SD80V 0.75 or 1 ft/s |
| Pull force | SD15 300 lb; SD80V 600 lb; SD200V 1,200 lb |
| Temperature | -40 to 158 F |
Accessories and works with
- Corrections upgrade
- Deadbolt lock plate
- Galvanized finish
- Heater
- Padlock hasp
- Remote release (not SD200V)
- SmartTouch 720 controller
- Solenoid lock
- 304L stainless chassis
- T-Lock
- XtremeDrive rack and wheel
Best for
- Airports, corrections, data centers
- Government, HOA, manufacturing, utilities
- Single-family homes
Installation notes
- Smartphone app configuration, 70+ settings, built-in diagnostics and remote monitoring
