HySecurity SlideDriver
HySecurity SlideDriver hydraulic slide gate operators handle continuous-duty slide gates from 1,500 to 20,000 lb at high-security industrial perimeters and correctional facilities.
About HySecurity SlideDriver
The HySecurity SlideDriver line uses a hydraulic drive in a 12-gauge steel chassis, with Smart Touch controls and a duty cycle of 3,000 ft per hour (2,000 for the SlideDriver 200 UPS). Gate length is limited only by weight.
Six models cover the range. The SlideDriver15 (1 hp) moves 1,500 lb gates at 1 ft/s; the SlideDriver30F (2 hp) moves 3,000 lb at 1.7 ft/s; the SlideDriver40 (1 hp) handles 4,000 lb; the SlideDriver50VF (2 hp) moves 5,000 lb at 2.2 or 3 ft/s; the SlideDriver80 (2 hp) handles 8,000 lb; and the SlideDriver200 (5 hp) handles 20,000 lb. XtremeDrive rack and wheel is standard on the 80 and 200. Correctional (-C) and modular (-M) variants are available, with DC or AC (HyInverter) backup.
For a quote, include gate weight, speed requirement, daily traffic, backup power needs and whether you need a correctional or modular variant.
Colors, sizes and specifications
Sizes and configurations
- SlideDriver15 1,500 lb
- 30F 3,000 lb
- 40 4,000 lb
- 50VF 5,000 lb
- 80 8,000 lb
- 200 20,000 lb
- Gate length limited only by weight
Models
- SlideDriver15
- SlideDriver30F
- SlideDriver40
- SlideDriver50VF
- SlideDriver80
- SlideDriver200 (Correctional -C and Modular -M variants)
Features
- Steel chassis, tamper-resistant cover
- 70+ field-adjustable settings
- 12-gauge steel chassis
- One gallon hydraulic fluid
- UL325 listed
Specifications
| Drive | Hydraulic |
|---|---|
| Horsepower | 1-5 hp by model |
| Rate of travel | 1 to 3 ft/s by model |
| Duty cycle | 3,000 ft/hr (2,000 for SlideDriver 200 UPS) |
Accessories and works with

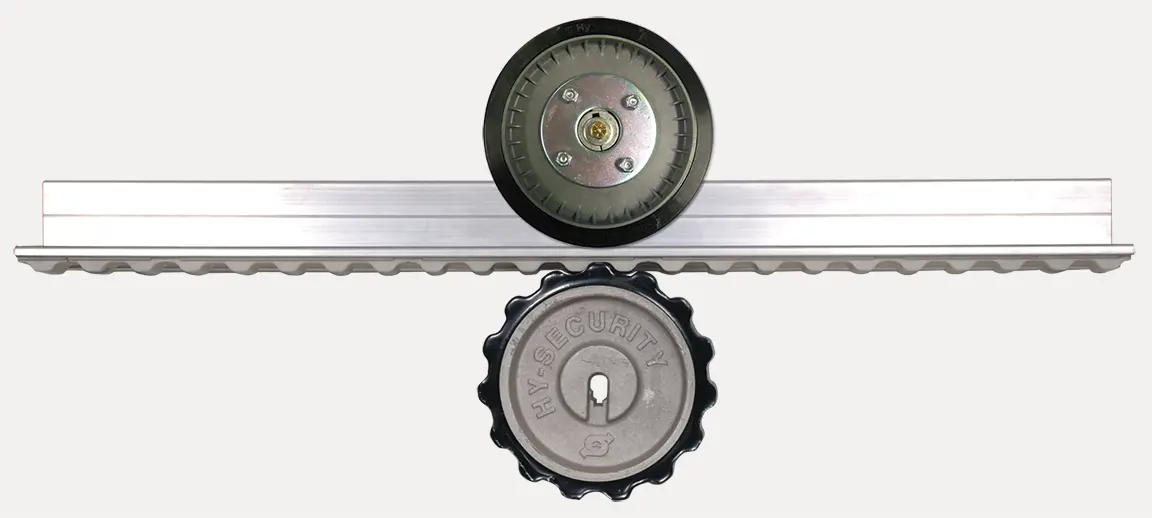

- XtremeDrive rack and wheel system
- Smart Touch Controller
Best for
- High-security industrial perimeters
- Correctional facilities

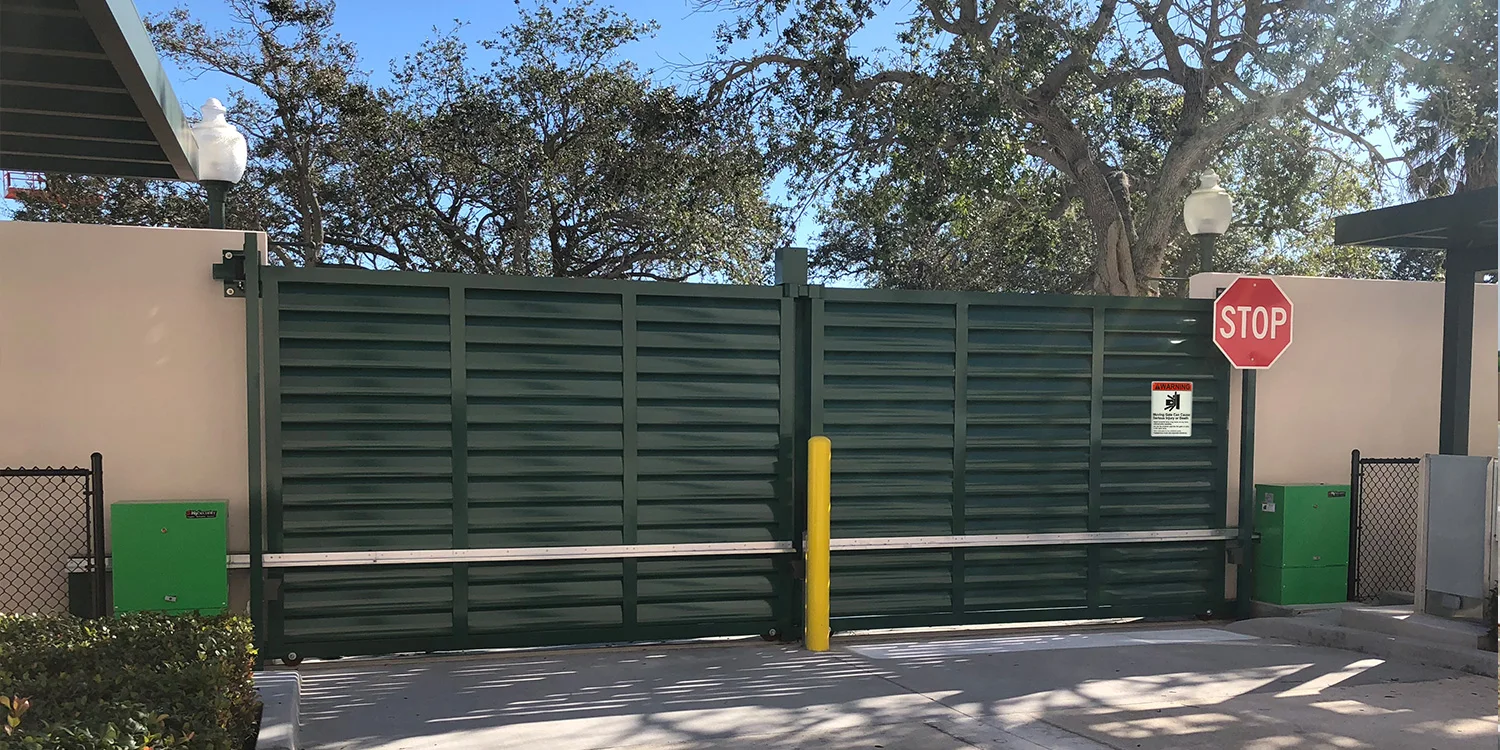

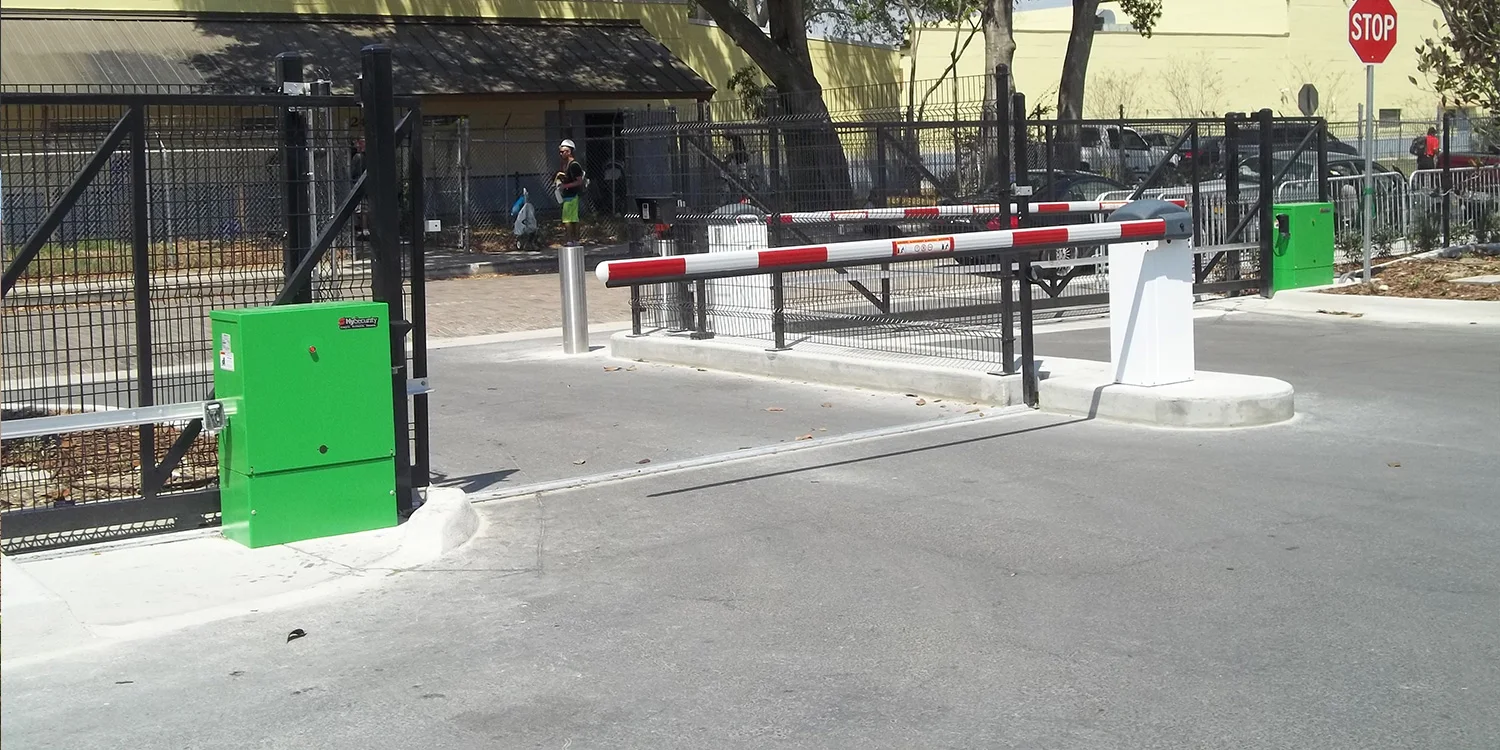

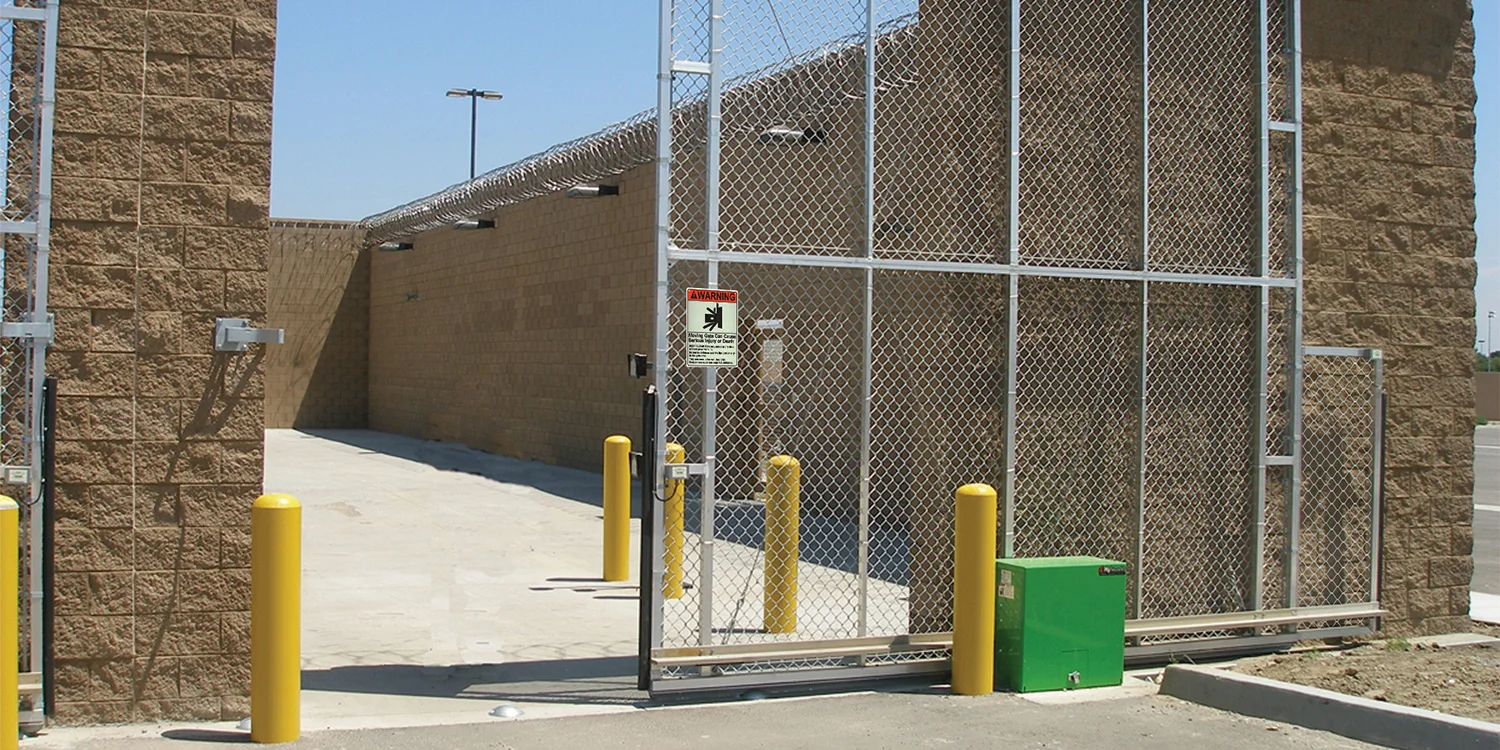

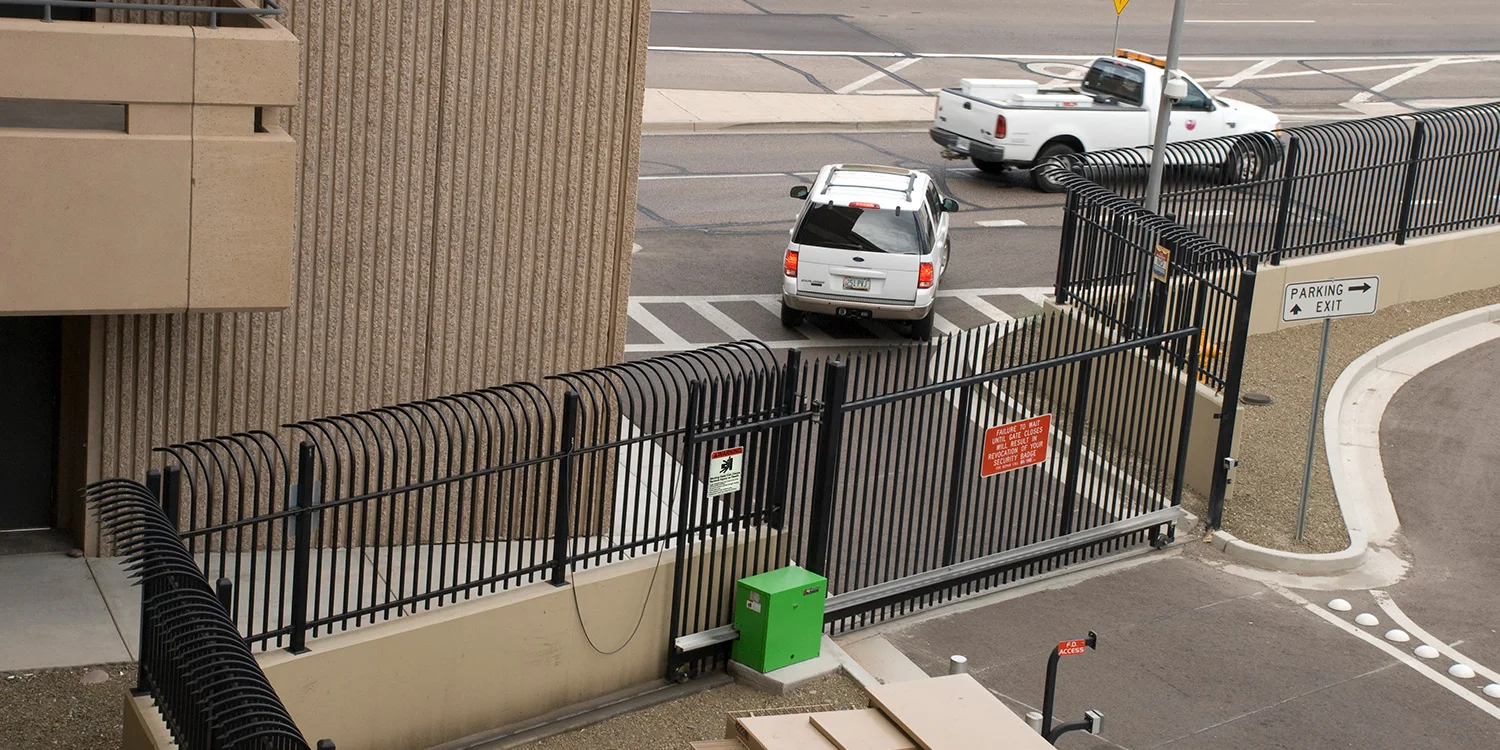

HySecurity SlideDriver photos
