HySecurity SlideSmart (DC, HD, 535, CNX)
HySecurity SlideSmart DC is an electromechanical slide gate operator for gates up to 40 ft and 1,500 lb, with solar variants for off-grid commercial sites.
About HySecurity SlideSmart (DC, HD, 535, CNX)

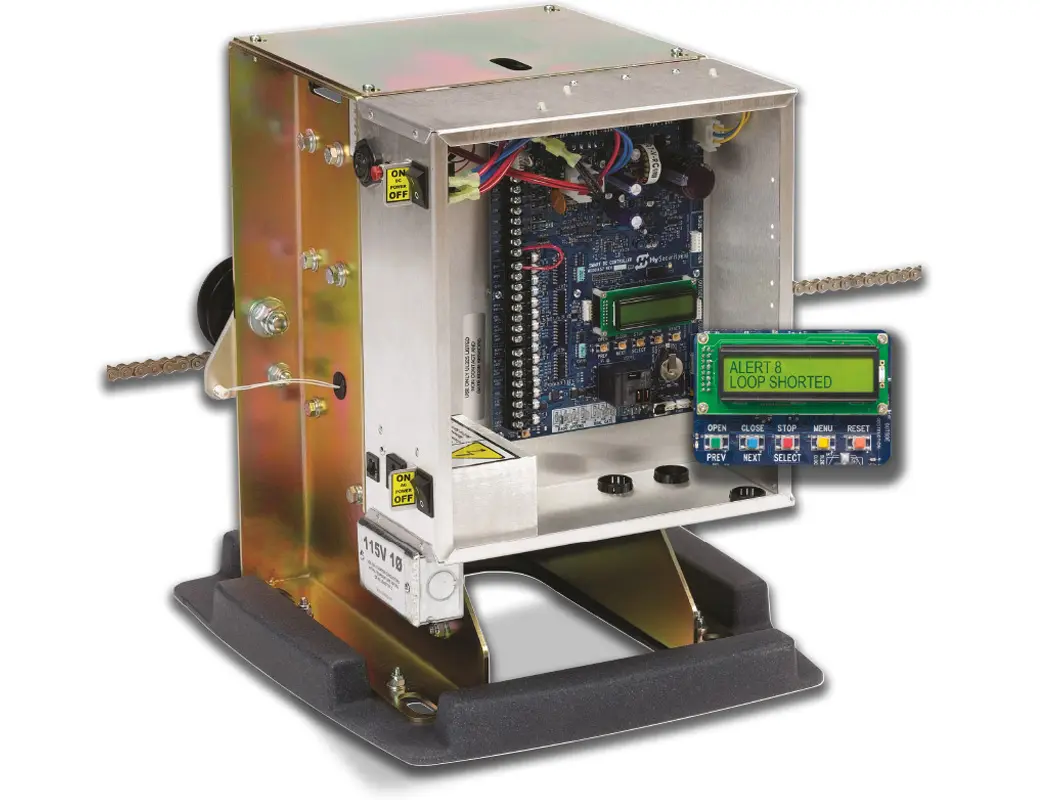

SlideSmart DC brings continuous-duty slide gate automation to sites where power is limited or unavailable. The 1/2 hp electromechanical drive pairs with intelligent battery charging and a 32-character LCD, and the controller offers 70+ programmable settings with independent open and close speeds.
The SlideSmart DC10F handles gates up to 1,000 lb at 1.75, 2 or 2.25 ft/s, and the DC15 handles up to 1,500 lb at 0.75, 1 or 1.25 ft/s, both for gates up to 40 ft. Solar variants are the DCS 10F and DCS 15. Battery backup supports up to 4,000 ft of travel, or up to 25,000 ft with upgraded batteries. The SlideSmart family also includes HD, 535 and CNX versions; ask us for specs.
For a quote, send gate weight and length, preferred speed, AC or solar power, and backup expectations.
Colors, sizes and specifications
Sizes and configurations
- DC10F 1,000 lb
- DC15 1,500 lb
- Gate length to 40 ft
Models
- SlideSmart DC10F
- DC15
- DCS 10F (solar)
- DCS 15 (solar)
Features
- Battery backup up to 4,000 ft travel, upgradable to 25,000 ft
- Battery charging and monitoring
- 70+ settings, 32-character LCD
- Low power draw for solar
- Polyethylene pad base plate
- Safety cover
Specifications
| Drive | Electromechanical, 1/2 hp |
|---|---|
| Duty cycle | Continuous |
| Speed DC10F | 1.75, 2 or 2.25 ft/s |
| Speed DC15 | 0.75, 1 or 1.25 ft/s |
Best for
- Off-grid commercial
- Solar gate automation
Good to know
Speed above 1 ft/s is not for Usage Class I and II.

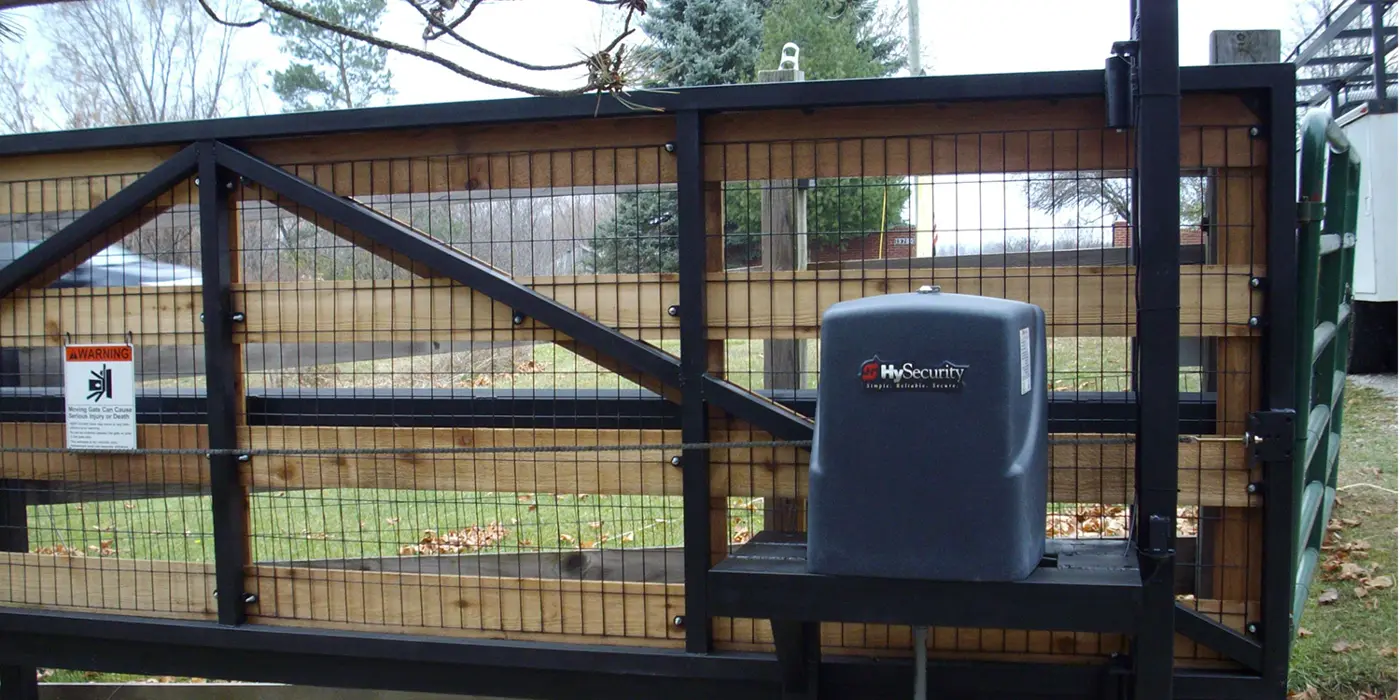

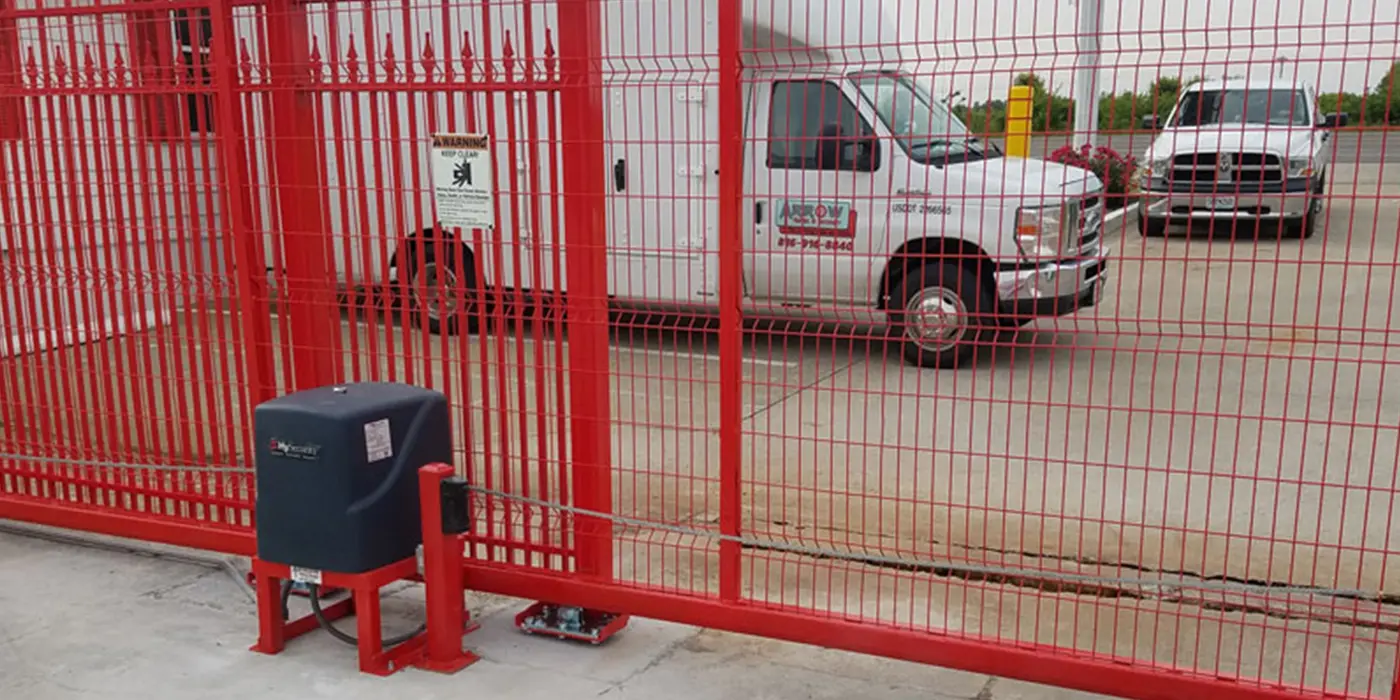

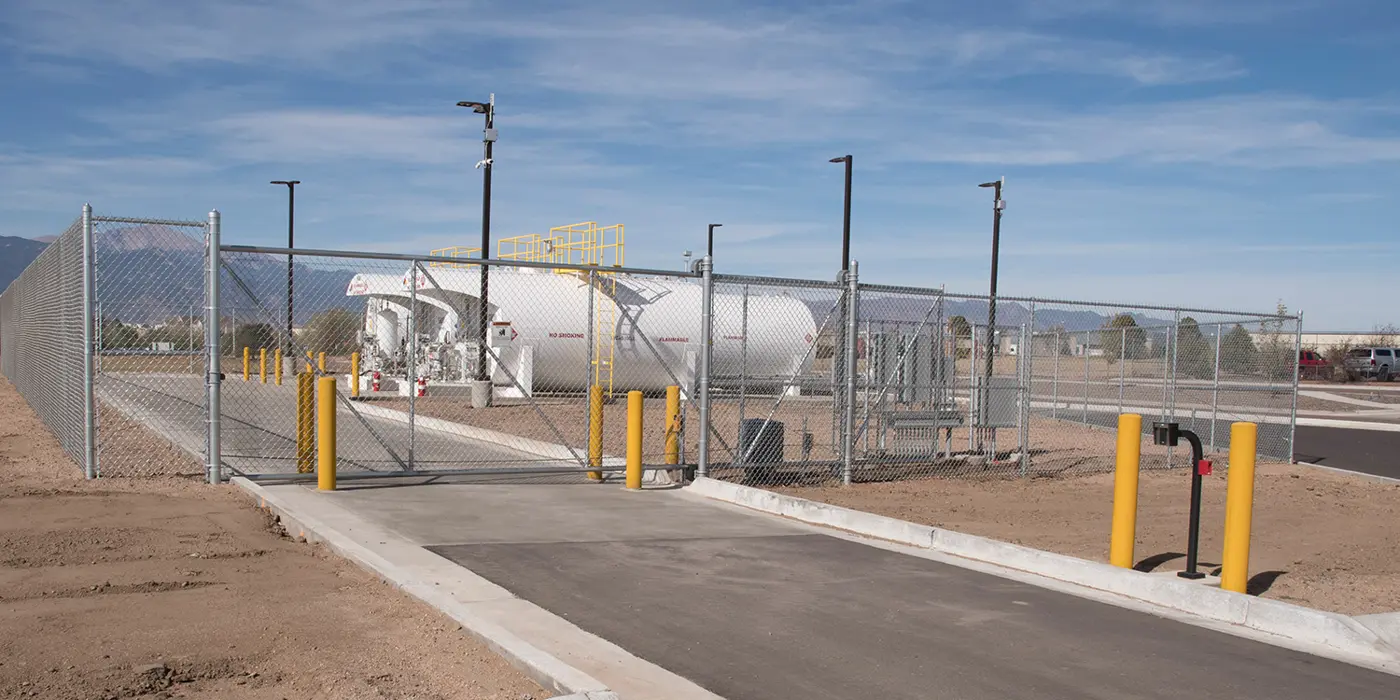

HySecurity SlideSmart (DC, HD, 535, CNX) photos
