HySecurity StrongArm M30/M50
HySecurity StrongArm M30 and M50 are crash-rated hydraulic barrier arms for critical infrastructure and HVM access points, with clear openings from 12 to 24 ft.
About HySecurity StrongArm M30/M50
StrongArm M30 and M50 combine traffic control with vehicle stopping capability at critical infrastructure and hostile vehicle mitigation access points. Per the manufacturer, they are rated ASTM F2656 M30-P1 and M50-P2 at a 12 ft clear opening.
Clear openings run from 12 to 24 ft in 2 ft steps, and the arm opens to 90 degrees. The powered models use a 2 hp hydraulic drive with 6-8 second open/close and 100 cycles per hour. M30 NP and M50 NP versions are no-power, manual units with the same ratings. Finishes are powder coat or hot-dip galvanized, and options include heating and cooling, a monitored photo eye, LED arm lighting, HyInverter AC backup, ExtremeCycle and a continuous duty option.
Because crash ratings are tied to specific configurations, confirm the required rating and opening against the project specs. For a quote, list clear opening, rating, powered or manual, finish and options.
Colors, sizes and specifications
Sizes and configurations
- Clear opening 12 to 24 ft in 2 ft steps
- Opens to 90 deg
Models
- StrongArm M30
- StrongArm M50
- M30 NP and M50 NP (no-power)
- CE-certified models
Features
- Key-locked pivot post covers
- Bumper height blocks passing under arm
- Monitored photo eye
- LED arm lighting
Specifications
| M30 rating | ASTM F2656-07 M30-P1 |
|---|---|
| M50 rating | ASTM F2656-07 M50-P2 |
| Drive | Hydraulic, 2 hp |
| Duty cycle | 100 cycles/hr |
| Open/close time | 6 to 8 s |
| Emergency fast operate | 5 to 7 s |
Accessories and works with
- HyInverter AC backup
- ExtremeCycle option
- Heating and cooling options
- Continuous duty option
Best for
- Critical infrastructure
- HVM access points

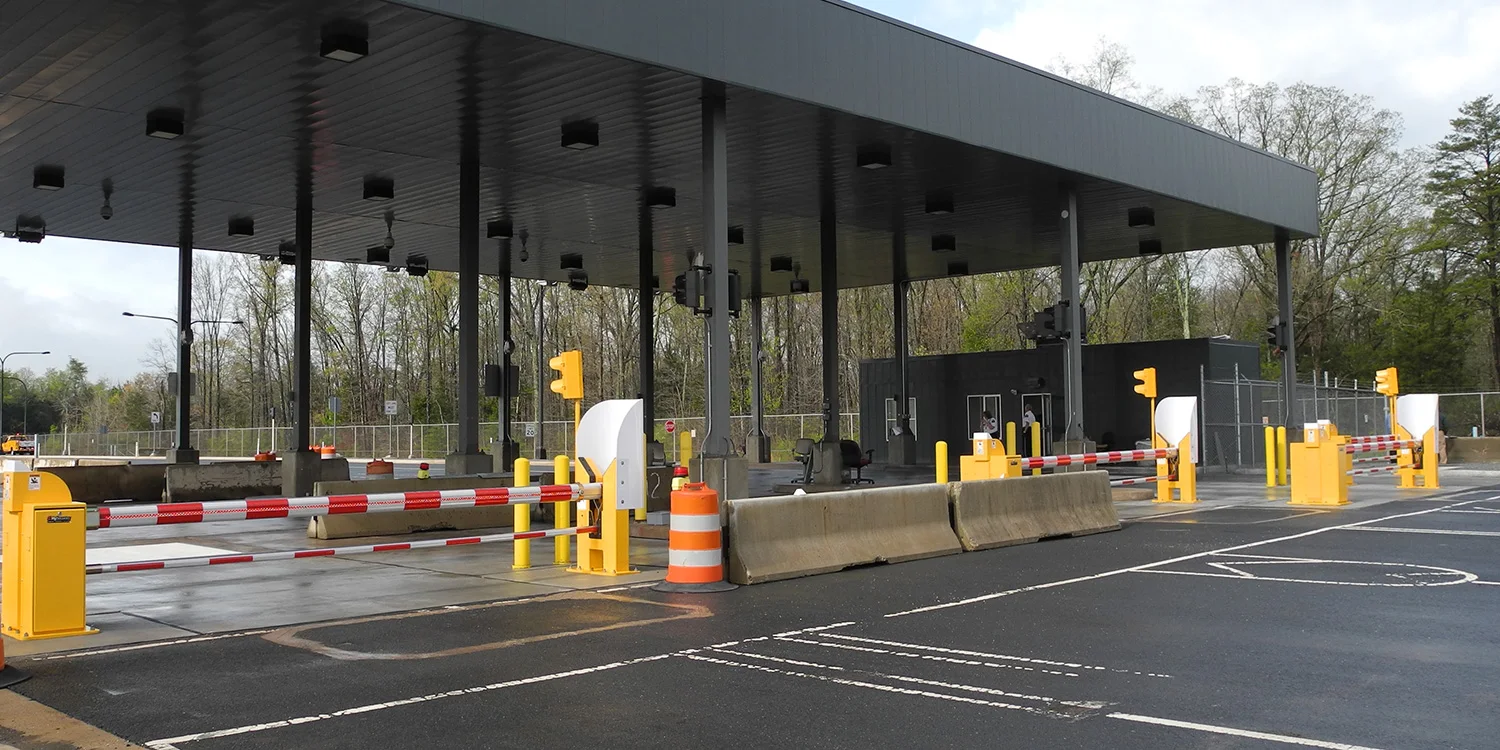

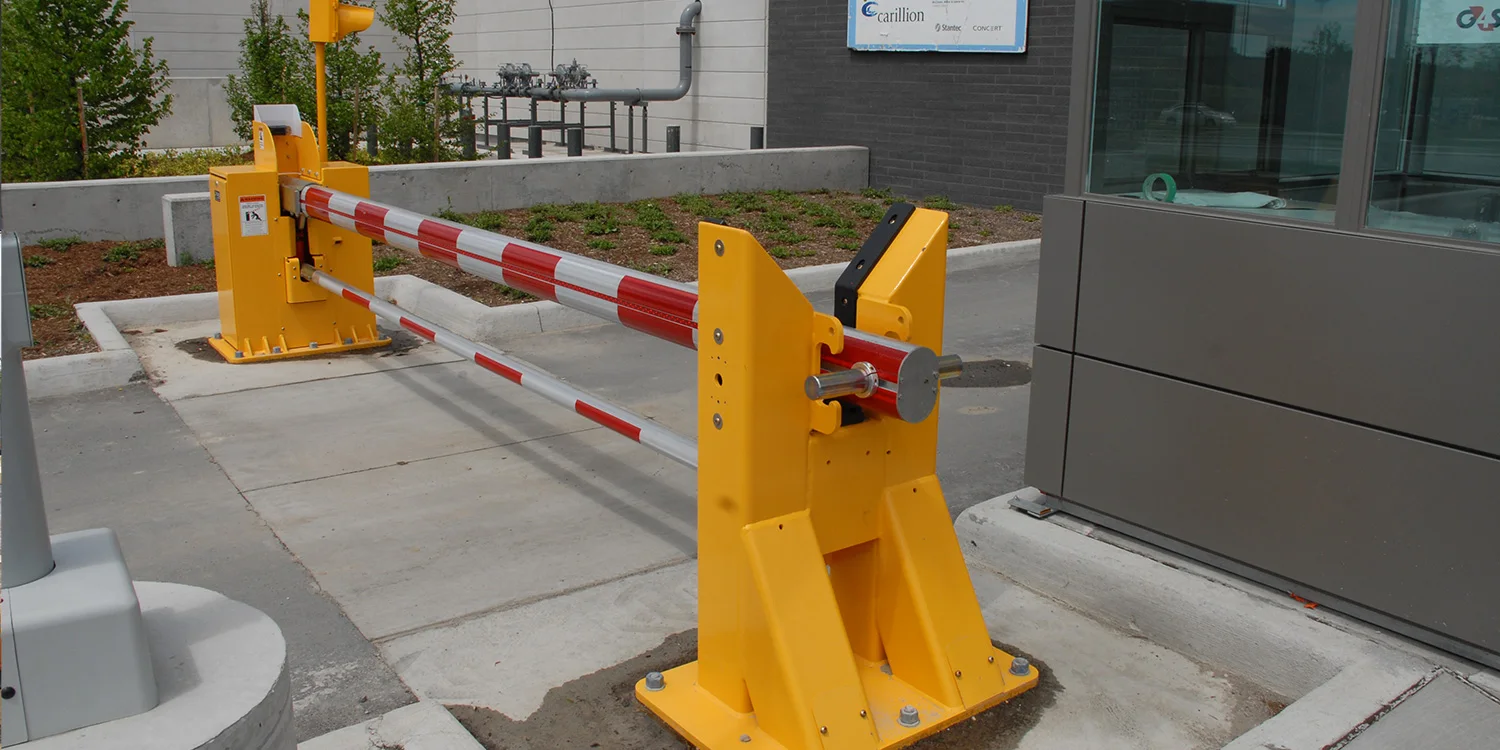

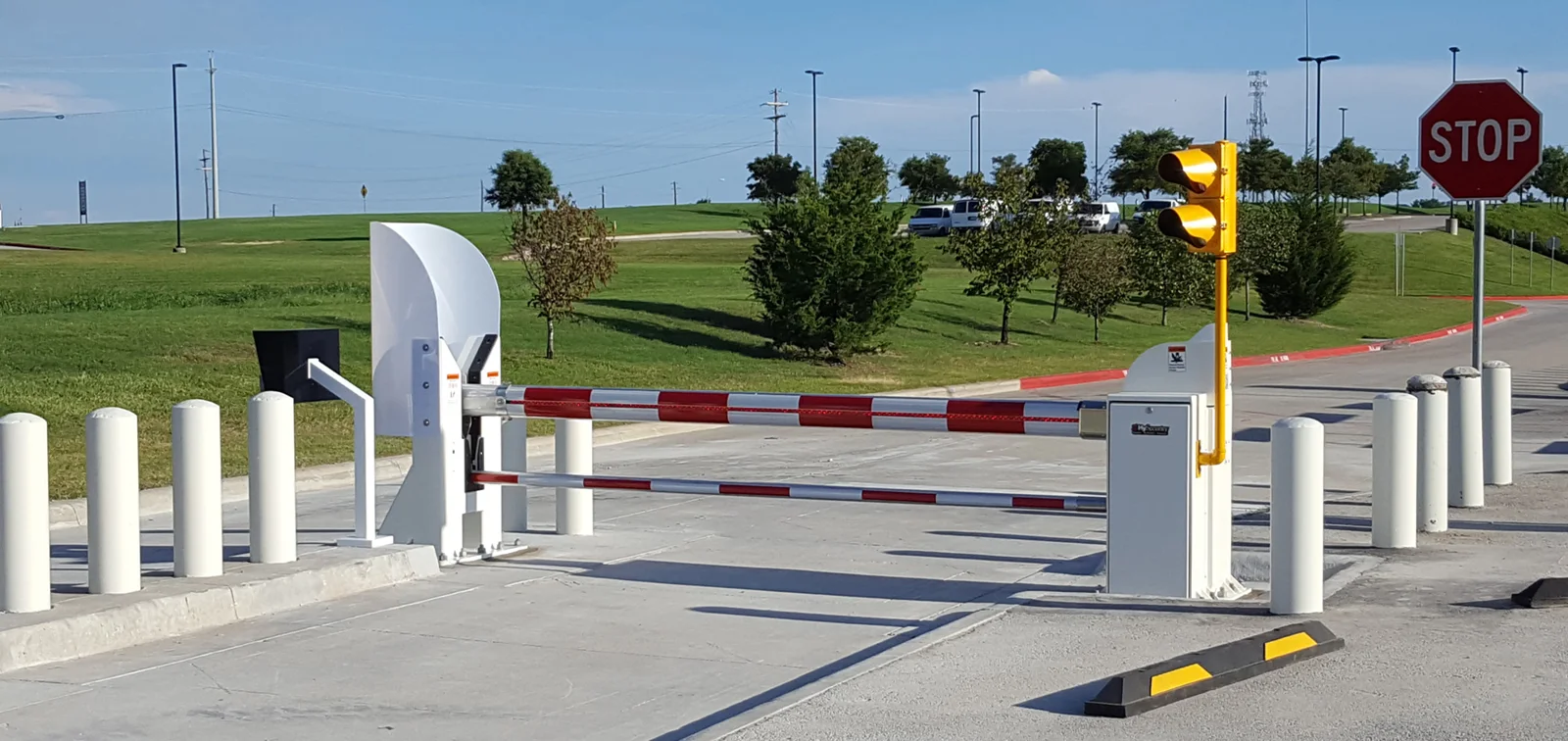

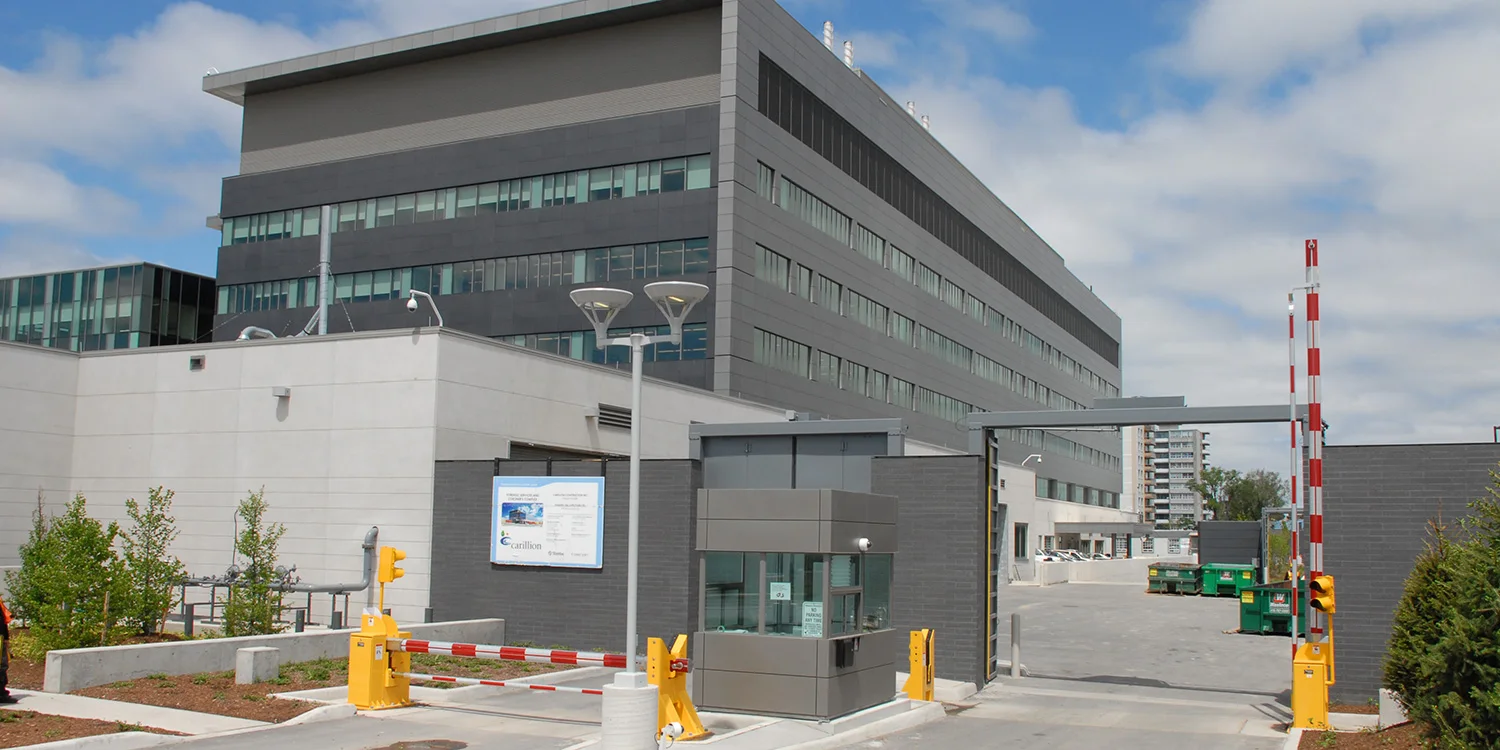

HySecurity StrongArm M30/M50 photos
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Request a quote for HySecurity StrongArm M30/M50
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
