Holdowns & Tension Ties
Simpson Strong-Tie holdowns and tension ties, including the six-size HDUE line plus HDU, HDQ, HHDQ, HD, HDB and LTT, for shearwall framing on residential and commercial builds.
About Holdowns & Tension Ties
Holdowns resist overturning in shearwalls, connecting the end posts of a wall to the foundation or the floor below. Simpson Strong-Tie's HDUE is a six-size line that replaces the HDU, including the HDUE7, HDUE17 and HDUE25.
The HDUE has a predeflected seat and fastens with Strong-Drive SDS Heavy-Duty Connector screws. It is tested to ICC-ES AC155. Other holdown and tension tie families in this group include the HDU, HDQ, HHDQ, HD, HDB and LTT. Matching anchor products include the SB and SSTB anchor bolts, SET-3G epoxy and AT-3G acrylic adhesive for post-installed anchoring.
Holdown models and anchor sizes come from the structural drawings or the shearwall schedule, so the engineer's callouts should drive the order. For an itemized quote, send model numbers and quantities, the SDS screws required, and any anchor bolts or adhesive anchoring materials. Framing contractors and builders can bundle holdowns with hangers and post bases on the same quote.
Colors, sizes and specifications
Sizes and configurations

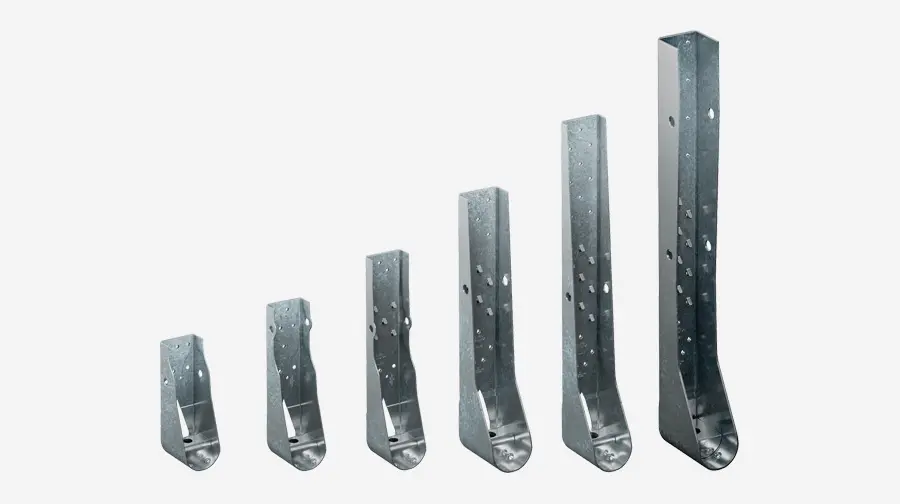

- Available in six sizes, including HDUE7, HDUE17 and HDUE25
Models
| Family | Description |
|---|---|
| HDUE | Next-generation holdown with angled fastening; replaces HDU one-to-one |
| HDU | Holdown installed with Strong-Drive SDS screws |
| HDQ / HHDQ | Quick-install and heavy quick-install holdowns |
| HD / HDB | Holdown / bolted holdown |
| HTT / HTTH | Heavy tension tie |
| LTT | Light tension tie |
| DTT1 / DTT2 | Deck tension ties |
| RP6 | Retrofit plate |
Features
- Predeflected seat eliminates deflection under load
- Extruded seat for strength
- Angled fastening (four larger sizes) engages screws in tension
- Overlapping back plate raises fastener strength and helps prevent post splitting
- Optimized screw patterns reduce splitting
- Teardrop holes distribute load evenly
- HDUE17 patent-pending solid aluminum washer; 22% higher loads than HDU14
Specifications
| Testing | ICC-ES AC155 |
|---|
Accessories and works with
- SB Anchor Bolt
- SSTB Anchor Bolt
- SET-3G epoxy
- AT-3G acrylic adhesive
Installation notes

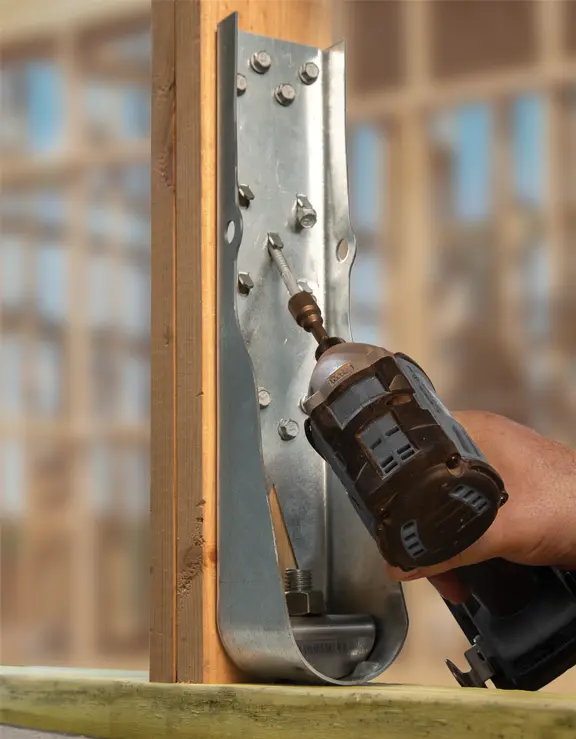

- Installs with Strong-Drive SDS Heavy-Duty Connector screws
Frequently asked questions
What is the difference between a holdown and a tension tie?
Holdowns resist uplift in vertical applications such as shearwall end posts. Tension ties resist lateral loads in horizontal applications. Simpson’s line includes holdowns, tension ties, strap-tie holdowns and purlin anchors.
