DoorKing Telephone Entry Systems

DoorKing telephone entry systems let visitors call residents or staff from a gate or door, from compact 1800 series units to the cloud-programmed 90 Series.

DoorKing

About DoorKing Telephone Entry Systems

With a DoorKing telephone entry system, a visitor calls from the gate and the resident or staff member grants access from a touch-tone phone. Connection options include DKS Cellular, VoIP internet and POTS, and 16 VAC transformers are included.

The 90 Series (1834, 1835, 1837) holds 3,000 phone numbers and 3,000 four-digit entry codes, with full-duplex hands-free voice, an 8,000-event transaction buffer and cloud programming. The 1835 and 1837 add built-in card reader input, while the 1834 needs a separate controller. The 1837 has an 8-line directory, two Wiegand inputs expandable to 48 wired or 24 wireless entry points, and elevator control for up to 64 floors and 8 elevators. For smaller sites, the 1800 series runs from the 1802 and 1803 to the 1802-EPD electronic directory, the 1808 for up to 10 tenants and the lighted 1810 for up to 100.

To quote, share the number of residents, mounting style, connection type and accessories such as camera kits or heater and fan kits.

DoorKing Telephone Entry
Details

Colors, sizes and specifications

Models
  • 1837 90 Series
  • 1835 90 Series
  • 1834 PC-programmable 90 Series
Features
  • All-in-one housing
  • Enhanced locking and weather sealing
  • Easy internal installation
Specifications
90 Series entry codes3,000 (4-digit)
90 Series device codes8,000 (1835, 1837)
Power16 VAC transformer(s) included
Accessories and works with
  • Mounting kits and posts
  • Camera Kits
  • Handset Kit
  • Heater and Fan Kits
  • Lock Boxes
  • Wiegand Keypads
  • Exit Push Buttons
  • Solar control boxes
  • 1000 Backup Power Inverter
  • Cellular, VoIP and POTS connectivity
  • Cloud and Windows Account Manager
  • Caller ID App and Relay Control App
Best for
  • Gated communities
  • Office buildings
Good to know

DKS Cellular uses a carrier network and carries a monthly subscription; cellular and VoIP connections cannot be used for 911 calls.

Documents
Photos

DoorKing Telephone Entry Systems photos

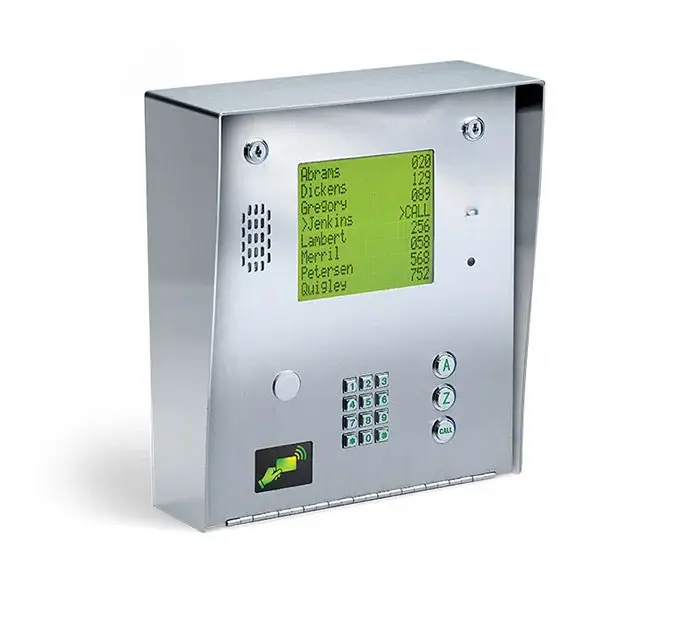

  • DoorKing Telephone Entry

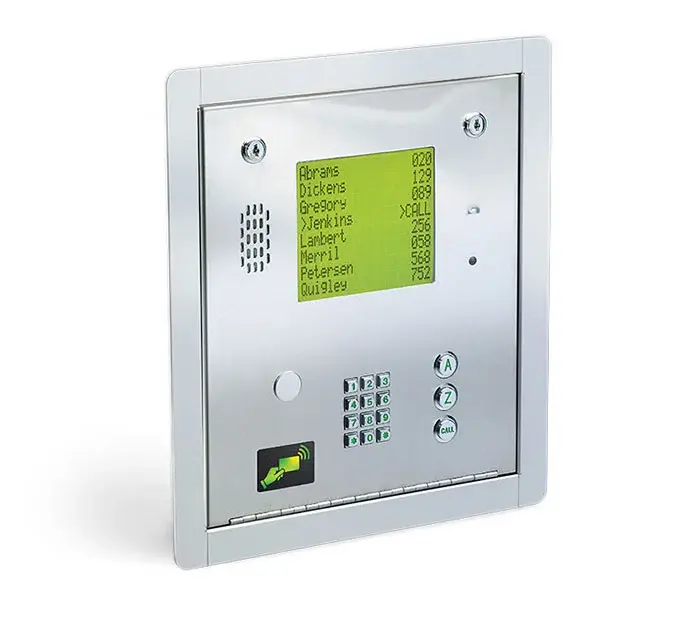

  • DoorKing Telephone Entry

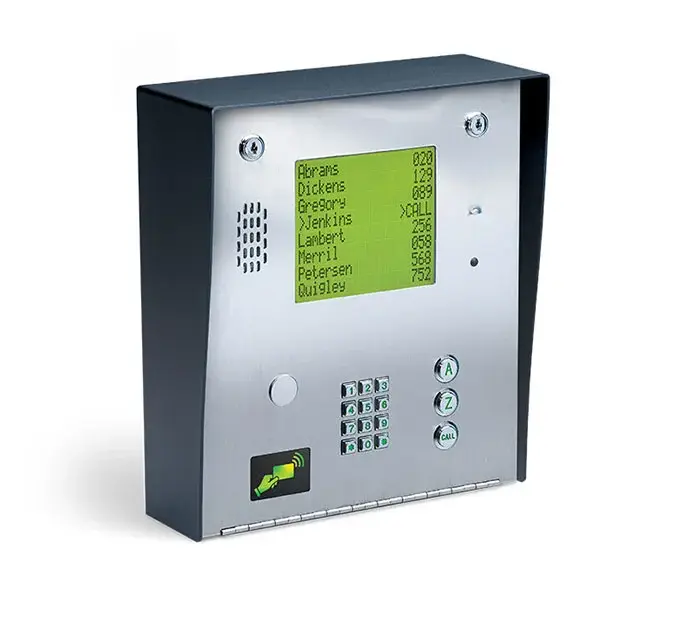

  • DoorKing Telephone Entry

One product or the whole package

Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.

Request a quote for DoorKing Telephone Entry Systems

Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
