DoorKing 6300 Series Swing Gate Operators

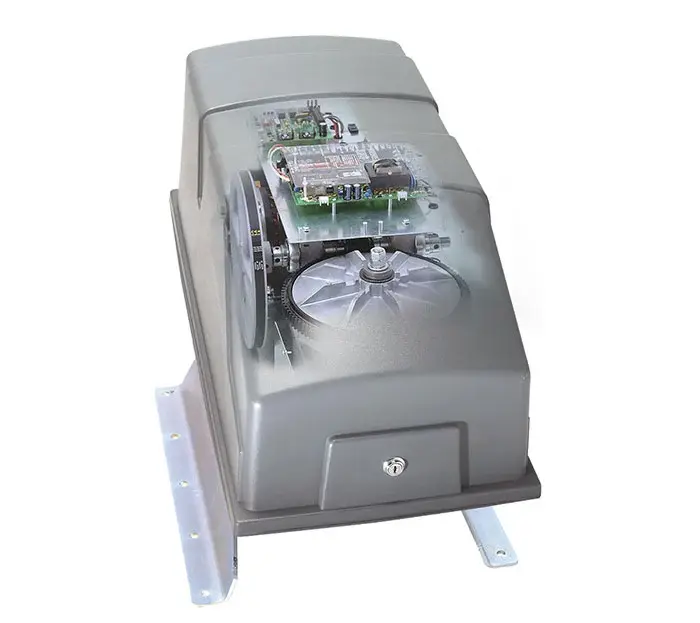

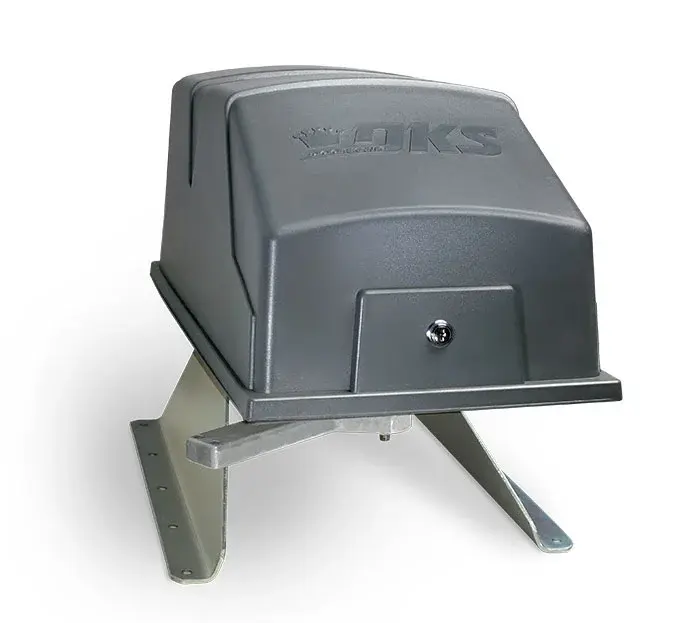

DoorKing designed the 6300 swing gate operator for commercial and industrial entrances that need a clean look and steady duty. The compact G90 galvanized steel housing conceals the gate arm, and the operator supports single or dual gates with pad or post mounting.

The 1/2 HP model handles gates up to 18 ft wide and 700 lb; the 1 HP model handles up to 22 ft and 800 lb. It opens 90 degrees in about 15 seconds with soft start/stop and magnetic limits, and adds a 1-23 second auto-close timer, keyed manual release and two 115 VAC outlets. Power is 115, 230 or 460 VAC, with 230/460 via step-down transformer. The 6300 is listed to UL 325 and 991 and is ETL listed.

Monitored Type B1/B2 entrapment protection is required. When requesting a quote, include gate width and weight, single or dual configuration, available voltage, mounting style, and accessories such as loop detectors, solar control boxes or a heater kit for cold climates.
