DoorKing eVolve 2160 Swing Gate Operator
The DoorKing eVolve 2160 is a brushless DC swing gate operator for single or bi-parting vehicular gates, from small multi-family sites to commercial and industrial entrances.
About DoorKing eVolve 2160 Swing Gate Operator
The eVolve 2160 brings brushless DC drive to DoorKing's swing gate operator lineup. It is rated for Class I-IV use and handles single or bi-parting gates. Programming happens on an onboard LCD with USB backup and event logging, and electronic magnetic limits set travel.

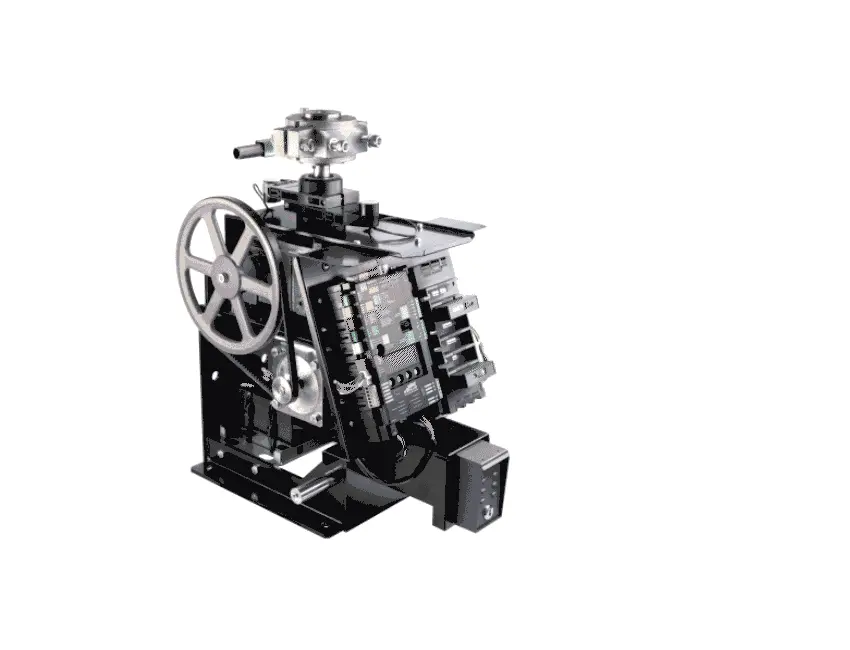

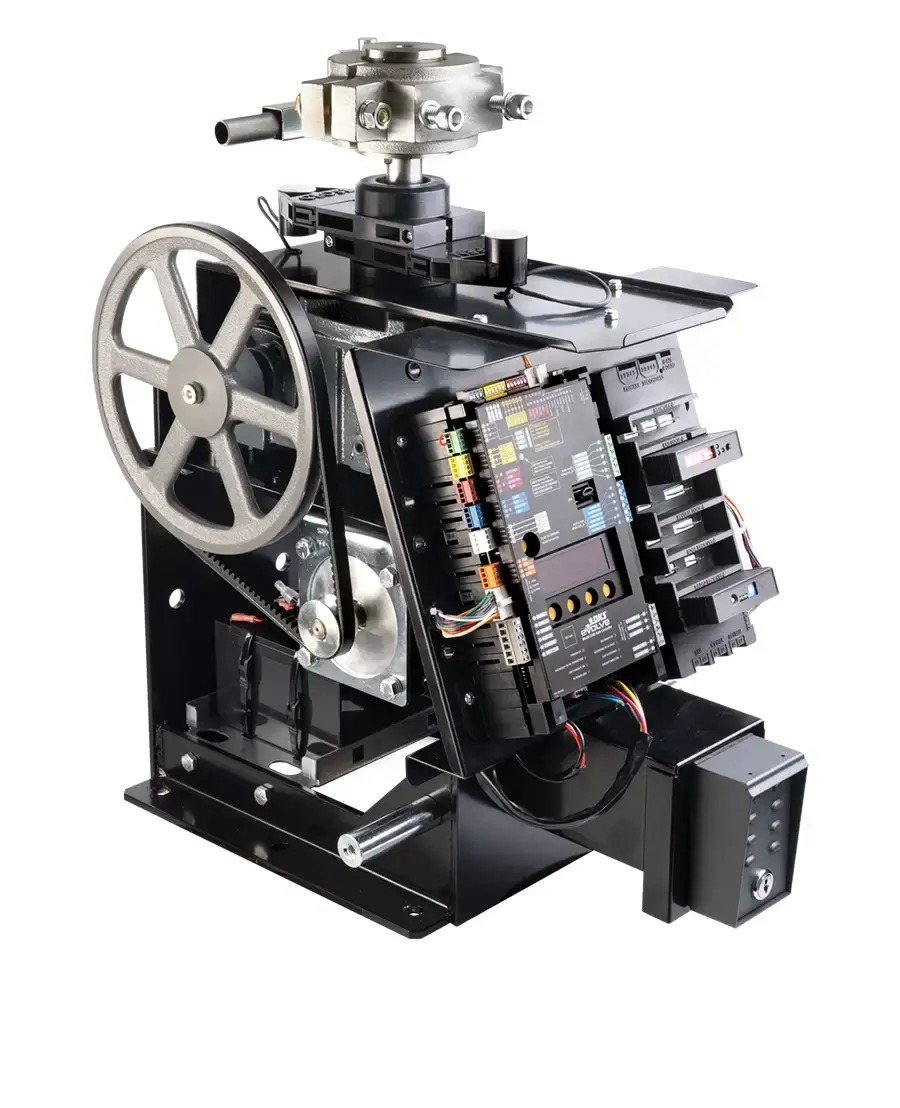

Two models are offered. The 2160-380 uses a 500 W (1/2 HP) motor for gates up to 18 ft and 1,200 lb; the 2160-381 uses a 750 W (1 HP) motor for gates up to 22 ft and 1,800 lb. Both run on 115 or 230 VAC single-phase power, swing 90 degrees in about 10-12 seconds, and include two 7 Ah backup batteries. The powder-coated 1/4" steel chassis sits in a split housing for arm access.
Typical sites include apartments, gated communities, self-storage and parking facilities. Monitored Type B1 and/or B2 entrapment protection is required, and a heater kit is needed in freezing temperatures. For a quote, include gate length and weight, single or dual, voltage and accessory hub plug-ins.
Colors, sizes and specifications
Models
- 2160-380: 18 ft, 1,200 lb, 500W (1/2 HP), 5A/3A
- 2160-381: 22 ft, 1,800 lb, 750W (1 HP), 7A/4A
Features
- Onboard LCD for setup and diagnostics

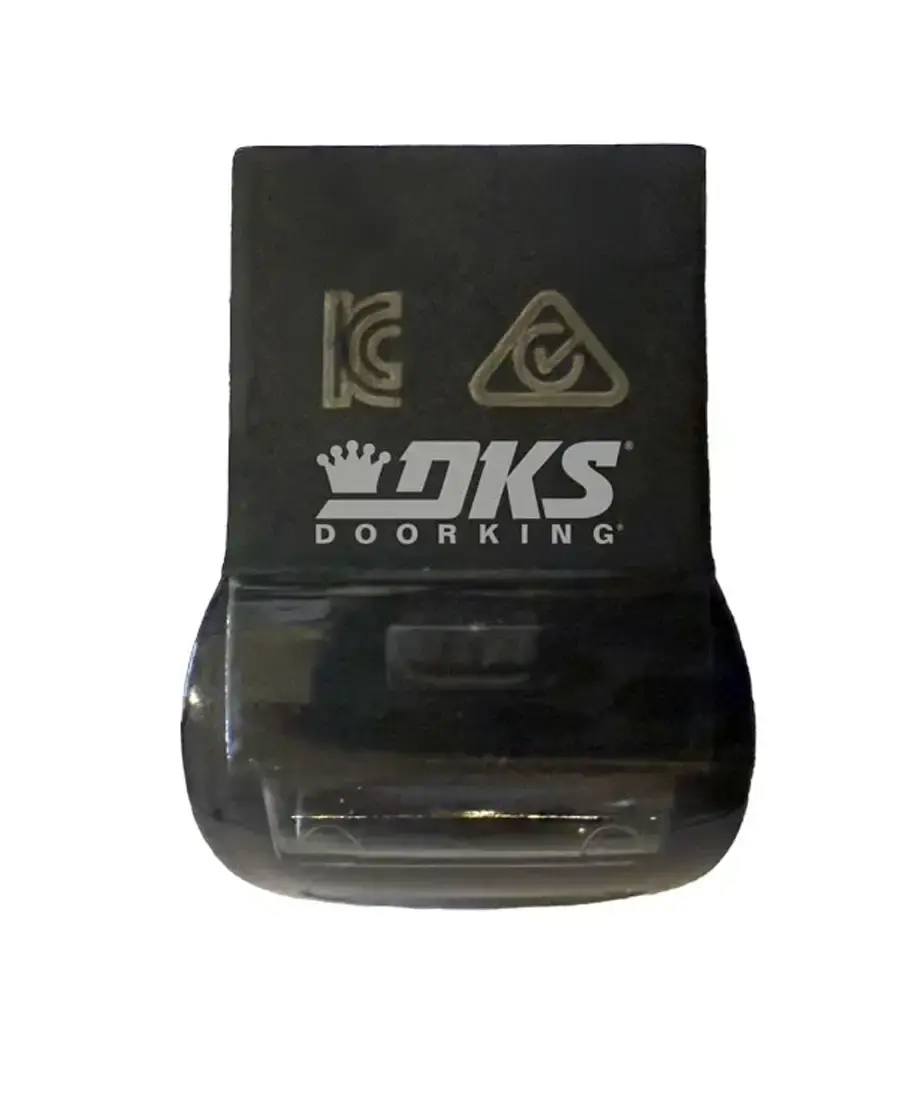

- USB configuration backup and event logging
- Electronic magnetic limits, no mechanical switches
- Split housing for service without removing the arm
- Selectable 115V or 230V input
- Built-in two 7Ah backup batteries and manual keyed release
- Harmonic arm with 60:1 belt-driven gearbox and steel frame
- Plug-in accessory hub for loop detectors, reversing edge and radio receiver
- Two 120 VAC convenience outlets
Specifications
| Gate speed | 90 degrees in about 10-12 seconds |
|---|---|
| Class of operation | I-IV |
| Input power | 115/230 VAC single phase |
| Temperature | -10F to 158F (-40F with heater kit) |
| Dimensions | 17.25" W x 24.75" H x 23.75" D |
| Shipping weight | About 175-225 lb |
Accessories and works with
- Plug-in loop detectors and RF receiver
- External entrapment protection devices (required)
- Heater kit (AC-powered units)
- Surge suppression
- Control stations
- Lock boxes
- Backup power inverters
Best for
- Small multi-family residential
- Apartments and residence halls
- Gated communities
- Mixed-use buildings
- Commercial and industrial
- Self-storage
- Parking facilities
Installation notes
- Entrapment protection must be monitored Type B1 and/or B2 devices.
- Heater kit needed for freezing temperatures to protect batteries.
