Architectural Rod Assemblies
Feeney architectural rod assemblies are made-to-order type 316 stainless steel tension and compression rods for canopies, curtain wall supports, guardrail balusters and trellis grids, specified by architects and builders.
About Architectural Rod Assemblies

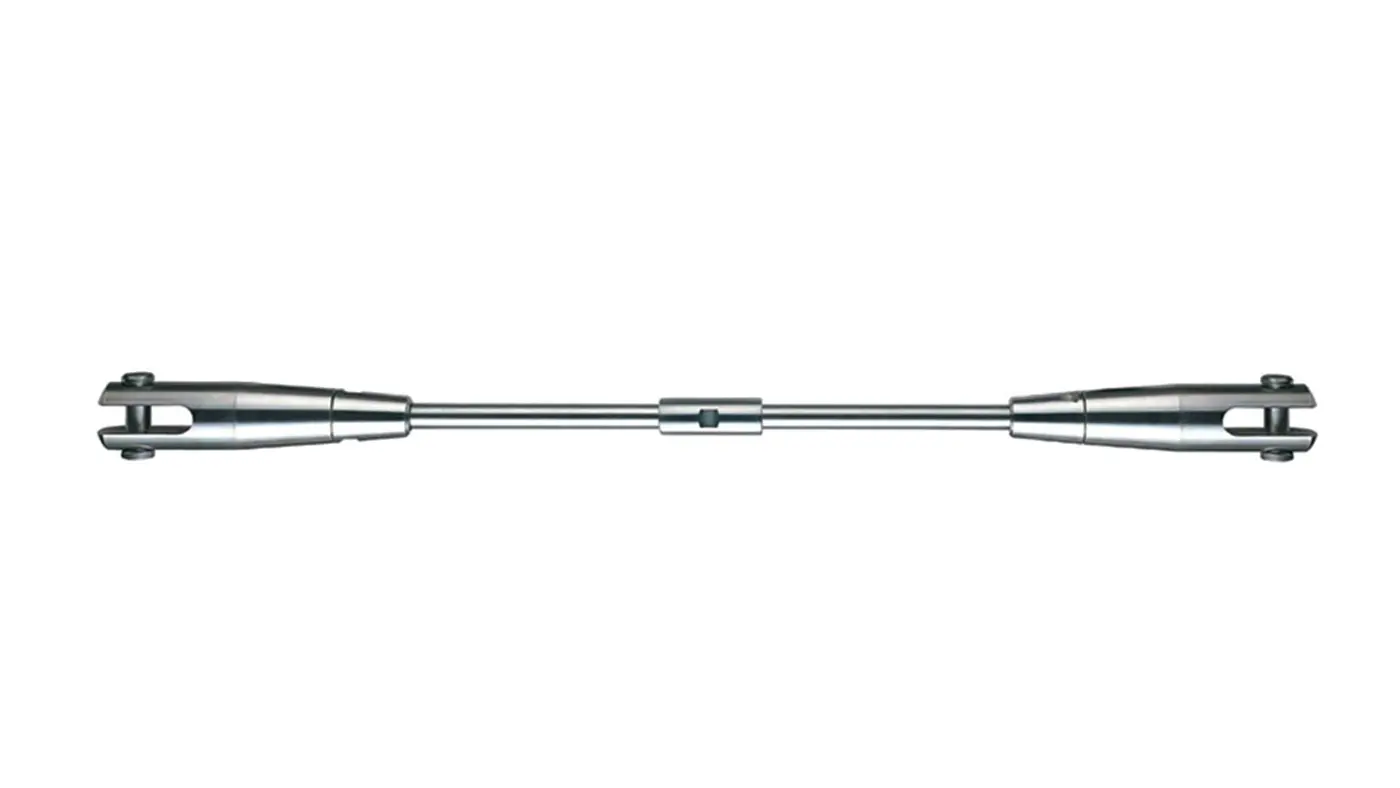

Feeney architectural rod assemblies arrive made to order and ready to install. Each is type 316 stainless steel with a satin finish, built for tension or compression, and shipped assembled with anti-seize on the threads. Length is adjusted by spinning the rod itself, with machined wrench flats and no turnbuckles, which keeps the look clean.
Rod diameters are 5/16, 3/8, 1/2, 5/8, 3/4 and 1 inch. Adjustment equals the rod diameter at each end, so a 1/2 inch rod adjusts plus or minus 1/2 inch per end and plus or minus 1 inch total. Rods over 12 feet require rod connectors. End fittings and parts include Tension Fork fittings, conical nuts and double headed clevis pins. Common uses are glass curtain wall and door canopy supports, overhead awnings, guardrail balusters and trellis infill grids. Feeney backs the assemblies with a 10-year warranty.
Assemblies are measured center pin to center pin at mid-adjustment. For a quote, send each rod's diameter, that measurement, end fittings and quantity.
Colors, sizes and specifications
Sizes and configurations
- Rod diameters: 5/16, 3/8, 1/2, 5/8, 3/4, 1 in
- Adjustment per end equals rod diameter (e.g. 1/2 in rod: +/-1/2 in each end, +/-1 in total)
Models
- Tension Fork Rod Assemblies
- Assembly Kits
Features
- Adjusts by spinning rod, no bulky turnbuckles
- Machined flats for wrench grip without scratching
- No exposed threads within adjustment range
- Tension and compression loads
Specifications
| Material | Type 316 stainless steel |
|---|---|
| Finish | Satin |
| Measurement | Center pin to center pin at mid-adjustment |
| Rod connectors | Required over 12 ft |
Accessories and works with
- Tension Fork end fittings
- Conical nuts
- Double headed clevis pins
- Rod connectors
Best for
- Glass curtain wall supports
- Door canopy supports
- Guardrail balusters
- Trellis infill grids
- Overhead awnings
Installation notes
- Made to order, shipped ready to install
- Kit: 1 rod, L/R tension fork end fittings with conical nuts and clevis pins
Warranty
10-year warranty; ask us for the full terms.
Good to know
Made to order; request a quote with required length and diameter.
