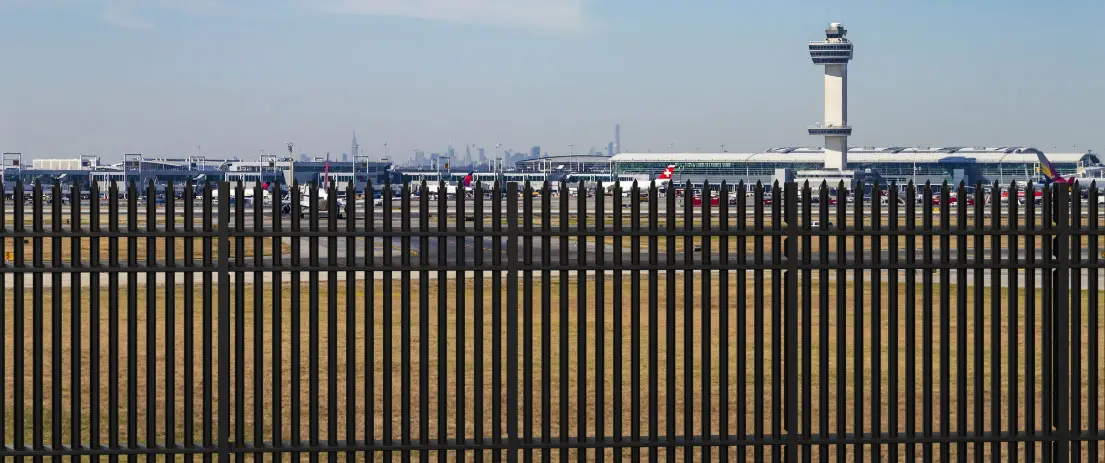

Fortress ARES
Fortress ARES is a high-security steel fence with solid I-beam construction and an anti-climb pale-through-rail design, for secure perimeters and sites with aggressive slopes.
About Fortress ARES
For perimeters that call for higher security, ARES is Fortress's high-security option. Panels ship fully assembled, built from 50,000 psi G90 galvanized steel with 11 gauge 2.83 x 2.84 in rails and 14 gauge 2.75 x 1.00 in pales set at a 3 in air space, finished in UV-inhibited powder coat over e-coat.
The pale-through-rail design is anti-climb, and Slide Lock technology lets panels adjust up to 12 in on slopes. Rails can carry data and communication cables. Three styles are available as panels and gates: Citadel with a curved top, Scorpio and Spartan. Panel heights run from 70 to 142 in with 2 or 3 rails, in Black Sand, Gloss Black, Gloss Green or Green Sand. Fortress lists a 20-year FortressShield warranty.
For a high-security steel fence quote, send the style, height, rails, color, footage, slope notes and gate requirements. Axiom South ships nationwide.
Colors, sizes and specifications
Colors and finishes
- Black Sand (standard)
- Gloss Black (optional)
- Gloss Green
- Green Sand
Sizes and configurations
- Heights: 70, 82, 94, 106, 118, 130, 142 in
- 2 or 3 rail
- Adjustable to 12 in
Models
- Citadel (Curve Top)
- Scorpio
- Spartan
Features
- Fully assembled panels
- Pale-through-rail design
- Anti-climb
- Powder coat with UV inhibitors and E-coat
- Rails accommodate data/communication cables
- G90 galvanized steel
- Solid steel I-beams
Specifications
| Material | 50,000 psi steel |
|---|---|
| Rail | 2.83 x 2.84 in, 11 ga |
| Pale | 2.75 x 1.00 in, 14 ga |
| Air space | 3 in |
| Lock | Slide Lock |
Best for
- High-security perimeters
- Aggressive slopes
Installation notes
- Assembled panels; installation guides on manufacturer site
Warranty
20-year FortressShield warranty.
