Specialty Operator Guide
Specialty gate operators include barrier arms, hydraulic swing and slide operators, and vertical lift or pivot operators for heavy, high-cycle or space-limited commercial gates.
About Specialty Operator Guide (Barrier Arms, Hydraulic, Vertical Lift/Pivot)
Not every gate fits a standard swing or slide opener. This specialty operator guide covers three groups: barrier arms for vehicle lane control, hydraulic operators for heavy or high-cycle gates, and vertical lift and pivot operators for openings where a gate cannot swing or slide.
Hydraulic units are chosen for heavy gates and frequent use, such as industrial yards, apartment entrances and commercial lots. Barrier arms are a fit for parking lanes and checkpoints. Across these products you will see hydraulic and electromechanical technologies, and power options from 12 V and 24 V low-voltage units to 120 V and 230 V, with battery backup available.
Safety devices such as photo eyes, loop detectors and sensing edges belong at crush and entrapment zones, and keypads or intercoms can be added later. Confirm local requirements for gate behavior during power loss. For a quote, include gate type, weight and size, daily cycles, lane widths and power at the site.
Colors, sizes and specifications
Features

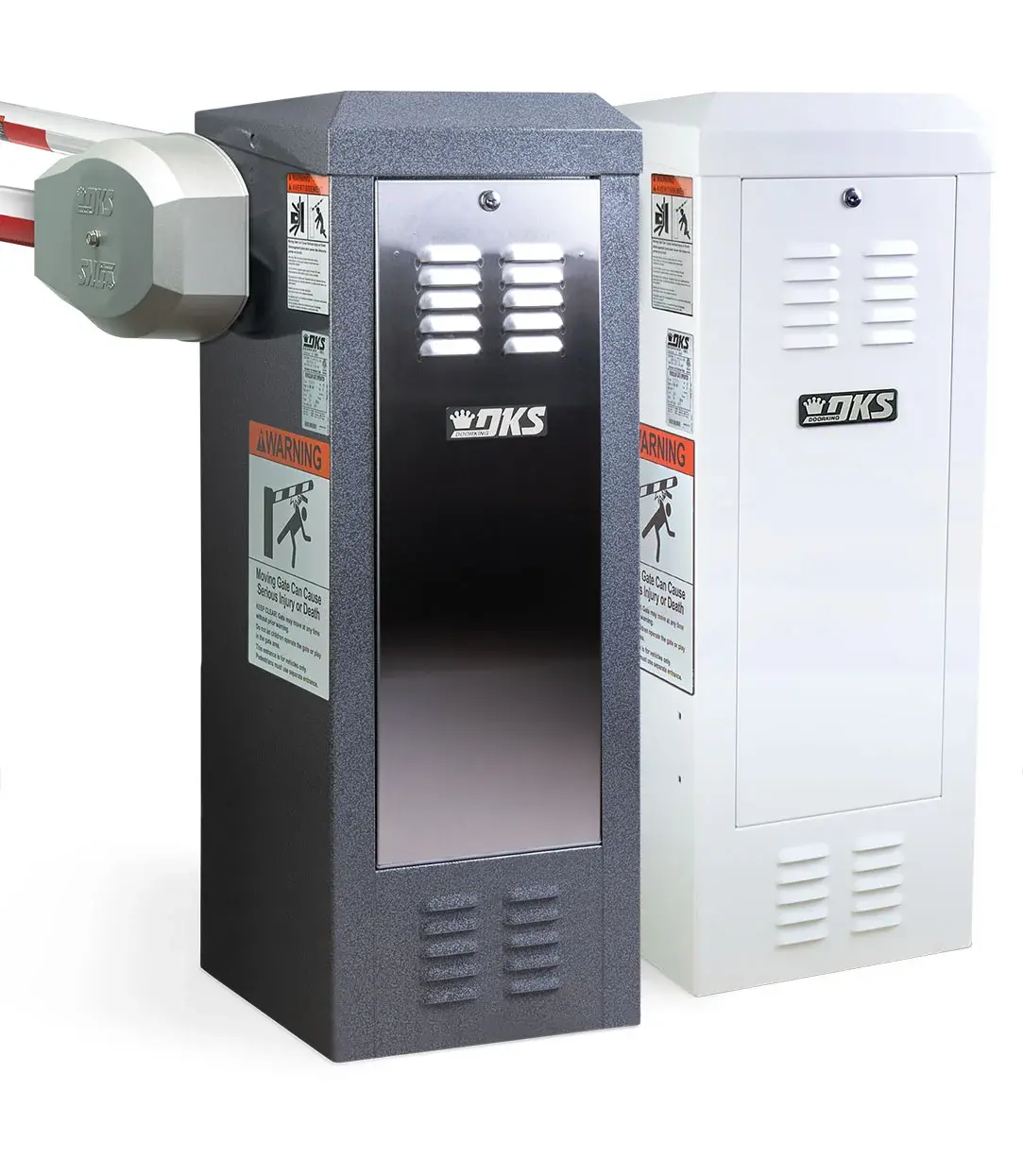

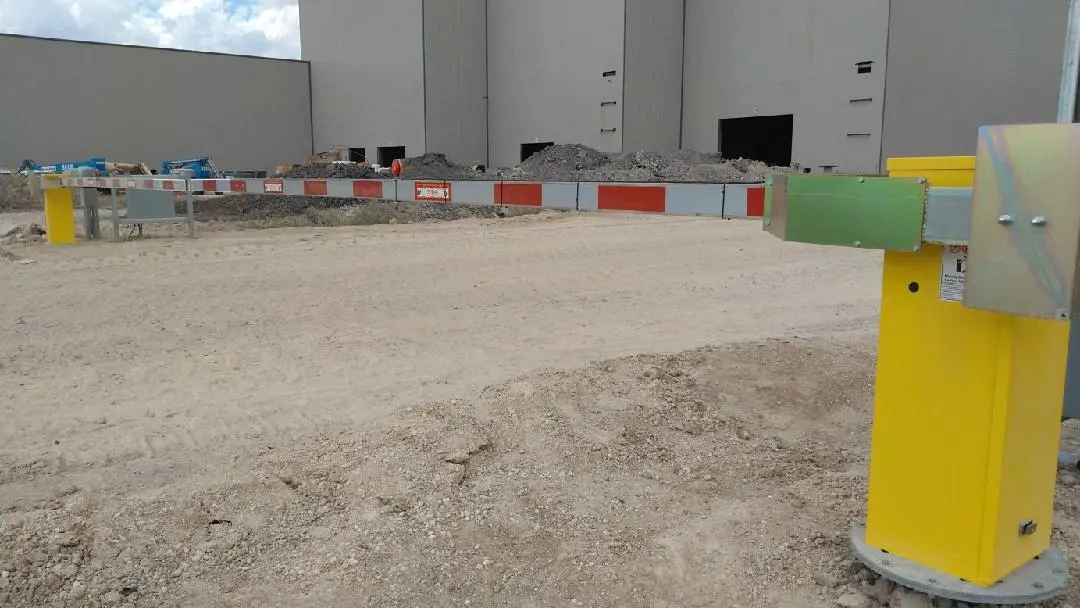

- Barrier arms
- Hydraulic swing and slide operators
- Vertical lift and pivot operators
Specifications
| Operator technologies | Hydraulic or electromechanical (screw/worm, arm, underground) |
|---|---|
| Swing drive styles | Swing-arm, ram arm, or underground at the hinge |
| Slide drive styles | Chain-driven (common in the U.S.) or rack-and-gear |
| Power options | 12 V, 24 V, 120 V or 230 V; some low-voltage units run on solar; battery backup available |
Installation notes
- Add photo eyes, loop detectors or sensing edges to guard crush and entrapment zones.
- Gates should default to unlocked on power loss where fire code requires; confirm local requirements.
- Intercoms, keypads and controls can be added after the gate is installed.
Frequently asked questions
What safety devices protect people and vehicles?
Infrared photo beams, in-ground loops that detect metal, and pneumatic, tensioned-wire or resistive safety edges.
Can an operator run on solar?
Some low-voltage operators can, with a solar panel and battery; confirm cycles per day and gate weight.
Specialty Operator Guide (Barrier Arms, Hydraulic, Vertical Lift/Pivot) photos
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Questions about specialty operator guide (barrier arms, hydraulic, vertical lift/pivot)?
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
