HySecurity M-Bar & L-Bar
HySecurity M-Bar and L-Bar are 24VDC electromechanical barrier arm operators for parking garages, shopping centers, hotels and hospitals, with arms from 8 to 29 ft.
About HySecurity M-Bar & L-Bar
For parking and traffic control lanes, HySecurity M-Bar and L-Bar barrier arm operators pair a 24VDC electromechanical drive with battery backup and an aluminum arm with red reflector. The elliptical arm profile resists wind, handing is field-adaptable left or right, and a keyed mechanical release is standard.
Model choice is a trade between speed and arm length. The M3BAR handles 8-10 ft arms at 500 cycles per hour and opens in 1.5-4 seconds; the M5BAR covers 10-16 ft at 350 cycles; the M7BAR covers 16-23 ft at 200 cycles; and the L9BAR reaches 23-29 ft at 150 cycles per hour. Arms open to 90 degrees, with 87 recommended.
Options include arm lights, bumper strips, a flashing light and a BlueBUS photo eye. For a quote, give the lane width, expected cycles per hour, handing and lighting preferences.
Colors, sizes and specifications
Sizes and configurations
- Overall arm length 8-29 ft
- Opens to 90 deg (87 recommended)
Models
- M3BAR: 8-10 ft, 1.5-4 s, 500 cycles/hr
- M5BAR: 10-16 ft, 3-6 s, 350 cycles/hr
- M7BAR: 16-23 ft, 6-10 s, 200 cycles/hr
- L9BAR: 23-29 ft, 8-10 s, 150 cycles/hr
Features
- 24VDC operator
- Battery backup available
- Standby energy saving
- Digital motion control
- Universal handing
- Keyed mechanical release
- Elliptical bar resists wind gusts
- Corrosion-resistant steel case
Specifications
| Drive | Electromechanical 24VDC |
|---|---|
| Arm | Aluminum with red reflector |
Accessories and works with
- Flashing light
- Lights/bumper strips
- BlueBUS photo eye
Best for
- Parking garages
- Shopping centers
- Hotels
- Hospitals

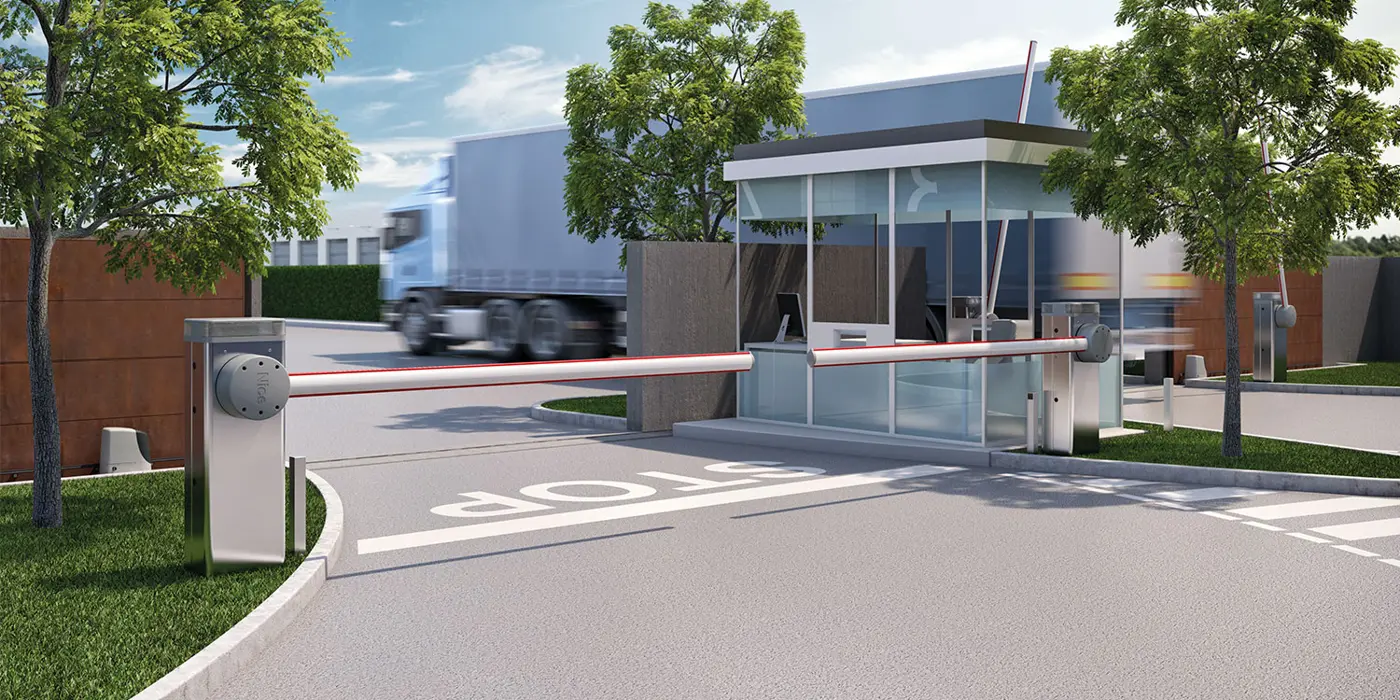

HySecurity M-Bar & L-Bar photos
