HySecurity StrongArm
HySecurity StrongArm is a hydraulic barrier arm operator for parking, commercial access and multi-lane traffic control, offered in five models for arms from 14 to 36 ft.
About HySecurity StrongArm

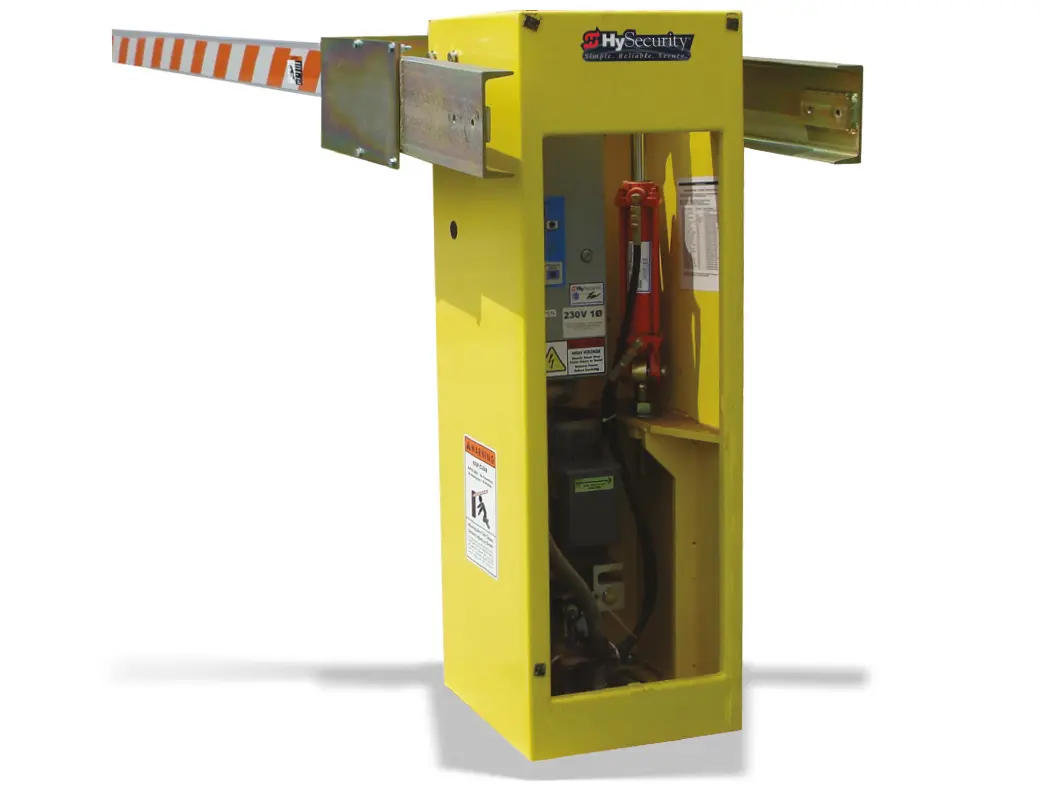

StrongArm is HySecurity's heavy-use barrier arm operator. A 3/4 hp hydraulic drive in a welded 10-gauge sheet-metal chassis supports up to 2,000 cycles per day, depending on arm length, battery and conditions. The Smart Touch Controller provides 70+ field-adjustable settings, and UPS battery-backup models keep operating during power outages.
The StrongArm14F handles 14 ft lighted aluminum arms with a breakaway mount and kill switch, opening in 2 seconds. The StrongArm20 takes side-mount arms to 18 ft or center yoke arms to 20 ft. The StrongArm28 and StrongArmDOT28 reach 28 ft, the DOT version with a breakaway bracket, and the StrongArm36 runs aluminum-fiberglass arms to 36 ft. Counterweights are required for arms 20 ft or longer, and arms 30 ft or longer need a cable tensioner and arm stabilizer kit.
Power can be a DC supply or AC with HyInverter AC for backup. For a quote, give lane width, arm length and material, daily traffic and power.
Colors, sizes and specifications
Sizes and configurations
- Arm length 14 to 36 ft
- StrongArm14F: 14 ft; StrongArm20: 20 ft; StrongArm28: 28 ft; StrongArm36: 36 ft; StrongArmDOT28: 28 ft
Models
- StrongArm14F
- StrongArm20
- StrongArm28
- StrongArm36
- StrongArmDOT28
Features
- Open in as little as 2 s
- UPS models
- 10-gauge welded chassis
- 70+ field-adjustable settings
- Side or center yoke mount
- Hy5B vehicle detector
- Lighted aluminum arm with HyProtect breakaway mount
Specifications
| Drive | Hydraulic, 3/4 hp |
|---|---|
| Duty cycle | 2,000 cycles/day |
| Open/close | 14F 2/3 s; 20 3/4 s; 28 5/6 s; 36 8/8 s |
| Counterweights | Required for arms 20 ft+ |
| Stabilizer kit | Required for arms 30 ft+ |
Accessories and works with
- Smart Touch Controller
- Hy5B detector
- HyInverter AC
- Counterweights
- Cable tensioner and arm stabilizer
Best for
- Parking access
- Commercial access
- Multi-lane traffic control

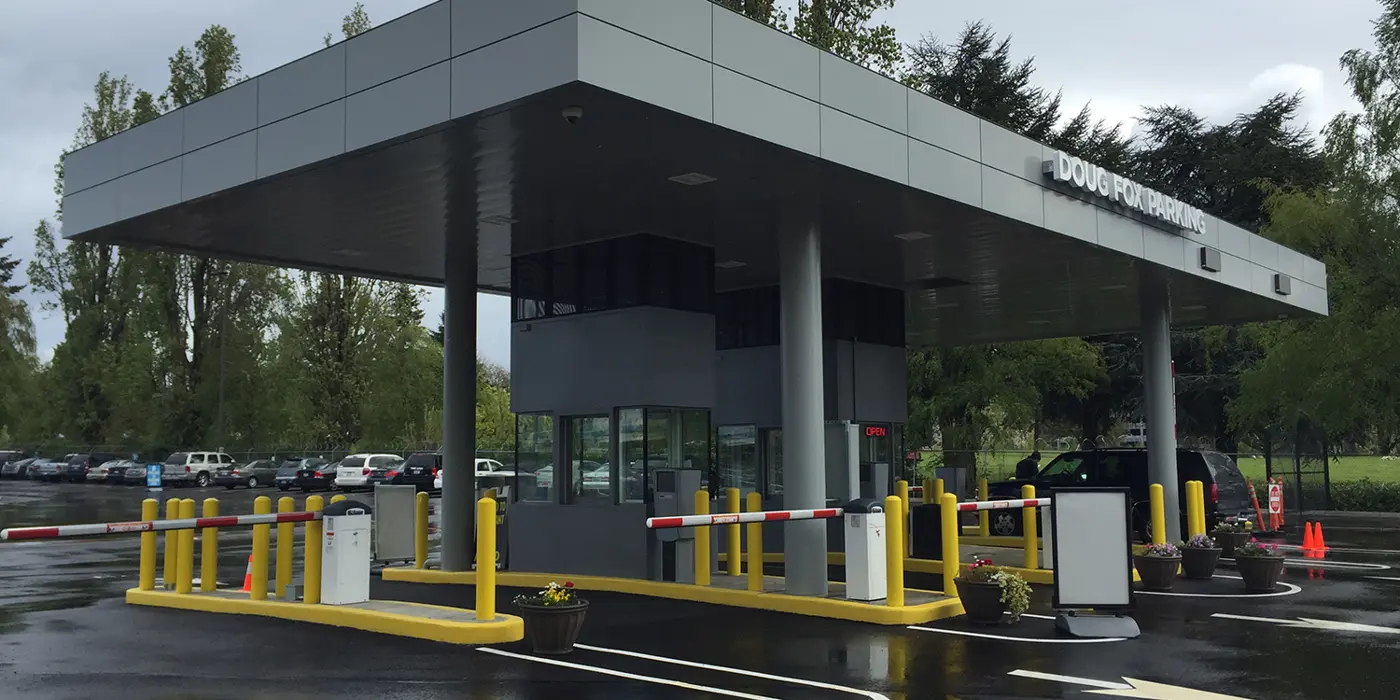

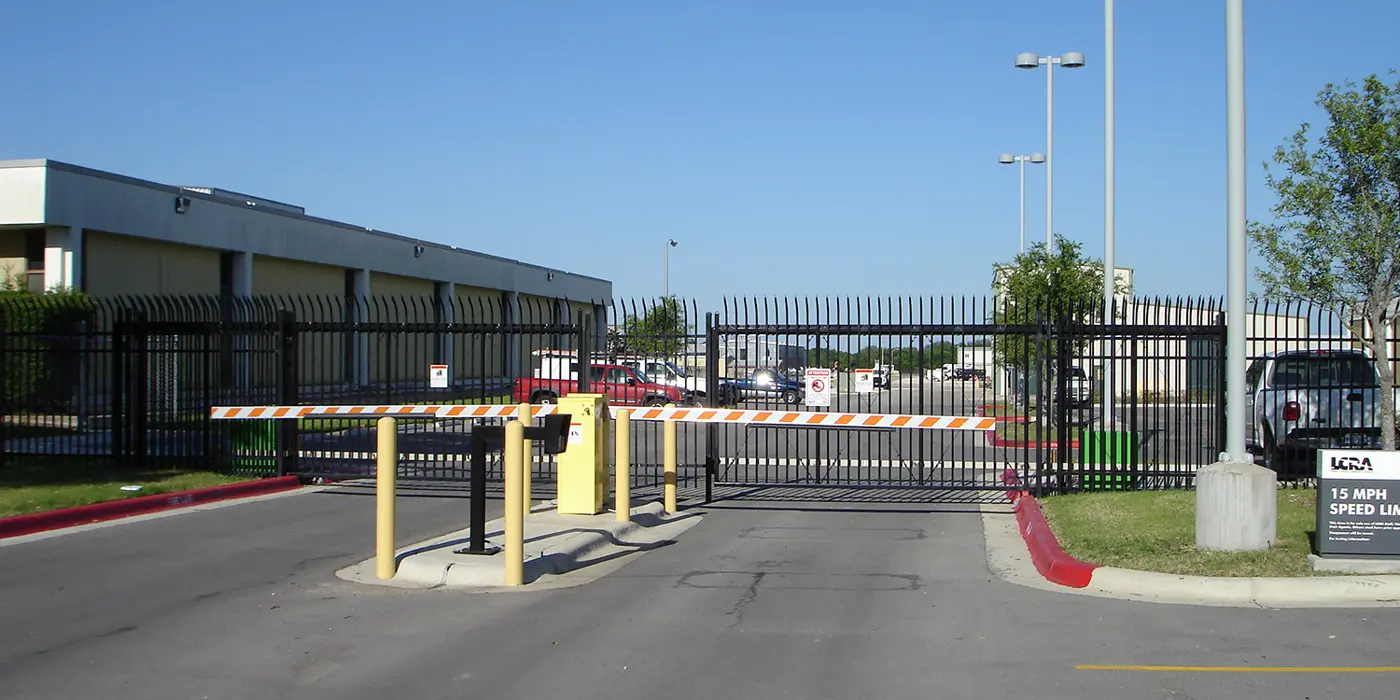

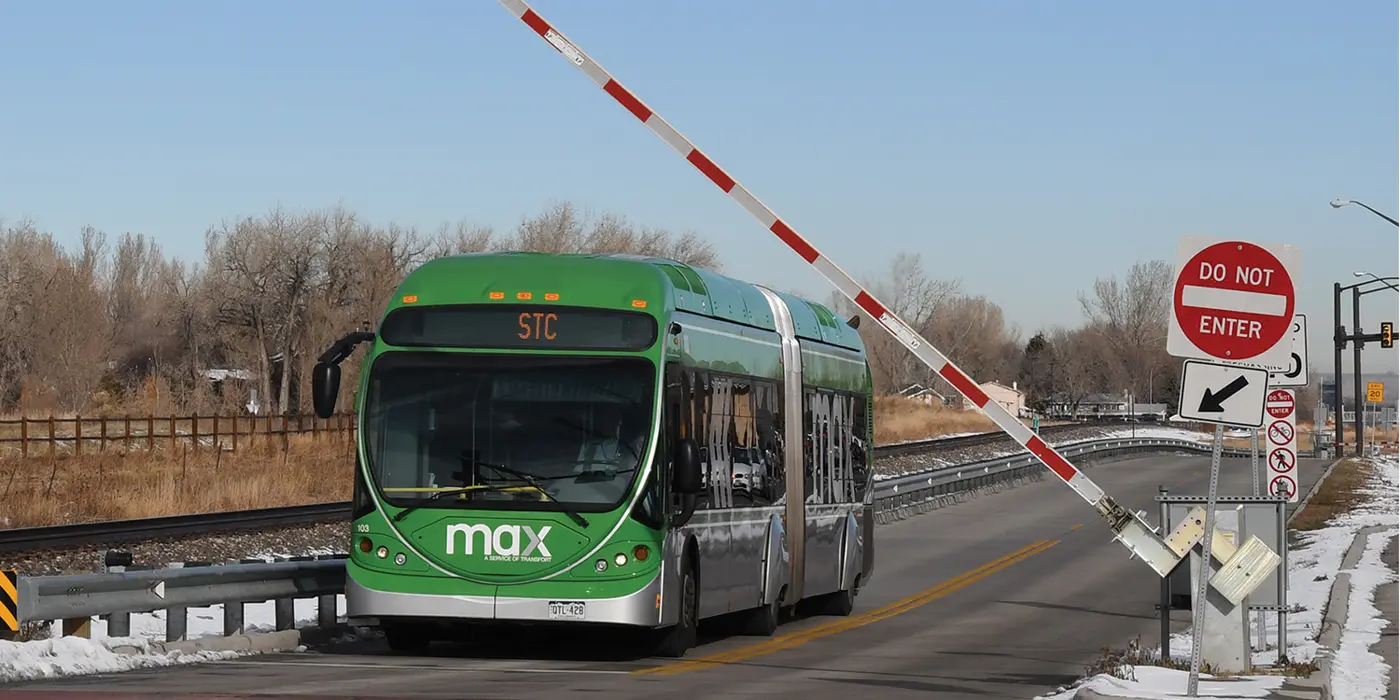

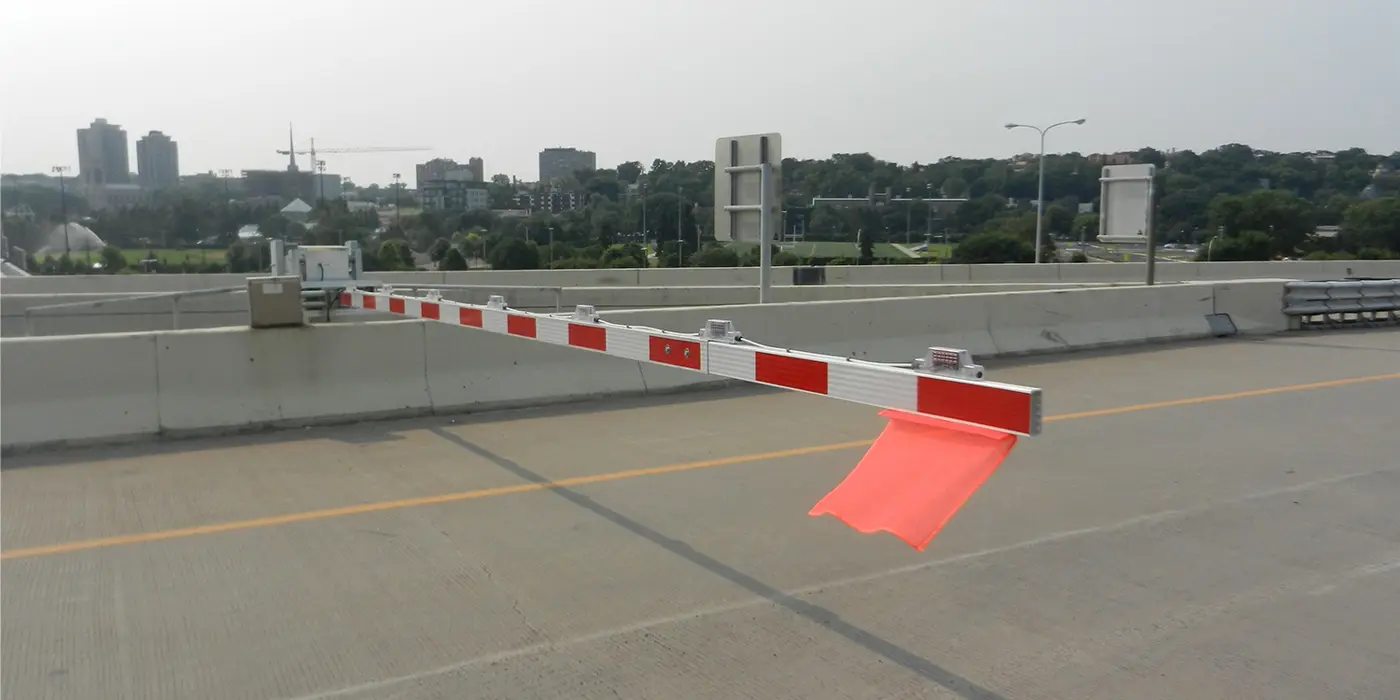

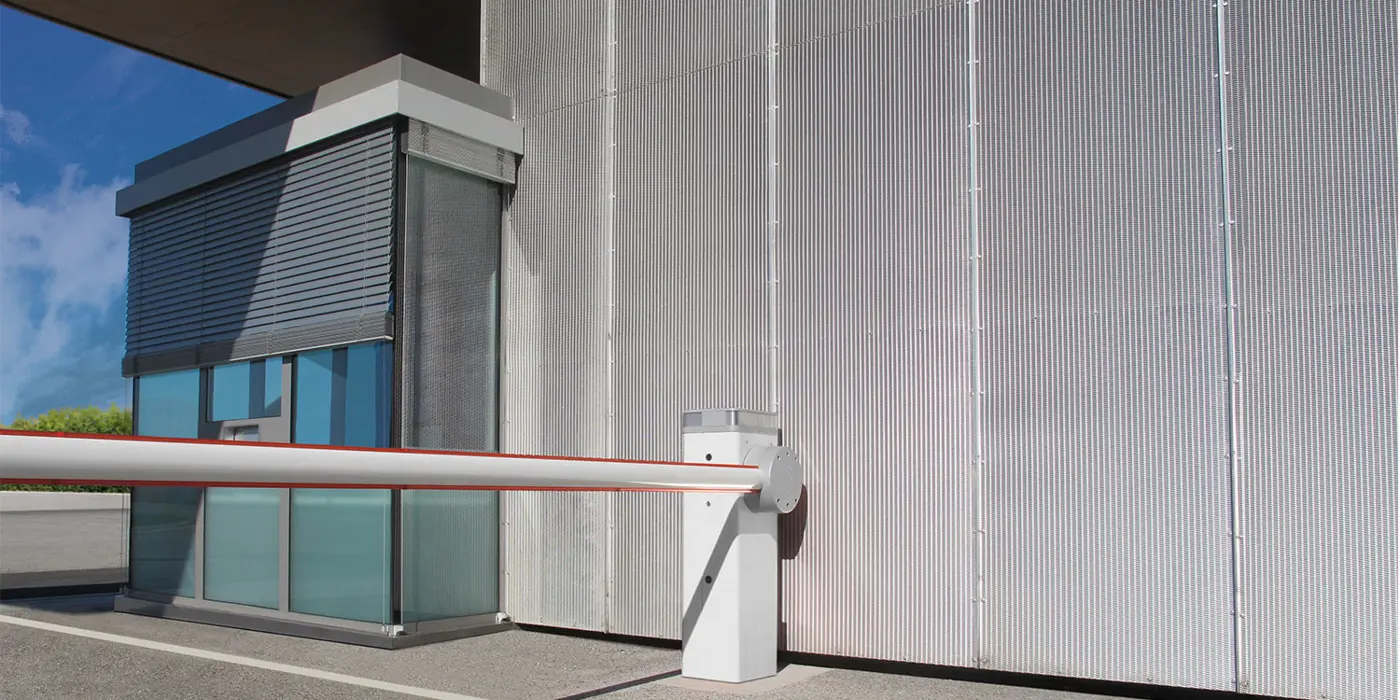

HySecurity StrongArm photos
