Heavy Timber & Mass Timber Connectors
Simpson Strong-Tie heavy timber and mass timber connectors, including concealed beam hangers, column bases, CLT angle brackets, Timber-CF screws and Timber-SET epoxy for timber builders.
About Heavy Timber & Mass Timber Connectors
Mass timber and cross-laminated timber construction uses connection hardware that is quite different from light wood framing. Simpson Strong-Tie offers a dedicated line for heavy timber and mass timber projects.
Products include the MTWS mass timber washer strap, MTW angled washer and MTLD lifting device for handling panels. Column connections include the MCB and MCBS column bases, the MCT column tie and the MPSC point-supported column connector. The E angle bracket is made for cross-laminated timber. ACBH and CBH concealed beam hangers and DGT and DGHT top-flange fire wall hangers handle beam connections. Fastening and anchoring are covered by Strong-Drive SDCFC Timber-CF screws and Timber-SET structural epoxy for glued-in rods.
These connectors are specified by the project's structural engineer, so the clearest way to request pricing is to send the connector schedule from the drawings. Include model numbers, quantities, finishes and the screws or adhesive called out. Axiom South returns an itemized quote and ships to all 50 states.
Colors, sizes and specifications
Models
| Product | Description |
|---|---|
| MTWS | Mass timber washer strap |
| MTW | Mass timber angled washer |
| MTLD | Mass timber lifting device |
| MCB / MCBS | Mass timber column base / with standoff |
| MCT | Mass timber column tie |
| MPSC | Point-supported column connector |
| E | Angle bracket for cross-laminated timber |
| ACBH / CBH | Concealed beam hangers |
| DGT / DGHT | Top-flange fire wall hangers |

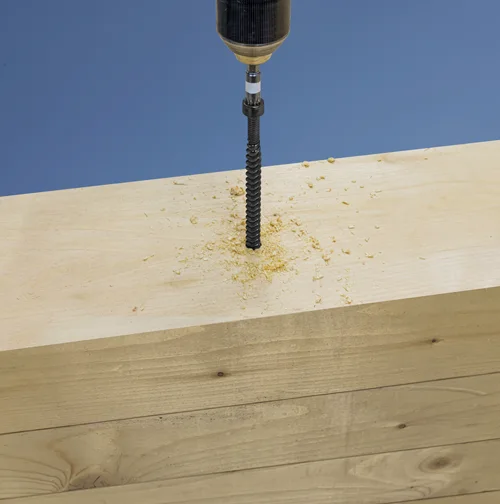

| SDCFC Timber-CF | Strong-Drive screws for mass timber |
| Timber-SET | Structural epoxy anchoring adhesive (glued-in rods) |
Features
- Design flexibility
- Broad selection
- Wide availability
- Easy to specify
Best for
- Mass timber and CLT construction

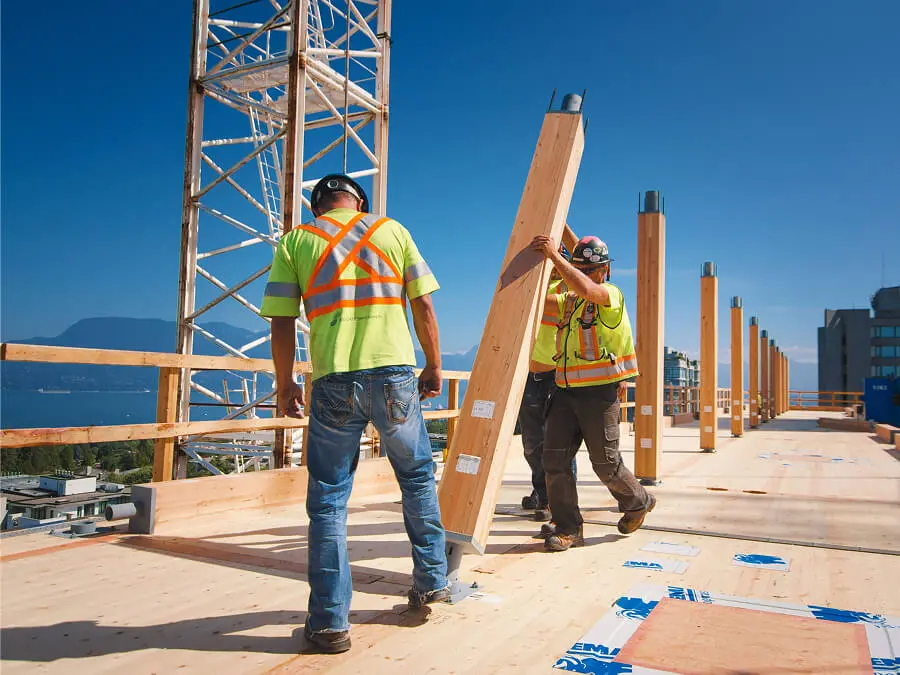

Heavy Timber & Mass Timber Connectors photos
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Request a quote for Heavy Timber & Mass Timber Connectors
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
