DoorKing eVolve 2170 Slide Gate Operator
The DKS eVolve 2170 is a brushless DC, chain-driven slide gate operator for residential and commercial vehicular gates up to 40 ft long.
About DoorKing eVolve 2170 Slide Gate Operator

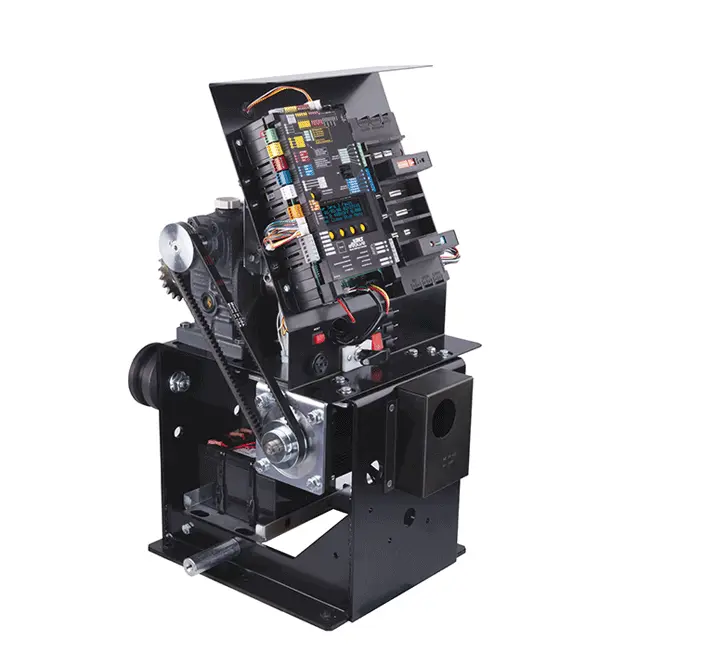

DoorKing's eVolve 2170 slide gate operator pairs a brushless DC motor with a chain drive and a 30:1 belt-driven gear reduction. It is rated Class I through IV, runs gates up to 40 ft long at up to 12 in/sec, and operates on selectable 115 or 230 VAC single-phase power with two built-in 7 Ah backup batteries.
Four models let you choose motor size and manual release. The 2170-380 and 2170-382 use a 500 W (1/2 HP) motor for gates up to 2,300 lb; the 2170-381 and 2170-383 use a 750 W (1 HP) motor for gates up to 3,500 lb. The 380 and 381 have an internal gearbox release, while the 382 and 383 use an external chain-drop release. Onboard LCD programming, USB configuration backup, diagnostics and event logging come standard. The manufacturer provides a 5-year limited warranty, excluding batteries.
Monitored Type B1 and/or B2 entrapment protection is required, and a heater kit is required in freezing temperatures. To quote, send gate length, weight, release preference, voltage and accessories.
Colors, sizes and specifications
Models
- 2170-380 / 382: 500W (1/2 HP), 2,300 lb max gate weight, 5A/3A
- 2170-381 / 383: 750W (1 HP), 3,500 lb max gate weight, 7A/4A
- 380/381 use an internal gearbox release; 382/383 use an external chain-drop release
Features
- Onboard LCD programming and USB configuration backup/restore
- Built-in diagnostics and event logging
- Manually adjustable limit switches with LED confirmation
- Removable housing cover for service access
- Galvanized steel chassis with powder-coat finish
- Plug-in accessory hub modules
- Built-in battery backup and solar-ready power options
Specifications
| Max gate length | 40 ft |
|---|---|
| Max gate speed | 12 in/sec |
| Input power | 115 or 230 VAC single phase |

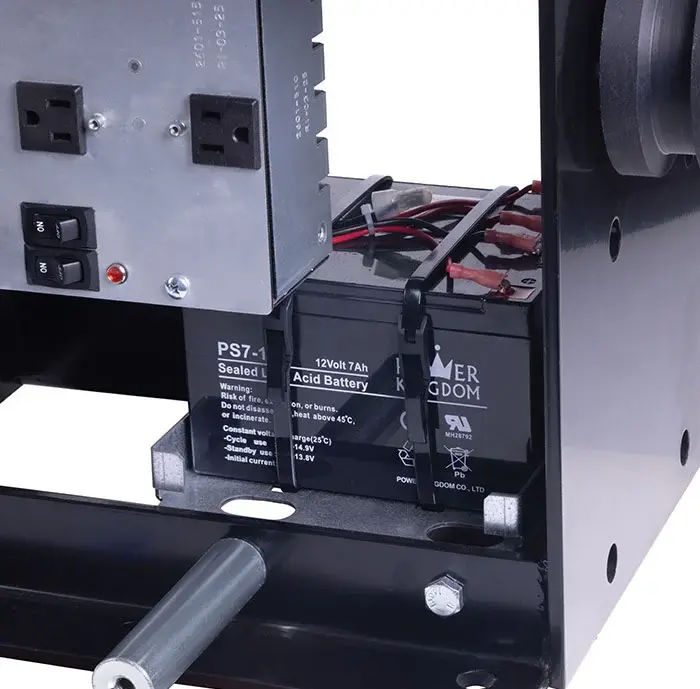

| Battery backup | Two 7Ah batteries |
| Temperature | -10F to 158F (-40F with heater kit) |
| Dimensions | 28" H x 17.7" W x 19" D |
| Shipping weight | About 145-170 lb |
Accessories and works with
- Plug-in loop detectors, reversing edge and RF receiver (2100 Accessory Hub)
- External entrapment protection devices (required)
- Heater kit
- Surge suppression
- Control stations
- Lock boxes
- Slide gate accessories and V-wheels
Best for
- Small multi-family residential
- Apartments and residence halls
- Gated communities
- Mixed-use buildings
- Commercial and industrial sites
- Self-storage
- Parking facilities
Installation notes
- Entrapment protection must be monitored Type B1 and/or B2 devices for UL 325 compliance.
- Heater kit is required for freezing temperatures to protect batteries.
- Gate travel is set mechanically with limit nuts and lock-plates.
Warranty
5-year limited warranty; excludes batteries.
Good to know
Monitored external entrapment protection devices are required for UL 325 compliance and are ordered separately.
