DoorKing Readers, Credentials & AVI
DoorKing readers, credentials and AVI systems include proximity and ProxPlus secure readers, cards, key fobs and tags, and long-range vehicle readers for gated access control.
About DoorKing Readers, Credentials & AVI
Card and tag access is a common step up from keypads at apartment, HOA and commercial gates. DoorKing readers are weatherproof and come in mullion, wall and post-mount styles with relay, Wiegand or RS-485 output. Standard proximity readers run at 125 kHz with read ranges of 2 to 4 in.
For higher security, ProxPlus cards carry a unique encrypted identifier that is difficult to duplicate, and ProxPlus secure readers output 26-bit Wiegand at 13.56 MHz with about a 1 in read range, connecting to a DKS 1830 series access controller. The M Series reader works with MIFARE Classic 4 or 7-byte cards. For vehicles, AVI long-range readers and tags adjust from 8 to 25 ft and include a reader control box. Credentials include cards, key fobs, ProxMitters, ISO graphic cards and adhesive tags.
To quote, tell us the controller you have or plan to use, reader mounting style, credential type and quantity, and whether you need vehicle AVI.
Colors, sizes and specifications
Models
- Prox and ProxPlus Cards

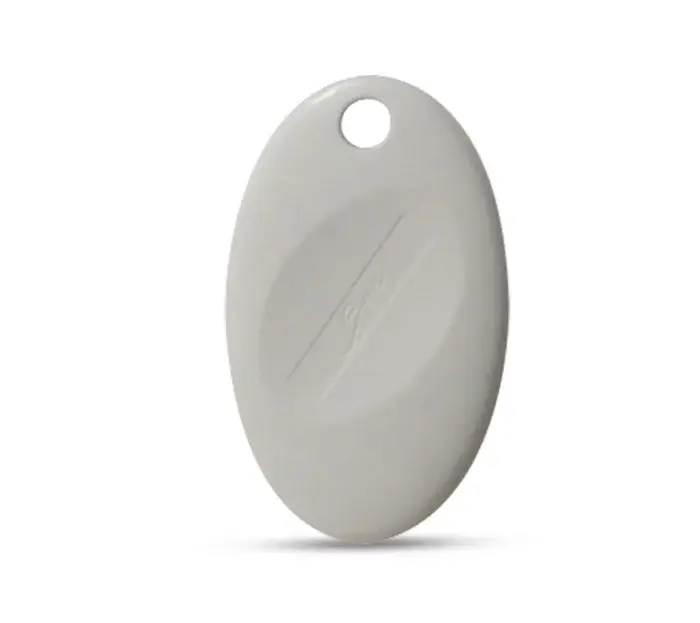

- Prox and ProxPlus Key Fobs
- Tags
Features
- ProxPlus secure cards carry a unique encrypted identifier that is difficult to duplicate
- Secure readers output 26-bit Wiegand, 13.56 MHz, read range about 1 in
- Standard proximity readers at 125 kHz with read ranges from 2 to 4 in
- Credential types include cards, key fobs, ProxMitters, ISO graphic cards and adhesive tags
- AVI long-range readers and tags adjustable from 8 to 25 ft, with reader control box
- M Series reader (1815-680 / 1815-681) compatible with MIFARE Classic 4 or 7-byte cards
Specifications
| Secure reader format | 26-bit Wiegand output, 13.56 MHz |
|---|---|
| Standard proximity frequency | 125 kHz |
| Stand-alone readers | 1520-086, 1520-087 |
| Controller | ProxPlus readers connect to a DKS 1830 series access controller |
Accessories and works with
- DK Prox DOT
- MicroPLUS and MicroCLIK accessories
- Vehicle AVI
- DK Card Identifier and Software
