VistaClad
Eva-Last VistaClad is a bamboo composite cladding system with concealed clip-strip fixing, supplied for homes, offices and larger commercial facades.
About VistaClad
VistaClad is built around a clip strip. Tongue-and-groove bamboo composite boards click onto a dual spring-loaded strip, so nothing fastens through the board face, and the strip locks boards in place for wind resistance. Aluminum trim profiles and nylon adaptors finish the edges and corners, and the system installs vertically or horizontally over a ventilated cavity.
Two board families are available. Apex is a bamboo foamed-PVC board with a sculpted grain and a 50-year warranty, in Himalayan Cedar, Brazilian Teak, Carbonised Osage, Alaskan Driftwood, Siberian Bark and Charred Cedar, plus special-order colors. Infinity is a capped bamboo PE composite with a brushed finish and a 30-year warranty, in Oasis Palm, Caribbean Coral, Tiger Cove and Concrete Grey. Apex comes in flat, two-groove and narrow profiles; all sizes share the same clip strip.
To quote VistaClad, provide wall area, board family, profile, color, orientation, and counts of inside corners, outside corners and edge terminations.
Colors, sizes and specifications
Colors and finishes
- Apex (brushed): Himalayan Cedar, Brazilian Teak, Carbonised Osage, Alaskan Driftwood, Siberian Bark, Charred Cedar
- Apex special order: Swedish Oak, Western Red Cedar, Cloud Grey, Grey Slate
- Infinity: Caribbean Coral, Oasis Palm, Concrete Grey, Tiger Cove
Models
- Apex profile: capped bamboo-PVC, dual-color finish, vertical or horizontal
- Infinity profile: co-extruded capped bamboo PE, streaked color finish
Features
- Clip-lock boards resist strong winds
- Concealed fastening and trim
- Lightweight with better airflow and natural insulation
- Resists decay, corrosion, insects, UV and harsh weather
- Suited to large projects and work at height
Specifications
| Clip strip | Punched spring design in three epoxy-coated zinc-galvanised profile options for ventilation and drainage |
|---|---|
| Apex warranty | 50 years |
| Infinity warranty | 30 years |
Accessories and works with
- Clip strips
- Adapters and trim profiles
Best for
- Homes and offices
- Large-scale and high-level projects
Installation notes
- Hidden clip-strip fixing avoids fasteners through the composite.
- Installation guide is linked from the Eva-Last Information Center.
Warranty
Apex 50 years; Infinity 30 years.
Good to know
Swedish Oak, Western Red Cedar, Cloud Grey and Grey Slate (Apex) are special order colors.

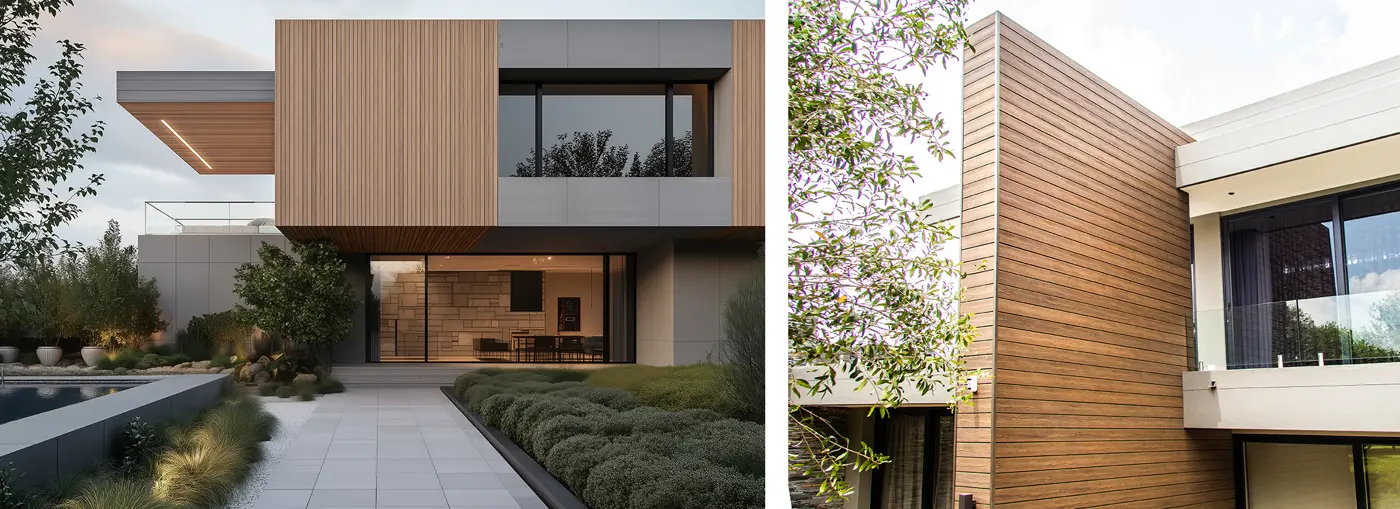

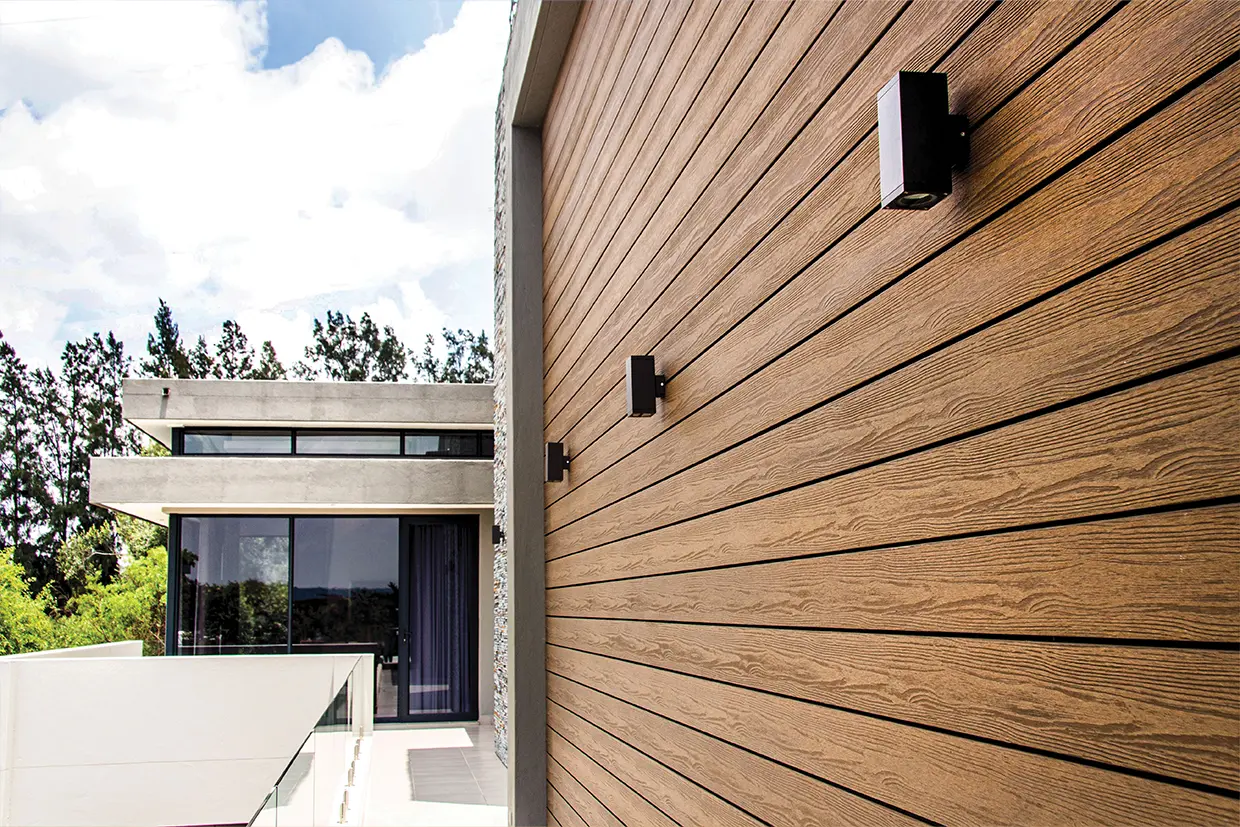

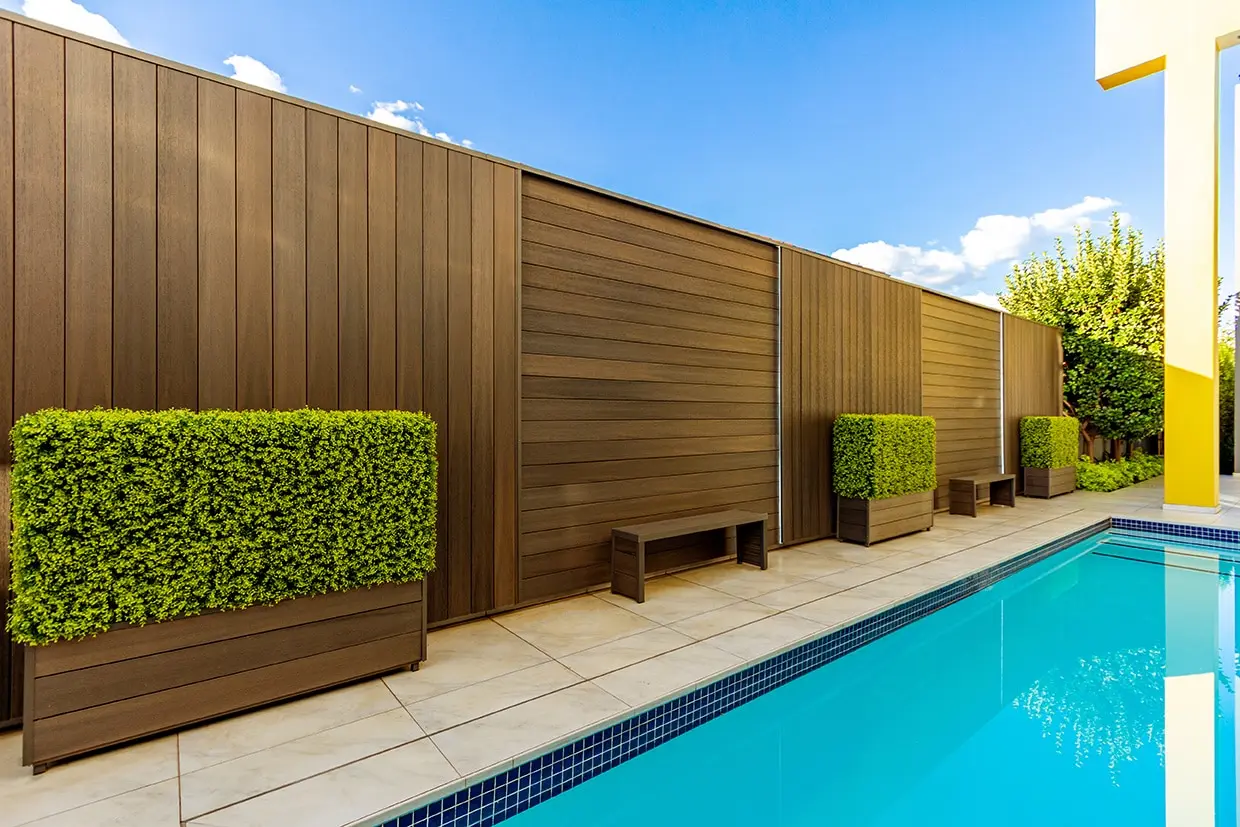

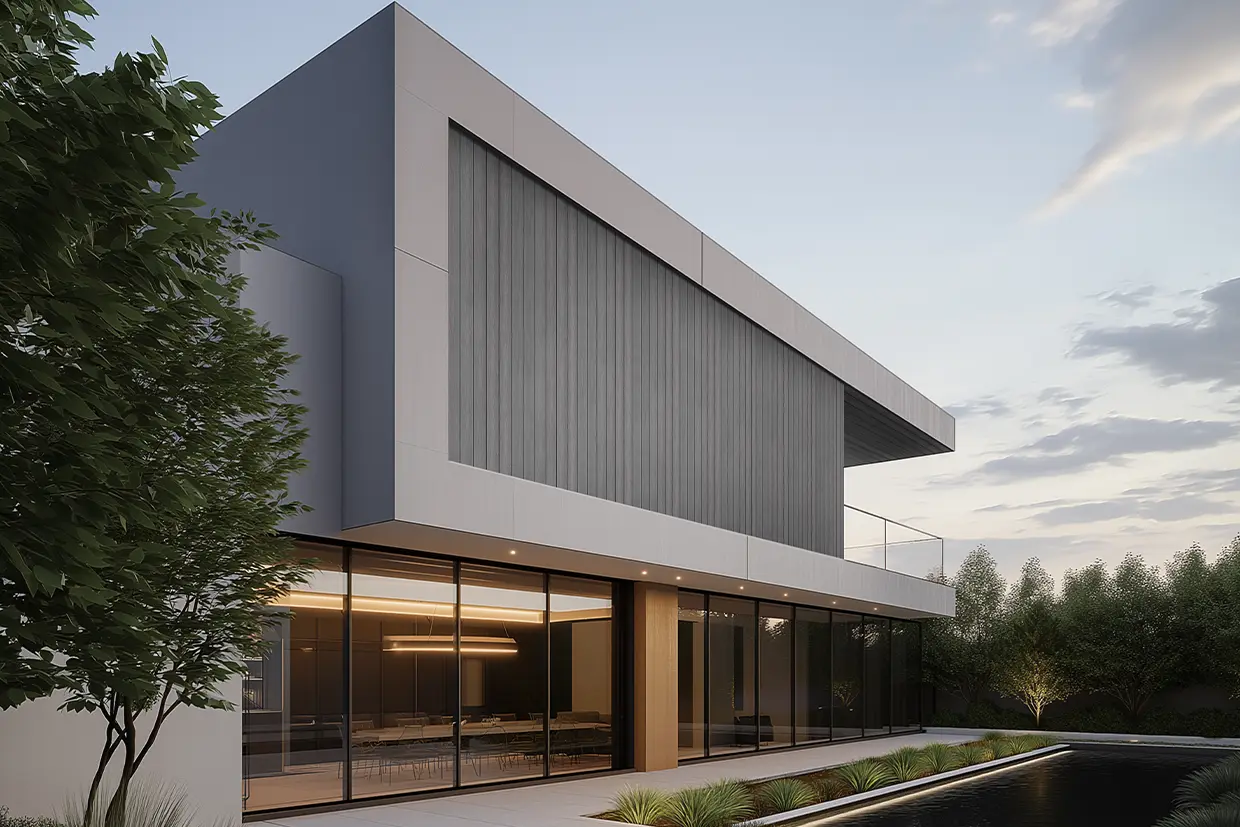

VistaClad photos
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Request a quote for VistaClad
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
