Viking Slide Gate Operators
Viking H10, L3 and K2 SPS slide gate operators use DC motors and true battery backup for residential and commercial sliding gates up to 2,200 lbs and 75 ft.
About Viking Slide Gate Operators
Viking Slide Gate Operators are DC-motor slide gate openers rated by maximum gate weight and length. The H10-SPS handles up to 2,200 lbs and 75 ft, the L3-SPS up to 1,600 lbs and 60 ft, and both are for residential and commercial use. The K2-SPS covers up to 700 lbs and 30 ft and is residential only, listed as UL Class 1.

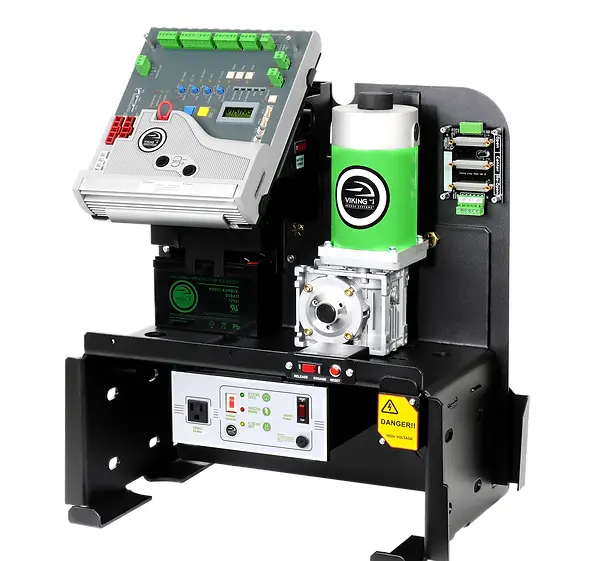

All three move the gate at 12 in per second and operate from -20 F to 160 F. The Smart Positioning System (SPS) detects gate position regardless of power status and keeps limits after manual operation. Other features include true battery backup, the V-Flex control board with an LCD diagnostic display, built-in heaters on the L-3 and K-2, and in-unit lightning and surge protection rated 10,000 A / 20,000 V. The H-10 and L-3 have a removable power supply box with a low-voltage option.
Viking operators carry the Viking/FAAC limited warranty. For a quote, send gate weight, length, power and accessories.
Colors, sizes and specifications
Models
- H10-SPS (2,200 lbs / 75 ft, 1 HP AC equivalent)
- L3-SPS (1,600 lbs / 60 ft, 1/2 HP equivalent)
- K2-SPS (700 lbs / 30 ft, 1/3 HP equivalent, residential)
Features
- Built-in heater (L-3, K-2)
- DC motors
- True battery backup
- V-Flex control board with LCD diagnostic display
Specifications
| Operating speed | 12 in per second (H-10, L-3, K-2) |
|---|---|
| Operating temperature | -20 F to 160 F |
| Smart Positioning System (SPS) | Gate position detection regardless of power status; limits retained after manual operation; new slide operators built with SPS from January 2, 2023 |
| UL class | K-2: Class 1 residential only |
| Strike protection | 10,000 A / 20,000 V in-unit lightning and surge protection |
| Power | H-10 and L-3: removable power supply box, 115V/230V (H-10) or 120V/240V (L-3), low-voltage option |
Warranty
Viking/FAAC International limited warranty: gate operators 3 years and Viking pad-mount gate operators 5 years from invoice date; control boards, accessories and other products 1-2 years (batteries max 2 years). See the warranty PDF in Documents.

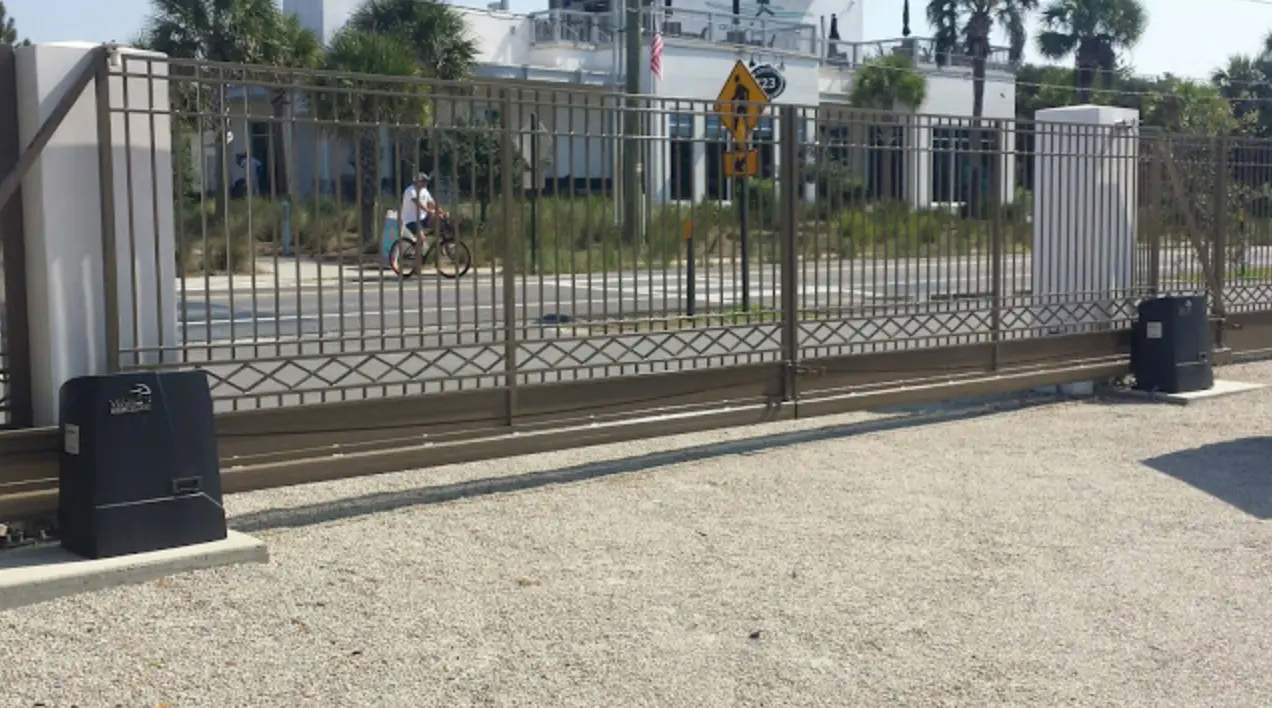

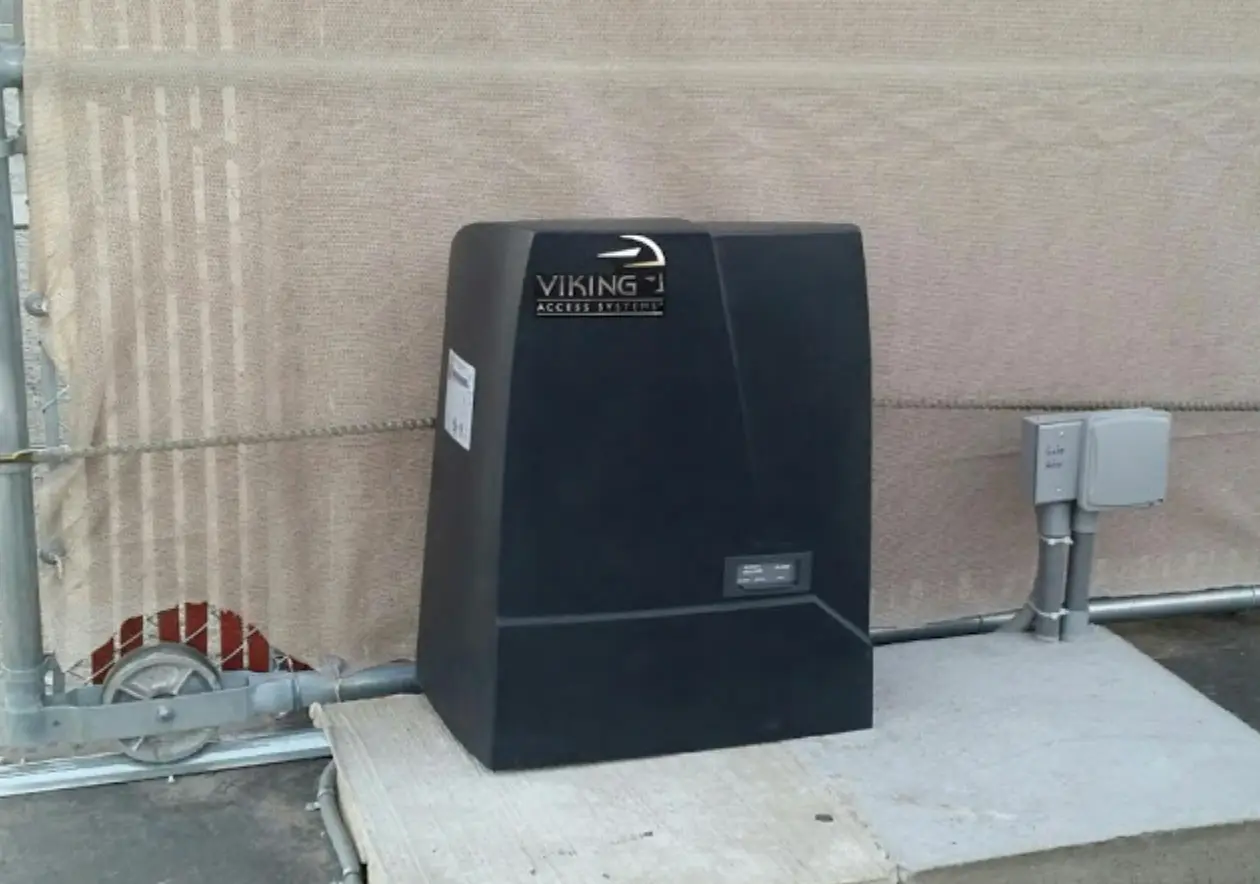

Viking Slide Gate Operators photos
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Request a quote for Viking Slide Gate Operators
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
