Viking Swing Gate Operators
Viking swing gate operators, including the T21, F1, G5, X390, R6 and E4, use DC motors and true battery backup for residential and commercial swing gates.
About Viking Swing Gate Operators
Viking Swing Gate Operators cover a wide range of gate sizes with DC motors and true battery backup, where the batteries sit unused during normal operation. The T21 handles 2,000 lbs at 12 ft or 1,200 lbs at 20 ft, the F1 1,500 lbs at 12 ft or 1,000 lbs at 16 ft, and the G5 2,000 lbs at 10 ft or 800 lbs at 18 ft. The X390 covers 600 lbs at 14 ft. Those four are rated for residential and commercial use, while the R6 (700 lbs at 14 ft) and E4 (850 lbs at 10 ft or 550 lbs at 16 ft) are residential.
The T-21 and F-1 use a 1/4 in steel chassis with multi-layer corrosion protection. The G-5 and X-390 are rated for 100% continuous duty. Every model uses the V-Flex control board with an LCD diagnostic display, works with Viking Konnect and Monitor, and has in-unit lightning and surge protection rated 10,000 A / 20,000 V.
Viking operators carry the Viking/FAAC limited warranty. For a quote, send leaf weight and length, single or dual, use type and power.
Colors, sizes and specifications
Models
- T21 (2,000 lbs / 12 ft or 1,200 lbs / 20 ft)
- F1 (1,500 lbs / 12 ft or 1,000 lbs / 16 ft)
- G5 (2,000 lbs / 10 ft or 800 lbs / 18 ft)
- R6 (700 lbs / 14 ft, residential)
- E4 (850 lbs / 10 ft or 550 lbs / 16 ft, residential)
- X390 (600 lbs / 14 ft)
Features
- 1/4 in steel chassis with multi-layer corrosion protection (T-21, F-1)
- Built-in heater (T-21, R-6)
- DC motors
- True battery backup (batteries unused during normal operation)

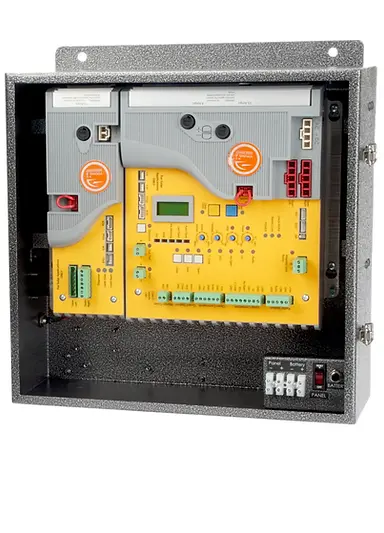

- V-Flex control board with LCD diagnostic display
- Viking Konnect and Viking Monitor technology
Specifications
| Operating temperature | -20 F to 160 F (X-390: -20 F to 131 F) |
|---|---|
| Operating speed | F-1 and R-6: 13-16 s per 90 deg; G-5: 15-18 s per 90 deg; X-390: 10-13 s per 90 deg |
| Duty cycle | G-5 and X-390: 100% continuous |
| Strike protection | 10,000 A / 20,000 V in-unit lightning and surge protection |
| UL class | R-6: Class 1 residential only; T-21: Class I, II, III and IV vehicular |

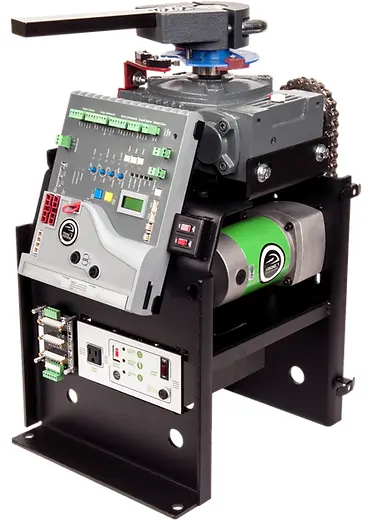

| Power | T-21: 120/240 VAC; F-1 and others: removable power supply box (115V/230V setup) with low-voltage option |
| Standard battery backup | T-21: 400 continuous cycles; X-390: 800 cycles |
Accessories and works with
- Photocells
- Transmitter & Receiver
Warranty
Viking/FAAC International limited warranty: gate operators 3 years and Viking pad-mount gate operators 5 years from invoice date; control boards, accessories and other products 1-2 years (batteries max 2 years). See the warranty PDF in Documents.
Documents
- Viking All In One Cutsheet (PDF)
- Viking limited warranty (FAAC International) (PDF)
- Spec sheet (PDF)
- User manual (PDF)
- Spec sheet 2 (PDF)
- User manual 2 (PDF)
- Spec sheet 3 (PDF)
- User manual 3 (PDF)
- Spec sheet 4 (PDF)
- User manual 4 (PDF)
- Spec sheet 5 (PDF)
- User manual 5 (PDF)
- X 390 spec sheet (PDF)
- X 390 user manual (PDF)

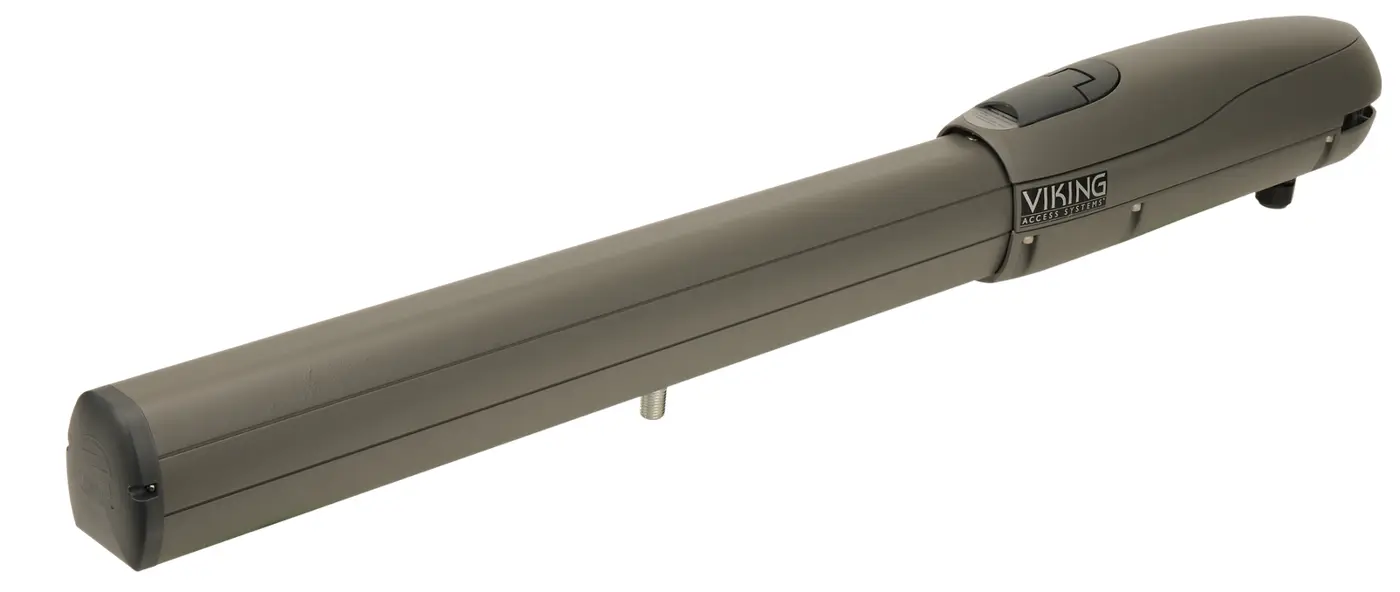

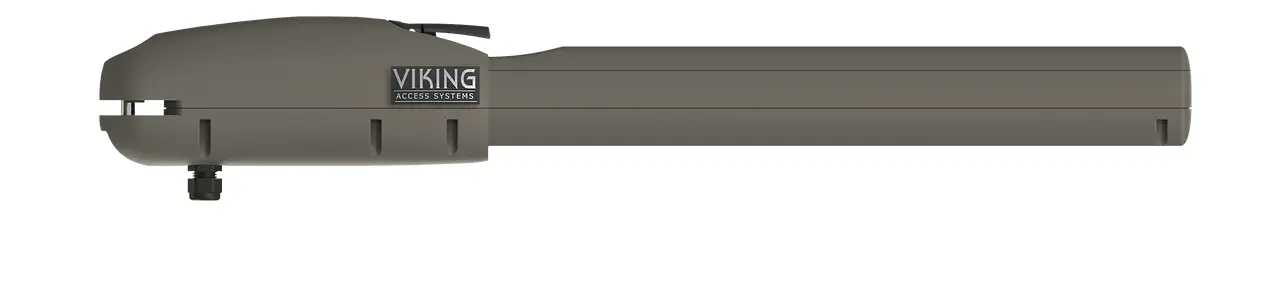

Viking Swing Gate Operators photos
