Viking Solar Gate Operators
Viking G5, R6 and K2 solar gate operators are DC-motor swing and slide openers designed to run on solar power for driveways and properties without convenient AC.
About Viking Solar Gate Operators
Viking Solar Gate Operators are built for gates where running power is impractical. The G5 Solar swing operator handles up to 1,000 lbs and 16 ft for residential and commercial use. The R6 Solar swing is residential, up to 700 lbs and 14 ft, and the K2 Solar slide is residential, up to 700 lbs and 30 ft.

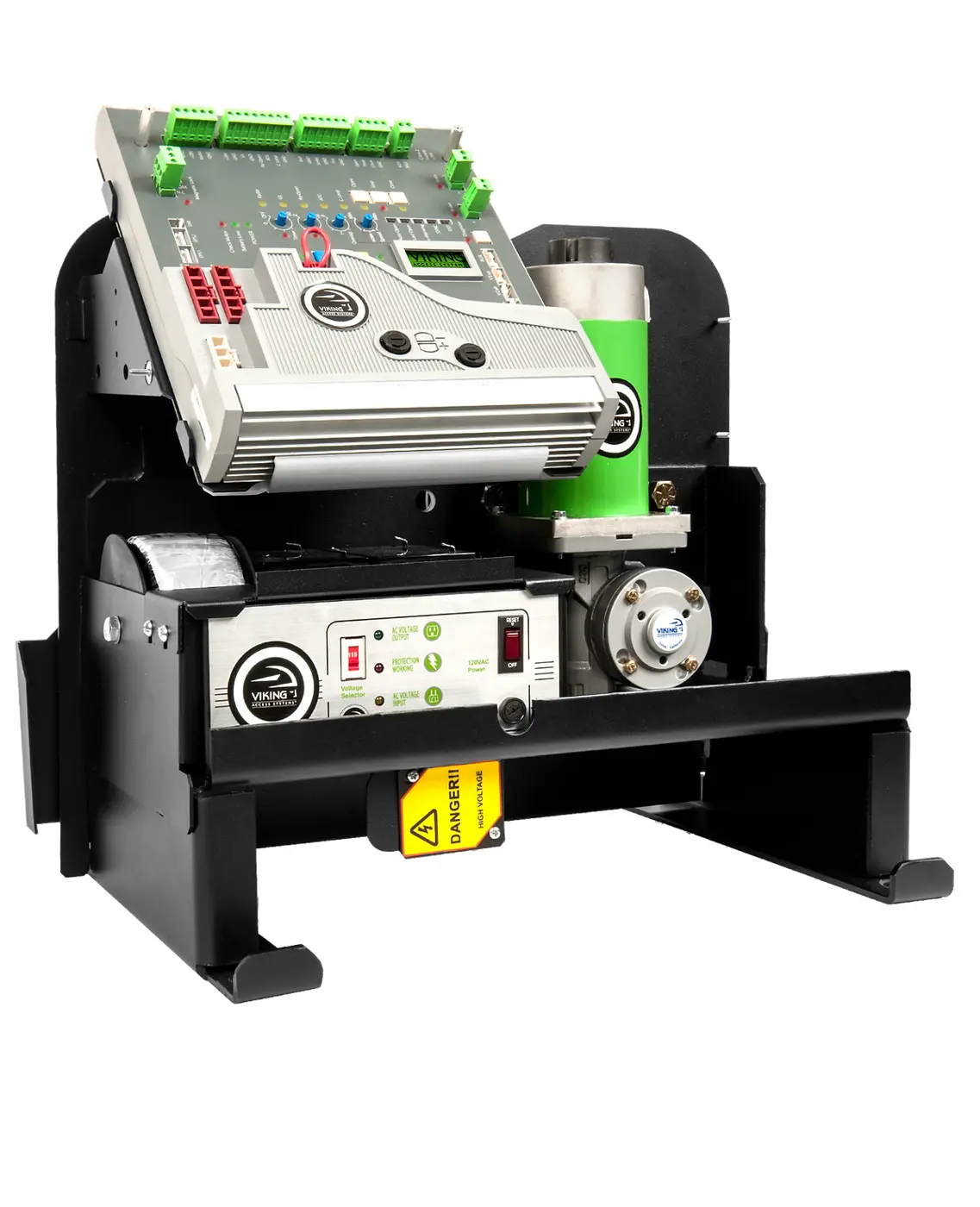

These solar gate openers run on a 12 VDC solar power supply. The G-5 Solar needs one 12V battery and one 12V solar panel and uses a 24 VDC motor, and the R-6 Solar chassis has room for a 35 Ah battery. Cycle speeds are 14 to 16 seconds per 90 degrees for the G-5, 13 to 16 seconds for the R-6 and 12 in per second for the K-2. Each unit has in-unit lightning and surge protection rated 10,000 A / 20,000 V.
Viking operators carry the Viking/FAAC limited warranty. For a quote, include gate type, weight, length and sun exposure at the site.
Colors, sizes and specifications
Models

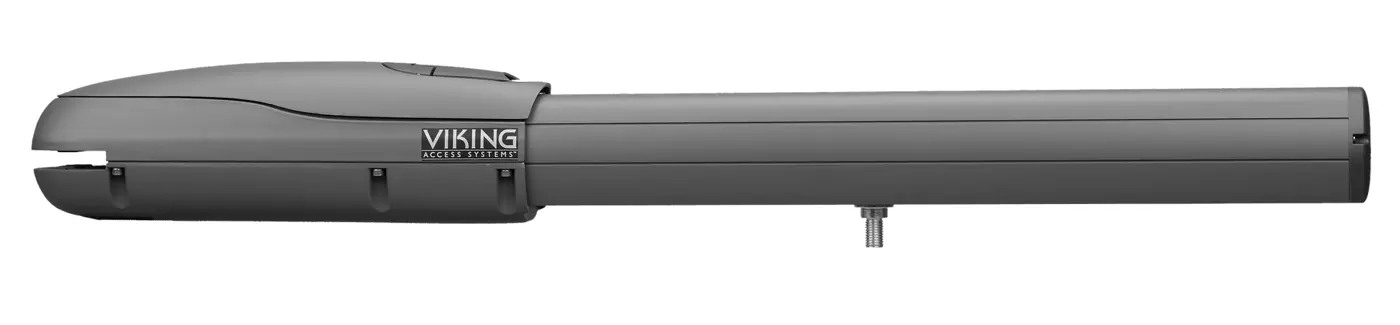

- G5 Solar Swing (1,000 lbs / 16 ft, residential and commercial)

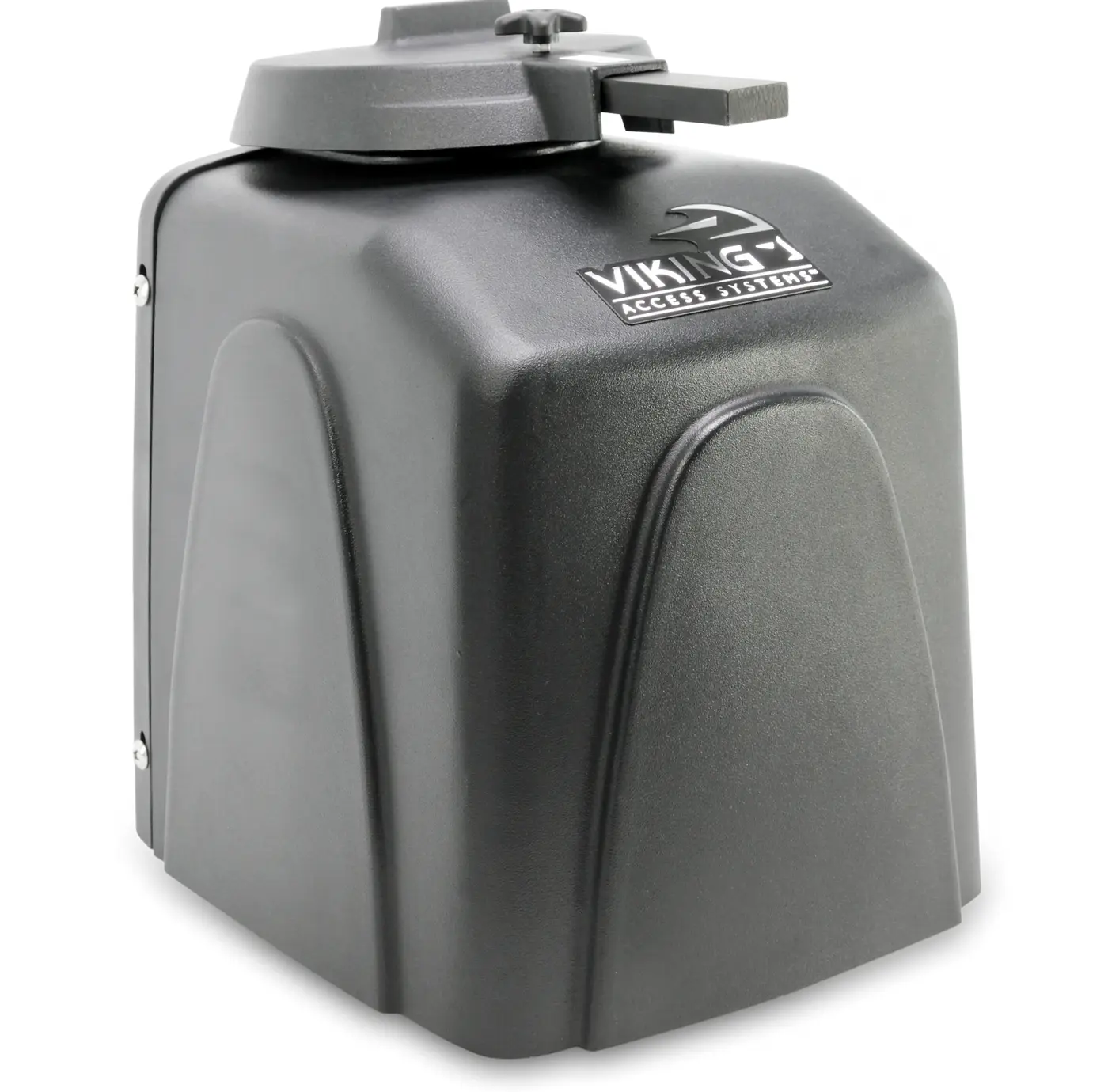

- K2 Solar (700 lbs / 30 ft, residential)
- R6 Solar Swing (700 lbs / 14 ft, residential)
Specifications
| Solar power supply | 12 VDC (G-5 Solar needs one 12V battery and one 12V solar panel; 24 VDC motor) |
|---|---|
| Operating speed | G-5 Solar: 14-16 s per 90 deg; R-6 Solar: 13-16 s per 90 deg; K-2 Solar: 12 in per second |
| Operating temperature | G-5 Solar: -20 F to 160 F; R-6 Solar and K-2 Solar: 0 F to 160 F |
| Strike protection | 10,000 A / 20,000 V in-unit lightning and surge protection |
| Battery space | R-6 Solar chassis fits a 35 Ah battery |
Warranty
Viking/FAAC International limited warranty: gate operators 3 years and Viking pad-mount gate operators 5 years from invoice date; control boards, accessories and other products 1-2 years (batteries max 2 years). See the warranty PDF in Documents.
Viking Solar Gate Operators photos
One product or the whole package
Order this on its own, with a few related products, or with everything else for the project. One itemized quote, shipped to all 50 states. Need someone to install it? Find an installer serving your area.
Request a quote for Viking Solar Gate Operators
Send plans, measurements, or photos and we will prepare an itemized quote. You can also call us with questions.
